Frigidaire
Warming Drawer

Model # FGWD3065PFB Official Frigidaire warming drawer

Here are the diagrams and repair parts for Official Frigidaire FGWD3065PFB warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

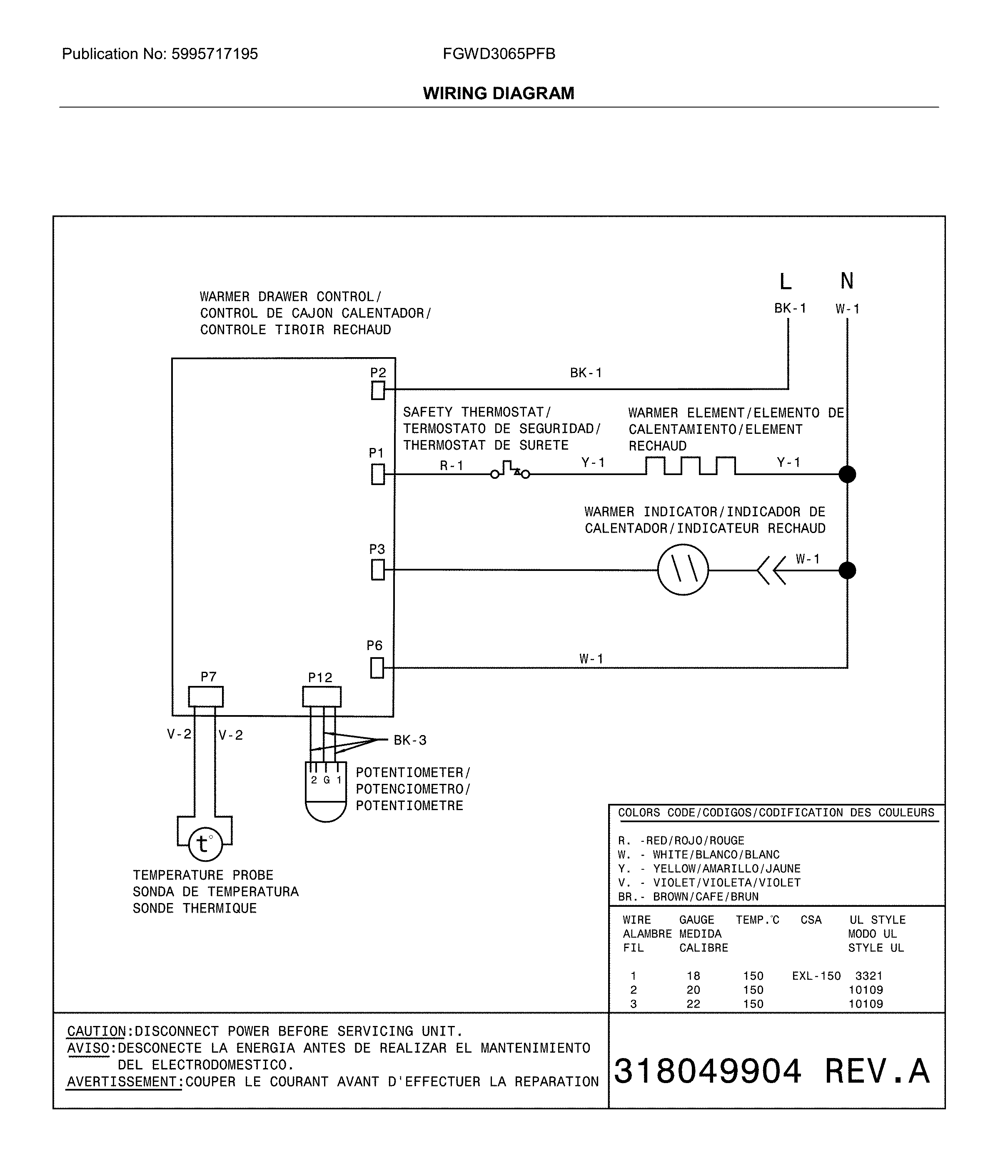

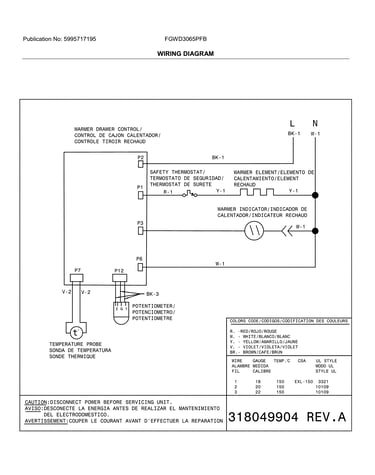

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Range Oven Temperature Sensor 318562500
#11

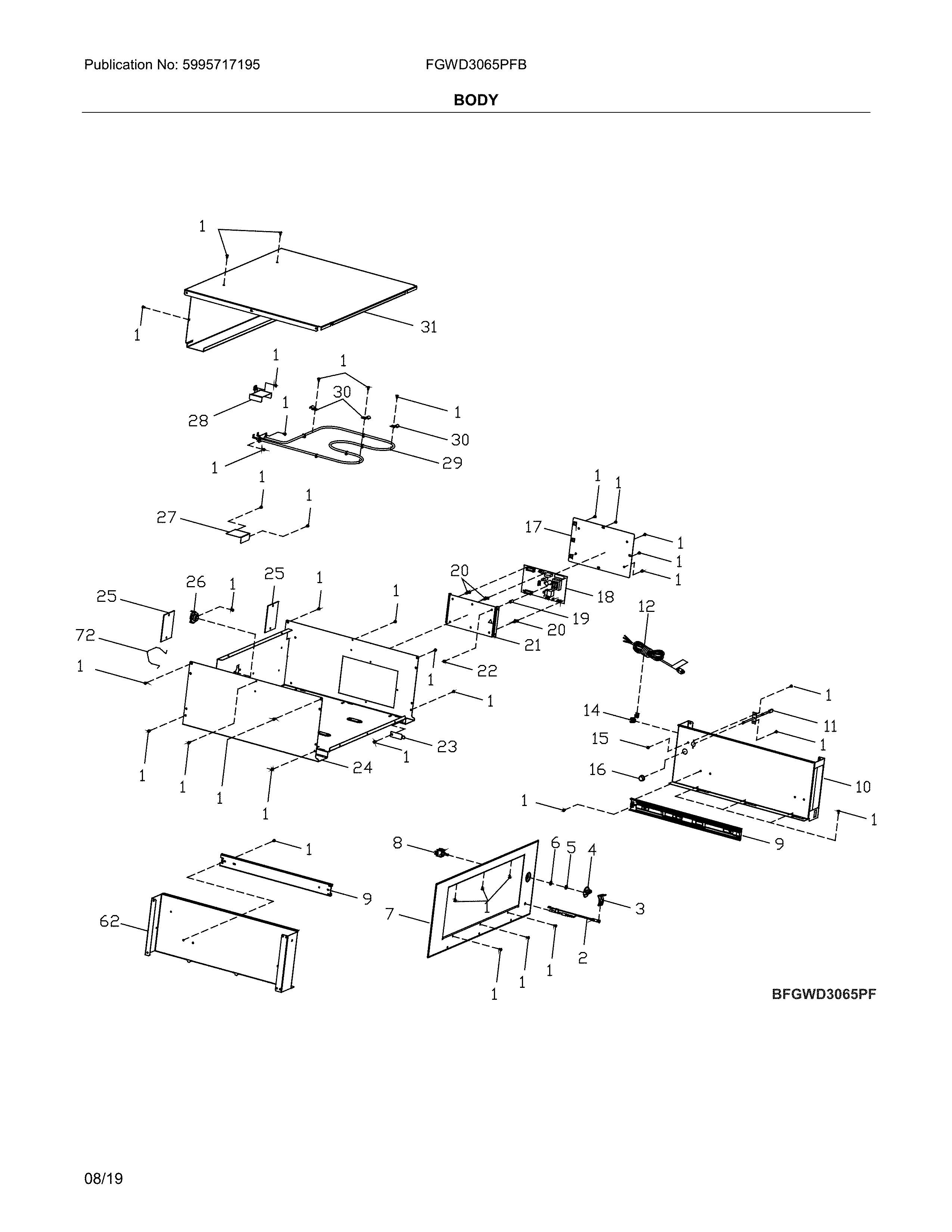

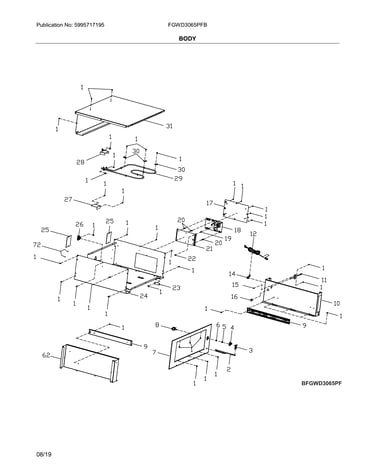

Body diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$31.56 |
16% OFF Phone Price : $37.56
In Stock
Range Lock Washer 316247800
#5

Body diagram

Range lock washer

Part #316247800

This item is not returnable
$16.77
In Stock
Range Nut 316247700
#6

Body diagram

Range nut

Part #316247700

This item is not returnable
$16.77
In Stock
Handle 316554005
#51

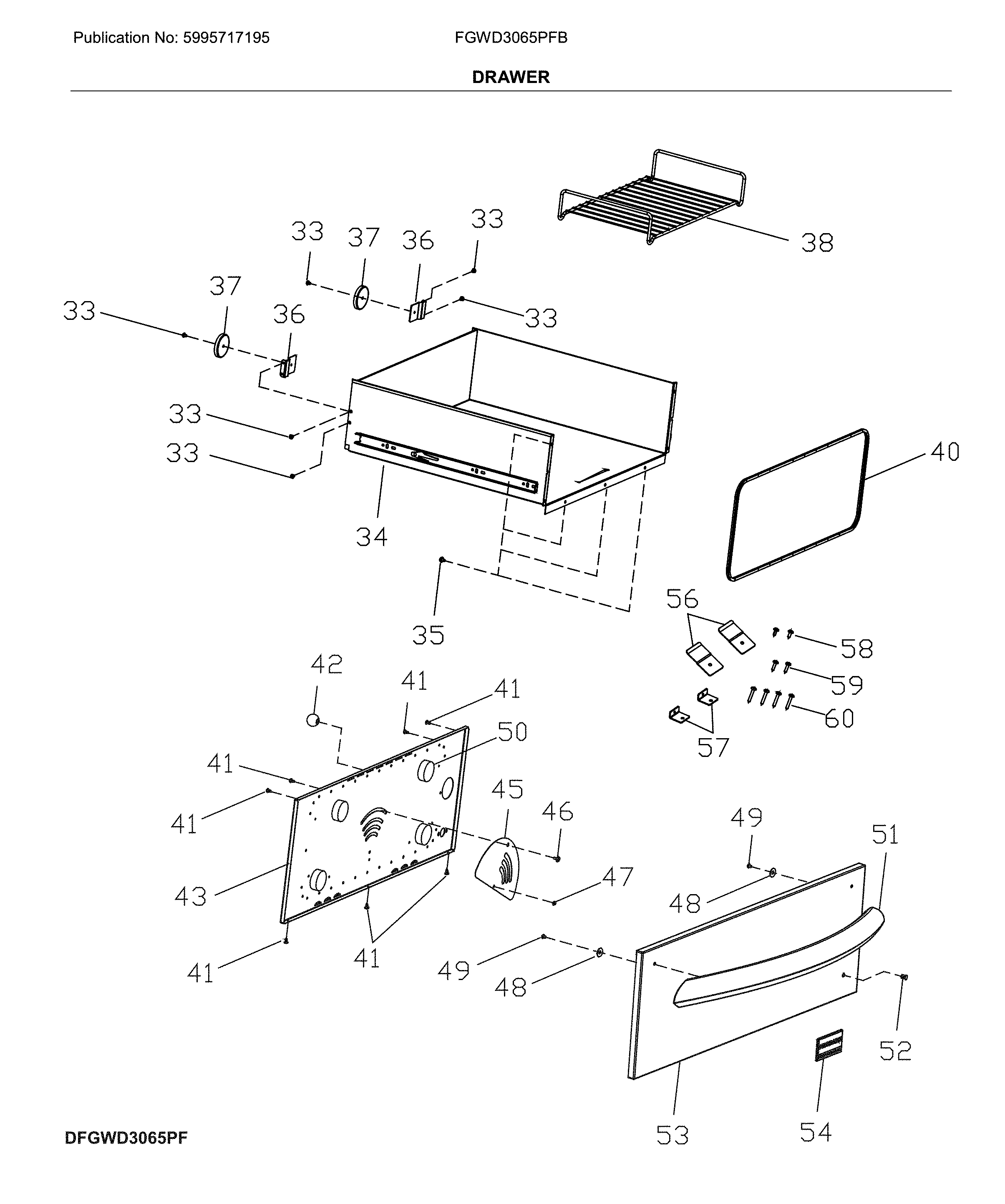

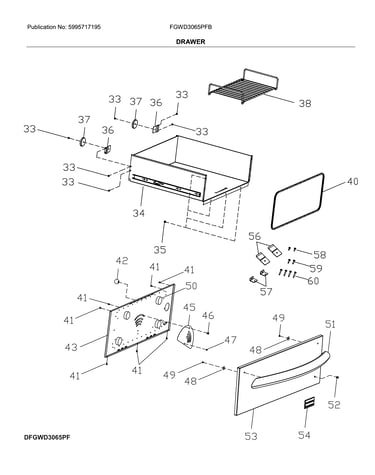

Drawer diagram

Handle

Part #316554005

Replaced by #316554010

?
Manufacturer substitution
This part replaces 316554005. Substitute parts can look different from the original.
$116.30 |
9% OFF Phone Price : $128.30
In Stock
Rack 318345601
#38

Drawer diagram

Rack

Part #318345601

Replaced by #807328301

?
Manufacturer substitution
This part replaces 318345601. Substitute parts can look different from the original.
$65.52 |
8% OFF Phone Price : $71.52
In Stock
Screw 305376109
#59

Drawer diagram

Screw

Part #305376109

This item is not returnable
$5.57
In Stock
Range Warming Drawer Element 318255301
#29

Body diagram

Range warming drawer element

Part #318255301

$84.76 |
7% OFF Phone Price : $90.76
In Stock
Bumper 318388000
#25

Body diagram

Bumper

Part #318388000

$12.49
In Stock
Screw 305309702
#1

Body diagram

Screw

Part #305309702

This item is not returnable
$4.17
In Stock
Range Warming Drawer Element Bracket 316095800
#30

Body diagram

Range warming drawer element bracket

Part #316095800

This item is not returnable
$11.66
In Stock
