Kenmore
Upright Freezer

Model # 7576435300 Official Kenmore freezer

Here are the diagrams and repair parts for Official Kenmore 7576435300 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Ring 11300
#8

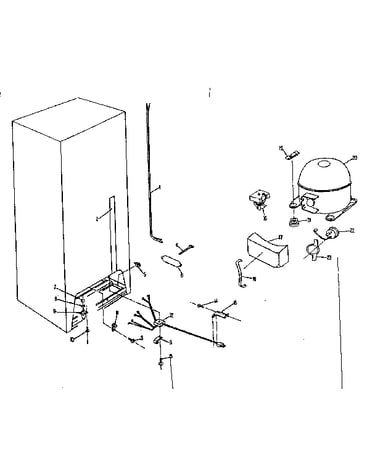

Unit diagram

Ring

Part #11300

The manufacturer no longer makes this part, and there's no substitute part

Shelf 10946-301
#25

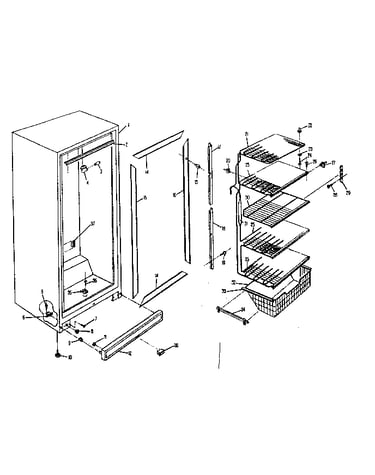

Cabinet diagram

Shelf

Part #10946-301

The manufacturer no longer makes this part, and there's no substitute part

Cover 6873-1
#13

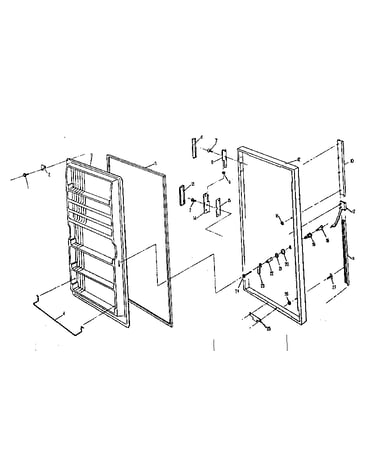

Door diagram

Cover

Part #6873-1

The manufacturer no longer makes this part, and there's no substitute part

Shelf 10938-301
#21

Cabinet diagram

Shelf

Part #10938-301

The manufacturer no longer makes this part, and there's no substitute part

Gasket 10929-42
#5

Door diagram

Gasket

Part #10929-42

The manufacturer no longer makes this part, and there's no substitute part

Ball 11301
#7

Unit diagram

Ball

Part #11301

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon 11568
#37

Cabinet diagram

Escutcheon

Part #11568

The manufacturer no longer makes this part, and there's no substitute part

Leveler 4512
#10

Cabinet diagram

Leveler

Part #4512

The manufacturer no longer makes this part, and there's no substitute part

Support 10440
#20

Cabinet diagram

Support

Part #10440

The manufacturer no longer makes this part, and there's no substitute part

Housing 10776
#9

Unit diagram

Housing

Part #10776

The manufacturer no longer makes this part, and there's no substitute part
