Model # 217585270 Official Craftsman 4-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 217585270 4-hp outboard motor, as well as links to manuals and error code tables, if available.

By Schematic

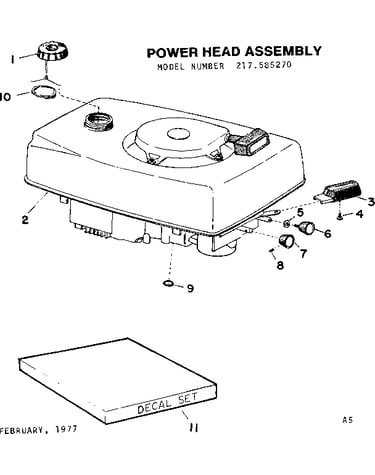

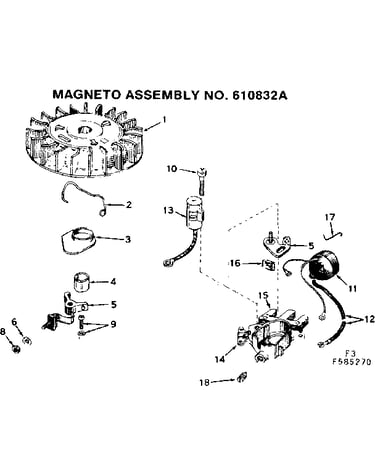

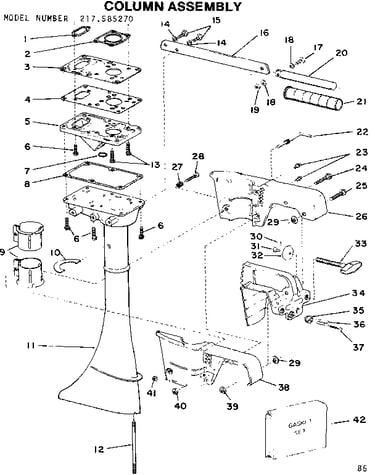

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
217585270 4-HP Outboard Motor
Gasket 631028
#25

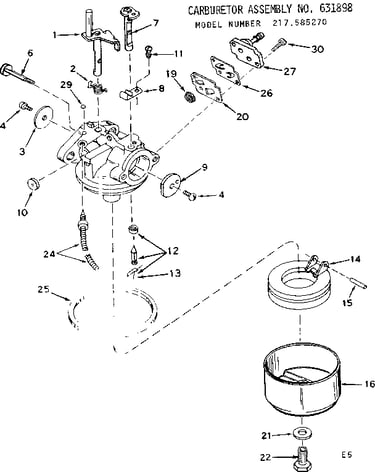

Carburetor assembly diagram

Gasket

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Float 631023
#14

Carburetor assembly diagram

Float

Part #631023

The manufacturer no longer makes this part, and there's no substitute part

Cover 610118
#43

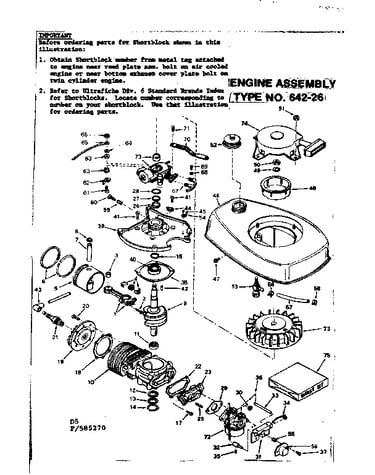

Engine assembly diagram

Cover

Part #610118

The manufacturer no longer makes this part, and there's no substitute part

Seal 510105
#26

Engine assembly diagram

Seal

Part #510105

The manufacturer no longer makes this part, and there's no substitute part

Spring 630766
#59

Engine assembly diagram

Spring

Part #630766

The manufacturer no longer makes this part, and there's no substitute part

Spring 590412
#5

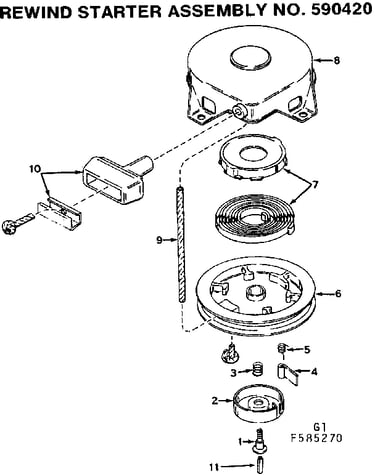

Rewind starter assembly diagram

Spring

Part #590412

The manufacturer no longer makes this part, and there's no substitute part

Preway Boat Motor Propeller Shaft Oil Seal 96014
#27

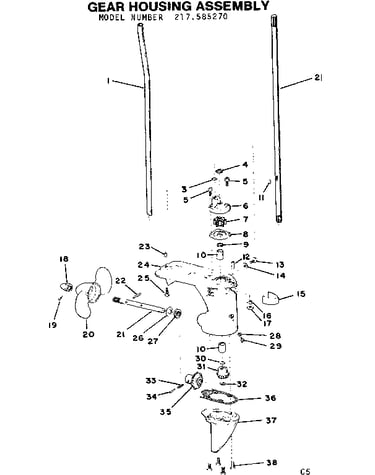

Gear housing assembly diagram

Preway boat motor propeller shaft oil seal

Part #96014

The manufacturer no longer makes this part, and there's no substitute part

Preway Boat Motor Oil Seal 96516
#4

Gear housing assembly diagram

Preway boat motor oil seal

Part #96516

The manufacturer no longer makes this part, and there's no substitute part

Preway Boat Motor Oil Seal 96009
#9

Gear housing assembly diagram

Preway boat motor oil seal

Part #96009

The manufacturer no longer makes this part, and there's no substitute part

Preway Boat Motor Propeller Nut 26011
#18

Gear housing assembly diagram

Preway boat motor propeller nut

Part #26011

The manufacturer no longer makes this part, and there's no substitute part
