Kenmore
Gas Range

Model # 79075750102 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 79075750102 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

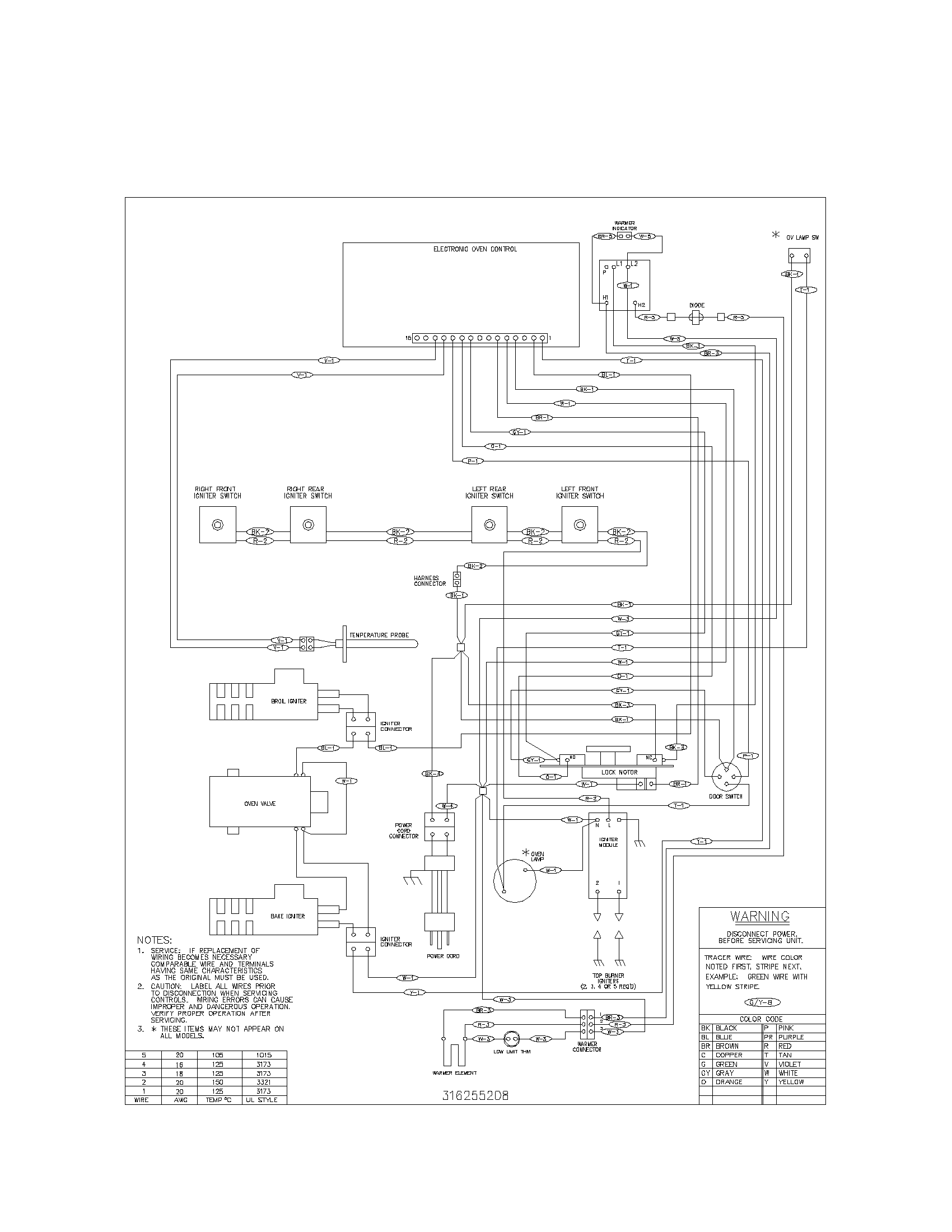

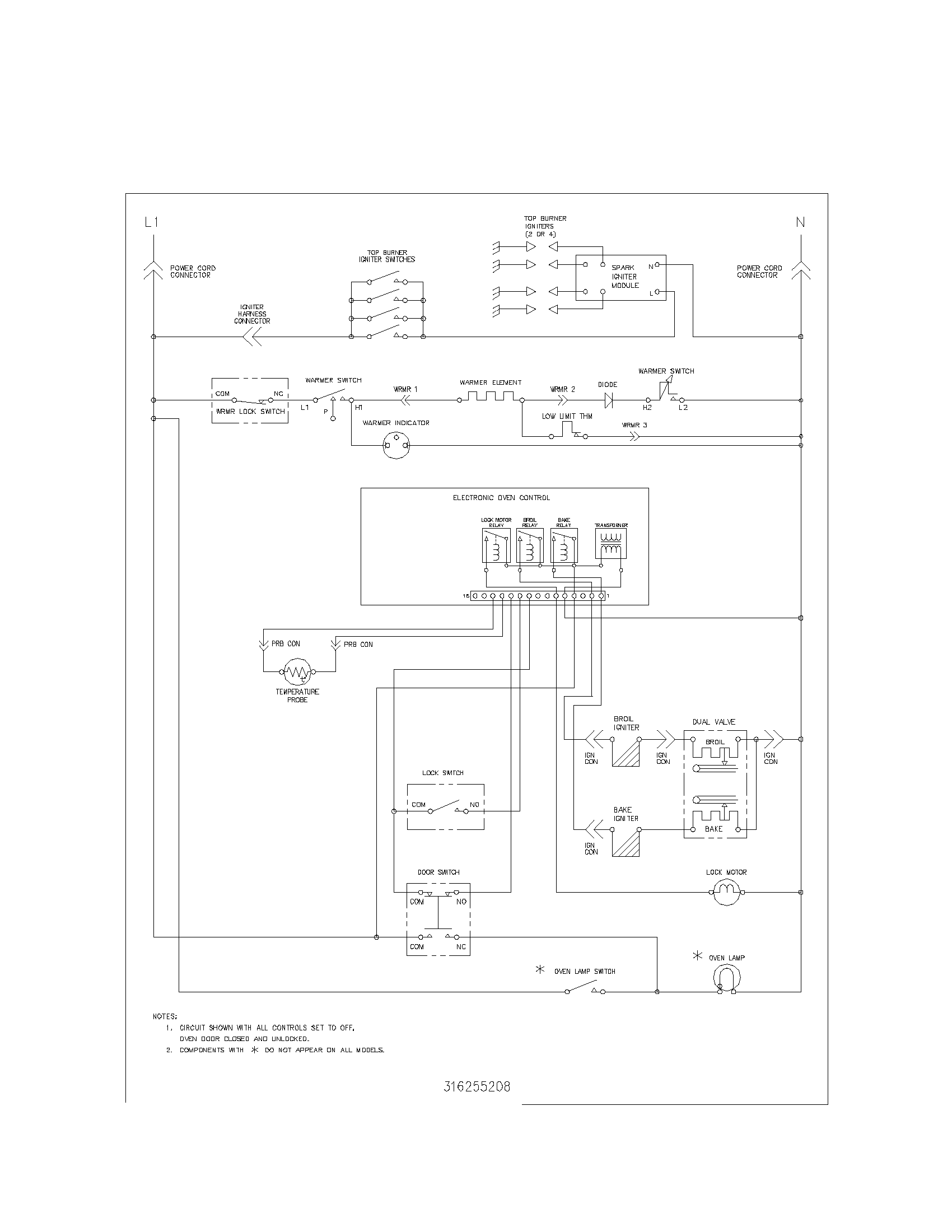

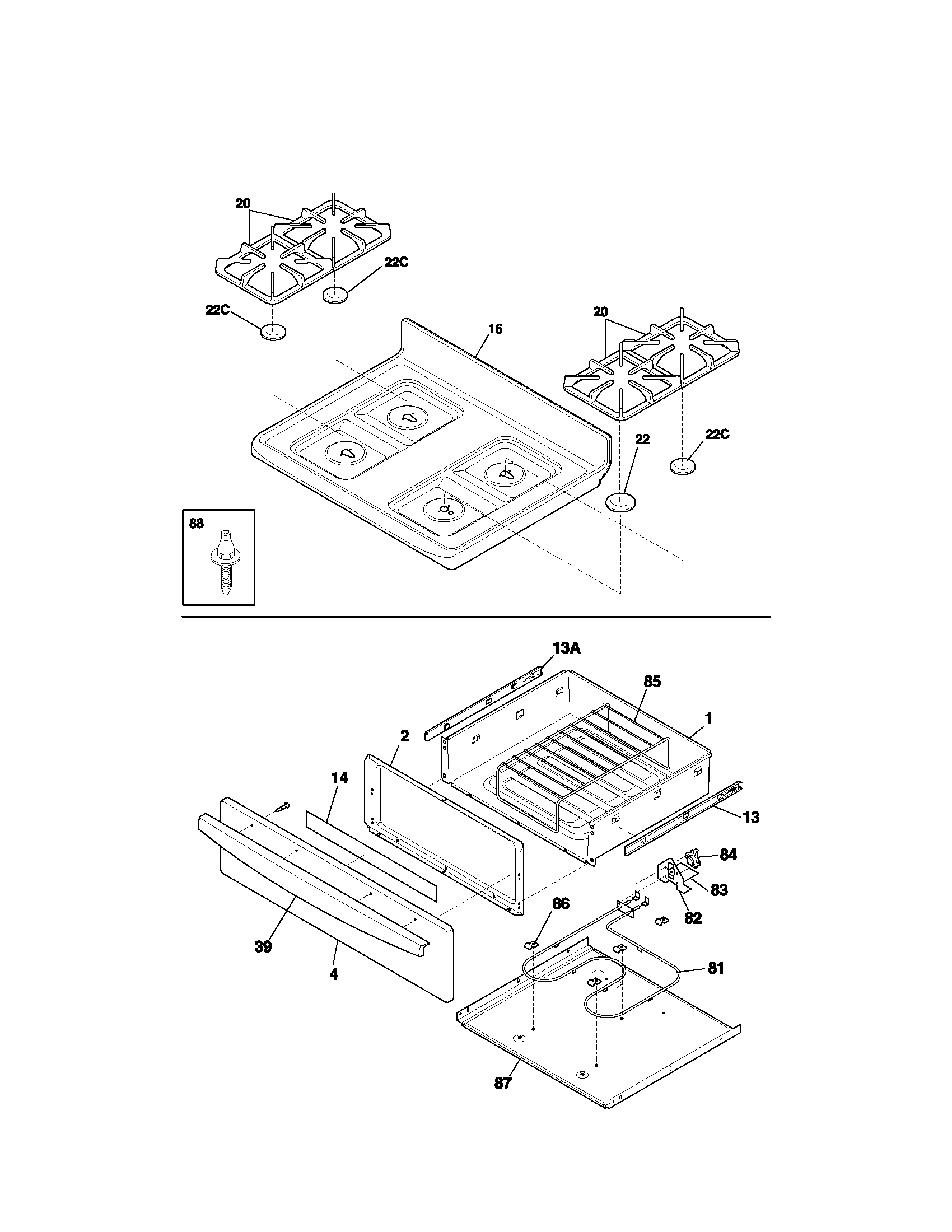

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 200 parts  |
Frigidaire Range Oven Burner Igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, Ap00205013, Ap205013, Ap205016, P205013, P205016, P205034) 5303935066
#19

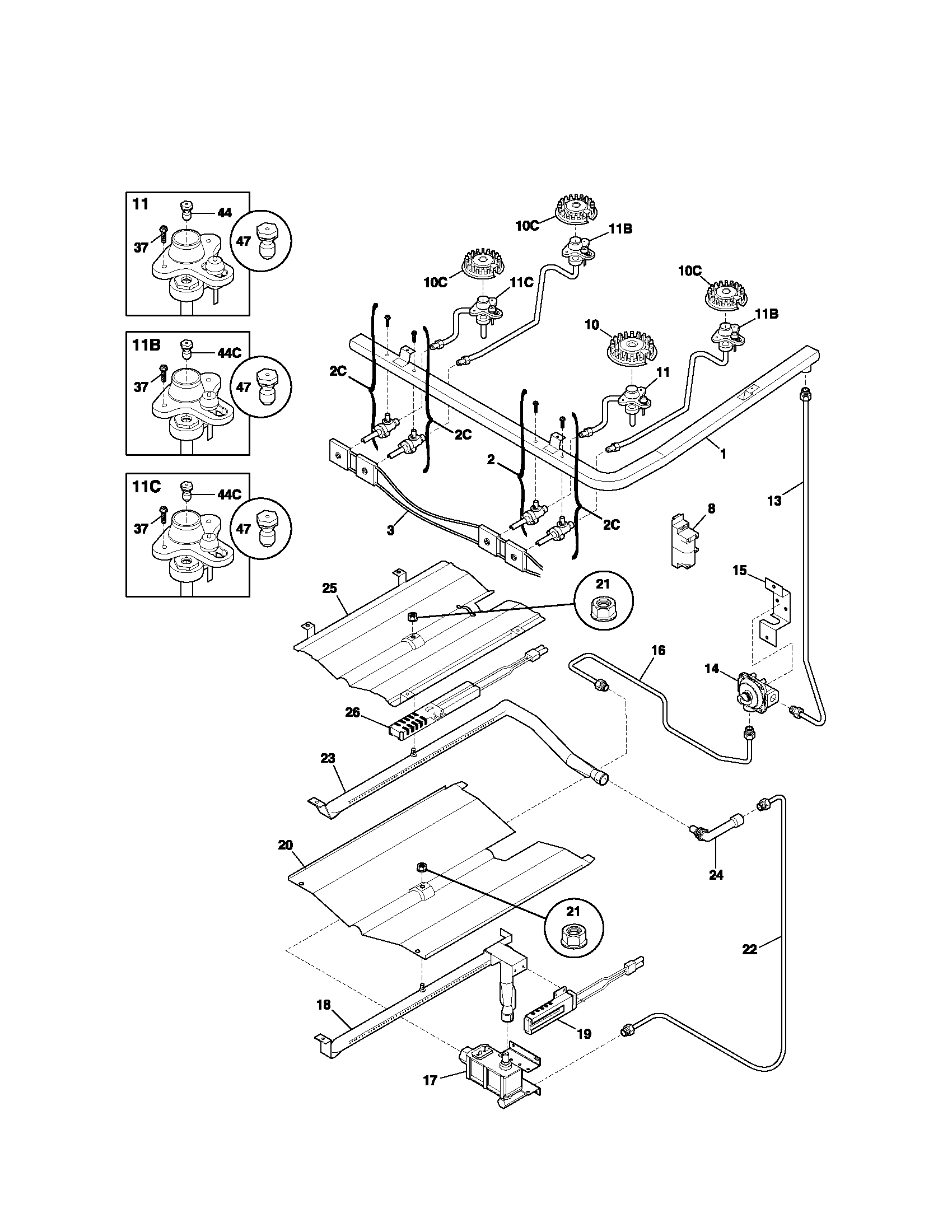

Burner diagram

Frigidaire range oven burner igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, ap00205013, ap205013, ap205016, p205013, p205016, p205034)

Part #5303935066

BEST SELLER
$28.33 |
17% OFF Phone Price : $34.33
In Stock
Range Oven Light Bulb 5303013071
#15

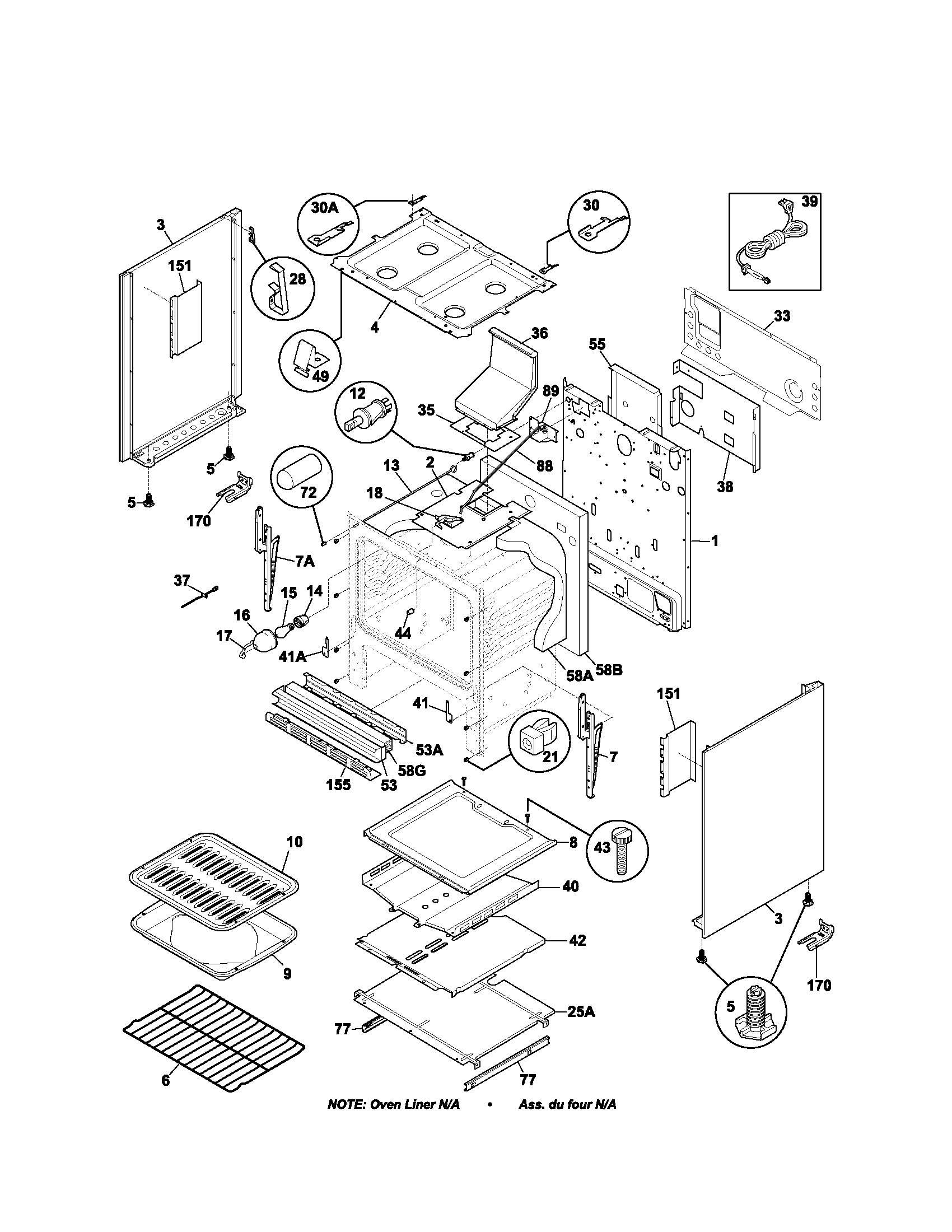

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Range Screw (replaces 5304472956, 7316240600) 316240600
#37

Burner diagram

Range screw (replaces 5304472956, 7316240600)

Part #316240600

BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Range Surface Burner Head (replaces 7316212400) 316212400
#10C

Burner diagram

Range surface burner head (replaces 7316212400)

Part #316212400

BEST SELLER
$30.40 |
16% OFF Phone Price : $36.40
In Stock
Range Control Overlay 316220818
#20A

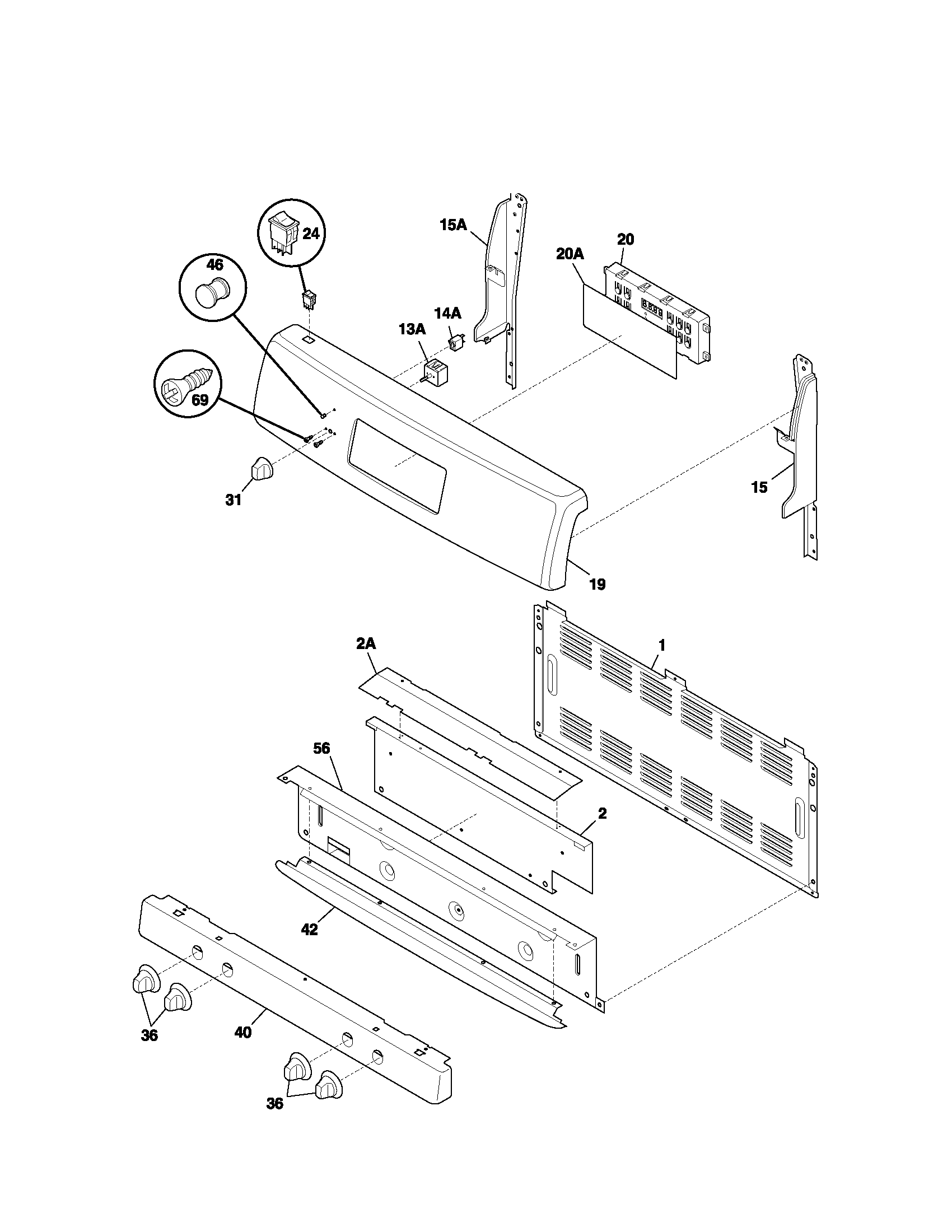

Backguard diagram

Range control overlay

Part #316220818

Replaced by #316220805

?
Manufacturer substitution
This part replaces 316220818. Substitute parts can look different from the original.
BEST SELLER
$58.21 |
9% OFF Phone Price : $64.21
In Stock
Range Washer (replaces 316136500, 7316008401) 316008401
#10B

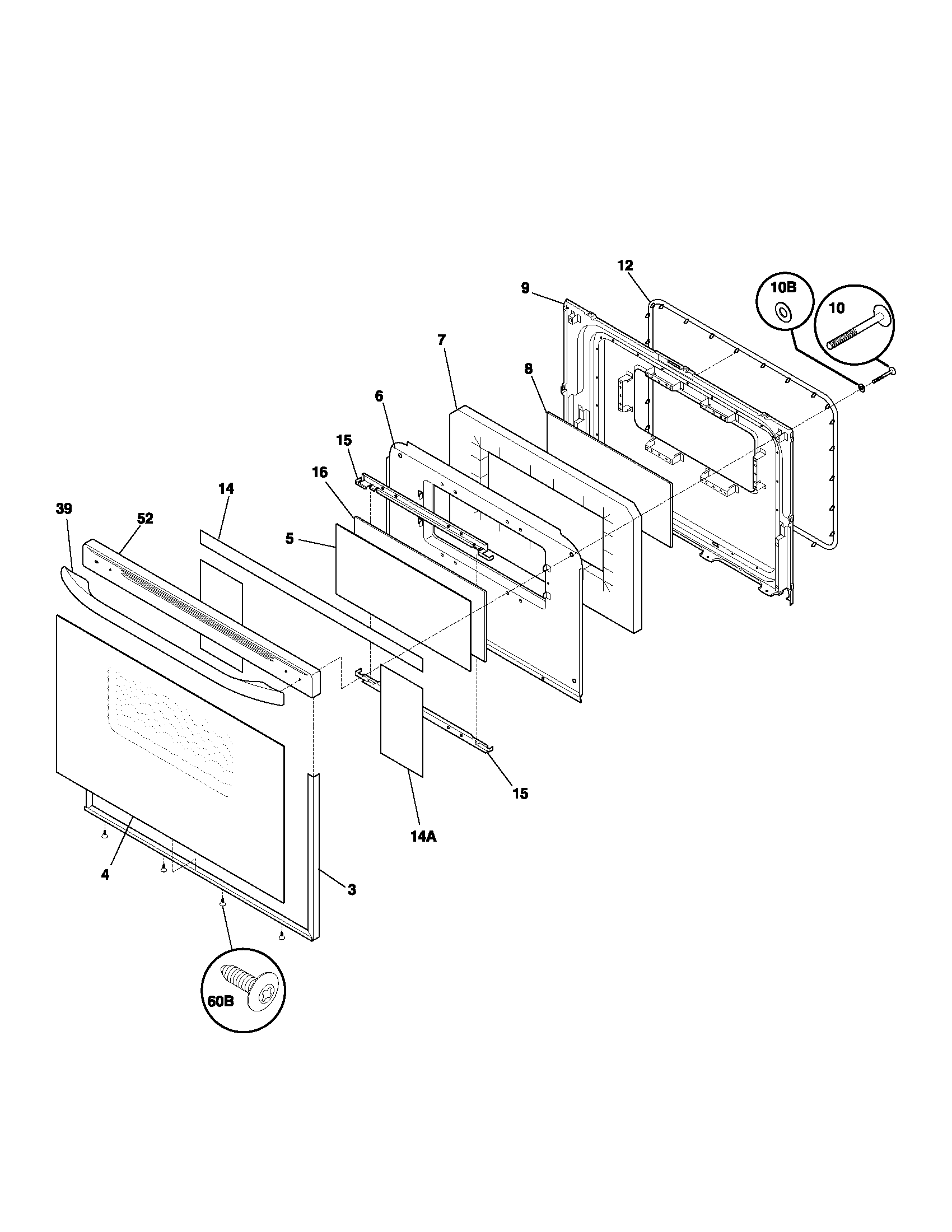

Door diagram

Range washer (replaces 316136500, 7316008401)

Part #316008401

BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Range Light Socket (replaces 5308011085) 316116400
#14

Body diagram

Range light socket (replaces 5308011085)

Part #316116400

BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Range Control Overlay 316220817
#20A

Backguard diagram

Range control overlay

Part #316220817

Replaced by #316220804

?
Manufacturer substitution
This part replaces 316220817. Substitute parts can look different from the original.
BEST SELLER
$29.95 |
17% OFF Phone Price : $35.95
In Stock
Door Handle 316235500
#39

Door diagram

Door handle

Part #316235500

Replaced by #316270200

?
Manufacturer substitution
This part replaces 316235500. Substitute parts can look different from the original.
BEST SELLER
$88.65 |
6% OFF Phone Price : $94.65
In Stock
Igniter And Orifice Holder 316237701
#11B

Burner diagram

Igniter and orifice holder

Part #316237701

Replaced by #316237704

?
Manufacturer substitution
This part replaces 316237701. Substitute parts can look different from the original.
BEST SELLER
$85.24 |
7% OFF Phone Price : $91.24
In Stock
