Model # WHDSR109J5WW Official GE washer

Here are the diagrams and repair parts for Official GE WHDSR109J5WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Hub Nut WH02X1193
#325

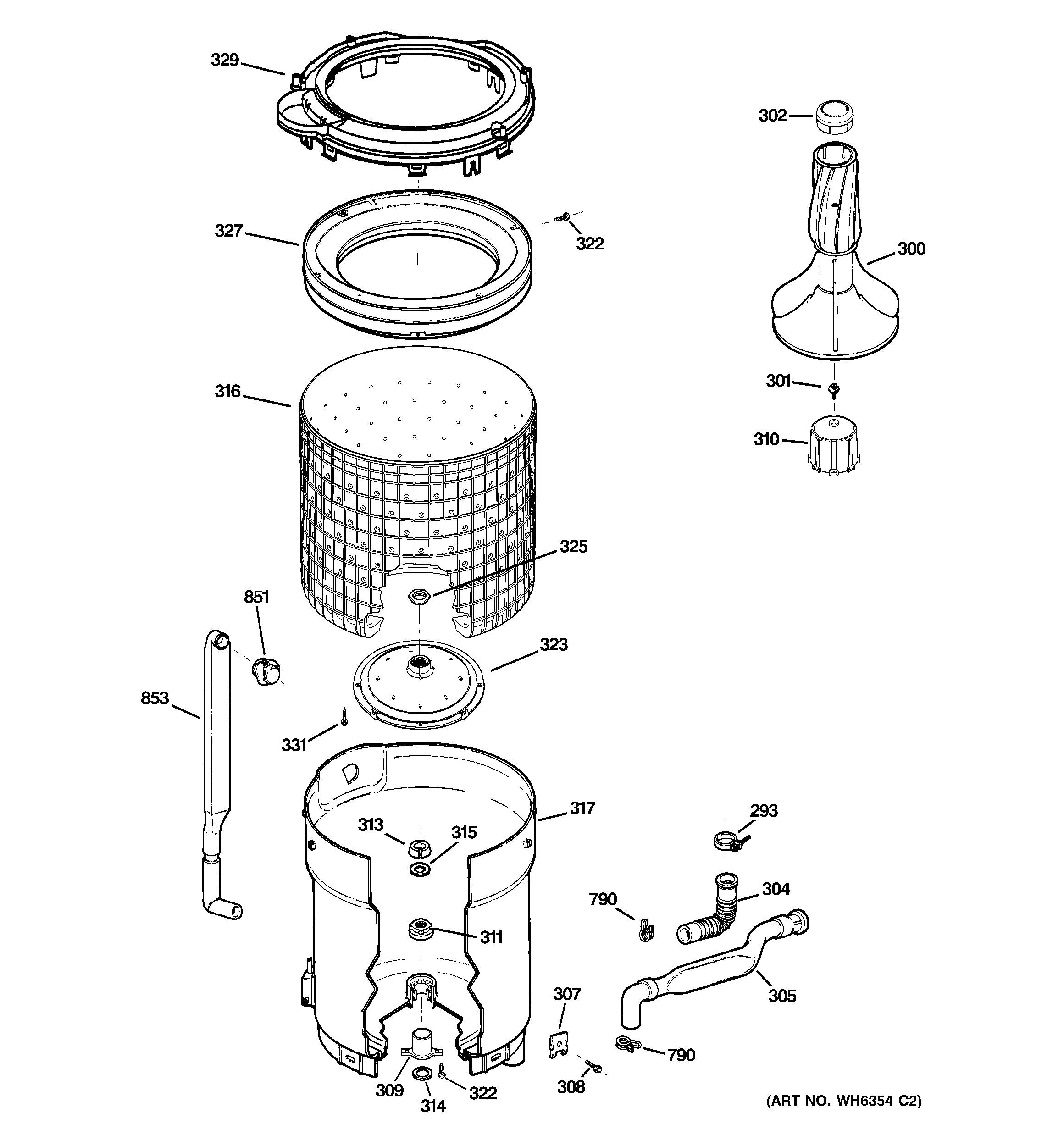

Tub, besket & agitator diagram

Hub nut

Part #WH02X1193

Replaced by #WH2X1193

?
Manufacturer substitution
This part replaces WH02X1193. Substitute parts can look different from the original.
BEST SELLER
$8.64 |
10% OFF Phone Price : $9.64
In Stock
Split Ring WH02X1195
#313

Tub, besket & agitator diagram

Split ring

Part #WH02X1195

Replaced by #WH02X10265

?
Manufacturer substitution
This part replaces WH02X1195. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Tub Bearing WH02X1198
#309

Tub, besket & agitator diagram

Tub bearing

Part #WH02X1198

Replaced by #WH2X1198

?
Manufacturer substitution
This part replaces WH02X1198. Substitute parts can look different from the original.
BEST SELLER
$29.01 |
17% OFF Phone Price : $35.01
In Stock
Hub Washer WH02X1199
#315

Tub, besket & agitator diagram

Hub washer

Part #WH02X1199

Replaced by #WH2X1199

?
Manufacturer substitution
This part replaces WH02X1199. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Tub Bearing WH02X1197
#314

Tub, besket & agitator diagram

Tub bearing

Part #WH02X1197

Replaced by #WH2X1197

?
Manufacturer substitution
This part replaces WH02X1197. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Knob And Cli WH01X10307
#19

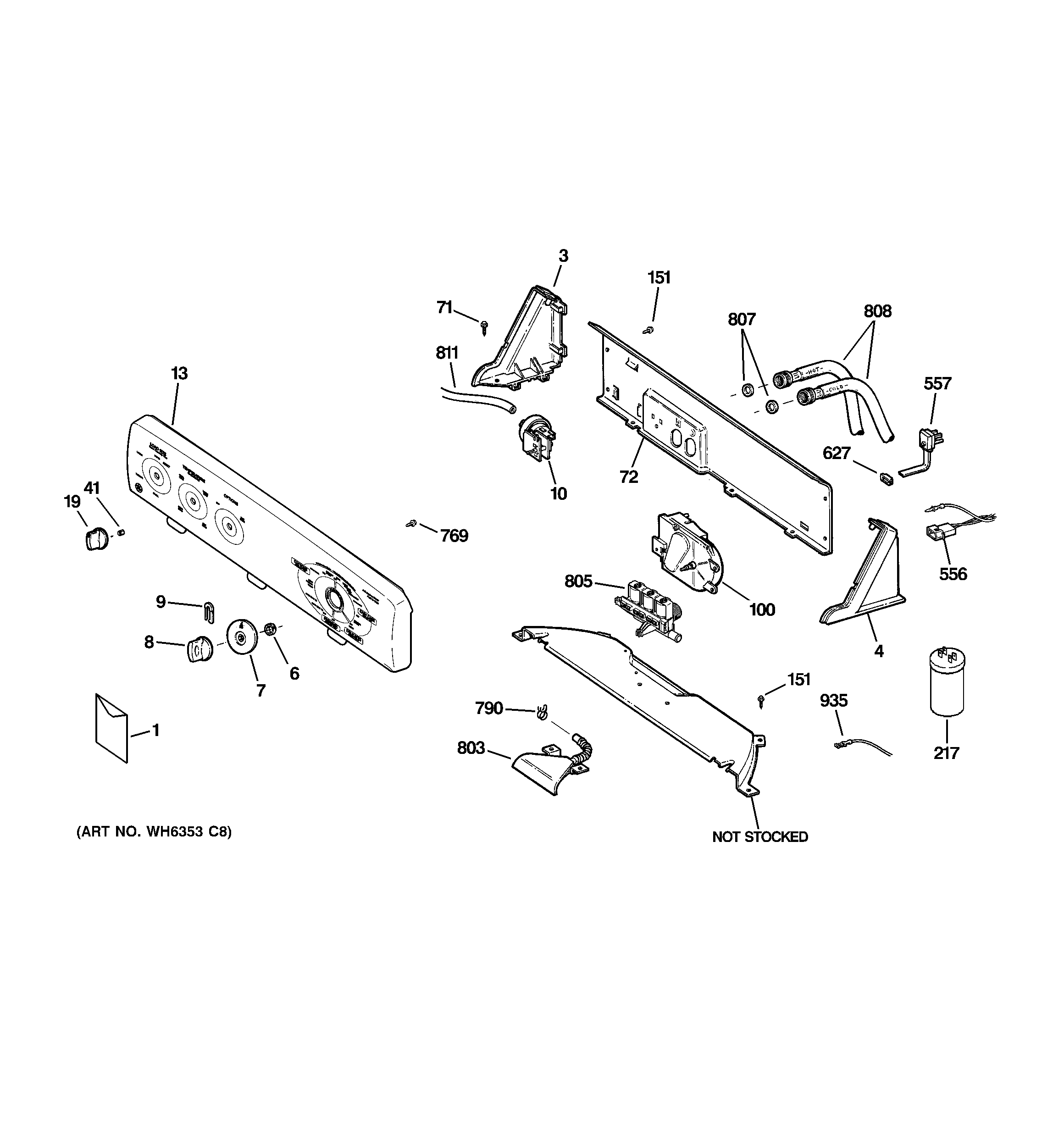

Controls & backsplash diagram

Knob and cli

Part #WH01X10307

Replaced by #WE01X20378

?
Manufacturer substitution
This part replaces WH01X10307. Substitute parts can look different from the original.
BEST SELLER
$30.33 |
17% OFF Phone Price : $36.33
In Stock
Extra Large Tub Assembly WH45X10024
#317

Tub, besket & agitator diagram

Extra large tub assembly

Part #WH45X10024

Replaced by #WH45X20473

?
Manufacturer substitution
This part replaces WH45X10024. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$100.87 |
11% OFF Phone Price : $112.87
In Stock
Washer Agitator Coupler WH43X10032
#310

Tub, besket & agitator diagram

Washer agitator coupler

Part #WH43X10032

BEST SELLER
$24.86 |
19% OFF Phone Price : $30.86
In Stock
Washer Drain Pump Assembly WH23X10013
#655

Suspension, pump & drive components diagram

Washer drain pump assembly

Part #WH23X10013

Replaced by #WH23X10030

?
Manufacturer substitution
This part replaces WH23X10013. Substitute parts can look different from the original.
BEST SELLER
$62.84 |
9% OFF Phone Price : $68.84
In Stock
Strap Dampng WH01X10046
#370

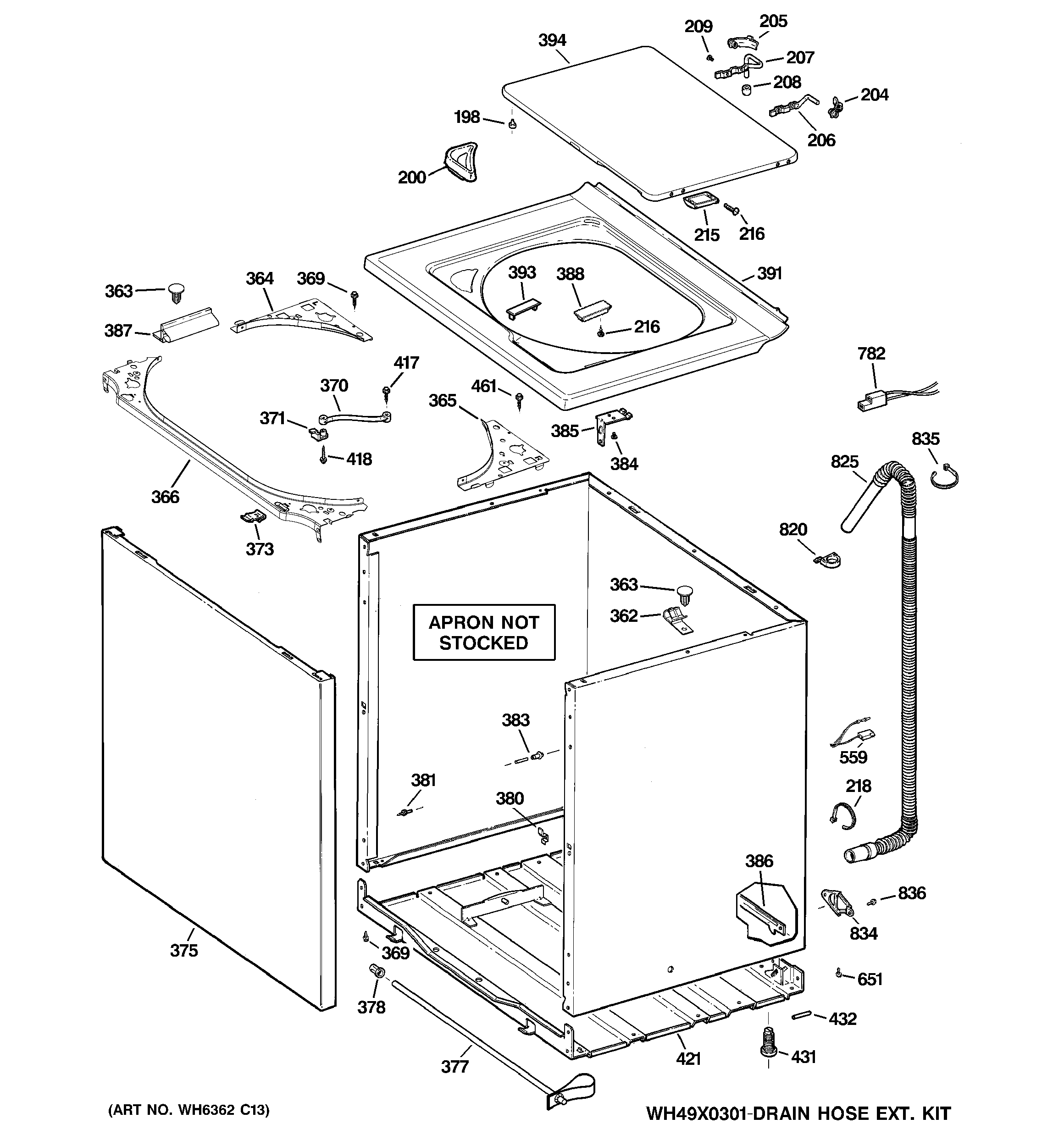

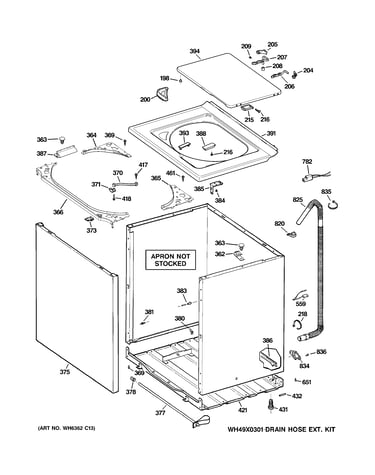

Cabinet, cover & front panel diagram

Strap dampng

Part #WH01X10046

Replaced by #WH1X2727

?
Manufacturer substitution
This part replaces WH01X10046. Substitute parts can look different from the original.
BEST SELLER
$10.16 |
16% OFF Phone Price : $12.16
In Stock
