Broan
Downdraft Ventilation System

Model # ILB3 Official Broan inline blower

Here are the diagrams and repair parts for Official Broan ILB3 inline blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Downdraft Vent Blower Motor 99080485
#13

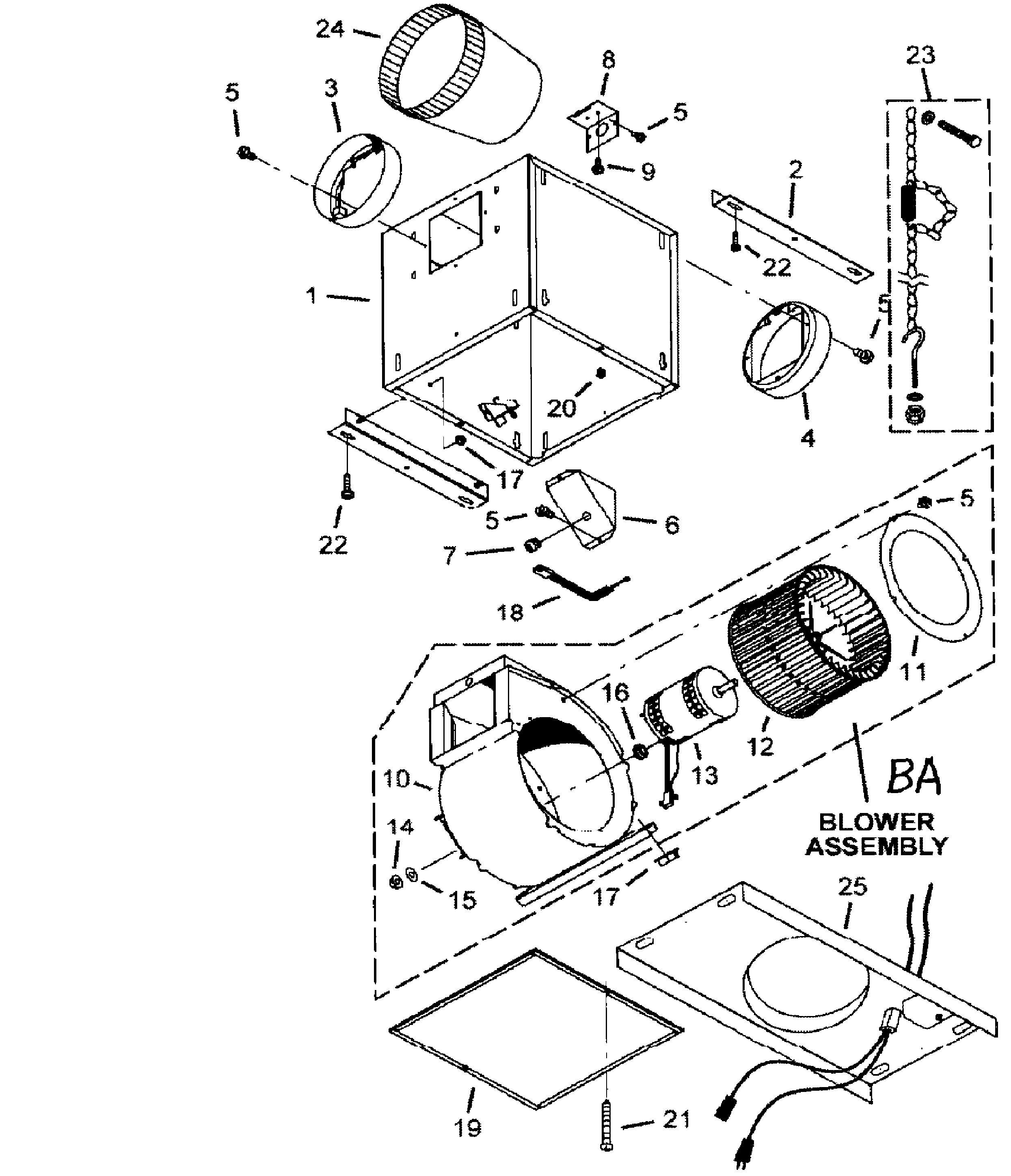

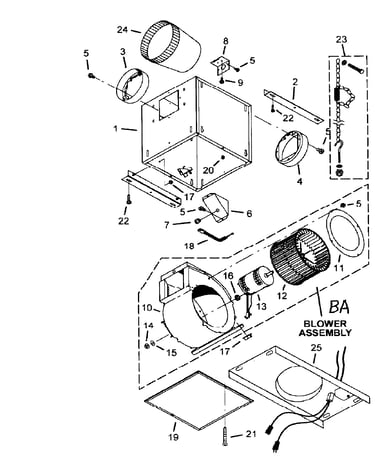

Main asy diagram

Downdraft vent blower motor

Part #99080485

Replaced by #S99080485

?
Manufacturer substitution
This part replaces 99080485. Substitute parts can look different from the original.
$156.60
In Stock
Trash Compactor Lock Nut 99260477
#17

Main asy diagram

Trash compactor lock nut

Part #99260477

Replaced by #S99260477

?
Manufacturer substitution
This part replaces 99260477. Substitute parts can look different from the original.
This item is not returnable
$3.64
In Stock
Transition S414
#24

Main asy diagram

Transition

Part #S414

$78.63
In Stock
Blower Assembly 97016792
#BA

Main asy diagram

Blower assembly

Part #97016792

$137.99
In Stock
Washer 99250959
#15

Main asy diagram

Washer

Part #99250959

Replaced by #S99250959

?
Manufacturer substitution
This part replaces 99250959. Substitute parts can look different from the original.
This item is not returnable
$4.48
In Stock
Outlet Cover 98005513
#6

Main asy diagram

Outlet cover

Part #98005513

Replaced by #S98005513

?
Manufacturer substitution
This part replaces 98005513. Substitute parts can look different from the original.
This item is not returnable
$4.57
In Stock
Lock Nut,8 99260558
#14

Main asy diagram

Lock nut,8

Part #99260558

Replaced by #S99260558

?
Manufacturer substitution
This part replaces 99260558. Substitute parts can look different from the original.
This item is not returnable
$4.82
In Stock
Trough 97014597
#25

Main asy diagram

Trough

Part #97014597

Replaced by #S97014597

?
Manufacturer substitution
This part replaces 97014597. Substitute parts can look different from the original.
$110.19 |
10% OFF Phone Price : $122.19
In Stock
Housing Assembly 97014736
#1

Main asy diagram

Housing assembly

Part #97014736

Replaced by #S97014736

?
Manufacturer substitution
This part replaces 97014736. Substitute parts can look different from the original.
$48.06
In Stock
Blower Wheel 99020273
#12

Main asy diagram

Blower wheel

Part #99020273

Replaced by #S99020273

?
Manufacturer substitution
This part replaces 99020273. Substitute parts can look different from the original.
$71.40
In Stock
