Model # DGHX2655TF6 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire DGHX2655TF6 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

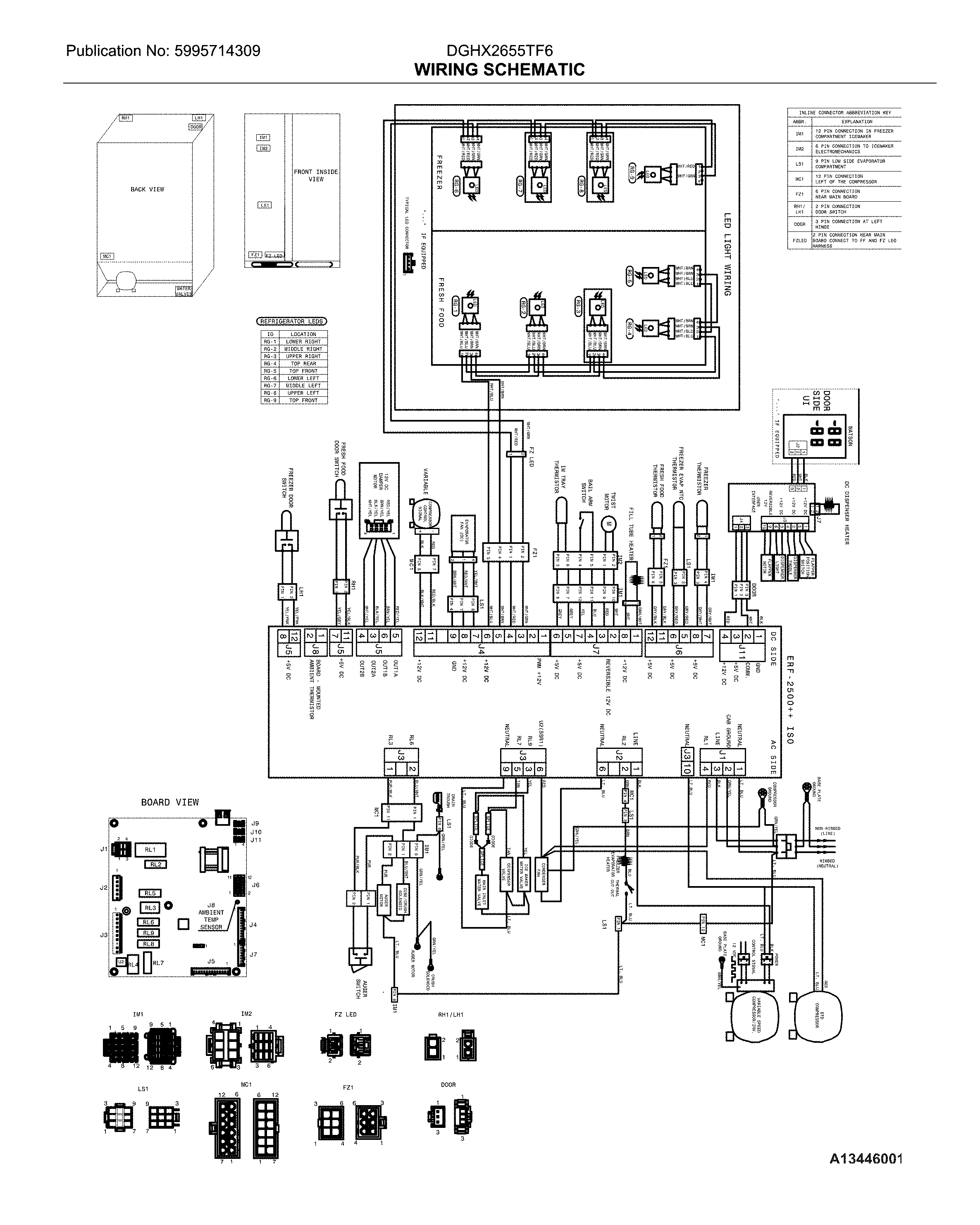

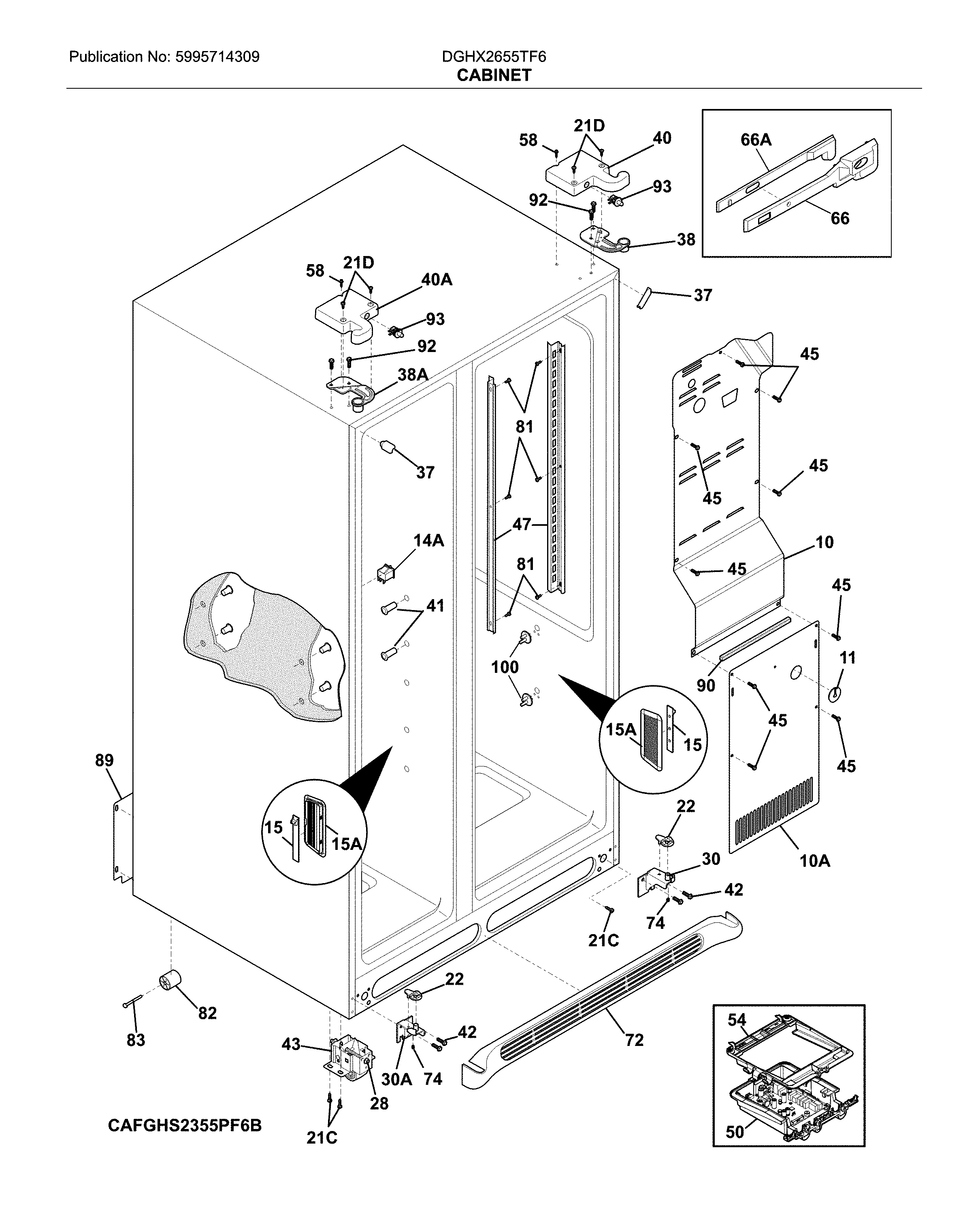

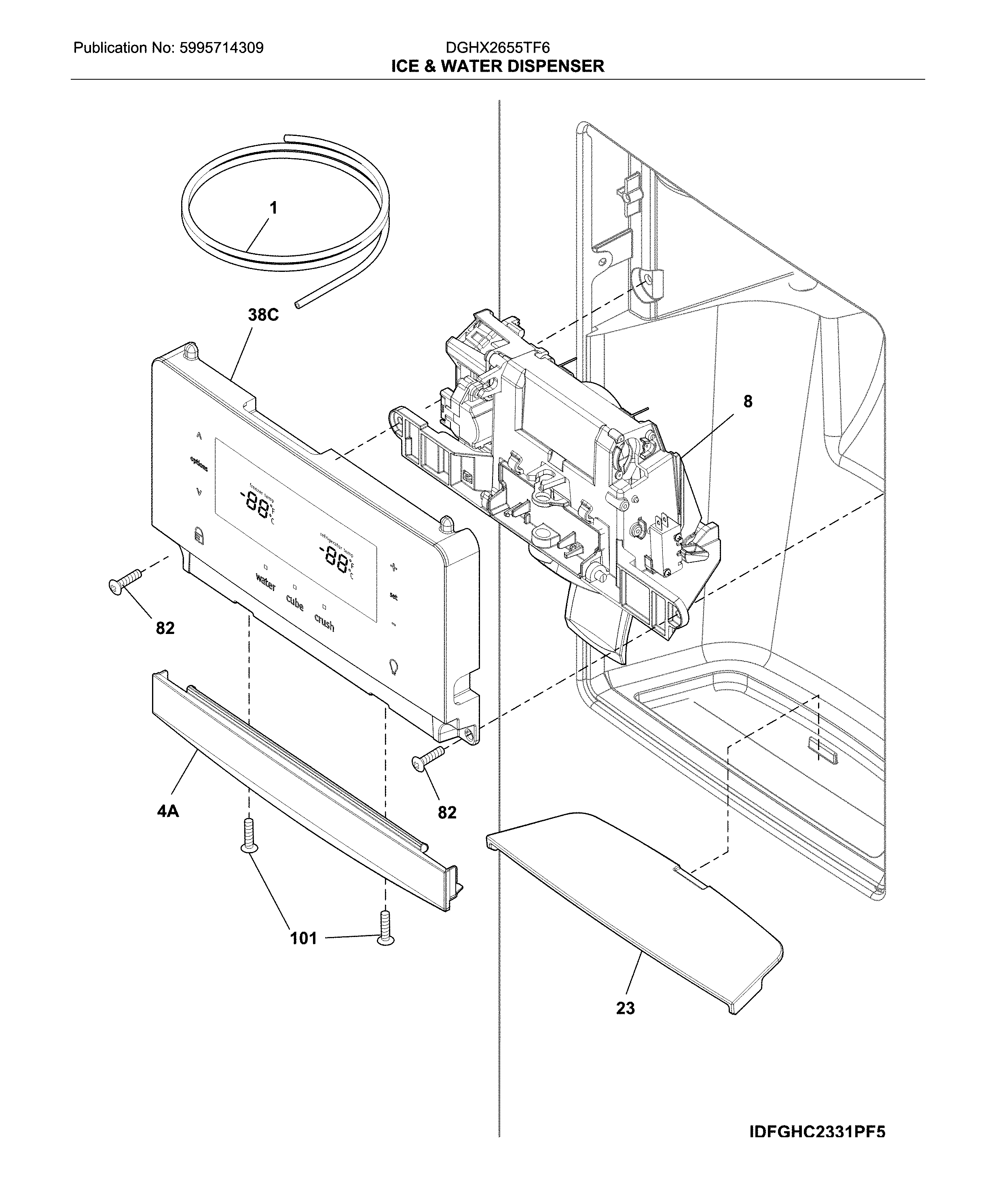

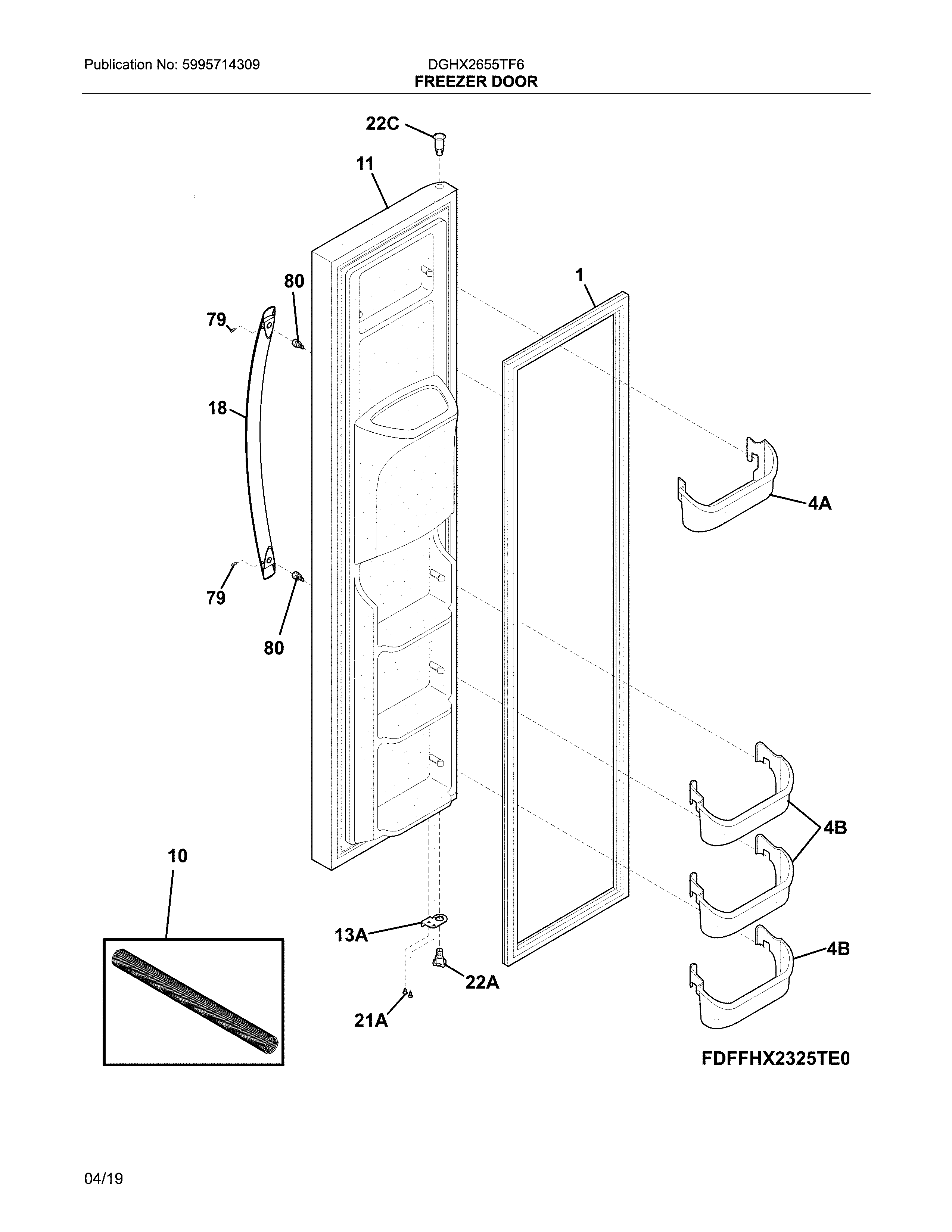

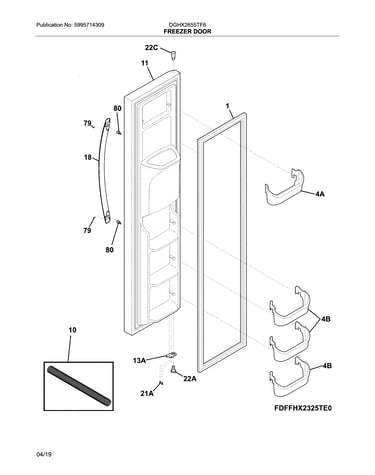

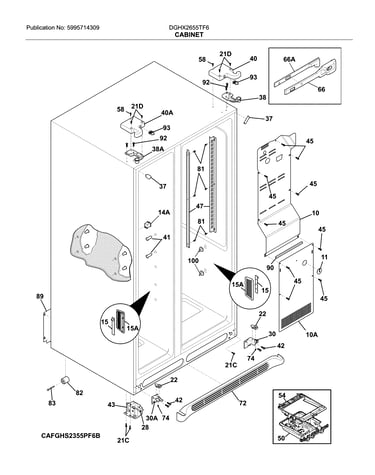

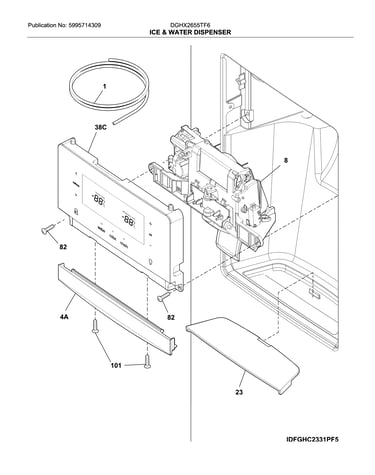

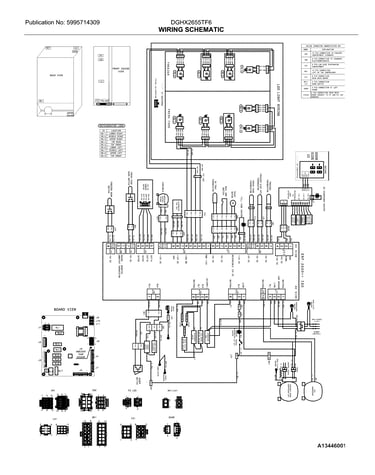

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 179 parts  |
Refrigerator Air Filter 242047804
#209

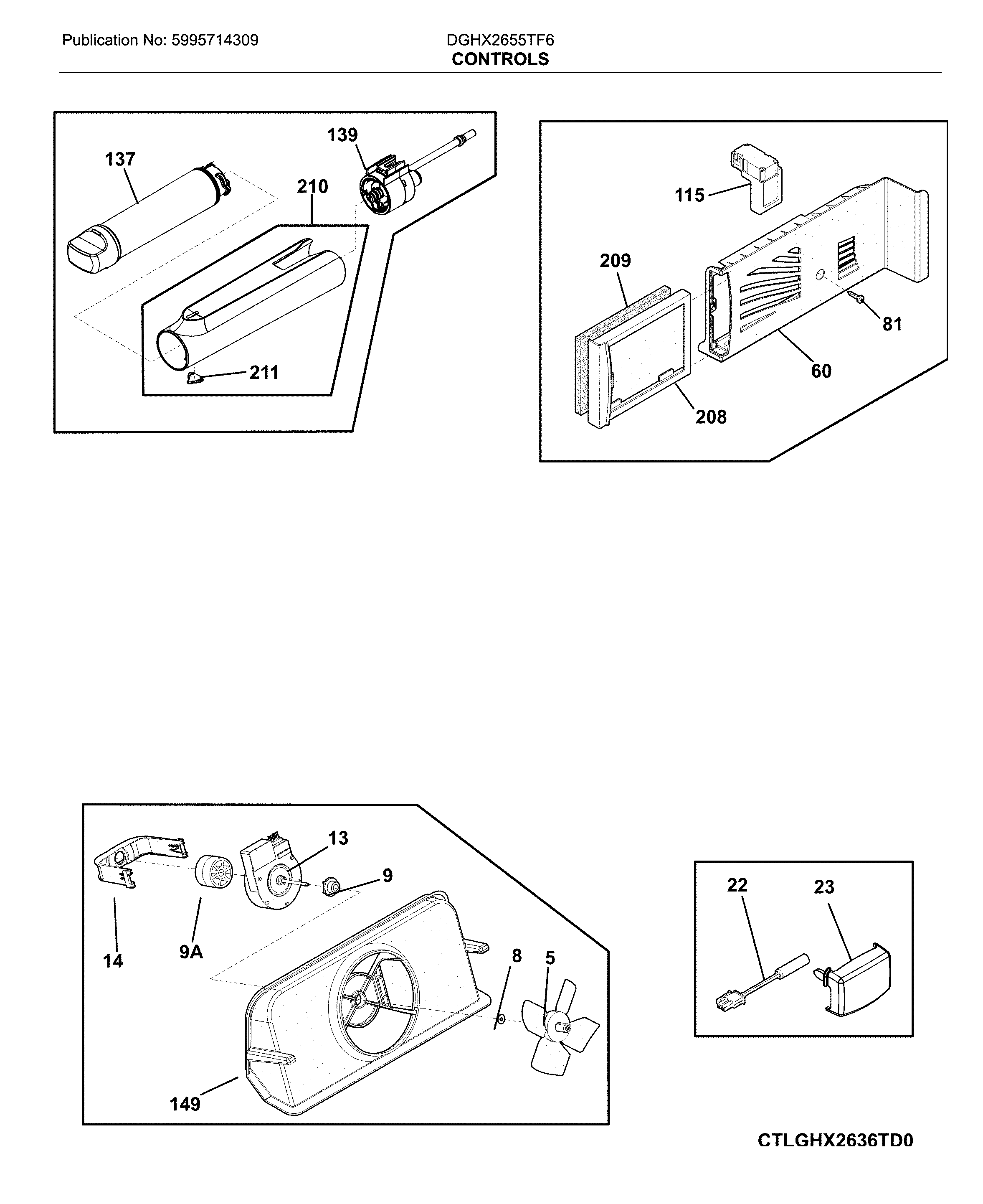

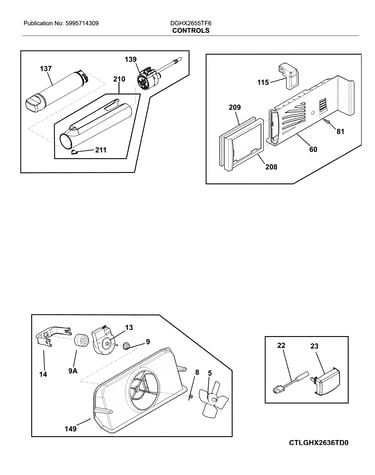

Control diagram

Refrigerator air filter

Part #242047804

Replaced by #EAFCBF

?
Manufacturer substitution
This part replaces 242047804. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$27.39 |
18% OFF Phone Price : $33.39
In Stock
Dryer Filter 242047604
#4

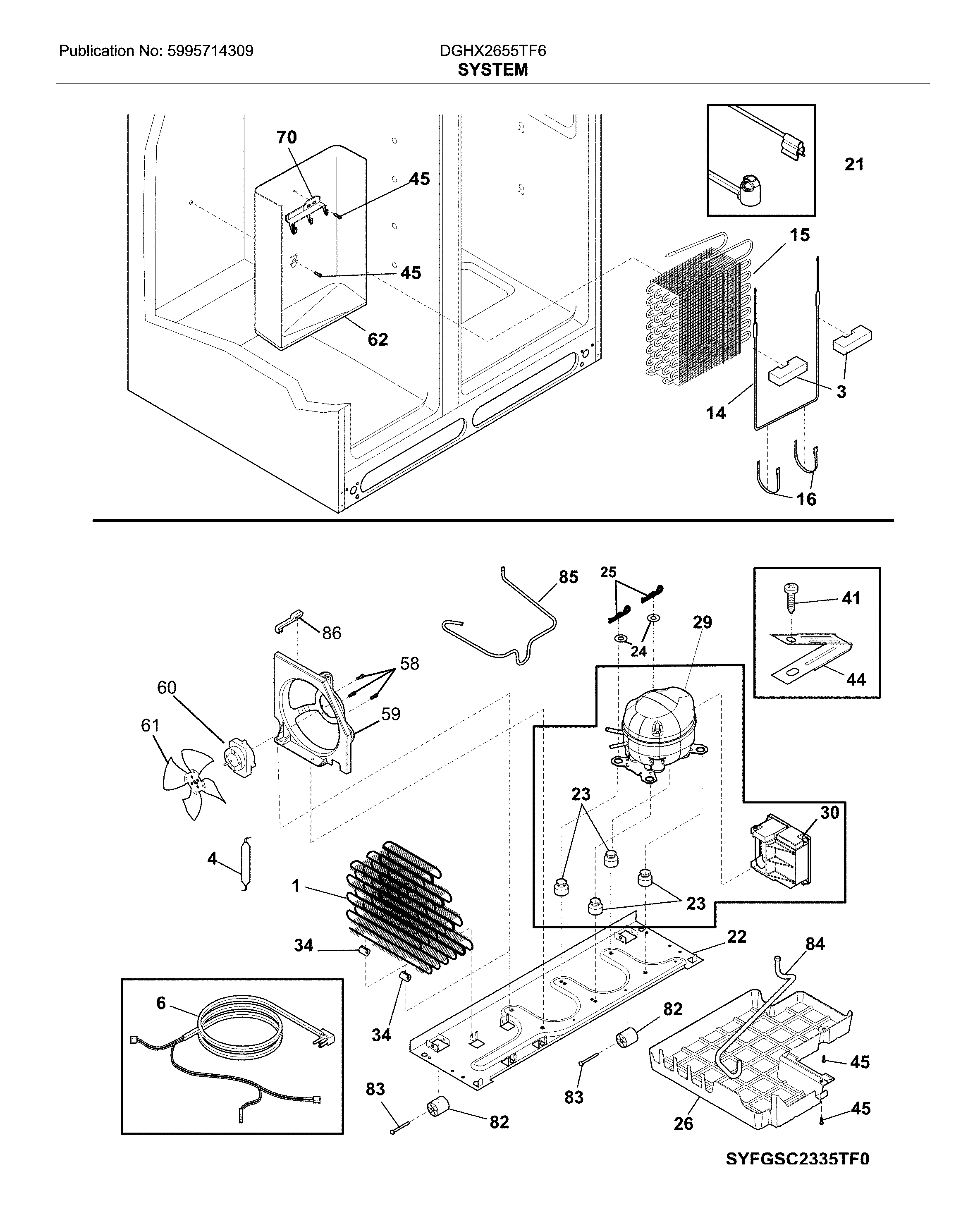

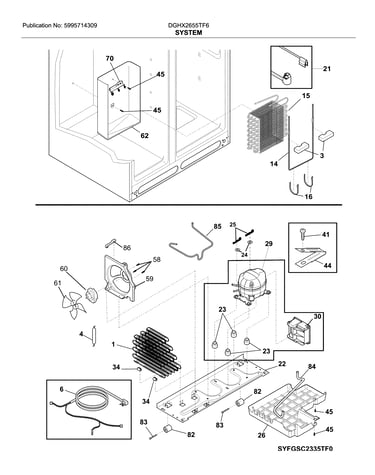

System diagram

Dryer filter

Part #242047604

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 242047604. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Water Inlet Valve Assembly (replaces 241734302) 242252702
#55

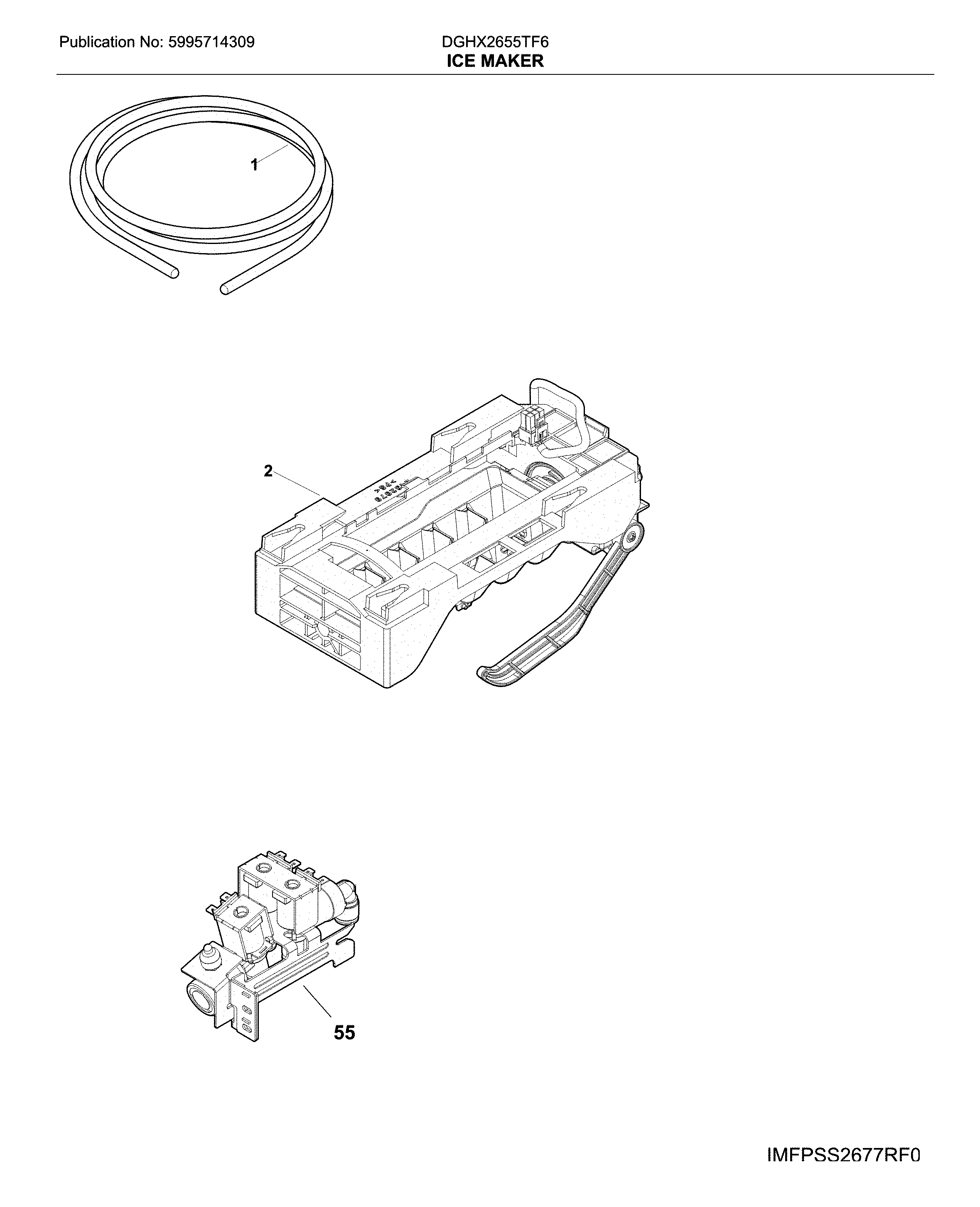

Ice maker diagram

Refrigerator water inlet valve assembly (replaces 241734302)

Part #242252702

BEST SELLER
$78.80 |
7% OFF Phone Price : $84.80
In Stock
Refrigerator Ice Maker 243298401
#41

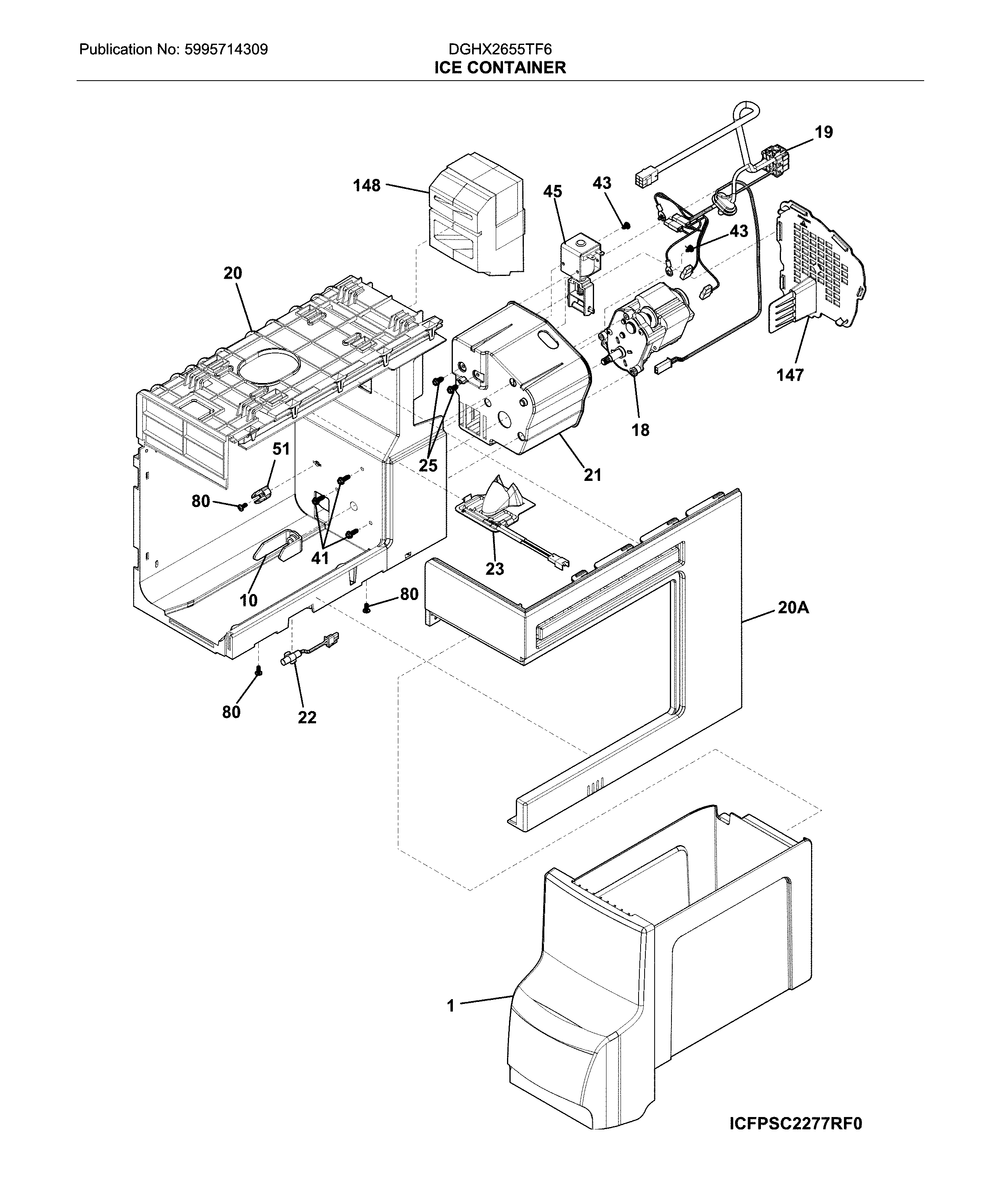

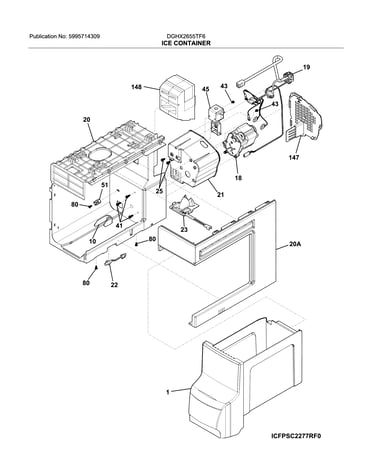

Container diagram

Refrigerator ice maker

Part #243298401

Replaced by #243297613

?
Manufacturer substitution
This part replaces 243298401. Substitute parts can look different from the original.
BEST SELLER
$99.22 |
11% OFF Phone Price : $111.22
In Stock
Refrigerator Ice Maker 243297606
#2

Ice maker diagram

Refrigerator ice maker

Part #243297606

Replaced by #243297613

?
Manufacturer substitution
This part replaces 243297606. Substitute parts can look different from the original.
BEST SELLER
$99.22 |
11% OFF Phone Price : $111.22
In Stock
Refrigerator Filter Assembly 807946701
#137

Control diagram

Refrigerator filter assembly

Part #807946701

Replaced by #EPTWFU01

?
Manufacturer substitution
This part replaces 807946701. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$64.98
In Stock
Refrigerator Temperature Sensor (replaces 240597201, 240597202, 7240597203) 240597203
Refrigerator temperature sensor (replaces 240597201, 240597202, 7240597203)

Part #240597203

BEST SELLER
$40.44 |
13% OFF Phone Price : $46.44
In Stock
Refrigerator Door Bin 242126602
#4

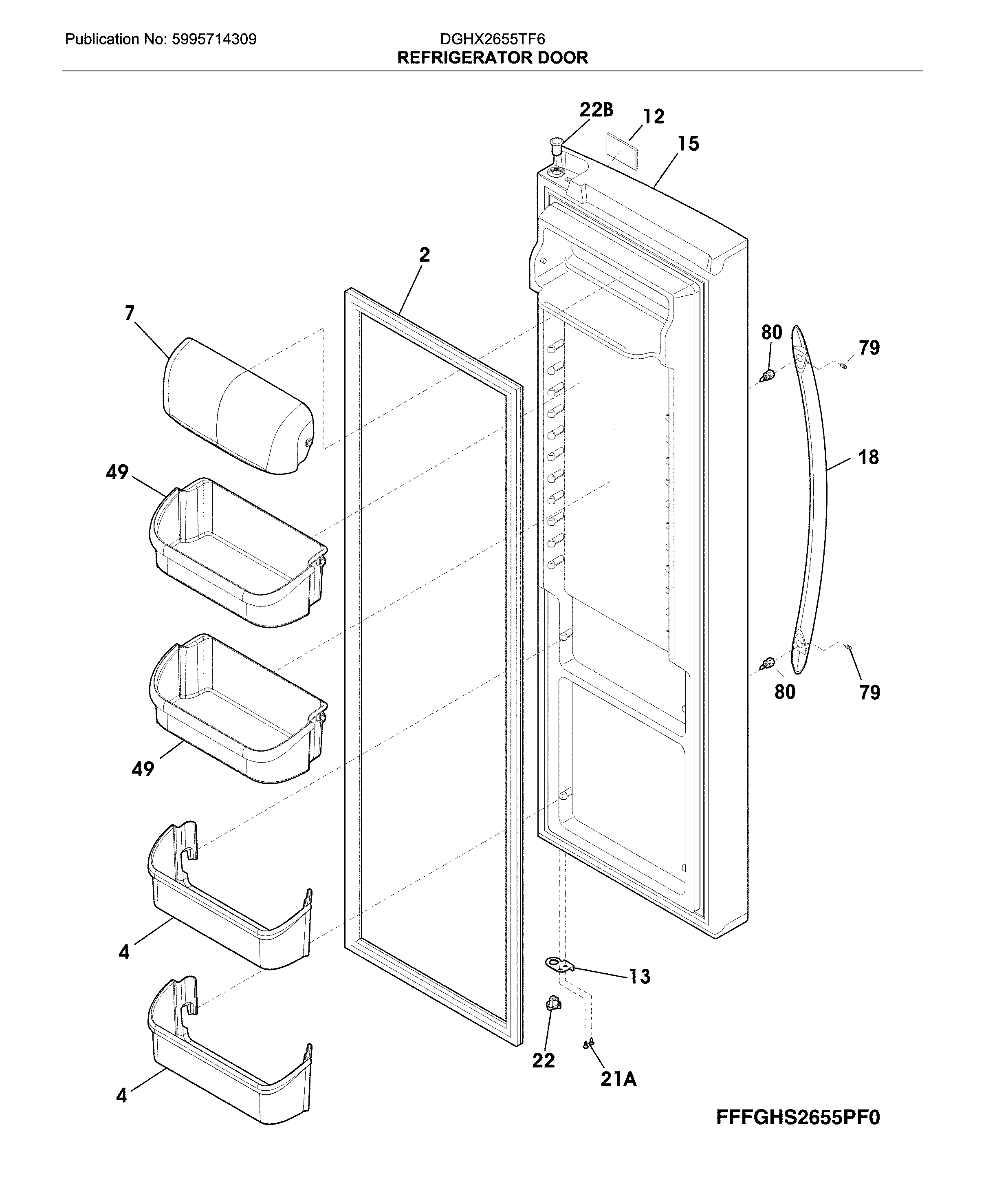

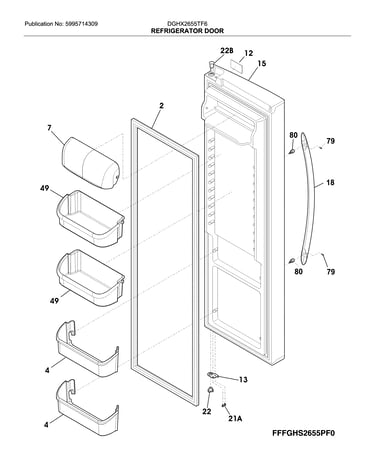

Fresh food door diagram

Refrigerator door bin

Part #242126602

BEST SELLER
$36.54 |
14% OFF Phone Price : $42.54
In Stock
Refrigerator Condenser Fan Blade 241639501
#61

System diagram

Refrigerator condenser fan blade

Part #241639501

Replaced by #241639502

?
Manufacturer substitution
This part replaces 241639501. Substitute parts can look different from the original.
BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Refrigerator Deli Drawer Cover 241969501
#25B

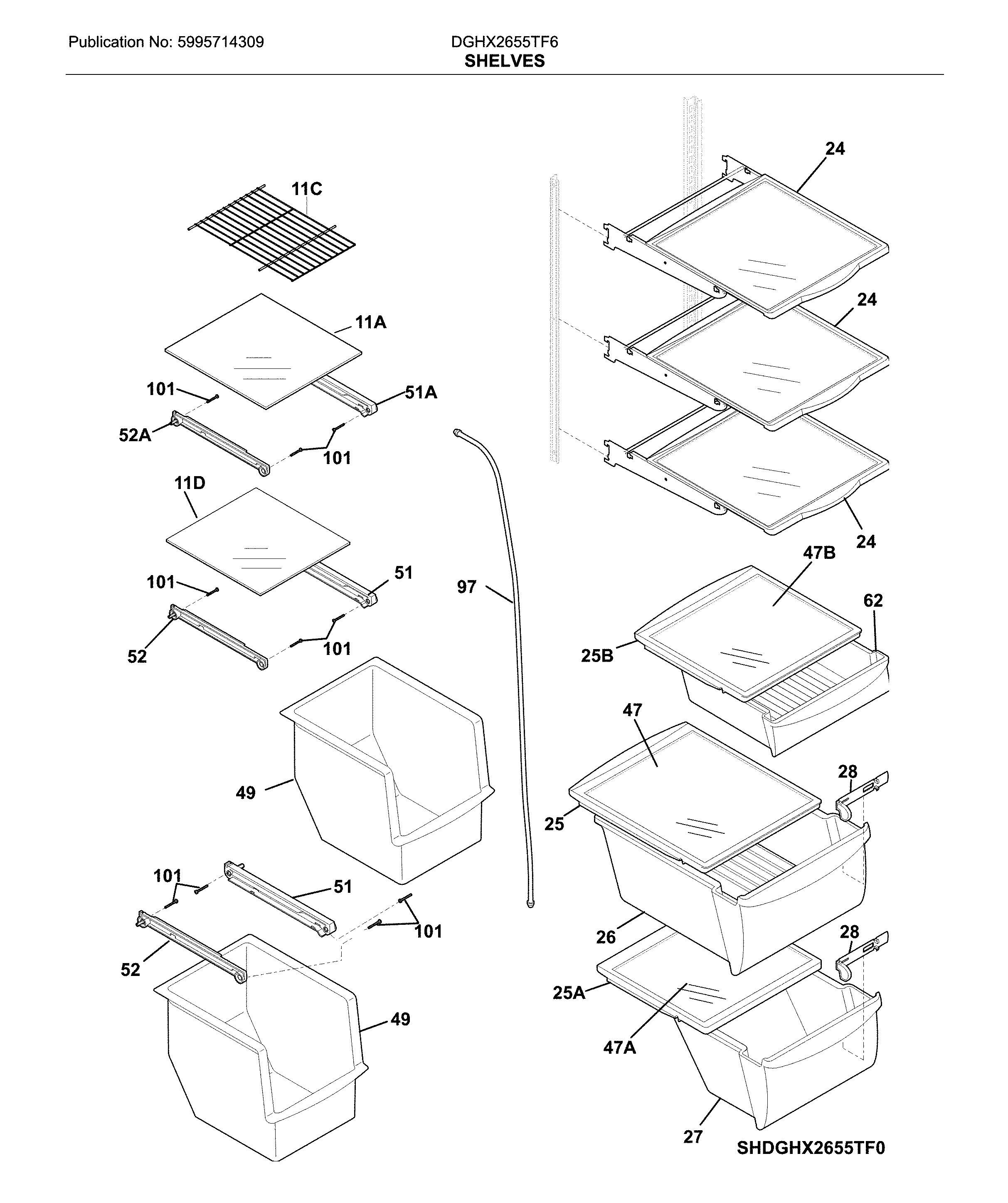

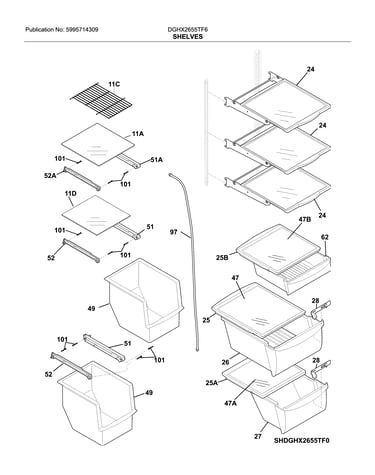

Shelves diagram

Refrigerator deli drawer cover

Part #241969501

BEST SELLER
$68.66 |
8% OFF Phone Price : $74.66
In Stock
