Craftsman
Power Sander

Model # 315116164 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 315116164 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

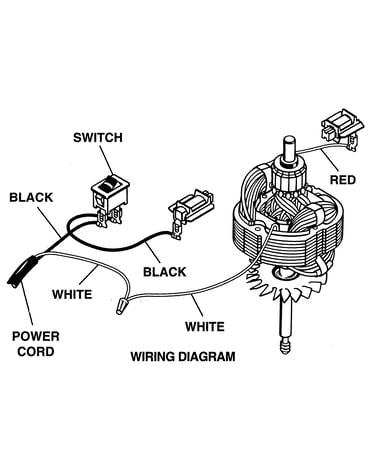

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Sander Motor Housing Rubber Plug 623019-004
#26

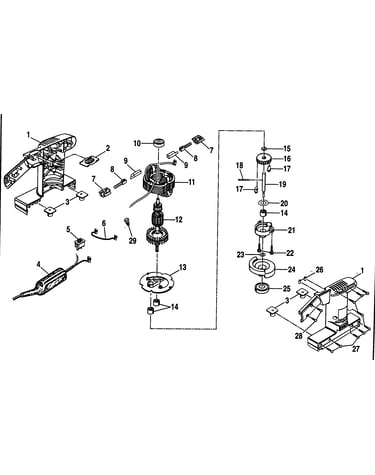

Motor assy diagram

Sander motor housing rubber plug

Part #623019-004

The manufacturer no longer makes this part, and there's no substitute part

Adhesive Sheets-medium 28257
#NI

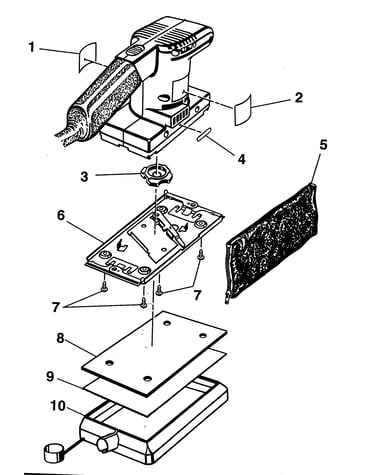

Sander diagram

Adhesive sheets-medium

Part #28257

The manufacturer no longer makes this part, and there's no substitute part

Washer 706239-833
#23

Motor assy diagram

Washer

Part #706239-833

The manufacturer no longer makes this part, and there's no substitute part

Gr. Case Asy 967339-003
#21

Motor assy diagram

Gr. case asy

Part #967339-003

The manufacturer no longer makes this part, and there's no substitute part

Armature 999041-001
#12

Motor assy diagram

Armature

Part #999041-001

The manufacturer no longer makes this part, and there's no substitute part

Dust Bag 979698-001
#5

Sander diagram

Dust bag

Part #979698-001

The manufacturer no longer makes this part, and there's no substitute part

Decal 967302-001
#4

Sander diagram

Decal

Part #967302-001

The manufacturer no longer makes this part, and there's no substitute part

Cut Sheets-medium 28252
#NI

Sander diagram

Cut sheets-medium

Part #28252

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly 610784-044
#8

Motor assy diagram

Brush assembly

Part #610784-044

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 621368-001
#25

Motor assy diagram

Ball bearing

Part #621368-001

The manufacturer no longer makes this part, and there's no substitute part
