Kenmore
Gas Range

Model # 103299075 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 103299075 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 259 parts  |
Lamp Bulb 72185

#NI

All parts diagram

Lamp bulb

Part #72185

Replaced by #40A15

?
Manufacturer substitution
This part replaces 72185. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Drive Guide 69002
#194B

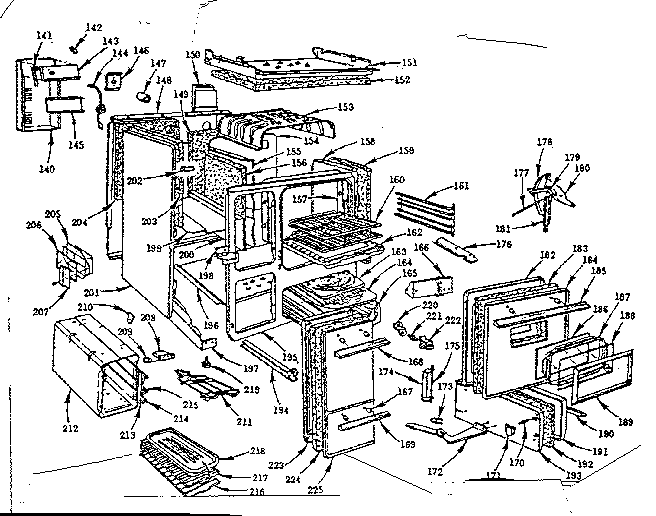

Body section diagram

Drive guide

Part #69002

The manufacturer no longer makes this part, and there's no substitute part

Door Panel 95021
#191B

Body section diagram

Door panel

Part #95021

The manufacturer no longer makes this part, and there's no substitute part

Tubing 96364
#88

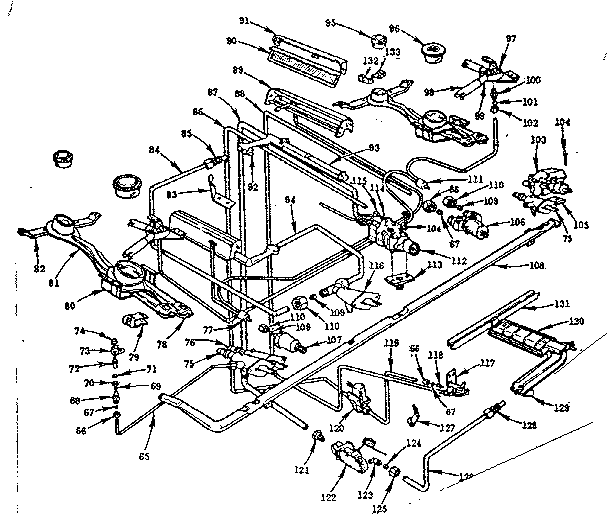

Burner section diagram

Tubing

Part #96364

The manufacturer no longer makes this part, and there's no substitute part

Burner Head 87258
#95

Burner section diagram

Burner head

Part #87258

The manufacturer no longer makes this part, and there's no substitute part

Door Seal 88038
#157

Body section diagram

Door seal

Part #88038

The manufacturer no longer makes this part, and there's no substitute part

Male Elbow 25943
#123

Burner section diagram

Male elbow

Part #25943

The manufacturer no longer makes this part, and there's no substitute part

Bracket 89776
#220

Body section diagram

Bracket

Part #89776

The manufacturer no longer makes this part, and there's no substitute part

Burner Bowl 73970
#58B

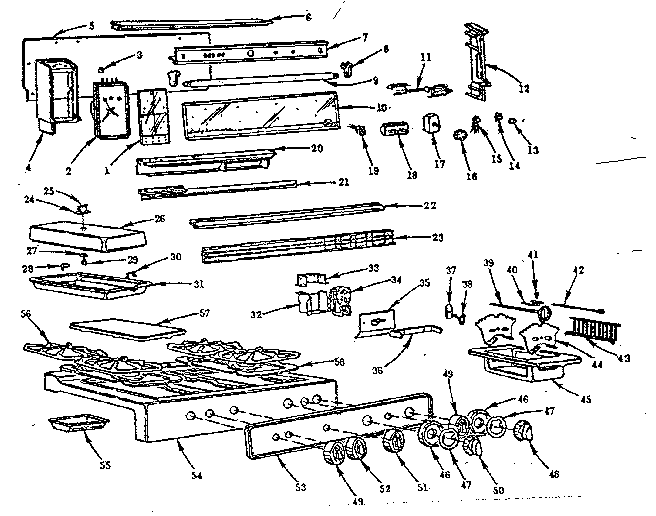

Backguard and maintop diagram

Burner bowl

Part #73970

The manufacturer no longer makes this part, and there's no substitute part

Compressor Nut 74120
#102

Burner section diagram

Compressor nut

Part #74120

The manufacturer no longer makes this part, and there's no substitute part
