Model # LATH100ATV Official Maytag washer

Here are the diagrams and repair parts for Official Maytag LATH100ATV washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

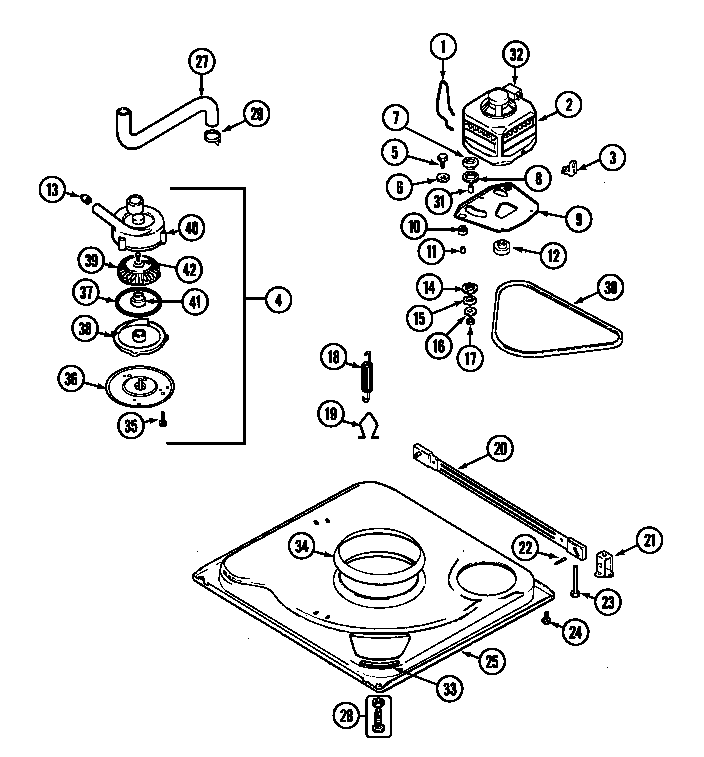

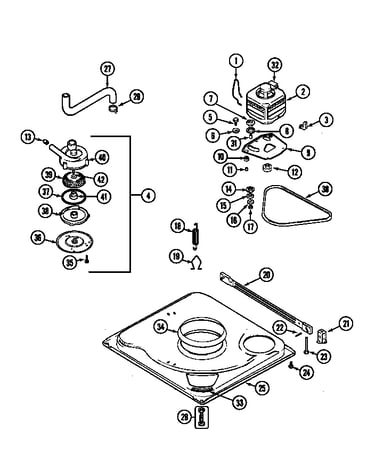

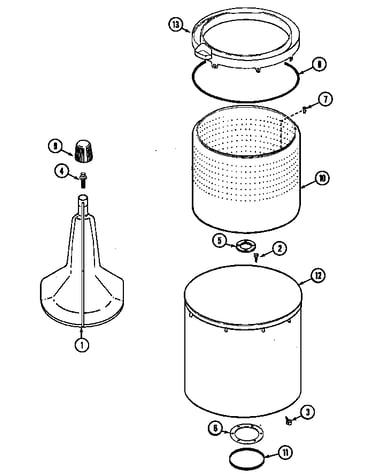

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 159 parts  |
Hose Clamp 25-7867
#18

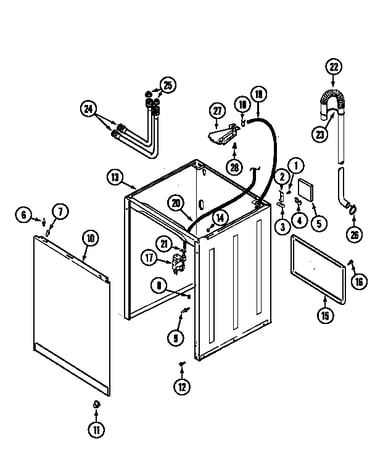

Cabinet diagram

Hose clamp

Part #25-7867

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 25-7867. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Clamp, Pressure Switch Hose 25-7796
#21

Cabinet diagram

Clamp, pressure switch hose

Part #25-7796

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 25-7796. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw, Suppo 25-7828
Screw, suppo

Part #25-7828

Replaced by #WP489483

?
Manufacturer substitution
This part replaces 25-7828. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Washer Lid Hinge 35-2044
#6

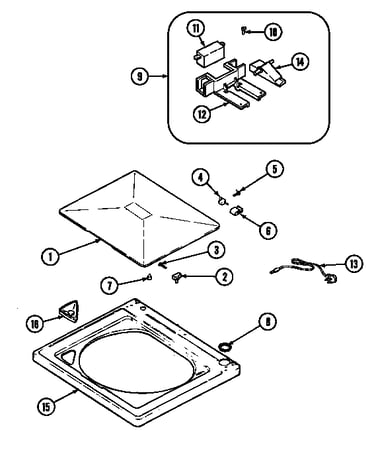

Top diagram

Washer lid hinge

Part #35-2044

Replaced by #WP35-2044

?
Manufacturer substitution
This part replaces 35-2044. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Locator Nut 25-0224
#8

Cabinet diagram

Locator nut

Part #25-0224

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 25-0224. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Snubber 21001161
Snubber

Part #21001161

Replaced by #WP21002026

?
Manufacturer substitution
This part replaces 21001161. Substitute parts can look different from the original.
This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
Bearing 35-2972
#10A

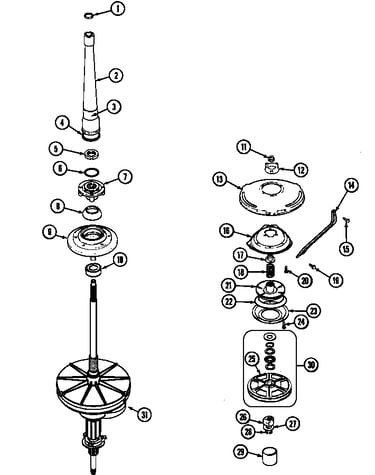

Transmission, dual drive diagram

Bearing

Part #35-2972

Replaced by #W10219156

?
Manufacturer substitution
This part replaces 35-2972. Substitute parts can look different from the original.
$153.01 |
7% OFF Phone Price : $165.01
In Stock
Bearing Housing 35-2716
#9

Transmission, dual drive diagram

Bearing housing

Part #35-2716

Replaced by #W10219156

?
Manufacturer substitution
This part replaces 35-2716. Substitute parts can look different from the original.
$153.01 |
7% OFF Phone Price : $165.01
In Stock
Washer Lid Switch Actuator 43-0057
#2

Top diagram

Washer lid switch actuator

Part #43-0057

Replaced by #WP43-0057

?
Manufacturer substitution
This part replaces 43-0057. Substitute parts can look different from the original.
$38.29 |
14% OFF Phone Price : $44.29
In Stock
Water Switch 35-3691
#10

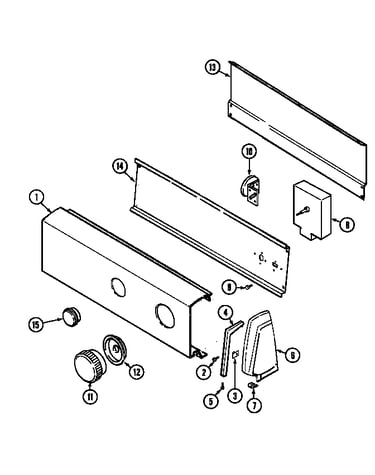

Control panel diagram

Water switch

Part #35-3691

Replaced by #WP21001554

?
Manufacturer substitution
This part replaces 35-3691. Substitute parts can look different from the original.
$76.55 |
7% OFF Phone Price : $82.55
In Stock
