Model # CFEF322ES5 Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire CFEF322ES5 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

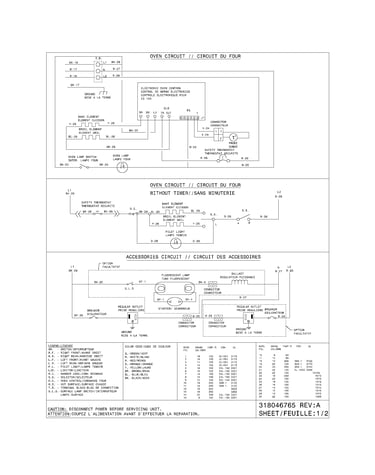

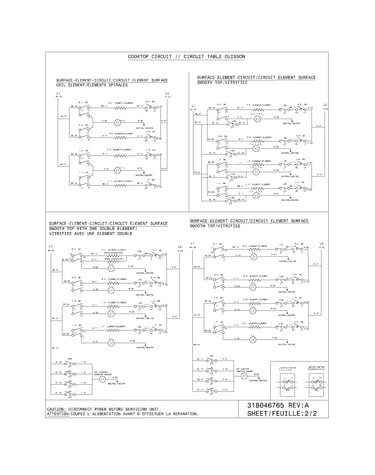

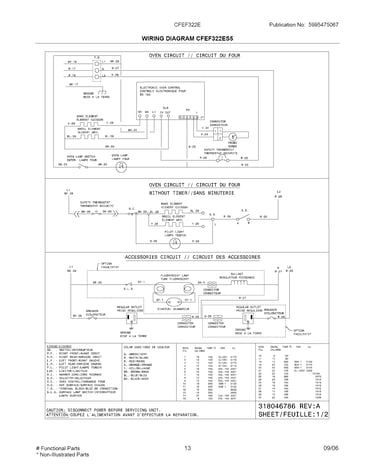

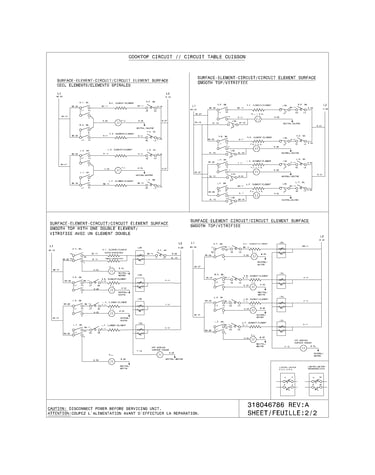

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Range Oven Light Bulb 5303013071
#15

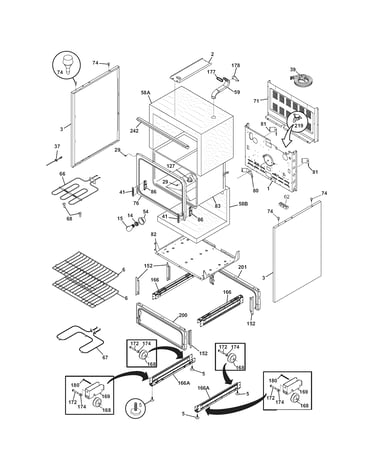

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Element 318198932
#15A

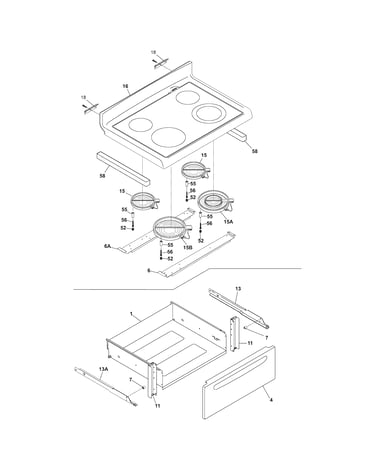

Top/drawer diagram

Element

Part #318198932

Replaced by #316555800

?
Manufacturer substitution
This part replaces 318198932. Substitute parts can look different from the original.
BEST SELLER
$159.22 |
7% OFF Phone Price : $171.22
In Stock
Range Oven Door Inner Glass 316117500
#8

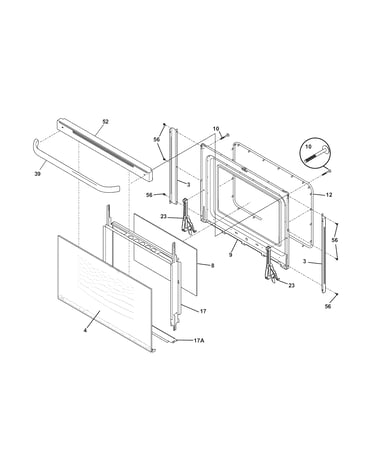

Door diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Range Bake Element 318255002
#67

Body diagram

Range bake element

Part #318255002

Replaced by #318255006

?
Manufacturer substitution
This part replaces 318255002. Substitute parts can look different from the original.
BEST SELLER
$150.14 |
7% OFF Phone Price : $162.14
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Indicator Light 316022500
#14

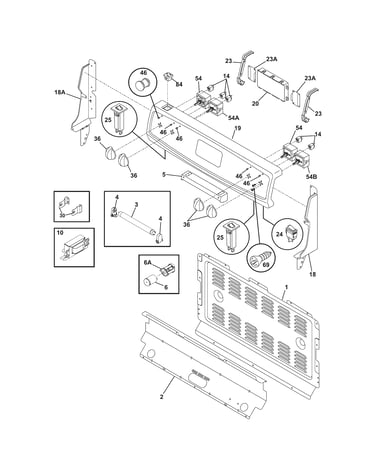

Backguard diagram

Range indicator light

Part #316022500

BEST SELLER
$40.21 |
13% OFF Phone Price : $46.21
In Stock
Kenmore Pro Range Radiant Surface Element, 6-in (replaces 318198810) 318198817
#15

Top/drawer diagram

Kenmore pro range radiant surface element, 6-in (replaces 318198810)

Part #318198817

$149.91 |
7% OFF Phone Price : $161.91
In Stock
Range Storage Drawer 318107105
#1

Top/drawer diagram

Range storage drawer

Part #318107105

Replaced by #5304505701

?
Manufacturer substitution
This part replaces 318107105. Substitute parts can look different from the original.
$84.36 |
7% OFF Phone Price : $90.36
In Stock
Range Screw 5304436875
#56

Door diagram

Range screw

Part #5304436875

This item is not returnable
$13.92 |
13% OFF Phone Price : $15.92
In Stock
Wall Oven Broil Element Support Hanger 5304403015
#68

Body diagram

Wall oven broil element support hanger

Part #5304403015

$26.80 |
18% OFF Phone Price : $32.80
In Stock
