Model # 661474230 Official Sears 26" bicycle

Here are the diagrams and repair parts for Official Sears 661474230 26" bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |

Craftsman Bicycle Tire, 26 X 1.5-in 040021
#9

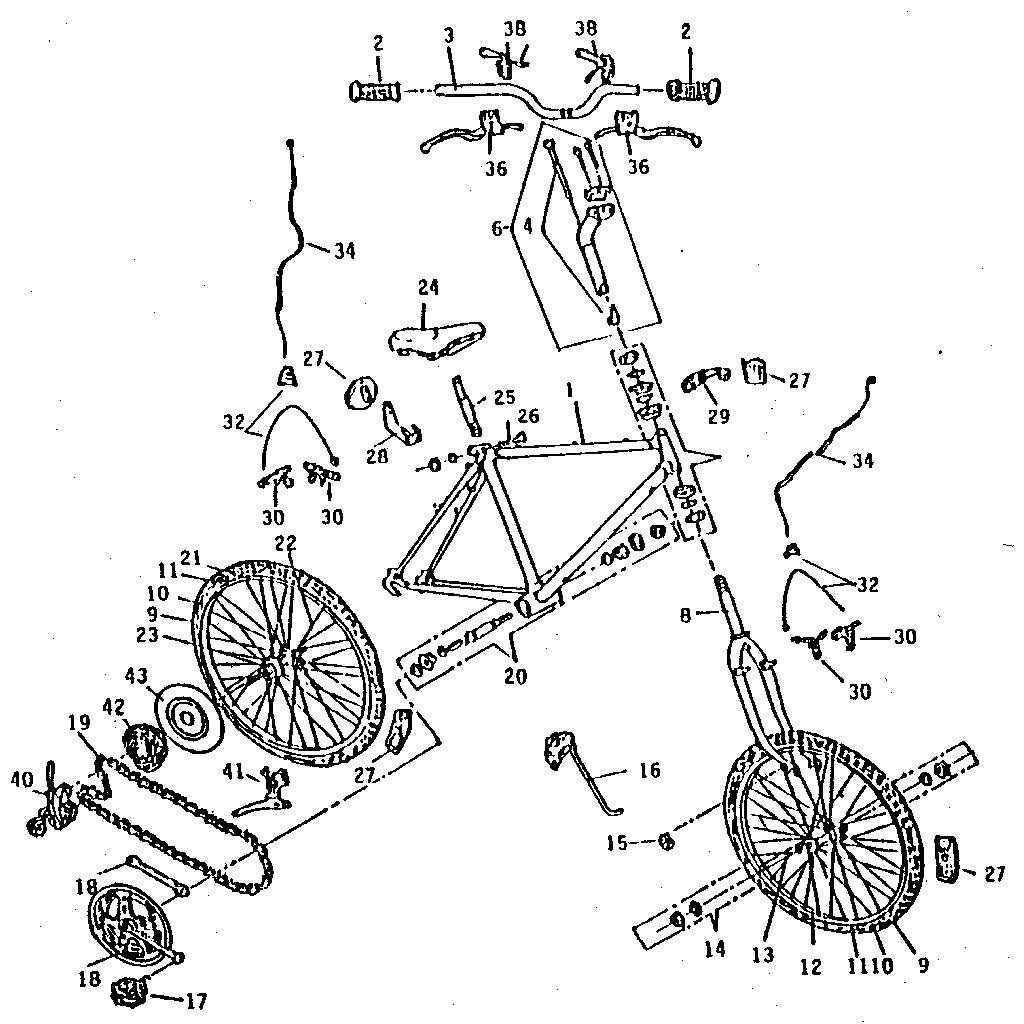

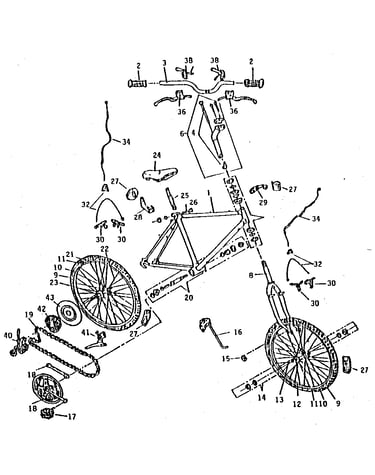

Unit parts diagram

Craftsman bicycle tire, 26 x 1.5-in

Part #040021

The manufacturer no longer makes this part, and there's no substitute part

Roadmaster Rear Axle And Bearing Set 054001
#23

Unit parts diagram

Roadmaster rear axle and bearing set

Part #054001

The manufacturer no longer makes this part, and there's no substitute part

Lifestyler Exp Blt/wedg 008025
#4

Unit parts diagram

Lifestyler exp blt/wedg

Part #008025

The manufacturer no longer makes this part, and there's no substitute part

Lifestyler Brake Tool 103015

#NI

All parts diagram

Lifestyler brake tool

Part #103015

The manufacturer no longer makes this part, and there's no substitute part

Front Wheel Assembly 045016
#12

Unit parts diagram

Front wheel assembly

Part #045016

The manufacturer no longer makes this part, and there's no substitute part

Hngr Brg Set 062003
#20

Unit parts diagram

Hngr brg set

Part #062003

The manufacturer no longer makes this part, and there's no substitute part

Fork 005177
#8

Unit parts diagram

Fork

Part #005177

The manufacturer no longer makes this part, and there's no substitute part

Rr Whl Asm 045526
#21

Unit parts diagram

Rr whl asm

Part #045526

The manufacturer no longer makes this part, and there's no substitute part

Derailleur 085505
#41

Unit parts diagram

Derailleur

Part #085505

The manufacturer no longer makes this part, and there's no substitute part

Tube 041031
#10

Unit parts diagram

Tube

Part #041031

The manufacturer no longer makes this part, and there's no substitute part
