Model # JPK48SNXWSF0 Official Jenn-Air 48" side-by-side refrigerator panel kit

Here are the diagrams and repair parts for Official Jenn-Air JPK48SNXWSF0 48" side-by-side refrigerator panel kit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 5 of 5 parts  |
Refrigerator Grille Panel W10213578A
#3

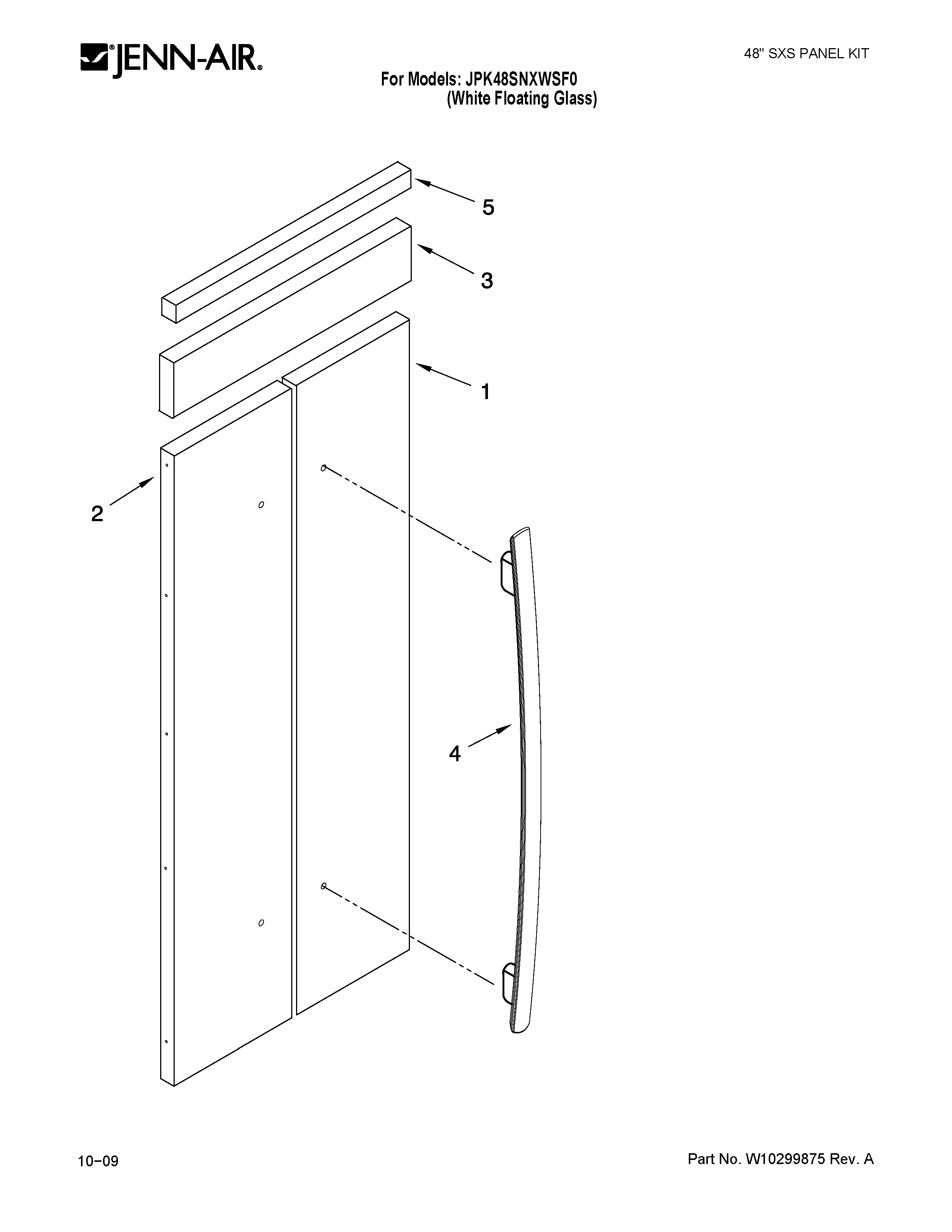

Panel kit parts diagram

Refrigerator grille panel

Part #W10213578A

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Handle W10183426A
#4

Panel kit parts diagram

Refrigerator door handle

Part #W10183426A

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Upper Vent Grill W10234167A
#5

Panel kit parts diagram

Refrigerator upper vent grill

Part #W10234167A

The manufacturer no longer makes this part, and there's no substitute part

Rc Door Panel W10208904A
#1

Panel kit parts diagram

Rc door panel

Part #W10208904A

The manufacturer no longer makes this part, and there's no substitute part

Fc Door Panel W10208926A
#2

Panel kit parts diagram

Fc door panel

Part #W10208926A

The manufacturer no longer makes this part, and there's no substitute part
