Model # PCS366 Official Thermador star burner

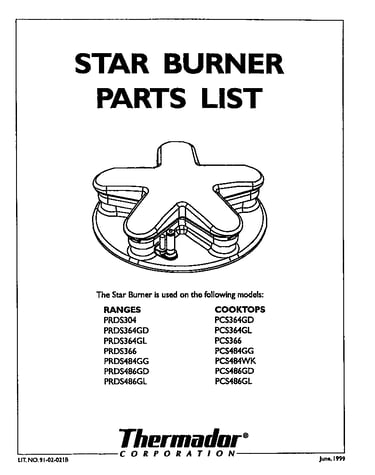

Here are the diagrams and repair parts for Official Thermador PCS366 star burner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

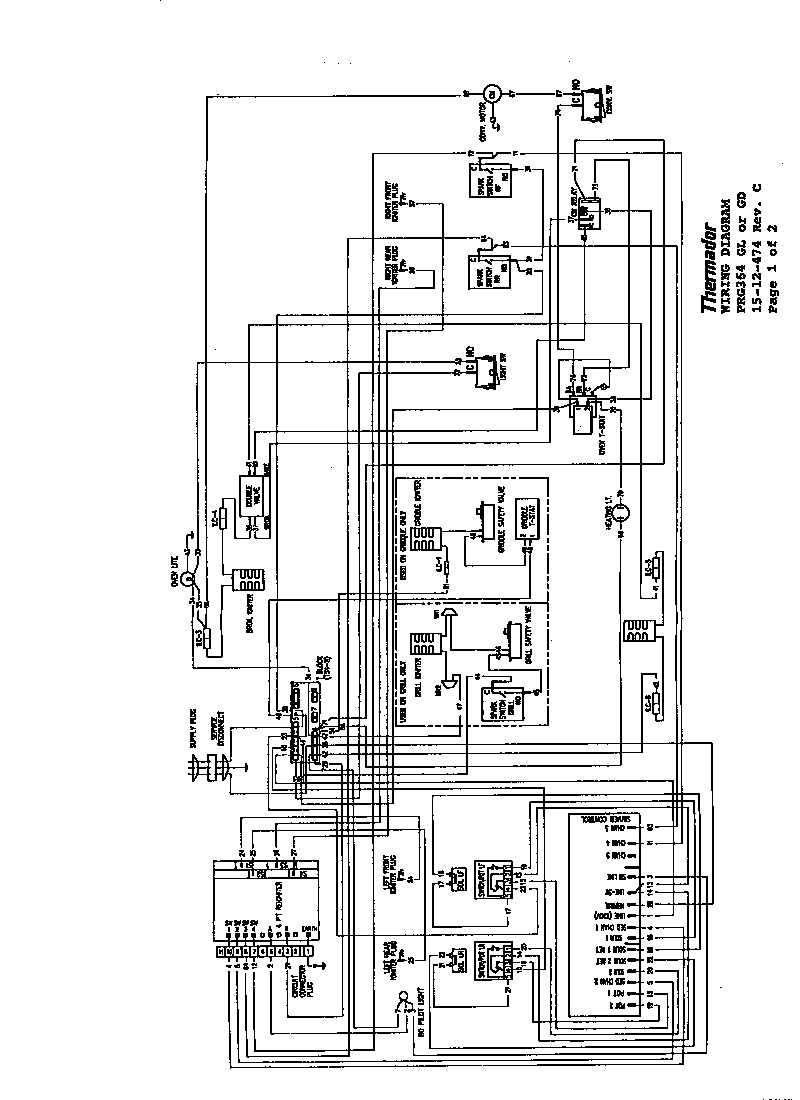

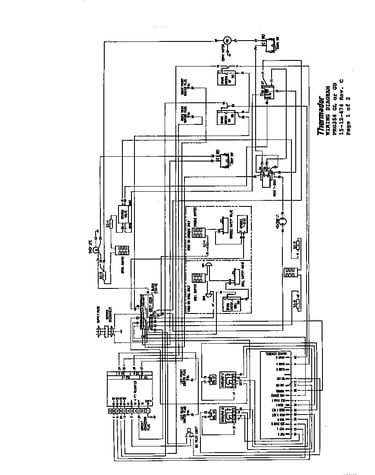

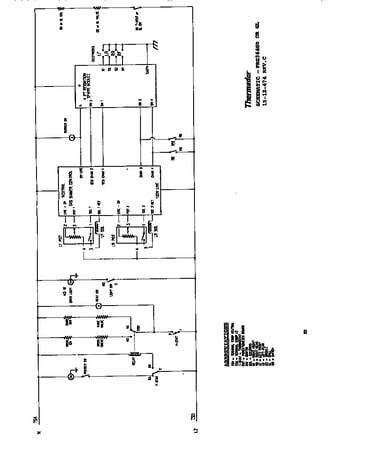

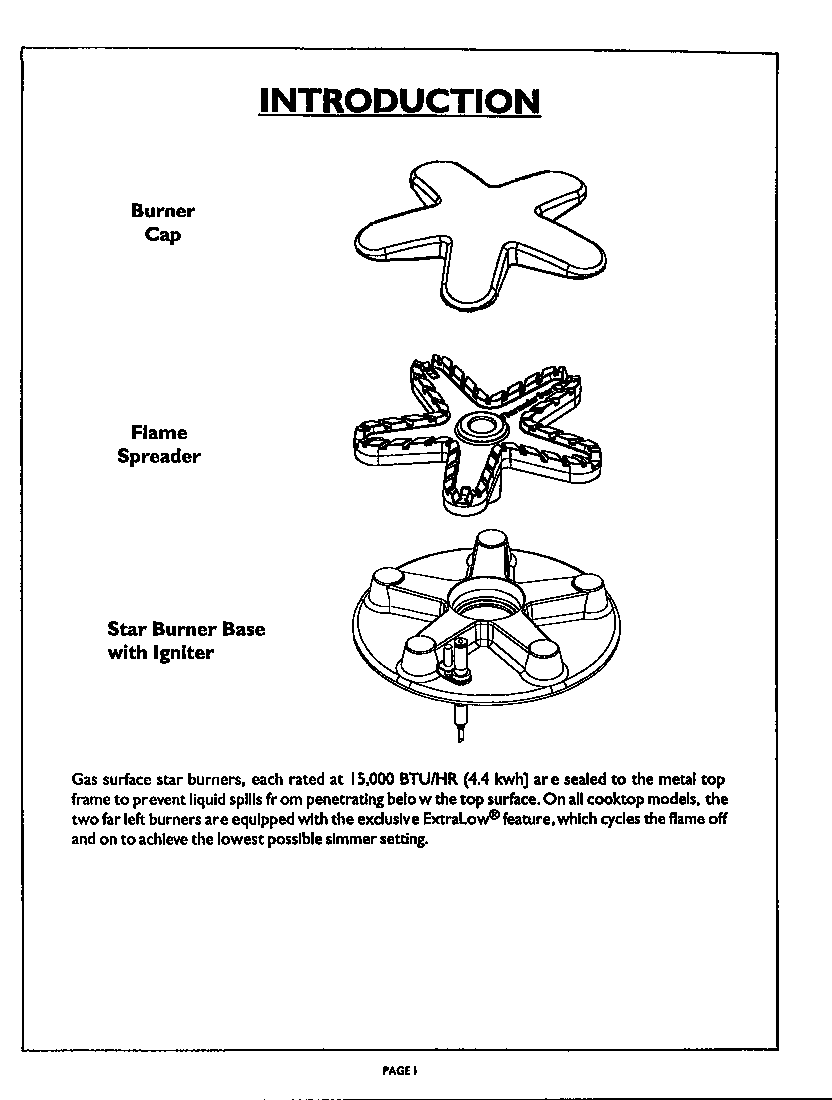

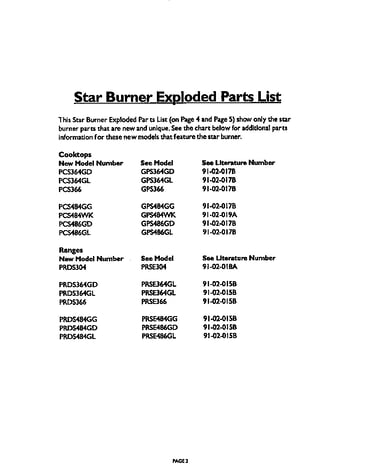

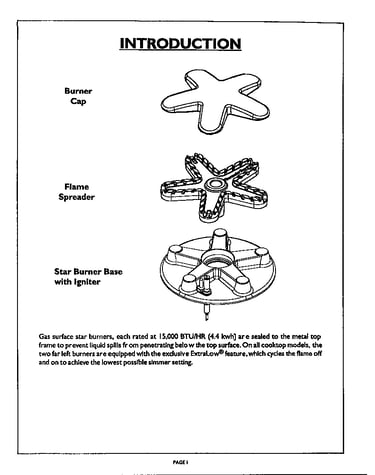

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |

Tube, 5/16 Gas Supply Cv/fb 15-12-577
#18

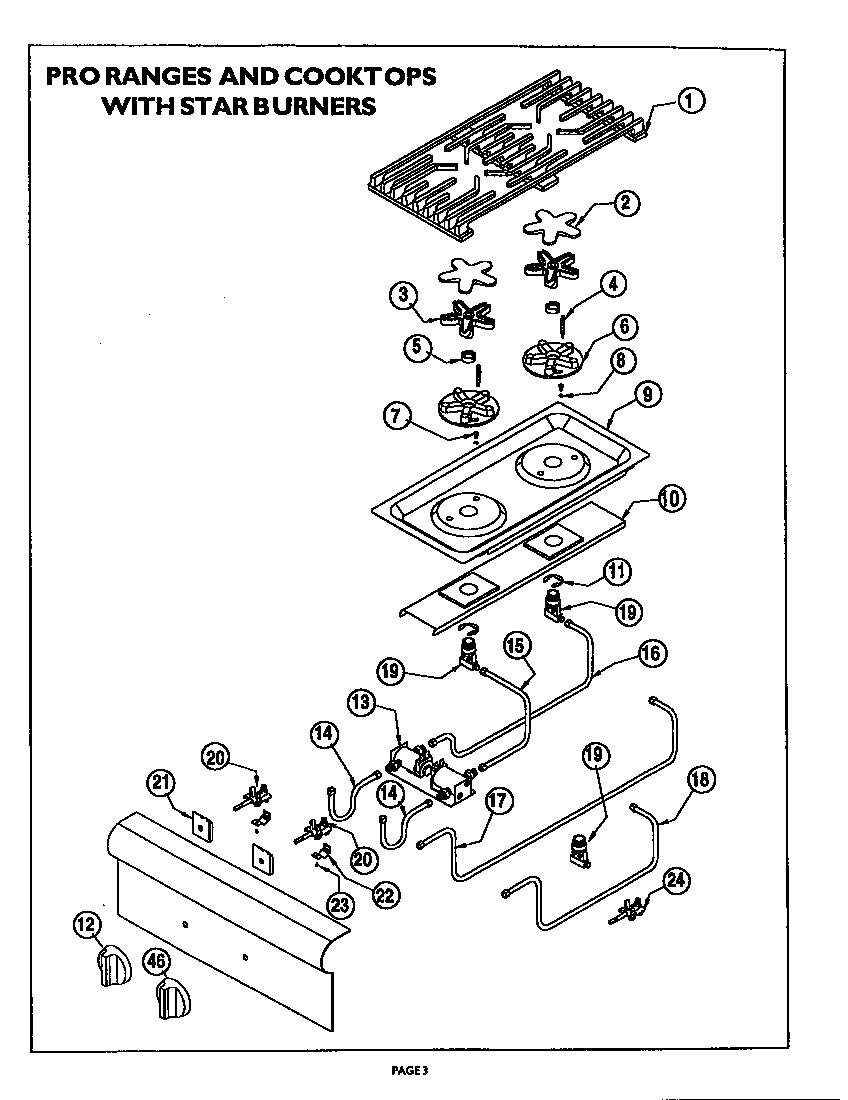

Pro ranges/cooktops w/star burners diagram

Tube, 5/16 gas supply cv/fb

Part #15-12-577

The manufacturer no longer makes this part, and there's no substitute part

Conversion Kit, Pro Starngkit 35-00-679

#NI

All parts diagram

Conversion kit, pro starngkit

Part #35-00-679

The manufacturer no longer makes this part, and there's no substitute part

Electronic Spark 15-12-567
#4

Pro ranges/cooktops w/star burners diagram

Electronic spark

Part #15-12-567

The manufacturer no longer makes this part, and there's no substitute part

C-clip, Electrode (4) 15-12-612
#8

Pro ranges/cooktops w/star burners diagram

C-clip, electrode (4)

Part #15-12-612

The manufacturer no longer makes this part, and there's no substitute part

Base, Pro-burner (4) 15-12-561-01
#6

Pro ranges/cooktops w/star burners diagram

Base, pro-burner (4)

Part #15-12-561-01

The manufacturer no longer makes this part, and there's no substitute part

Clamp Saddle (4) 15-10-161
#22

Pro ranges/cooktops w/star burners diagram

Clamp saddle (4)

Part #15-10-161

The manufacturer no longer makes this part, and there's no substitute part

Burner Knob 15-10-179-1
#12

Pro ranges/cooktops w/star burners diagram

Burner knob

Part #15-10-179-1

The manufacturer no longer makes this part, and there's no substitute part

Head, Pro-burner (4) 15-12-562
#3

Pro ranges/cooktops w/star burners diagram

Head, pro-burner (4)

Part #15-12-562

The manufacturer no longer makes this part, and there's no substitute part

Tube, 5/16 Gas Supply Sv/fb 15-12-580
#15

Pro ranges/cooktops w/star burners diagram

Tube, 5/16 gas supply sv/fb

Part #15-12-580

The manufacturer no longer makes this part, and there's no substitute part

Jet Holder, Pro Star (4) 15-12-587
#19

Pro ranges/cooktops w/star burners diagram

Jet holder, pro star (4)

Part #15-12-587

The manufacturer no longer makes this part, and there's no substitute part
