Dryer

Model # FGR231AS1 Official Frigidaire dryer

Here are the diagrams and repair parts for Official Frigidaire FGR231AS1 dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forFGR231AS1 Dryer

  • Belt 5303283471
    #25

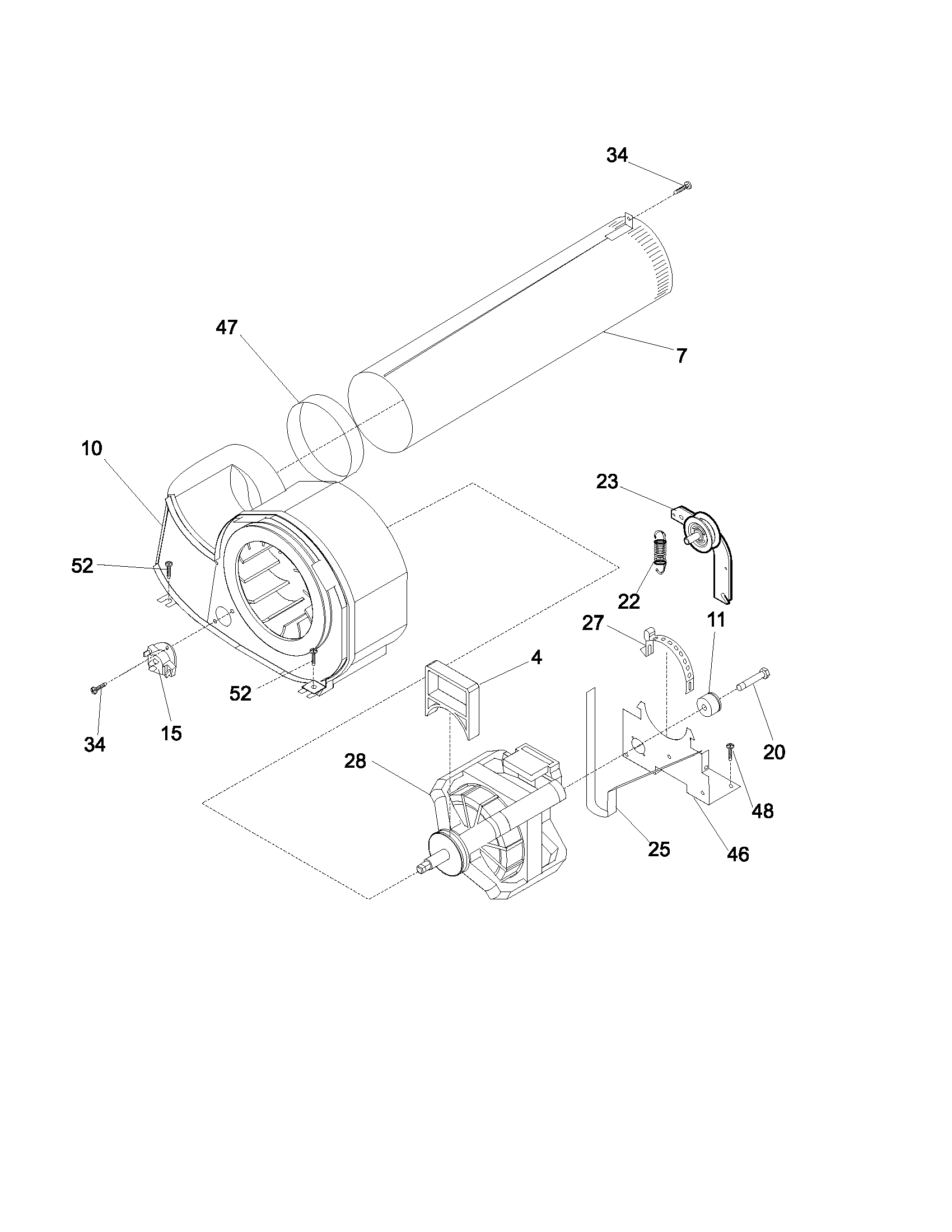

    Motor,blower diagram

    Belt

    Part #5303283471

    Replaced by #134503600

    ?
    Manufacturer substitution
    This part replaces 5303283471. Substitute parts can look different from the original.
    4.17 (24)
    BEST SELLER
    $8.11 |
    11% OFF Phone Price : $9.11
    In Stock
  • Dryer Drum Bearing 131825900
    #12

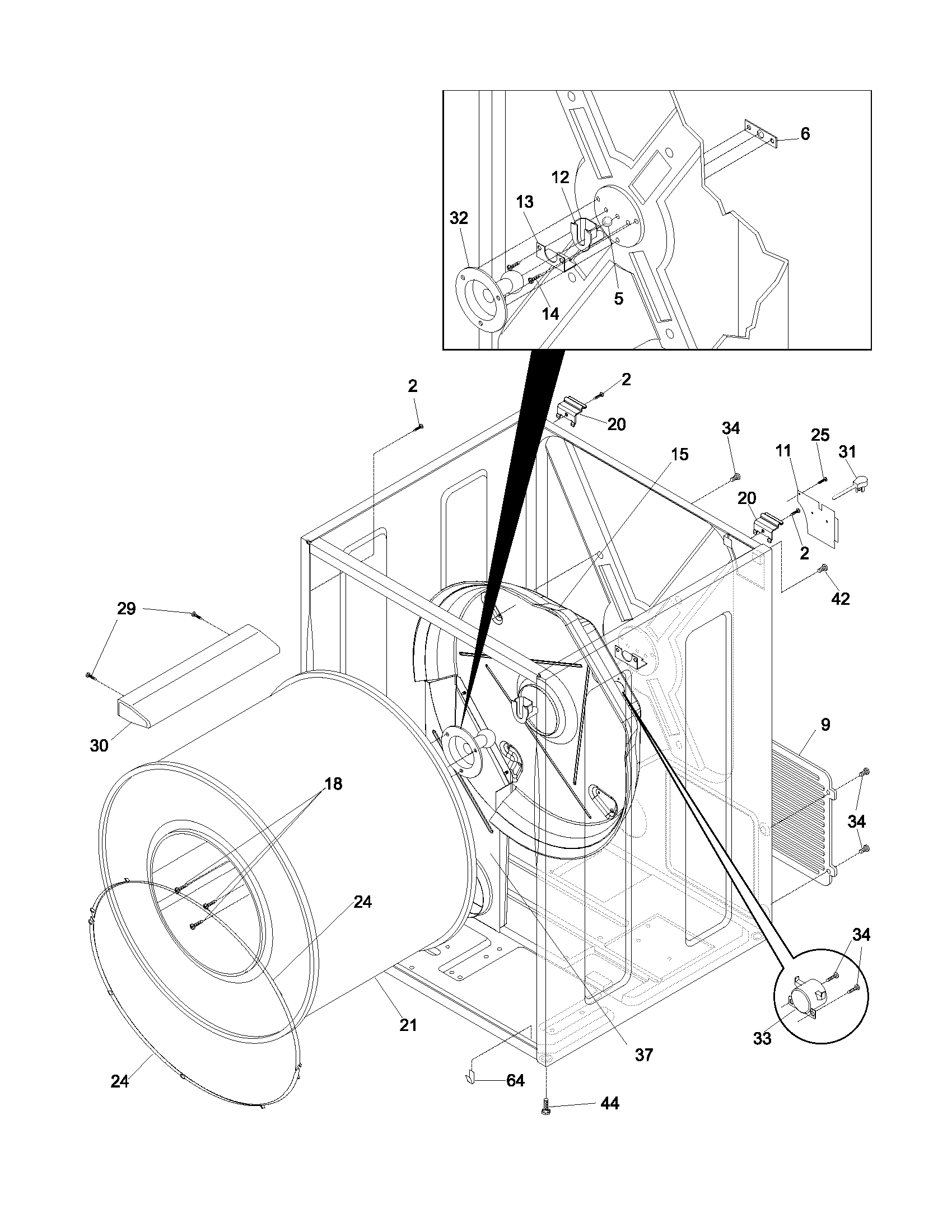

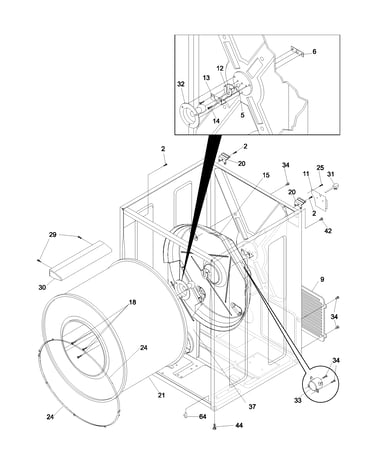

    Dry cab,heater diagram

    Dryer drum bearing

    Part #131825900

    2.5 (4)
    BEST SELLER
    $6.61 |
    13% OFF Phone Price : $7.61
    In Stock
  • Frigidaire Dryer Blower Wheel And Housing Assembly 131775600
    #10

    Motor,blower diagram

    Frigidaire dryer blower wheel and housing assembly

    Part #131775600

    4.1 (20)
    BEST SELLER
    $90.31 |
    6% OFF Phone Price : $96.31
    In Stock
  • Frigidaire Dryer Door Catch 131658800
    #25

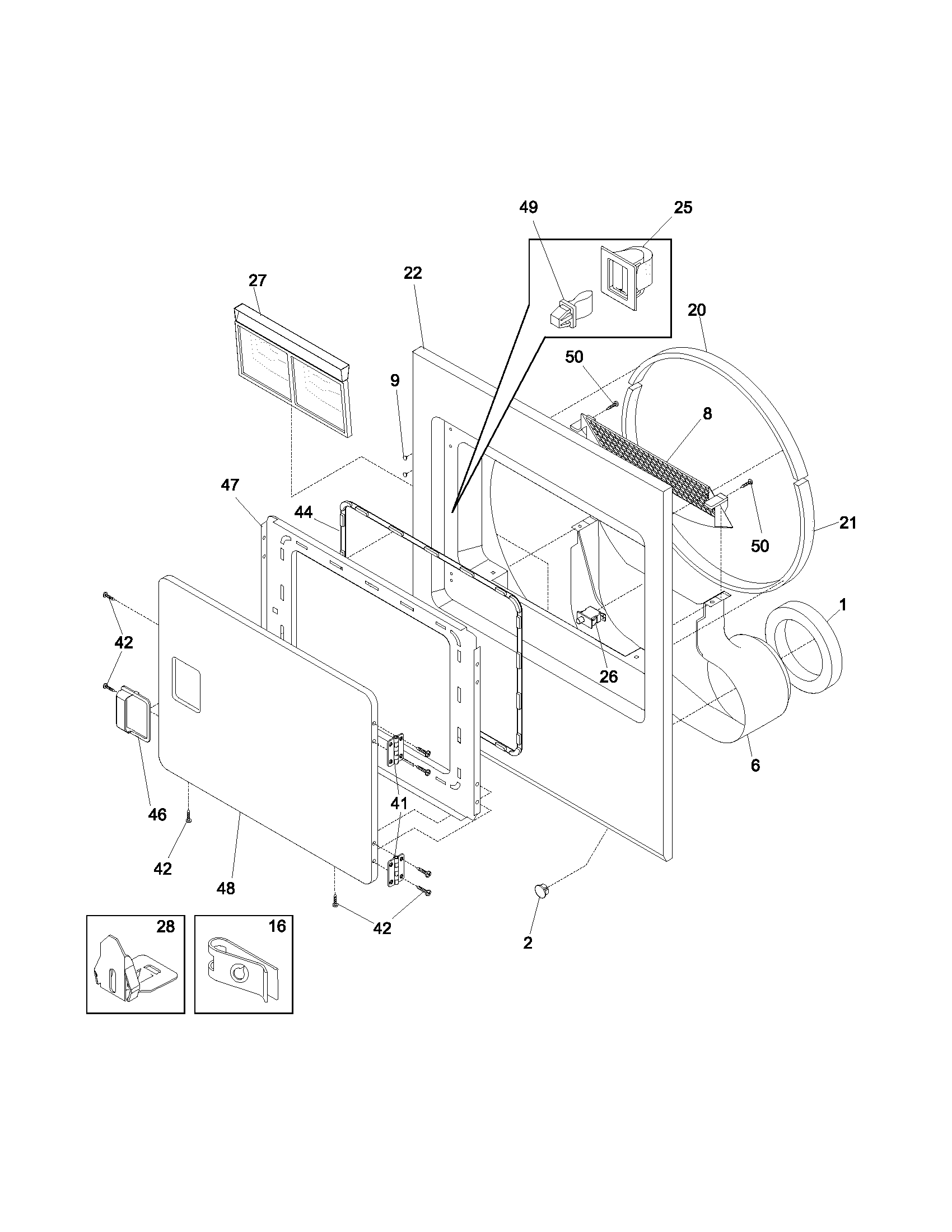

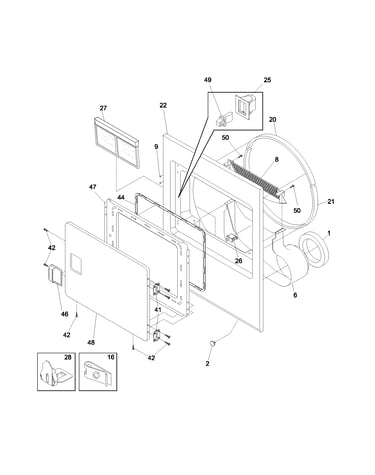

    Frnt pnl,door diagram

    Frigidaire dryer door catch

    Part #131658800

    3.86 (42)
    BEST SELLER
    $42.26 |
    12% OFF Phone Price : $48.26
    In Stock
  • Dryer Drum Support Shaft 131777700
    #32

    Dry cab,heater diagram

    Dryer drum support shaft

    Part #131777700

    3.83 (18)
    BEST SELLER
    $59.61 |
    9% OFF Phone Price : $65.61
    In Stock
  • Booster Coil 5303307292
    #72

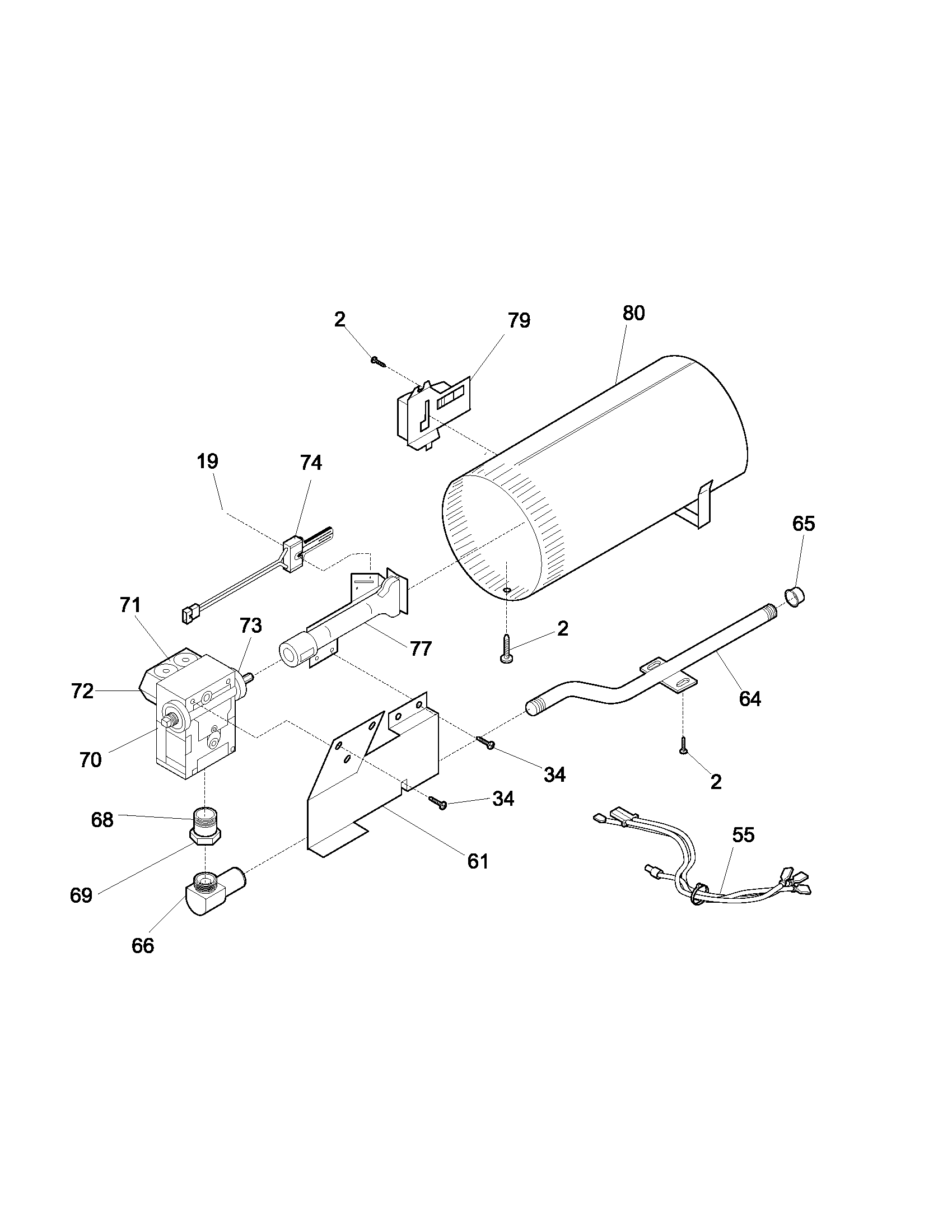

    Burner,valve diagram

    Booster coil

    Part #5303307292

    Replaced by #5303931775

    ?
    Manufacturer substitution
    This part replaces 5303307292. Substitute parts can look different from the original.
    5 (8)
    BEST SELLER
    $35.66 |
    14% OFF Phone Price : $41.66
    In Stock
  • Coil-seconda 5303307291
    #71

    Burner,valve diagram

    Coil-seconda

    Part #5303307291

    Replaced by #5303931775

    ?
    Manufacturer substitution
    This part replaces 5303307291. Substitute parts can look different from the original.
    5 (8)
    BEST SELLER
    $35.66 |
    14% OFF Phone Price : $41.66
    In Stock
  • Dryer Drum Bearing Bracket 131724300
    #13

    Dry cab,heater diagram

    Dryer drum bearing bracket

    Part #131724300

    Replaced by #131724301

    ?
    Manufacturer substitution
    This part replaces 131724300. Substitute parts can look different from the original.
    BEST SELLER
    $12.91 |
    13% OFF Phone Price : $14.91
    In Stock
  • Bracket 131863000
    #23

    Motor,blower diagram

    Bracket

    Part #131863000

    Replaced by #131863007

    ?
    Manufacturer substitution
    This part replaces 131863000. Substitute parts can look different from the original.
    4.71 (7)
    BEST SELLER
    $46.63 |
    11% OFF Phone Price : $52.63
    In Stock
  • Laundry Appliance Screw, #8-18 X 31/100-in 131168200
    Laundry appliance screw, #8-18 x 31/100-in

    Part #131168200

    2.33 (3)
    BEST SELLER
    $12.76 |
    14% OFF Phone Price : $14.76
    In Stock
