Dehumidifier

Model # FDH25J1 Official Frigidaire dehumidifier

Here are the diagrams and repair parts for Official Frigidaire FDH25J1 dehumidifier, as well as links to manuals and error code tables, if available.

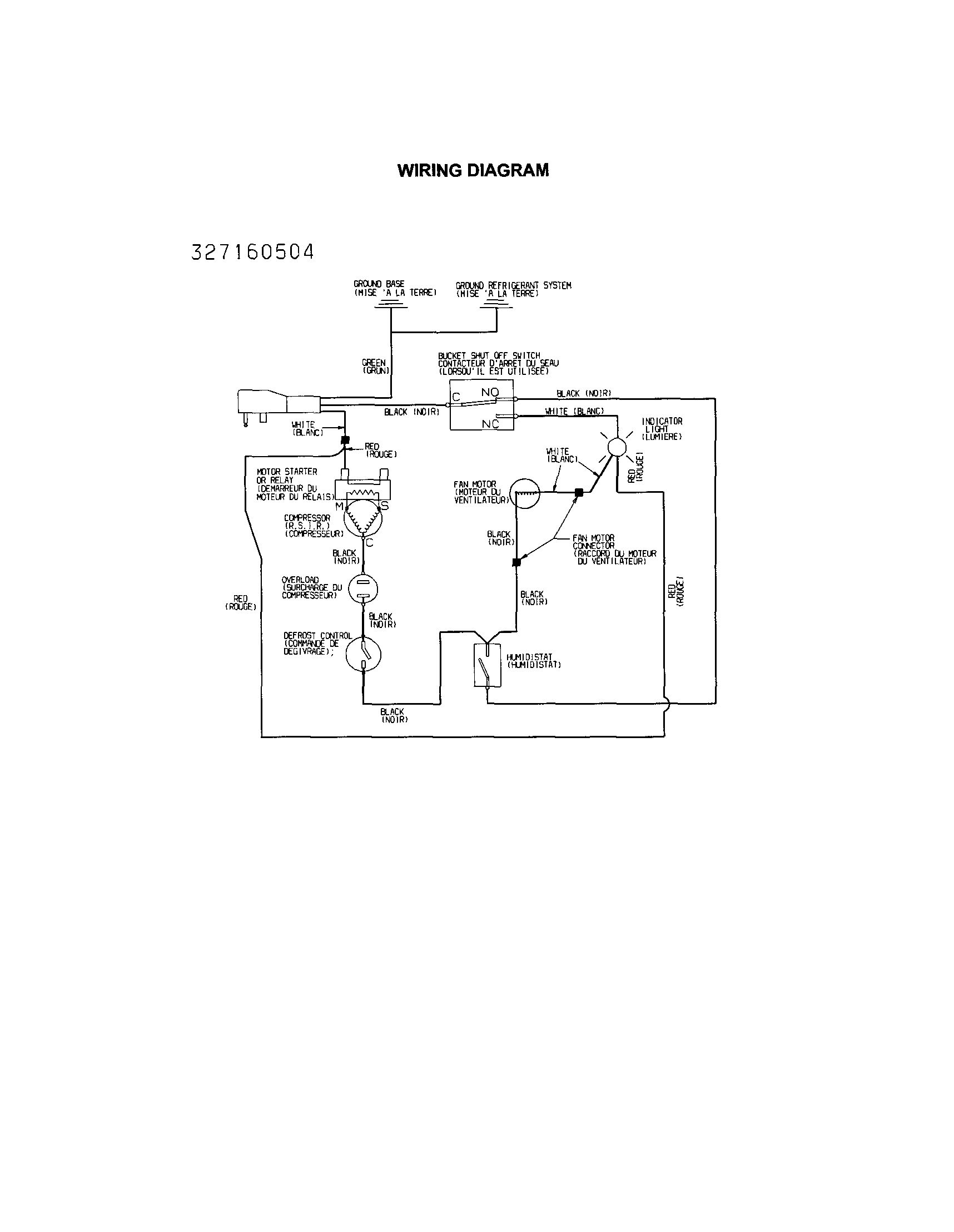

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forFDH25J1 Dehumidifier

  • Light Harness 327160712

    #NI

    All parts diagram

    Light harness

    Part #327160712

    In Stock
  • Compressor 327603702
    #34

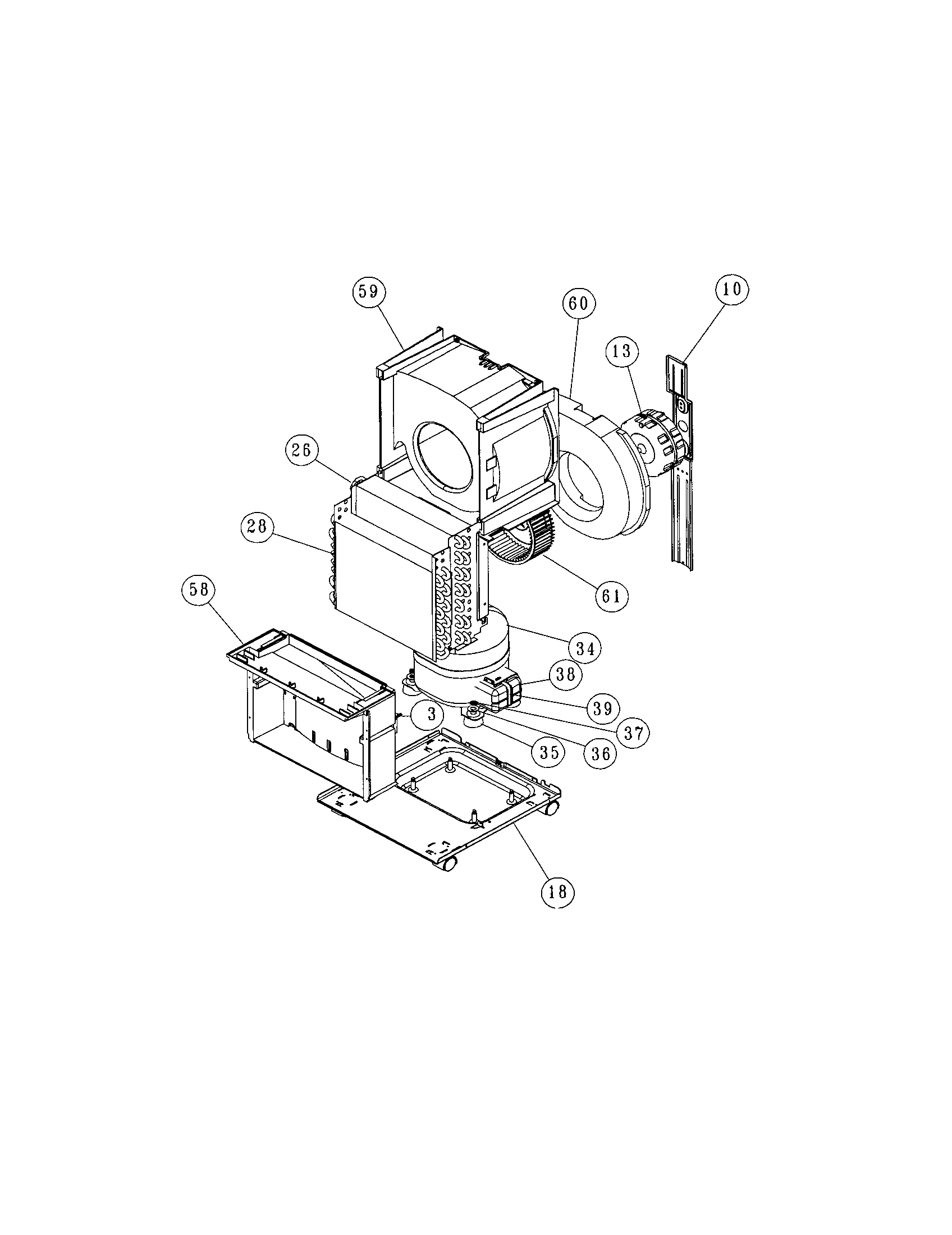

    System parts diagram

    Compressor

    Part #327603702

    Replaced by #327603703

    ?
    Manufacturer substitution
    This part replaces 327603702. Substitute parts can look different from the original.
    In Stock
  • Tubing 5304410096

    #NI

    All parts diagram

    Tubing

    Part #5304410096

    The manufacturer no longer makes this part, and there's no substitute part

  • Hose Cap 327160101
    #55

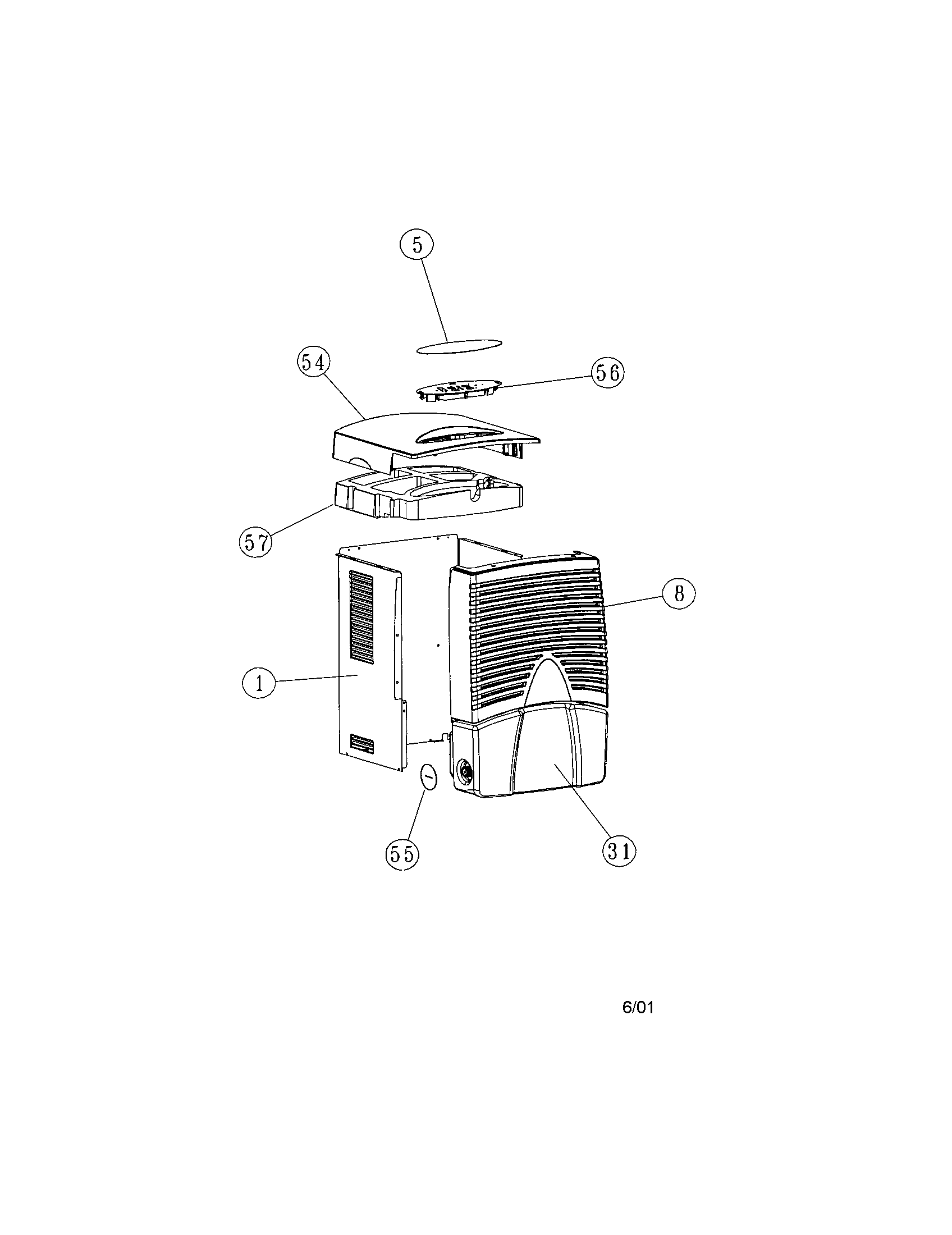

    Wrapper diagram

    Hose cap

    Part #327160101

    The manufacturer no longer makes this part, and there's no substitute part

  • Drip Tray 327660501
    #58

    System parts diagram

    Drip tray

    Part #327660501

    The manufacturer no longer makes this part, and there's no substitute part

  • Overload Protector 5304416099

    #NI

    All parts diagram

    Overload protector

    Part #5304416099

    The manufacturer no longer makes this part, and there's no substitute part

  • Bracket 327362101
    #10

    System parts diagram

    Bracket

    Part #327362101

    The manufacturer no longer makes this part, and there's no substitute part

  • Front 327661501
    #8

    Wrapper diagram

    Front

    Part #327661501

    The manufacturer no longer makes this part, and there's no substitute part

  • Clamp 327161302

    #NI

    All parts diagram

    Clamp

    Part #327161302

    The manufacturer no longer makes this part, and there's no substitute part

  • Scroll 327660201
    #59

    System parts diagram

    Scroll

    Part #327660201

    The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your dehumidifiers

Choose a symptom to see related dehumidifier repairs.

Main causes: dehumidifier too small for the space, bad humidity sensor, faulty evaporator thermistor, low refrigerant, b…

Main causes: clogged drain hose, drain hose not properly connected…

Main causes: lack of electrical power, wiring failure, electronic control board failure, user interface control failure…

Main causes: room temperature below 65 degrees Fahrenheit, control system failure…

Main causes: weak or dead batteries, out of range, radio frequency interference…

Main causes: dirty air filter, clogged grill, dehumidifier placed too close to the wall, dehumidifier too small for the …

Main causes: collection bucket not installed, collection bucket full of water…

Main causes: loose fan motor mounting screws, loose compressor mounting bracket screws, bad fan, faulty compressor…

Main causes: collection bucket not installed correctly, cracked collection bucket, loose drain hose connection…

Most common repair guides to help fix your dehumidifiers

These step-by-step repair guides will help you safely fix what’s broken on your dehumidifier.

How to replace a dehumidifier sensor assembly

How to replace a dehumidifier sensor assembly

If the humidifier sensor doesn’t properly detect humidity or evaporator temperature, install a new sensor assembly, foll…

Repair difficulty
Time required
 45 minutes or less
How to replace a dehumidifier user interface control board

How to replace a dehumidifier user interface control board

If the dehumidifier doesn’t respond when you try to set it, follow these steps to replace it.…

Repair difficulty
Time required
 30 minutes or less
How to replace a dehumidifier electronic control board

How to replace a dehumidifier electronic control board

If the dehumidifier won’t power up because the control board has failed, use the steps in this repair guide to replace t…

Repair difficulty
Time required
 45 minutes or less

Effective articles & videos to help repair your dehumidifiers

Use the advice and tips in these articles to get the most out of your dehumidifier.

Wiring schematic symbols explained video

Wiring schematic symbols explained video

Learn some of the most common symbols found in a wiring diagram and what they mean.…

How to repair broken or damaged wires video

How to repair broken or damaged wires video

Learn how to repair broken, frayed or damaged wires in your appliances.…

How to use a multimeter to test electrical parts video

How to use a multimeter to test electrical parts video

Learn how to use a multimeter to check for wiring problems in an appliance that's not working…
