Bottom-Mount Refrigerator

Model # LFX28968SW/00 Official LG refrigerator

Here are the diagrams and repair parts for Official LG LFX28968SW-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 195 parts  |
Refrigerator Filter Dryer 5851JA2007E
#317A

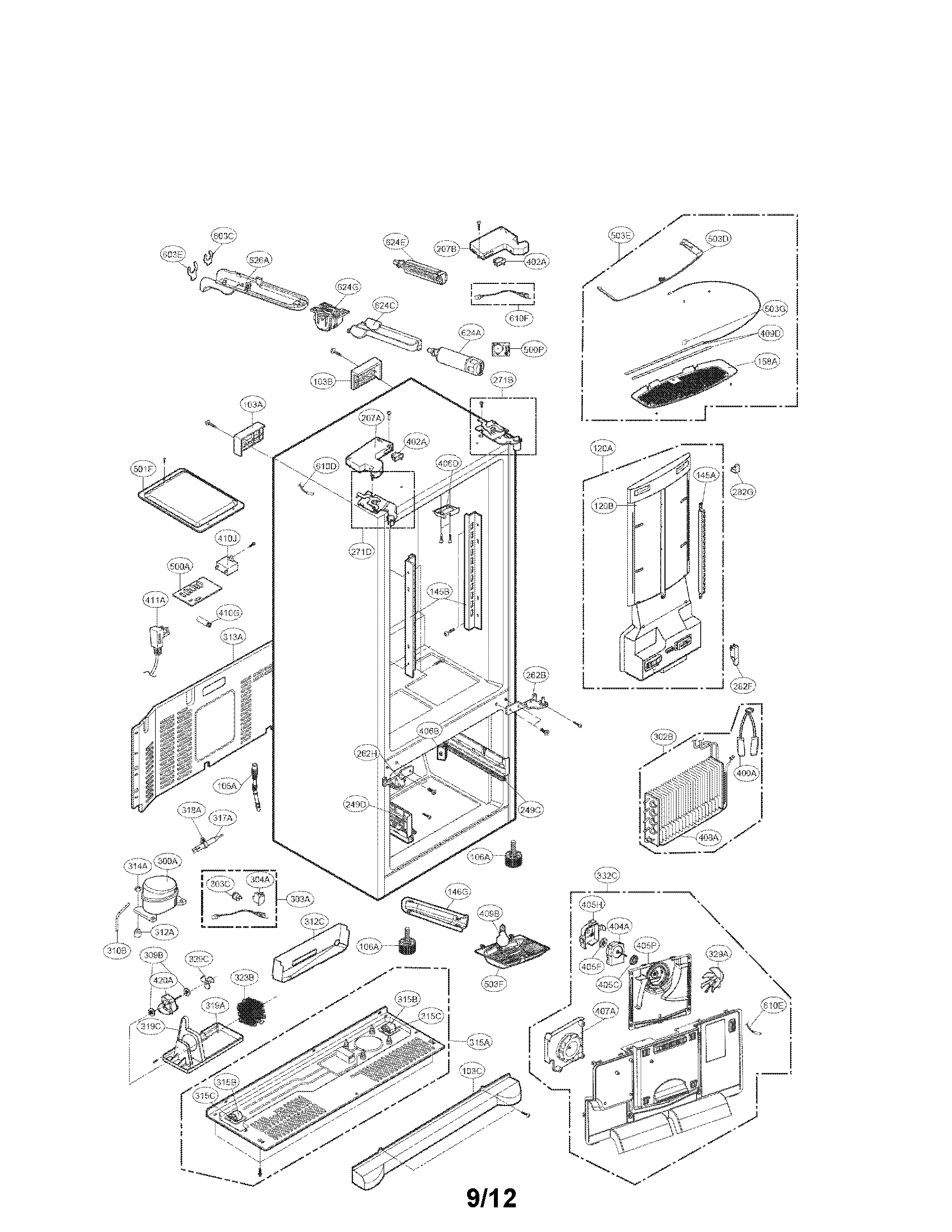

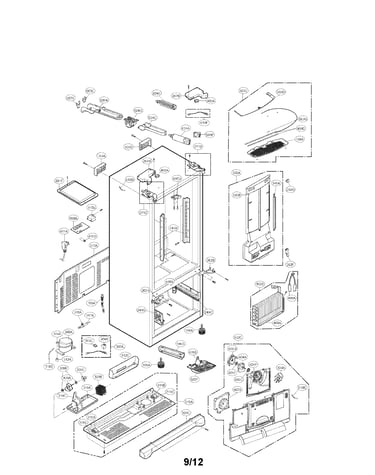

Case parts diagram

Refrigerator filter dryer

Part #5851JA2007E

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2007E. Substitute parts can look different from the original.
BEST SELLER
$67.13 |
8% OFF Phone Price : $73.13
In Stock
Kenmore Lg Lt700p Refrigerator Water Filter (replaces Adq36006113) ADQ36006101
#624C

Case parts diagram

Kenmore lg lt700p refrigerator water filter (replaces adq36006113)

Part #ADQ36006101

BEST SELLER

Get free shipping with Automatic Reorder

$68.99
In Stock
Refrigerator Door Switch 6600JB1010K
#406B

Case parts diagram

Refrigerator door switch

Part #6600JB1010K

Replaced by #6600JB1010A

?
Manufacturer substitution
This part replaces 6600JB1010K. Substitute parts can look different from the original.
BEST SELLER
$22.36 |
21% OFF Phone Price : $28.36
In Stock
Dc Motor EAU59551203
#405A

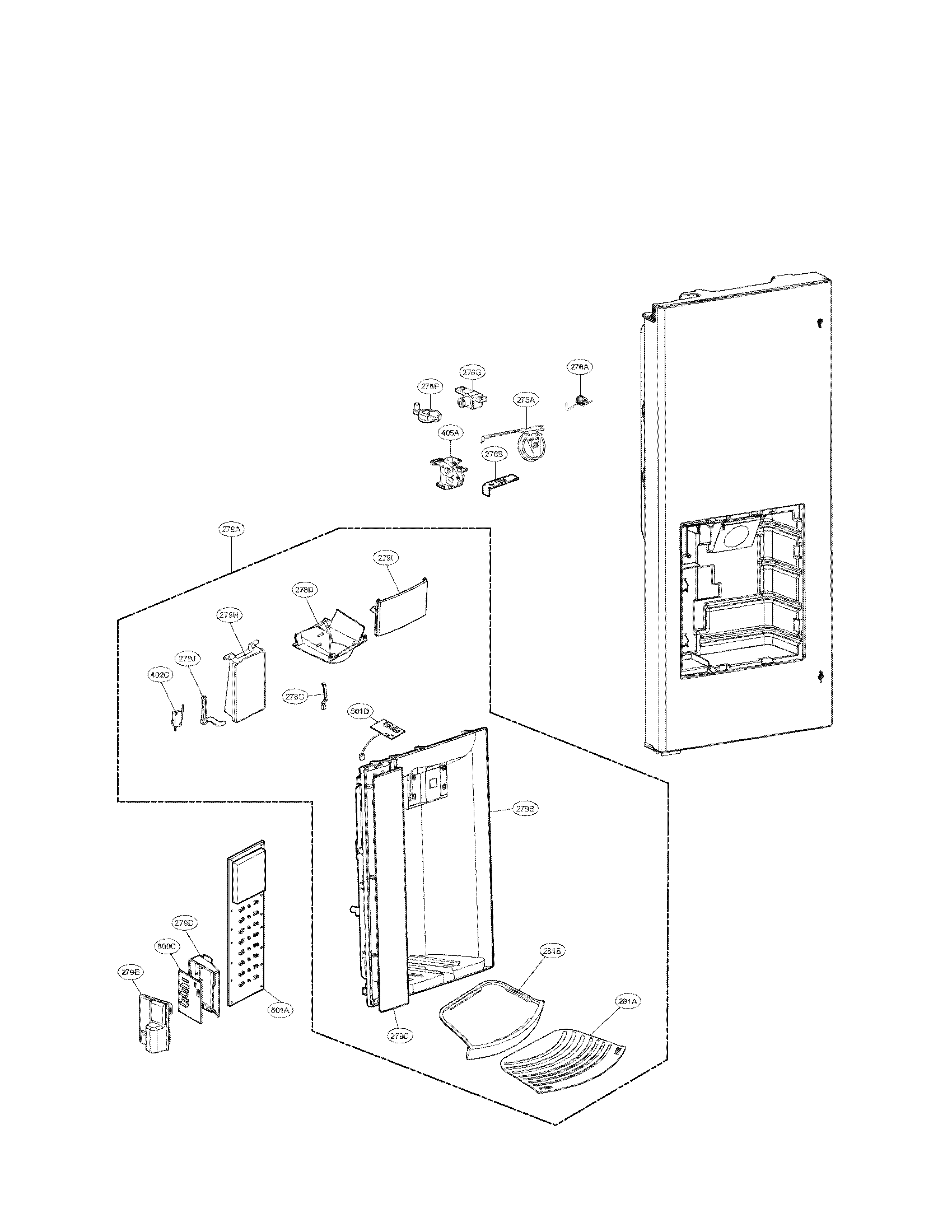

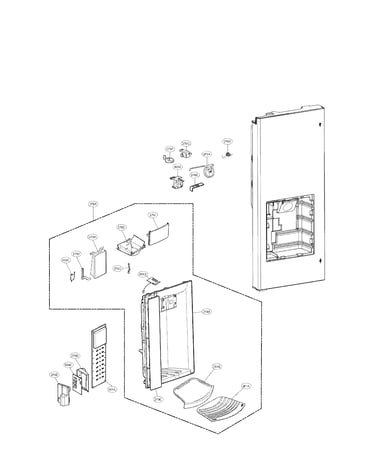

Dispenser parts diagram

Dc motor

Part #EAU59551203

Replaced by #EAU59551204

?
Manufacturer substitution
This part replaces EAU59551203. Substitute parts can look different from the original.
BEST SELLER
$50.02 |
11% OFF Phone Price : $56.02
In Stock
Refrigerator Condenser Coil ACG72915209
#323B

Case parts diagram

Refrigerator condenser coil

Part #ACG72915209

Replaced by #ACG73784701

?
Manufacturer substitution
This part replaces ACG72915209. Substitute parts can look different from the original.
BEST SELLER
$124.97 |
9% OFF Phone Price : $136.97
In Stock
Valve Assembly AJU72992606
#619B

Door parts diagram

Valve assembly

Part #AJU72992606

Replaced by #AJU72992601

?
Manufacturer substitution
This part replaces AJU72992606. Substitute parts can look different from the original.
BEST SELLER
$106.37 |
10% OFF Phone Price : $118.37
In Stock
Refrigerator Door Gasket MDS38201417
#203A

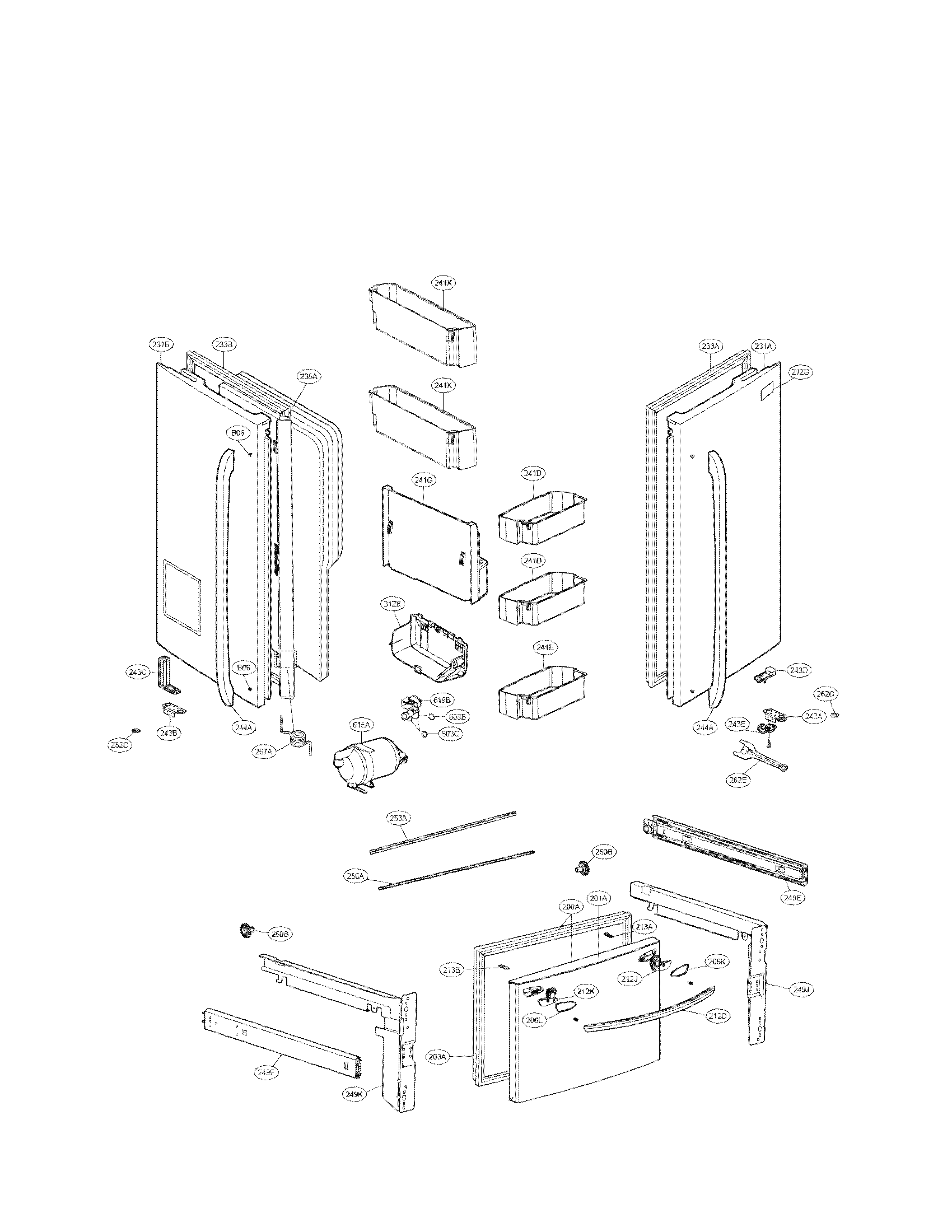

Door parts diagram

Refrigerator door gasket

Part #MDS38201417

Replaced by #MDS38201426

?
Manufacturer substitution
This part replaces MDS38201417. Substitute parts can look different from the original.
BEST SELLER
$54.15 |
10% OFF Phone Price : $60.15
In Stock
Refrigerator Compressor Start Relay EBG60663213
#303A

Case parts diagram

Refrigerator compressor start relay

Part #EBG60663213

Replaced by #EBG60663230

?
Manufacturer substitution
This part replaces EBG60663213. Substitute parts can look different from the original.
BEST SELLER
$53.15 |
10% OFF Phone Price : $59.15
In Stock
Refrigerator Water Filter Bypass ABN73019101
#624G

Case parts diagram

Refrigerator water filter bypass

Part #ABN73019101

BEST SELLER
$19.51 |
9% OFF Phone Price : $21.51
In Stock
Refrigerator Water Tube Fitting (replaces 4932ja3009h, Mcd62426801) 4932JA3009A
#617A

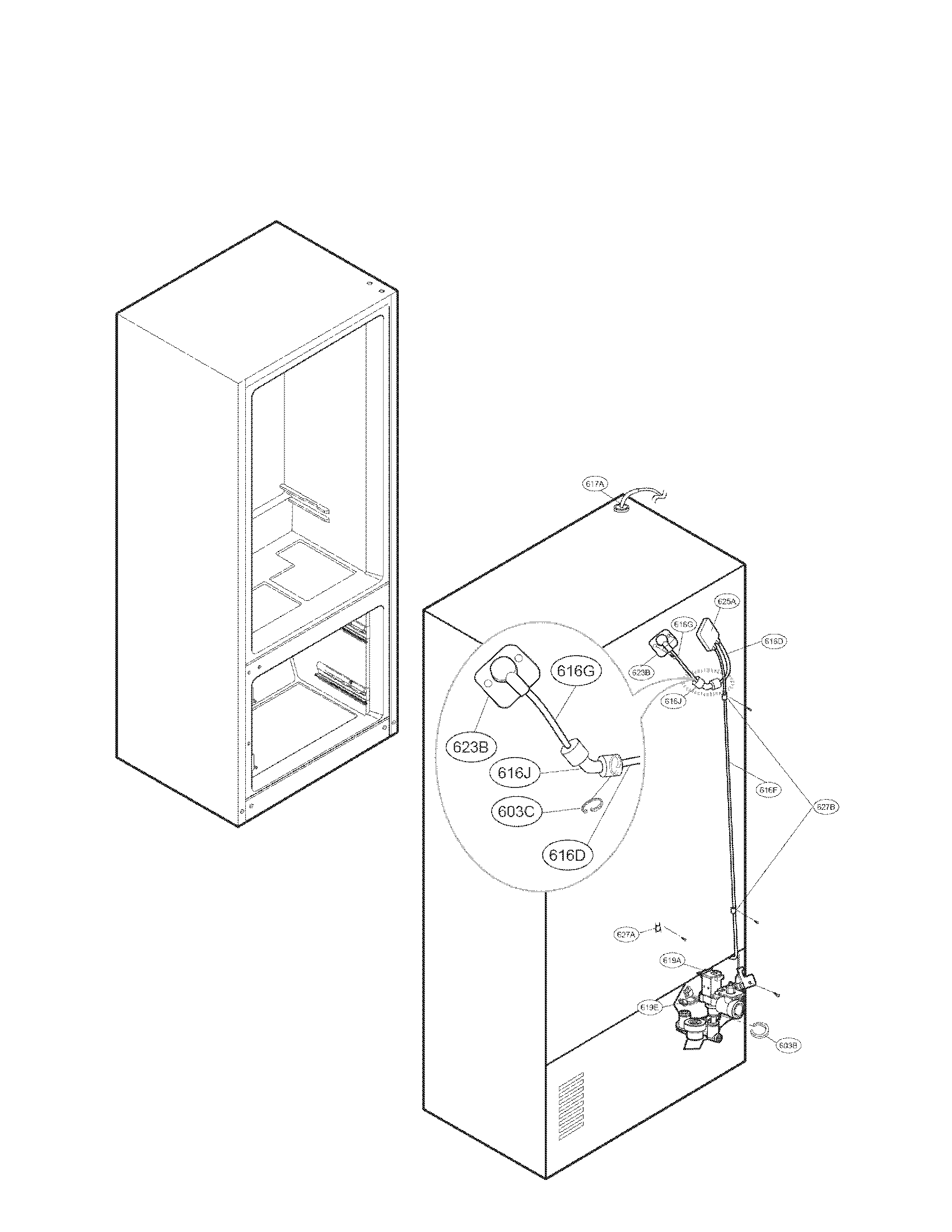

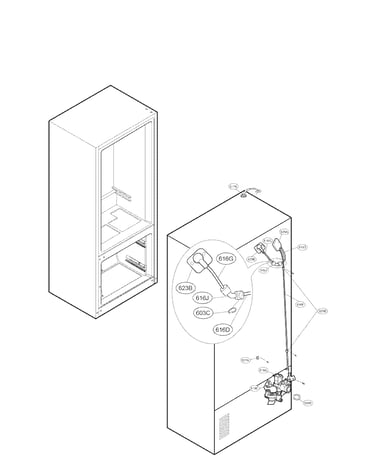

Valve and water tube parts diagram

Refrigerator water tube fitting (replaces 4932ja3009h, mcd62426801)

Part #4932JA3009A

BEST SELLER
$17.14 |
10% OFF Phone Price : $19.14
In Stock
