Frigidaire
Gas Range

Model # GG46CL3 Official Frigidaire gas range - lf32488060

Here are the diagrams and repair parts for Official Frigidaire GG46CL3 gas range - lf32488060, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

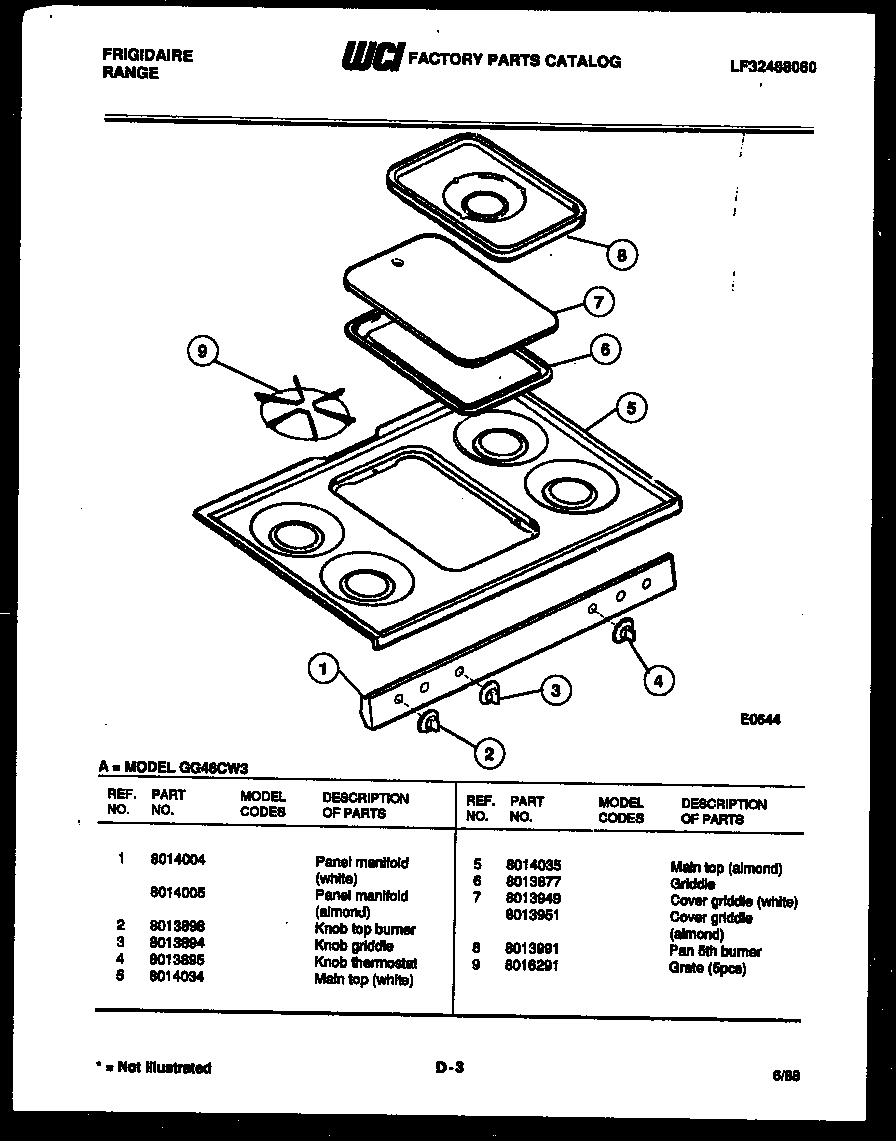

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Bushing 8008009
#8

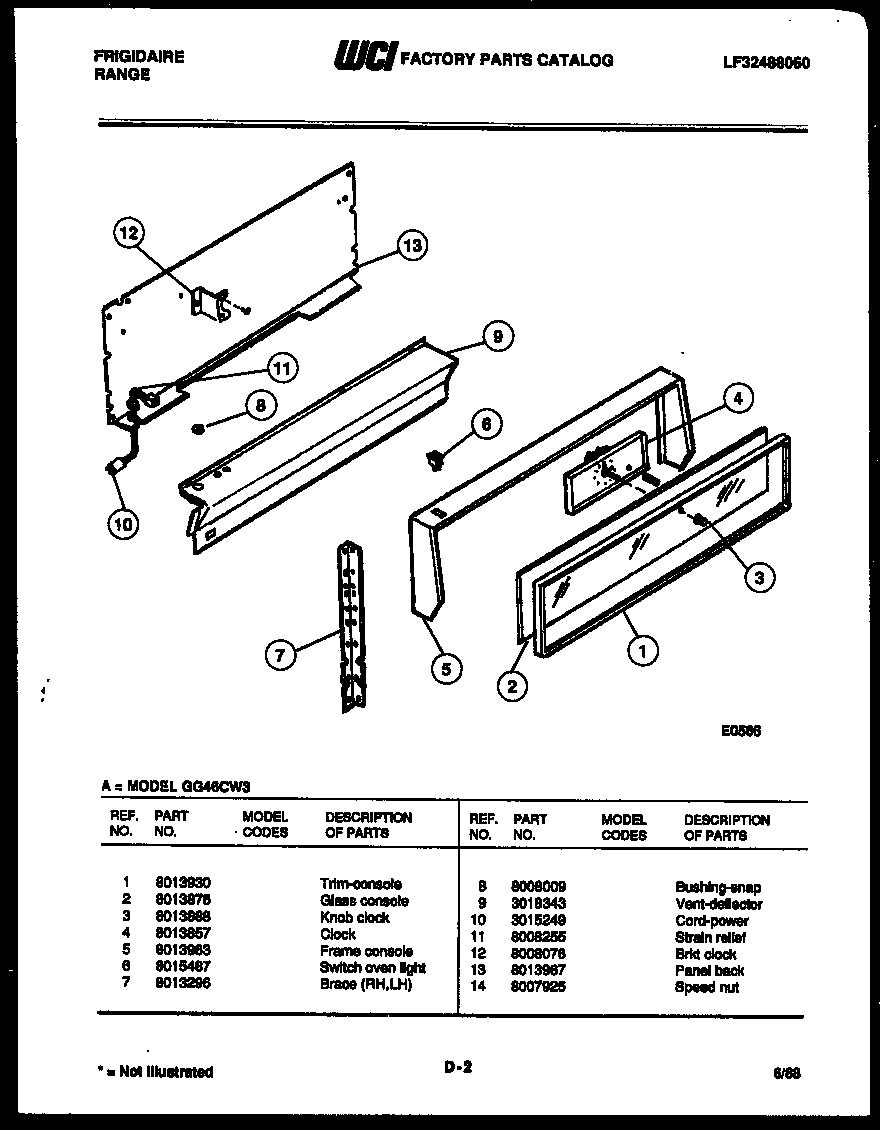

Control panel diagram

Bushing

Part #8008009

$7.50
In Stock
Drawer 3018283
#3

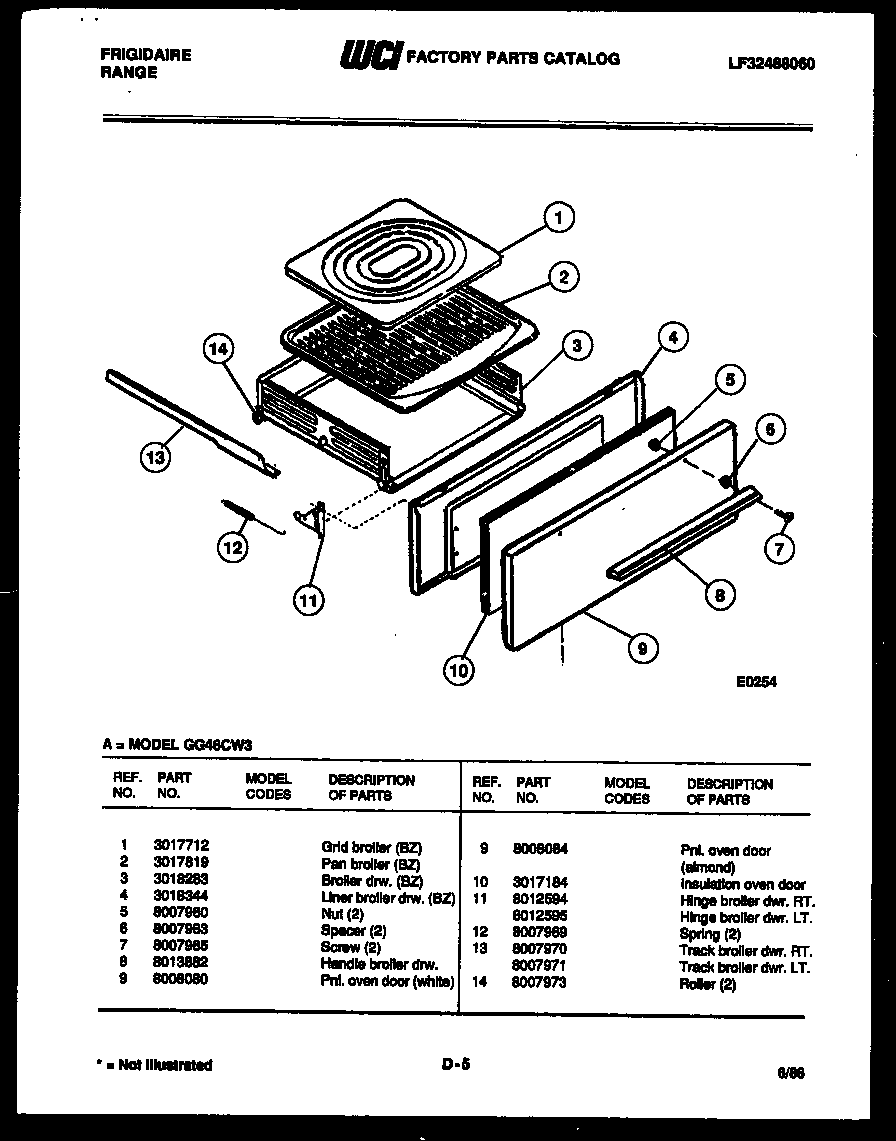

Broiler drawer parts diagram

Drawer

Part #3018283

Replaced by #5304504568

?
Manufacturer substitution
This part replaces 3018283. Substitute parts can look different from the original.
$182.07 |
6% OFF Phone Price : $194.07
In Stock
Liner 3018282
#12

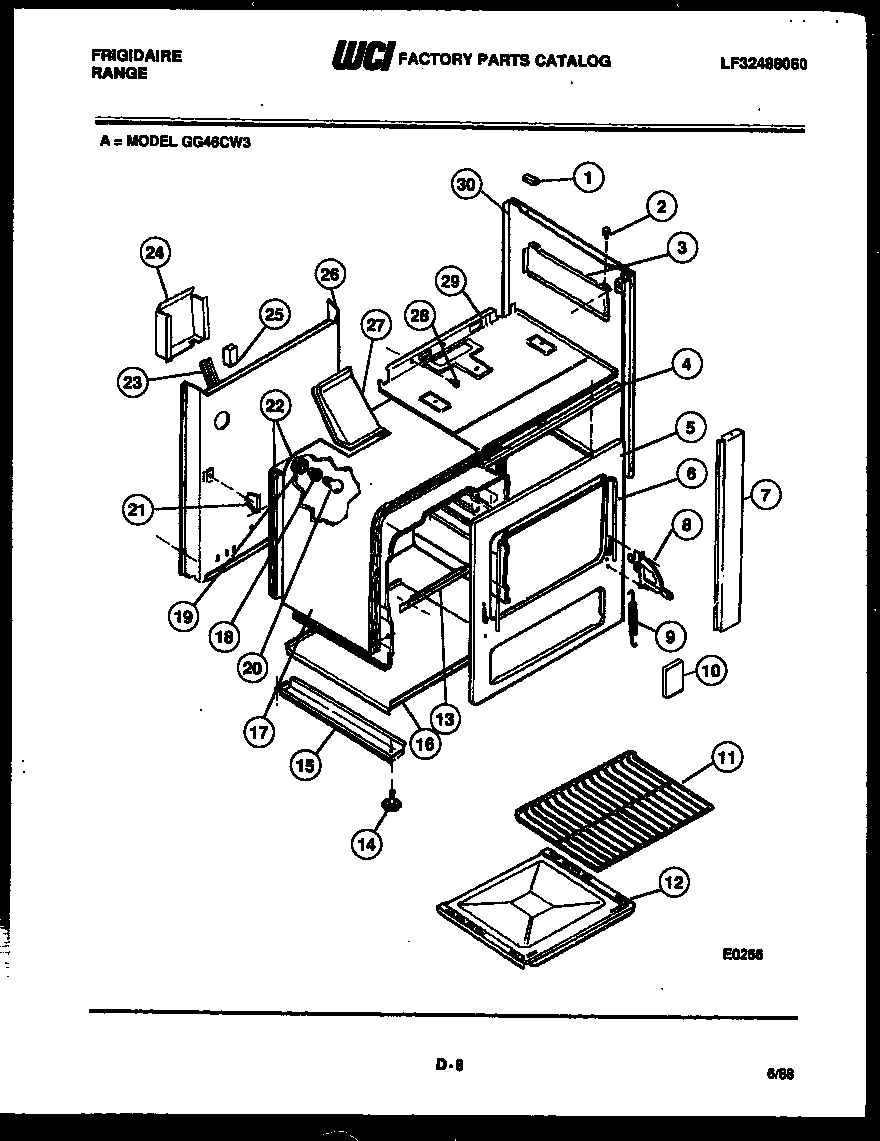

Body parts diagram

Liner

Part #3018282

The manufacturer no longer makes this part, and there's no substitute part

Igniter 3016869
#22

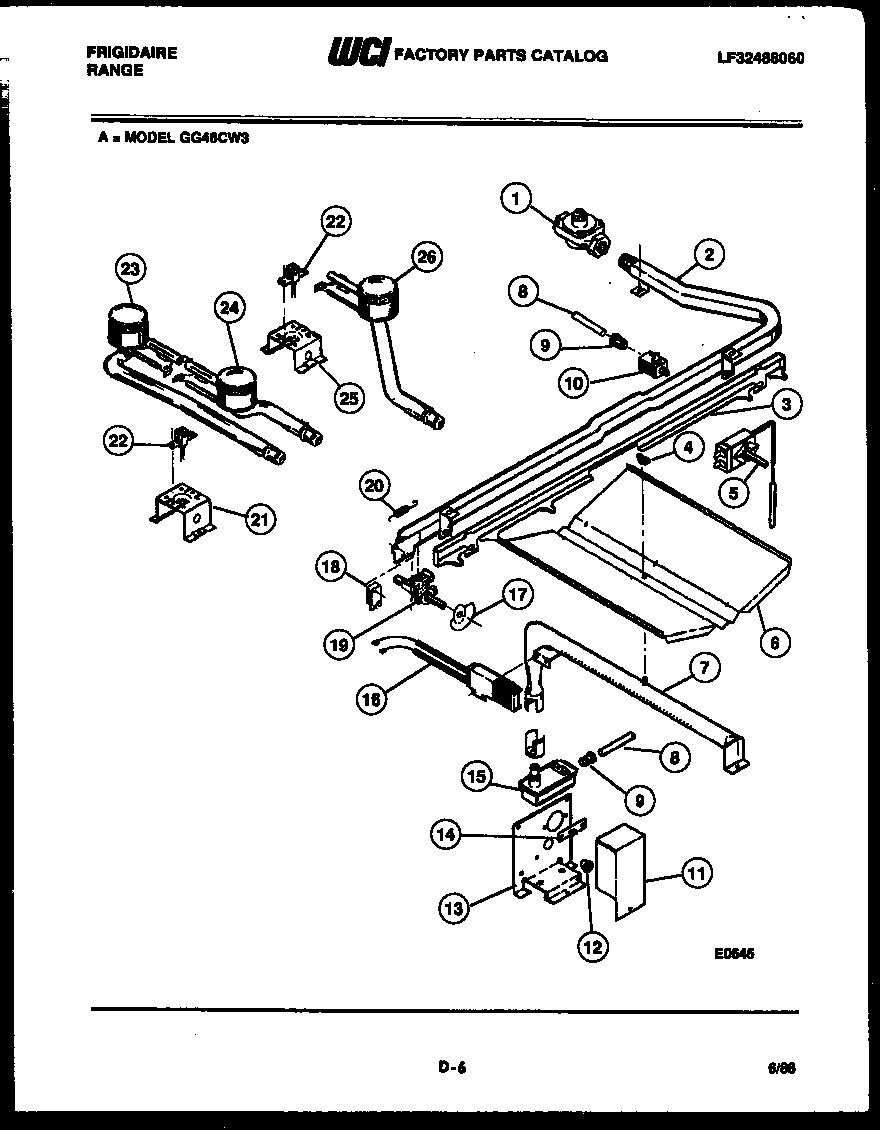

Burner, manifold and gas control diagram

Igniter

Part #3016869

The manufacturer no longer makes this part, and there's no substitute part

Brace (2) 8013296
#7

Control panel diagram

Brace (2)

Part #8013296

The manufacturer no longer makes this part, and there's no substitute part

Griddle Burner 8013854
#26

Burner, manifold and gas control diagram

Griddle burner

Part #8013854

The manufacturer no longer makes this part, and there's no substitute part

Grid 3017712
#1

Broiler drawer parts diagram

Grid

Part #3017712

The manufacturer no longer makes this part, and there's no substitute part

Panel 3014982
#10

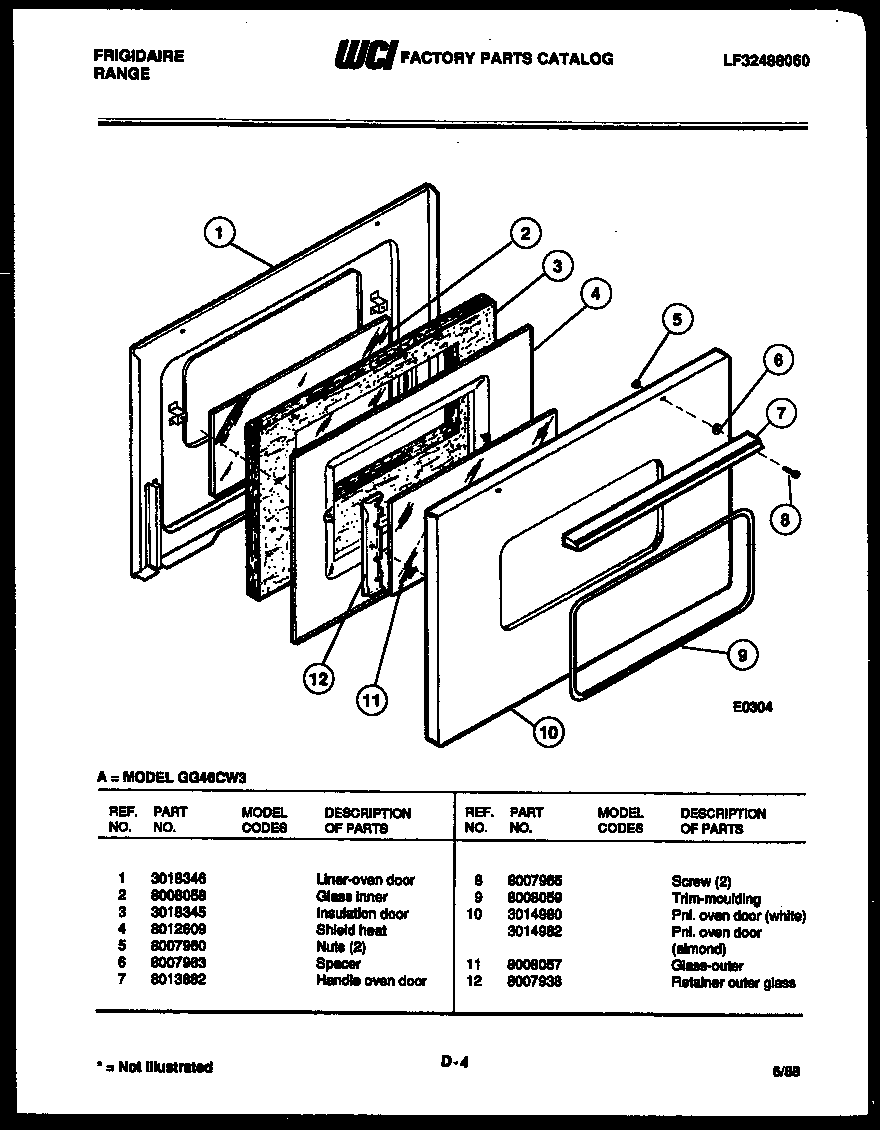

Door parts diagram

Panel

Part #3014982

The manufacturer no longer makes this part, and there's no substitute part

Frame 3017790
#5

Body parts diagram

Frame

Part #3017790

The manufacturer no longer makes this part, and there's no substitute part

Hinge Oven Door Left 8008024
#8A

Body parts diagram

Hinge oven door left

Part #8008024

The manufacturer no longer makes this part, and there's no substitute part
