Model # 315114233 Official Craftsman trim saw

Here are the diagrams and repair parts for Official Craftsman 315114233 trim saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

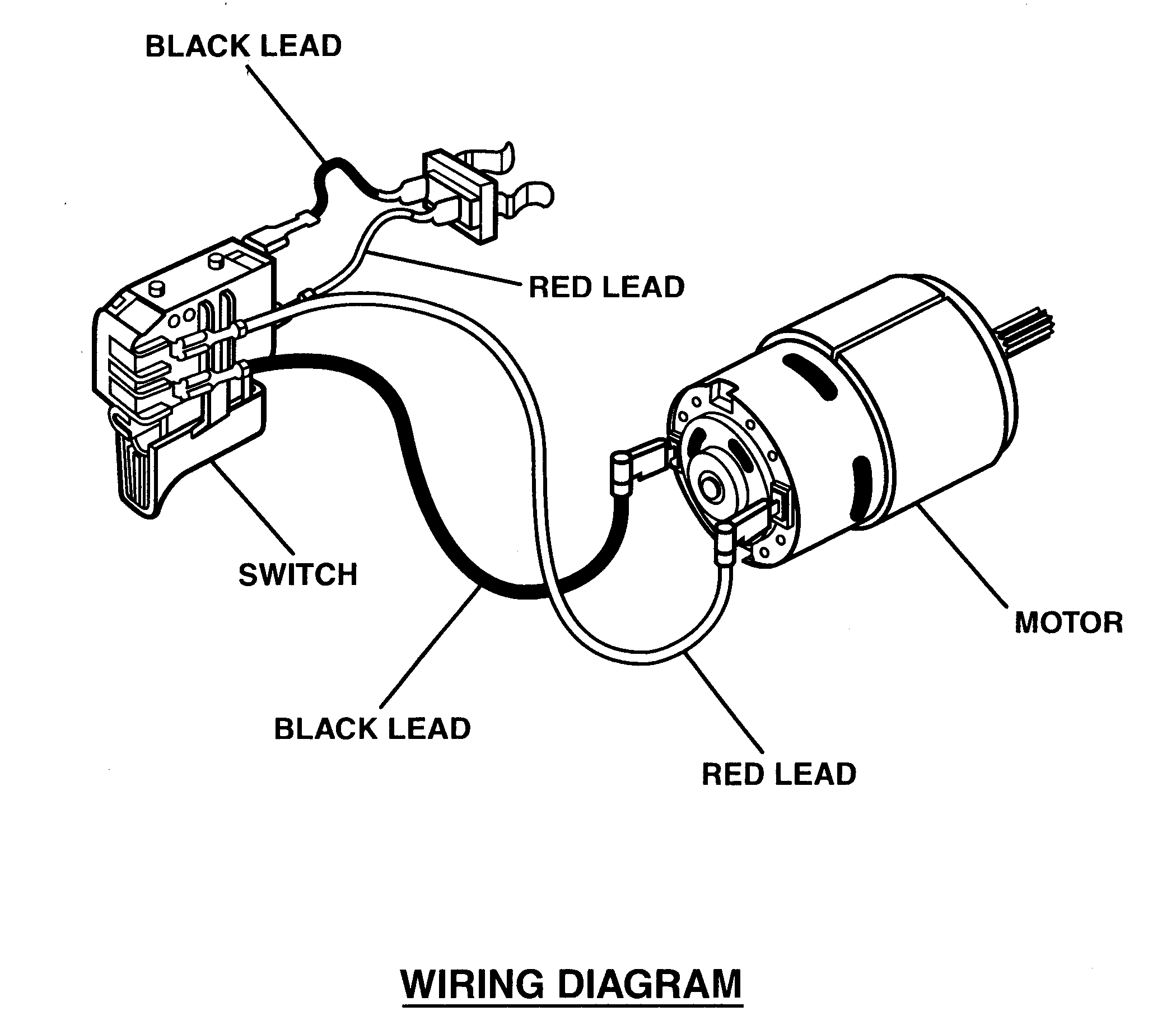

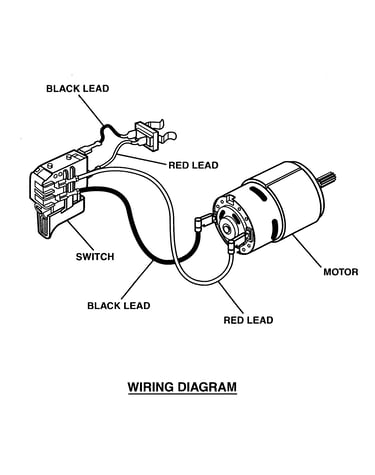

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
End Cap 5923101
#1

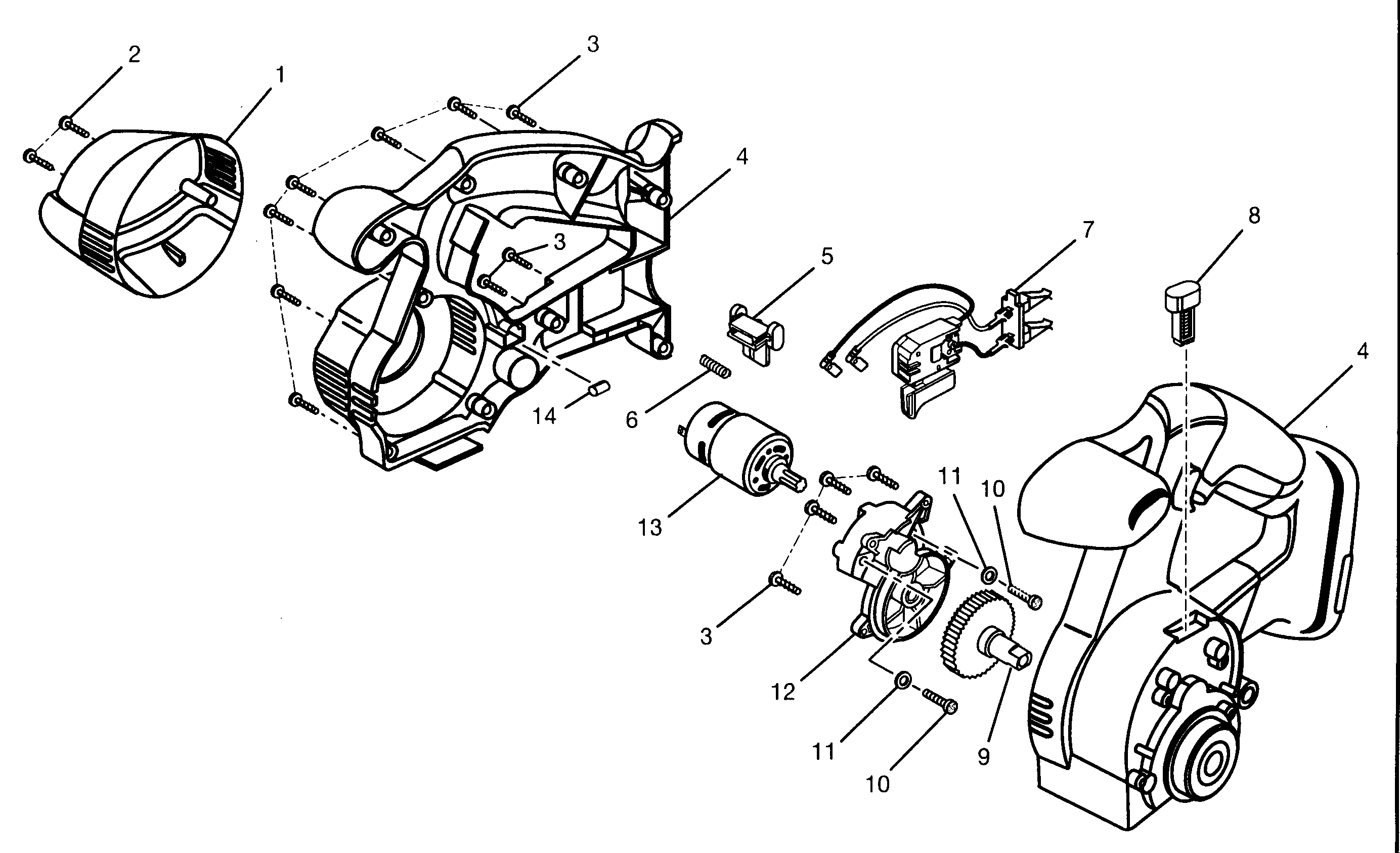

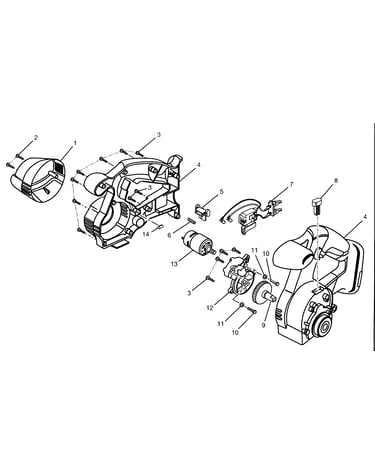

Motor assy diagram

End cap

Part #5923101

The manufacturer no longer makes this part, and there's no substitute part

Washer 5228001
#29

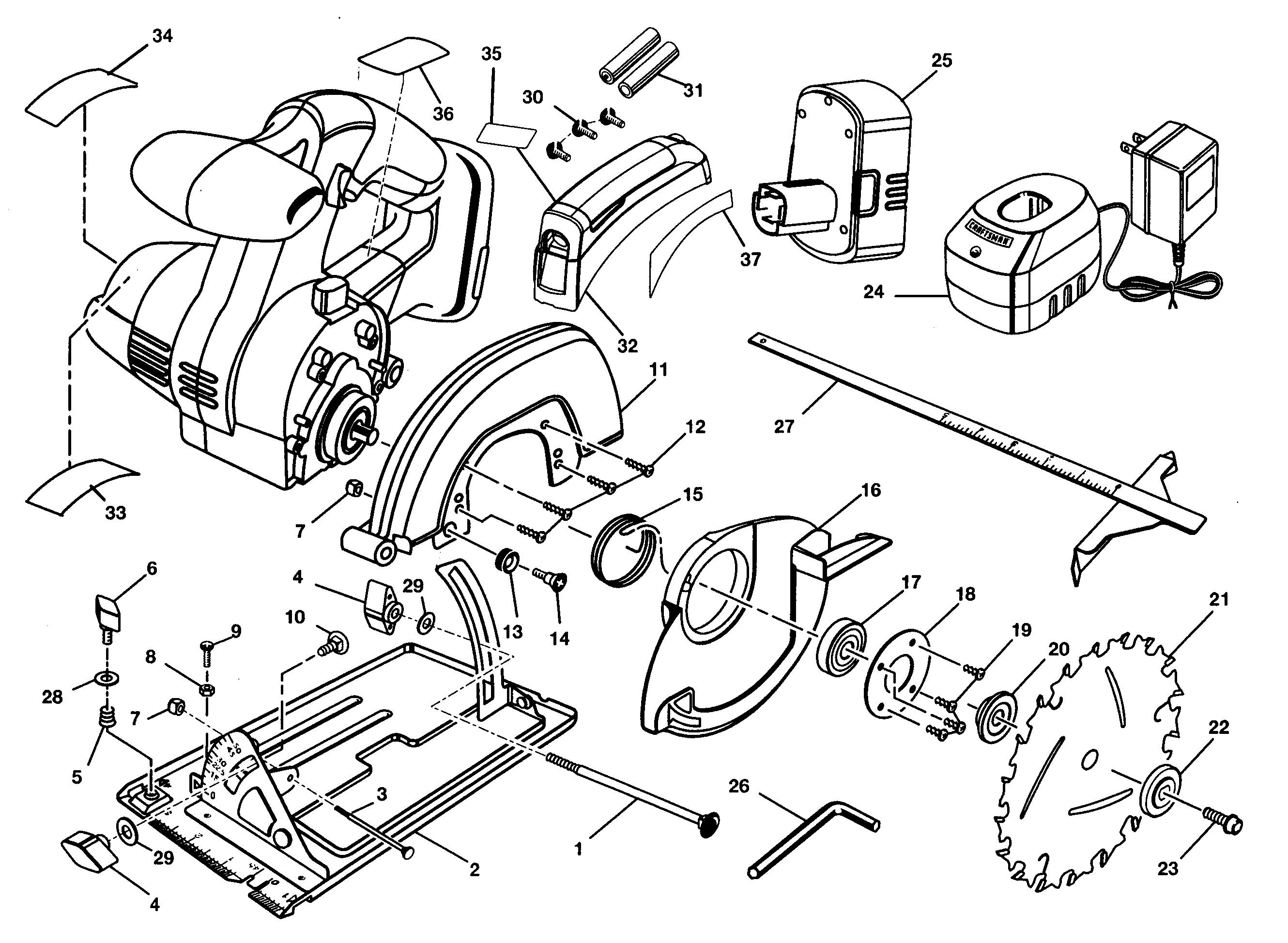

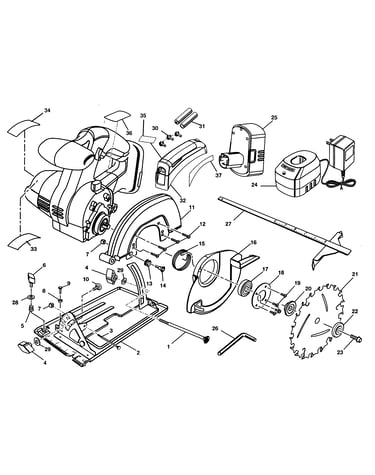

Blade assy diagram

Washer

Part #5228001

The manufacturer no longer makes this part, and there's no substitute part

Owners Manual,class Iiia 983000-651
#NI

Motor assy diagram

Owners manual,class iiia

Part #983000-651

The manufacturer no longer makes this part, and there's no substitute part

Label 9429817
#35

Blade assy diagram

Label

Part #9429817

The manufacturer no longer makes this part, and there's no substitute part

Battery 130139020
#25

Blade assy diagram

Battery

Part #130139020

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 270017048
#7

Motor assy diagram

Switch assembly

Part #270017048

The manufacturer no longer makes this part, and there's no substitute part

Combo Case 300912184
#NI

Motor assy diagram

Combo case

Part #300912184

The manufacturer no longer makes this part, and there's no substitute part

Washer 6703001
#11

Motor assy diagram

Washer

Part #6703001

The manufacturer no longer makes this part, and there's no substitute part

Screw 6621204
Screw

Part #6621204

The manufacturer no longer makes this part, and there's no substitute part

Base 670956015
#2

Blade assy diagram

Base

Part #670956015

The manufacturer no longer makes this part, and there's no substitute part
