Model # DK40-P1307702R Official Amana dehumidifier
Here are the diagrams and repair parts for Official Amana DK40-P1307702R dehumidifier, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 50 parts |
#41

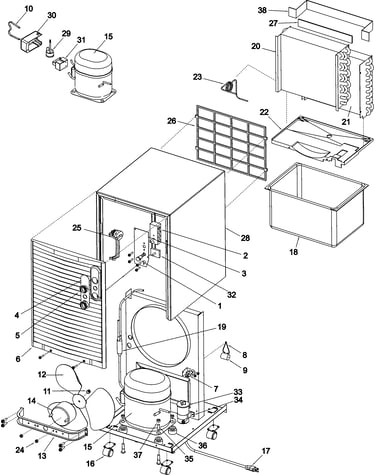

Cabinet diagram
Wire, lead (white) (non-illus)
Part #R0211574
The manufacturer no longer makes this part, and there's no substitute part
#40
Cabinet diagram
Wire, lead (blue) (non-illus)
Part #R0211547
The manufacturer no longer makes this part, and there's no substitute part
#4
Cabinet diagram
Control panel escutcheon
Part #R0211562
The manufacturer no longer makes this part, and there's no substitute part
#22
Cabinet diagram
Drip tray
Part #R9900220
The manufacturer no longer makes this part, and there's no substitute part
#20
Cabinet diagram
Condenser
Part #R0211568
The manufacturer no longer makes this part, and there's no substitute part
#15A
Cabinet diagram
Screw - weld (p1307702r, p1307703r) (mount compressor to base)
Part #R9900222
The manufacturer no longer makes this part, and there's no substitute part
Adjustable foot (non-illus)
Part #NLA
The manufacturer no longer makes this part, and there's no substitute part
#12
Cabinet diagram
Fan blade & clip
Part #R0211523
The manufacturer no longer makes this part, and there's no substitute part
#11
Cabinet diagram
Clip - fan blade
Part #R0211522
The manufacturer no longer makes this part, and there's no substitute part
#39
Cabinet diagram
Wire, lead (red) (non-illus)
Part #R0211546
The manufacturer no longer makes this part, and there's no substitute part
