Model # 48GS042090300 Official Carrier central package

Here are the diagrams and repair parts for Official Carrier 48GS042090300 central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

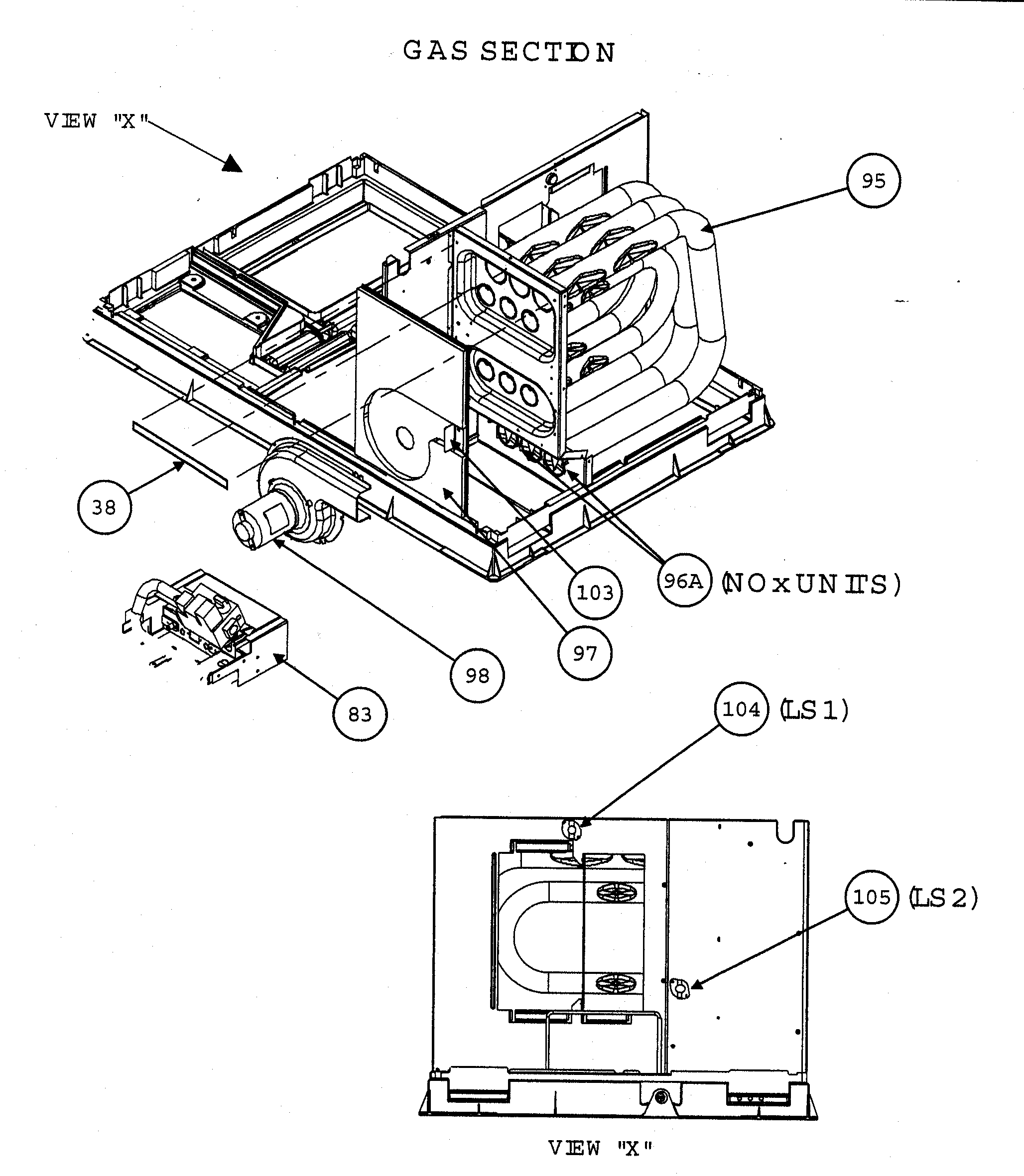

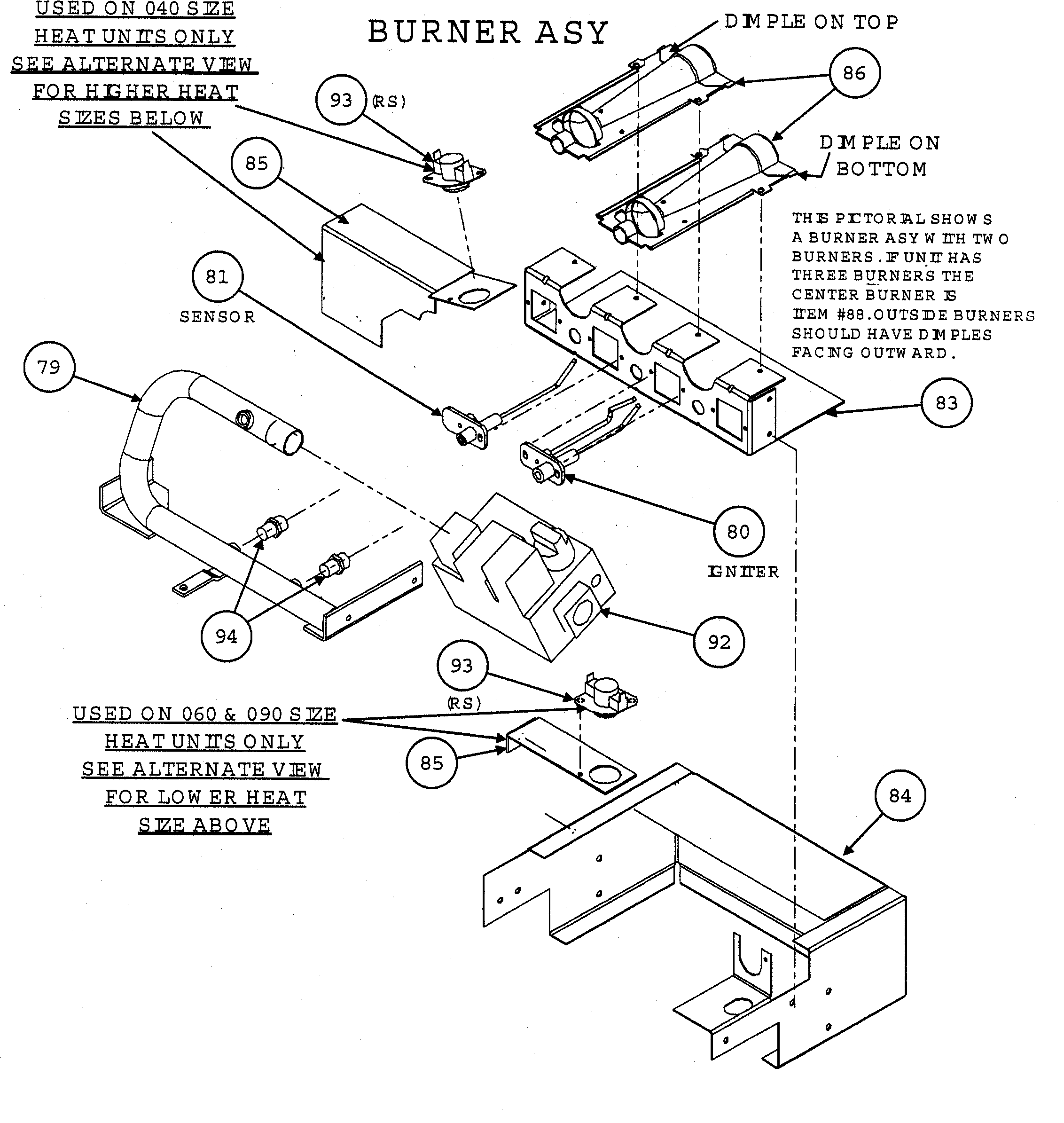

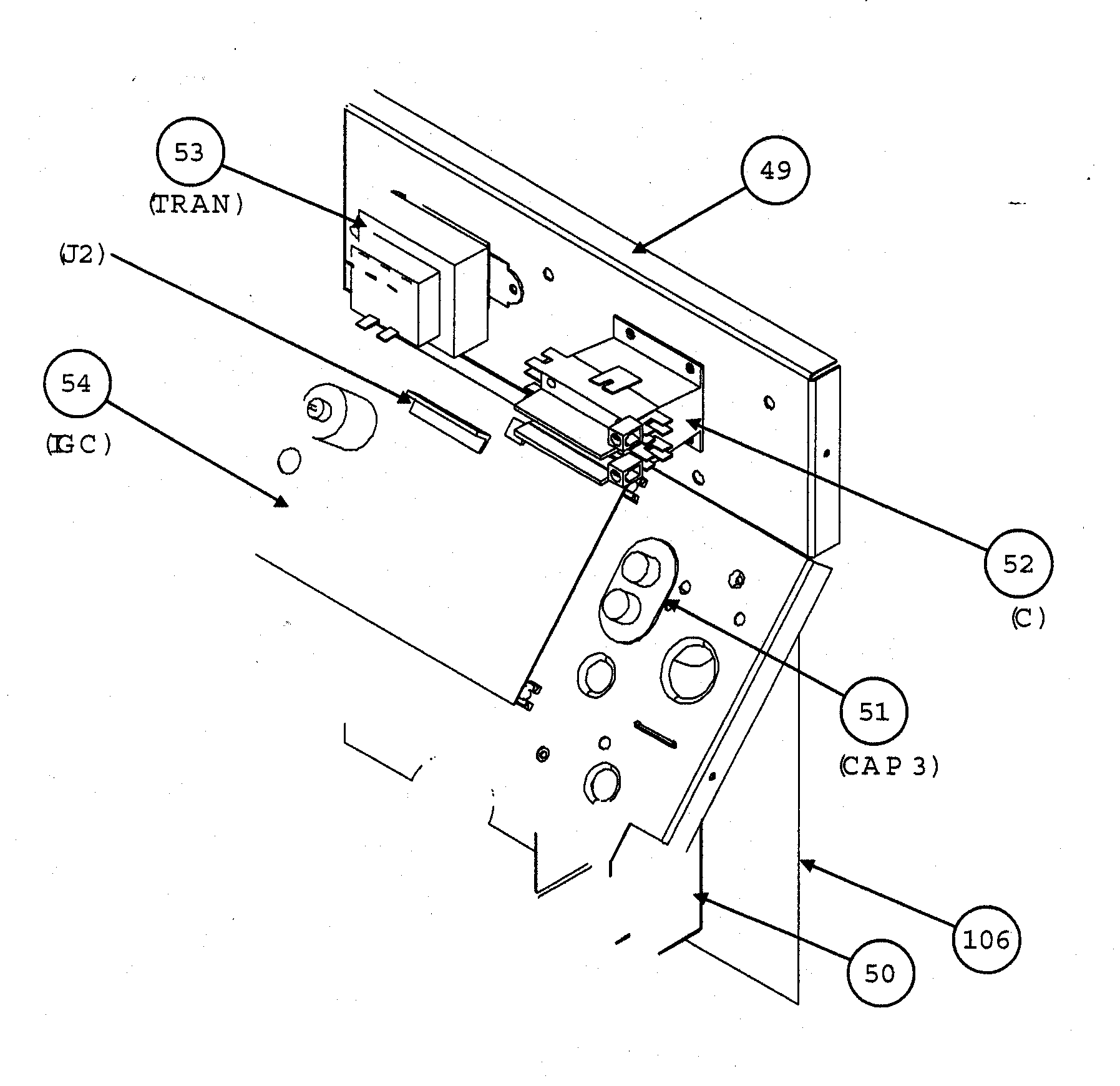

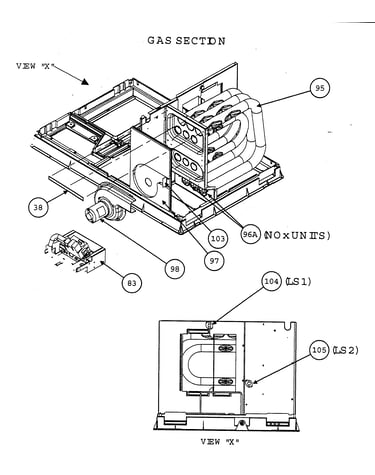

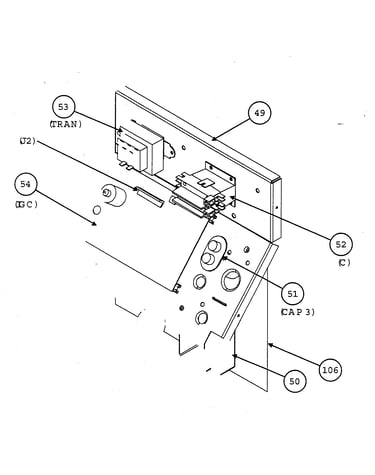

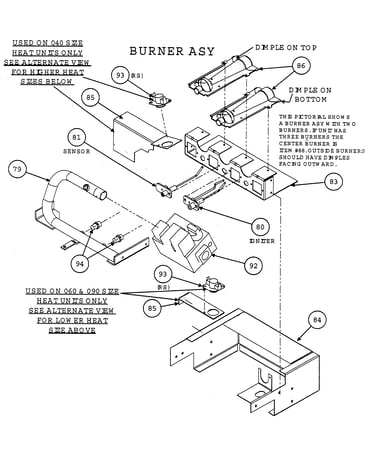

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Blower Assembly 48GS400106
Blower assembly

Part #48GS400106

Replaced by #48GS400649

?
Manufacturer substitution
This part replaces 48GS400106. Substitute parts can look different from the original.
$708.46 |
$12.00 OFF Phone Price : $720.46
In Stock
Panel 48GS500011
#25

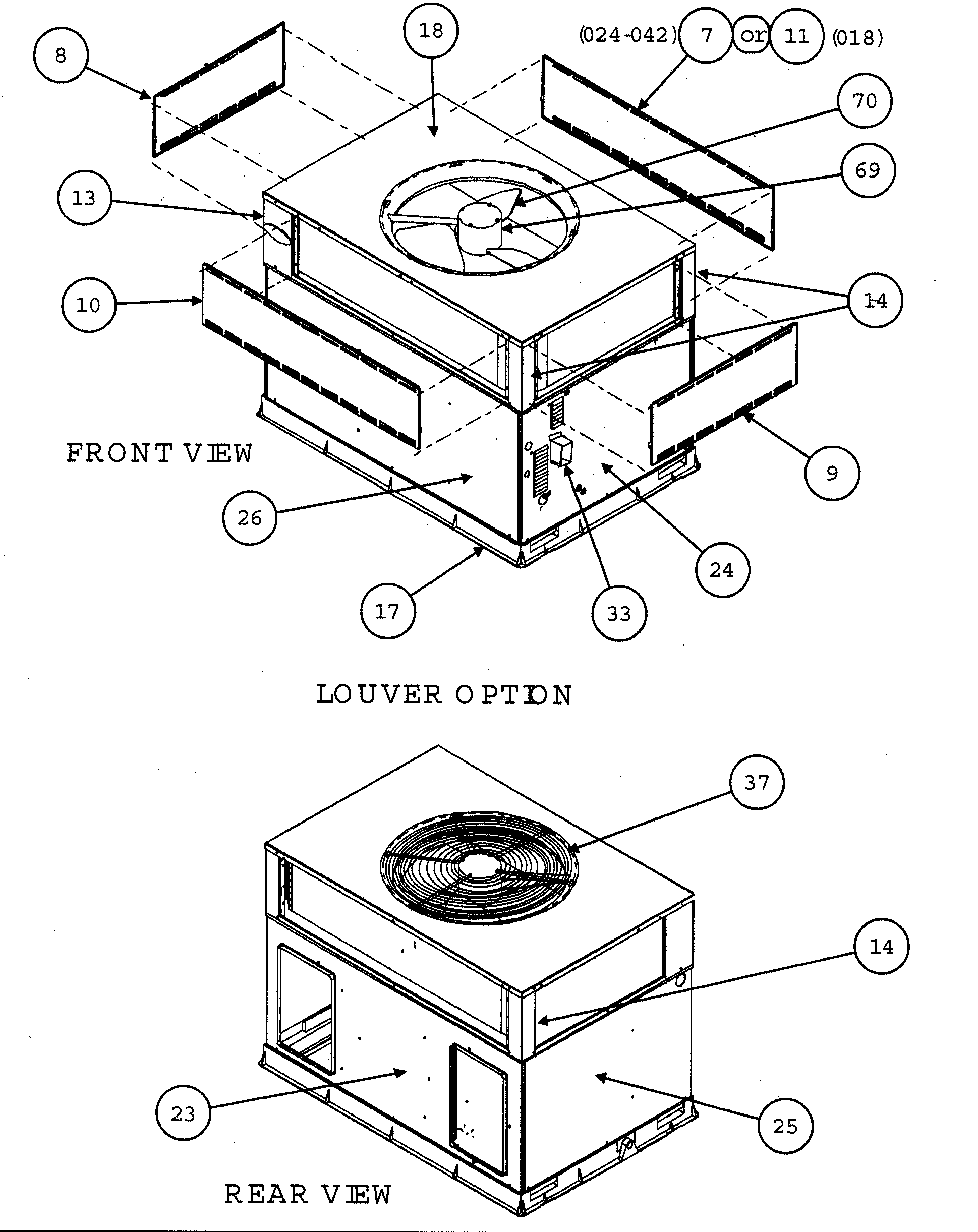

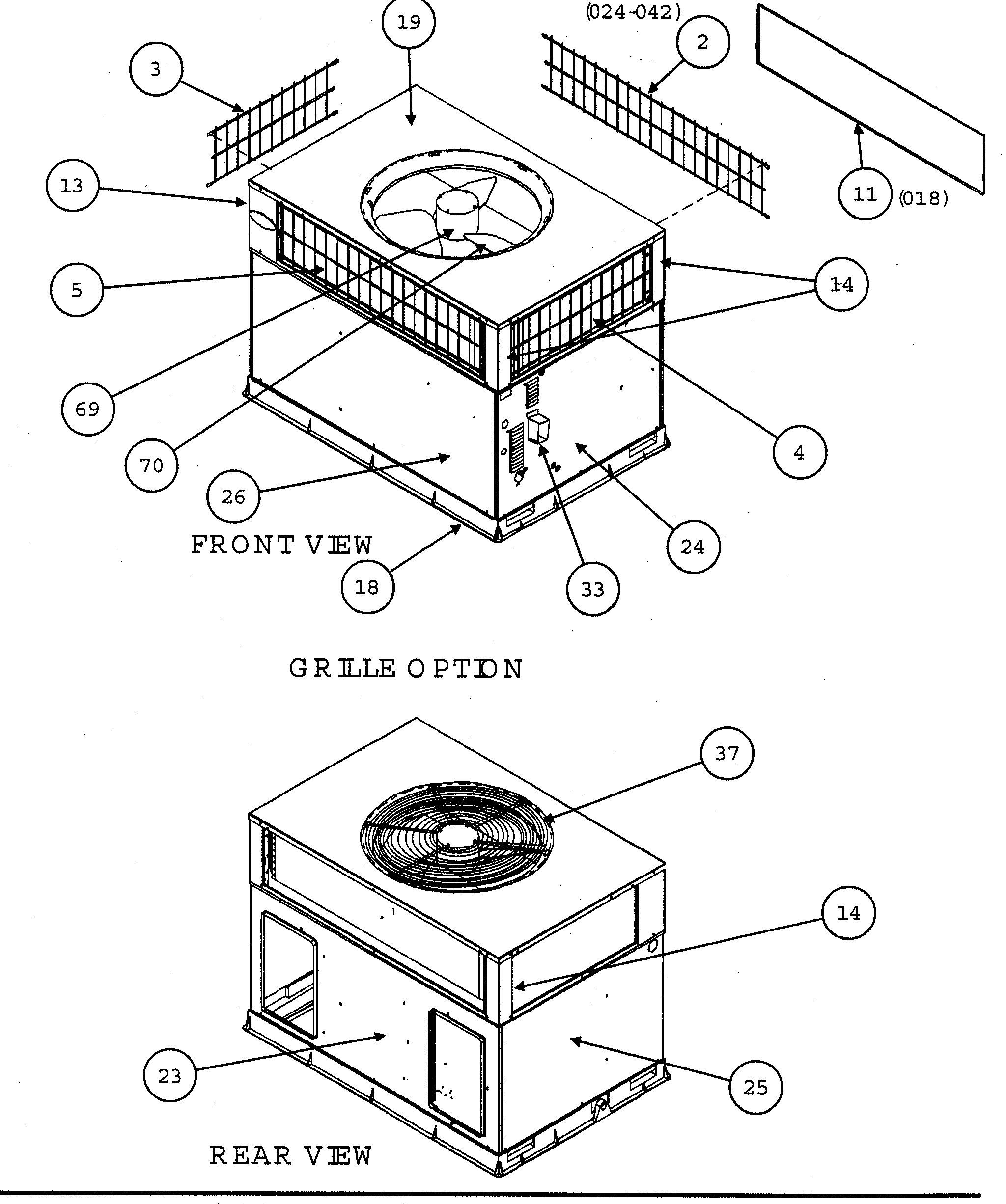

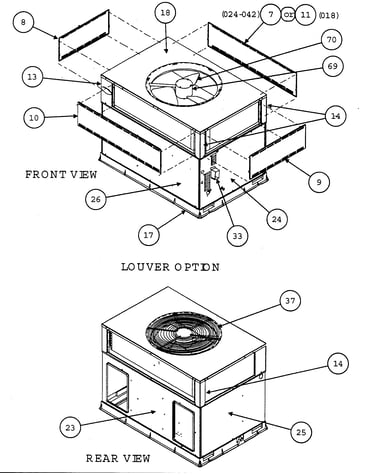

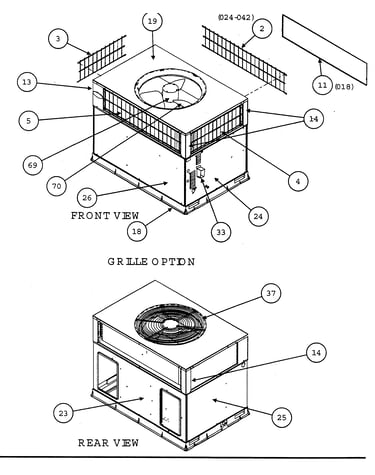

Front view/rear view diagram

Panel

Part #48GS500011

$267.82
In Stock
Condenser Coil 48GS400125
#72

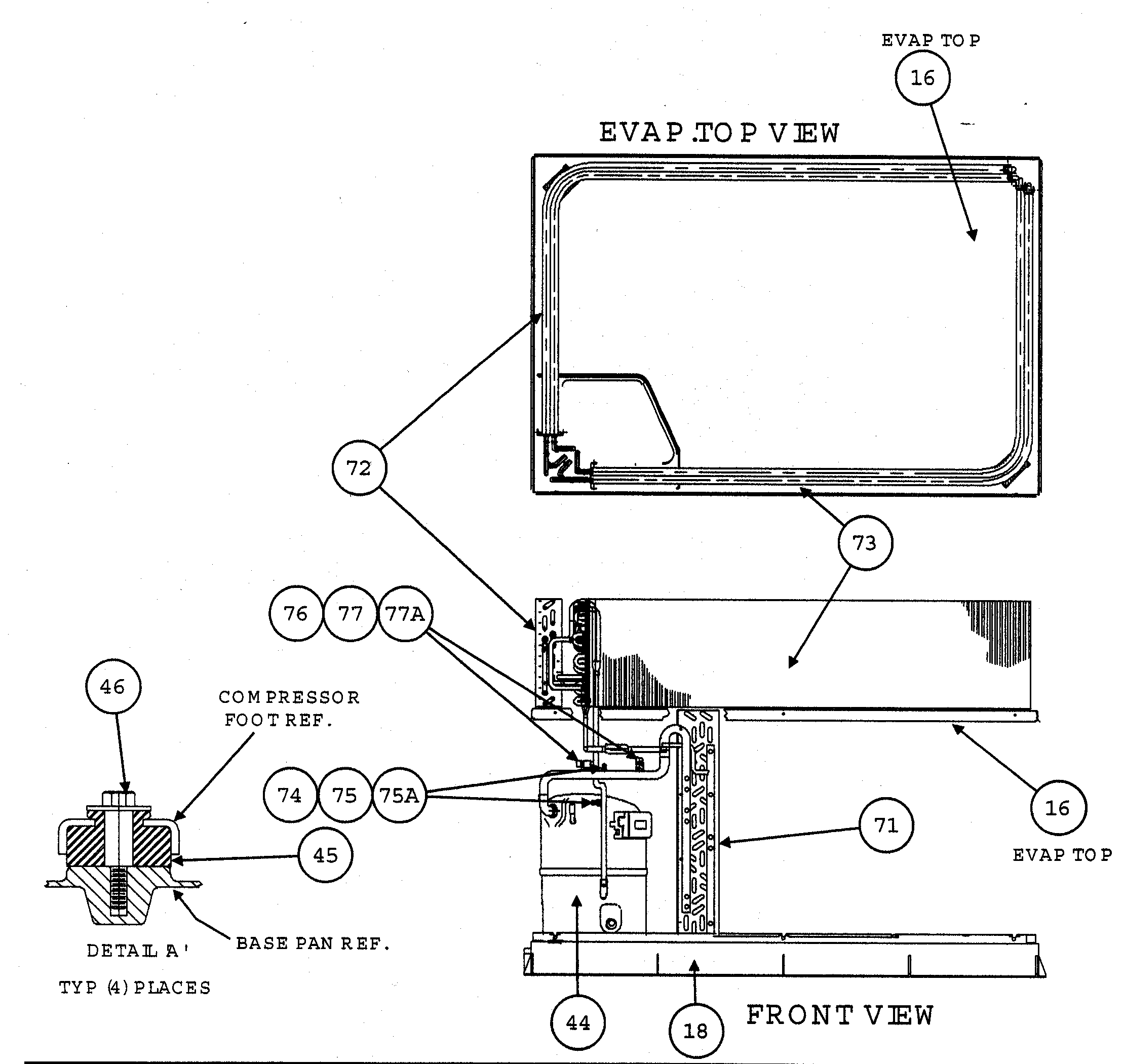

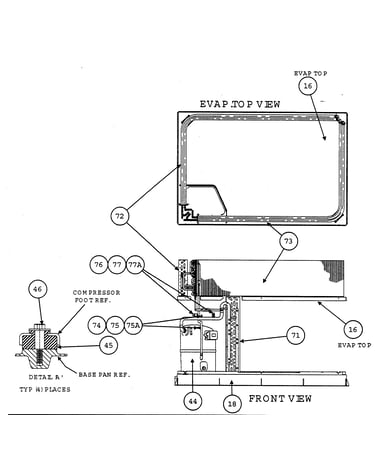

Evap top view diagram

Condenser coil

Part #48GS400125

$1473.28
In Stock
Motor M7415A1006
#109

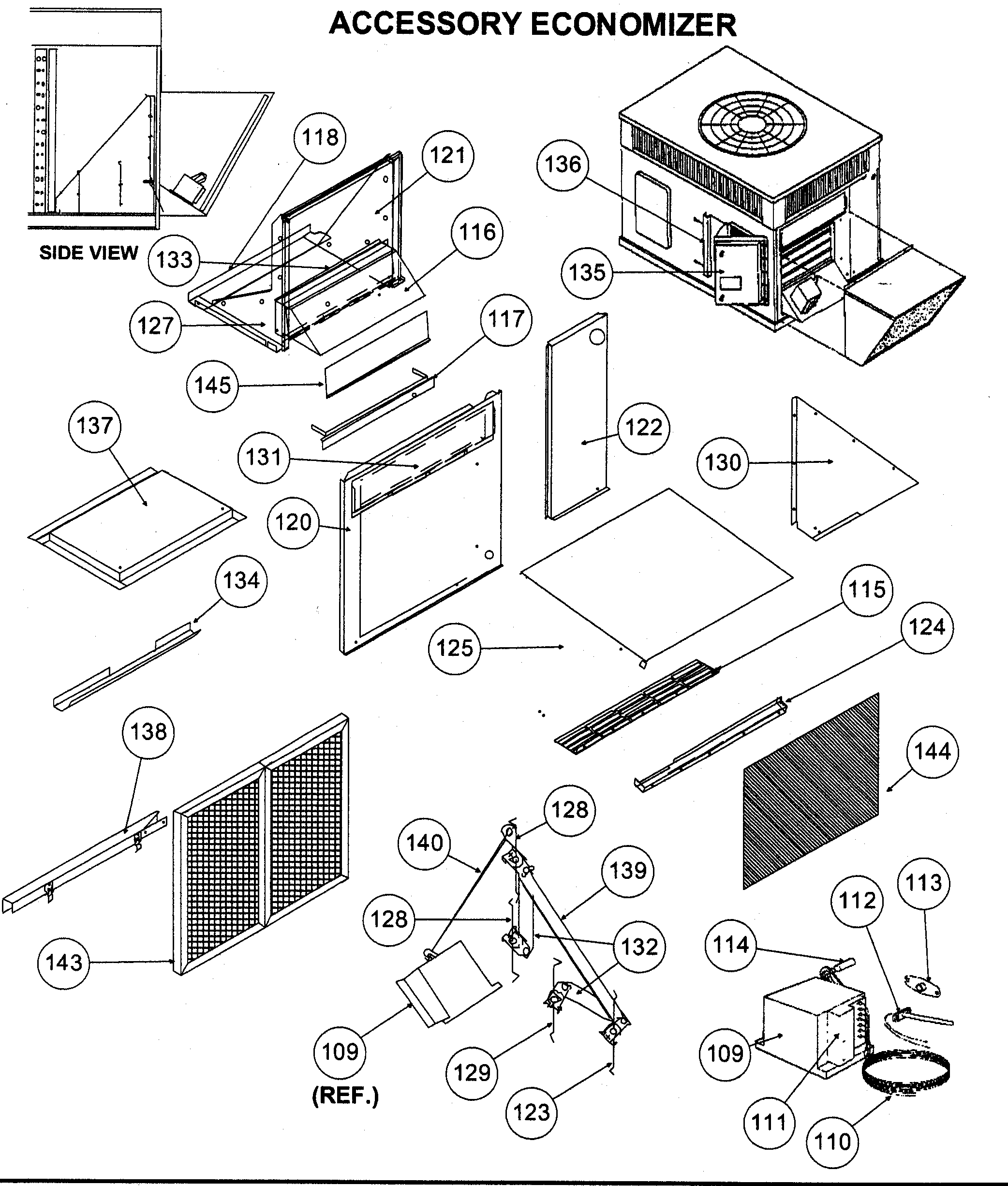

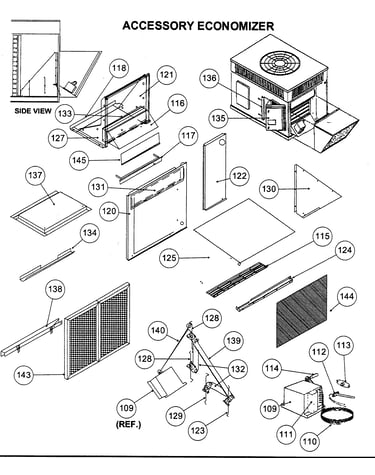

Accessory economizer diagram

Motor

Part #M7415A1006

$701.20
In Stock
Rack 0900003A
#157

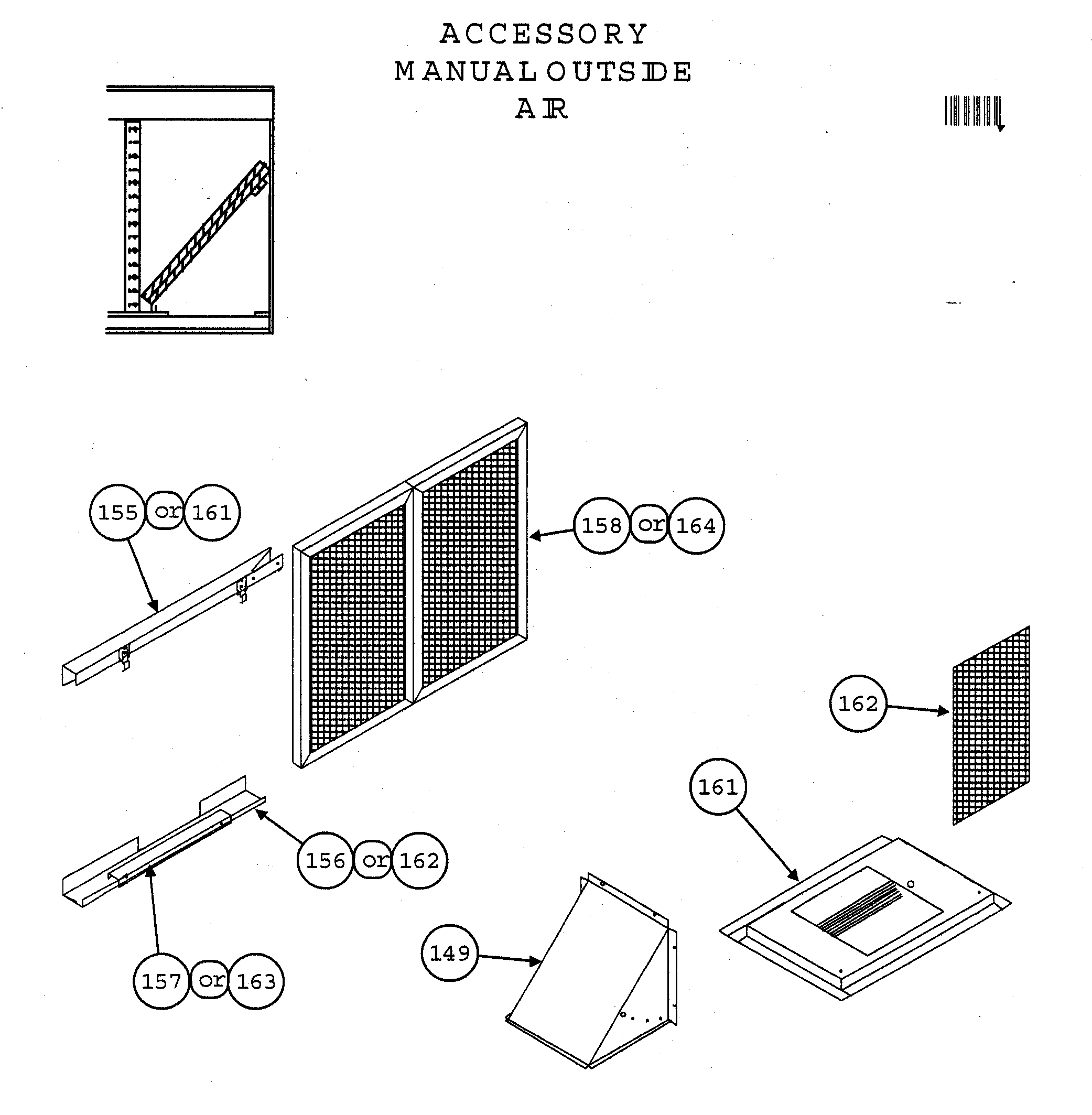

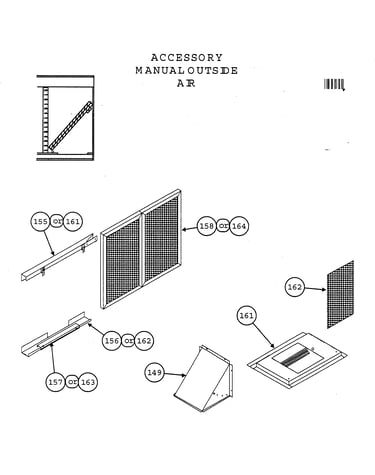

Accessory manual outside air diagram

Rack

Part #0900003A

$176.16
In Stock
Bracket 48GS500461
#14A

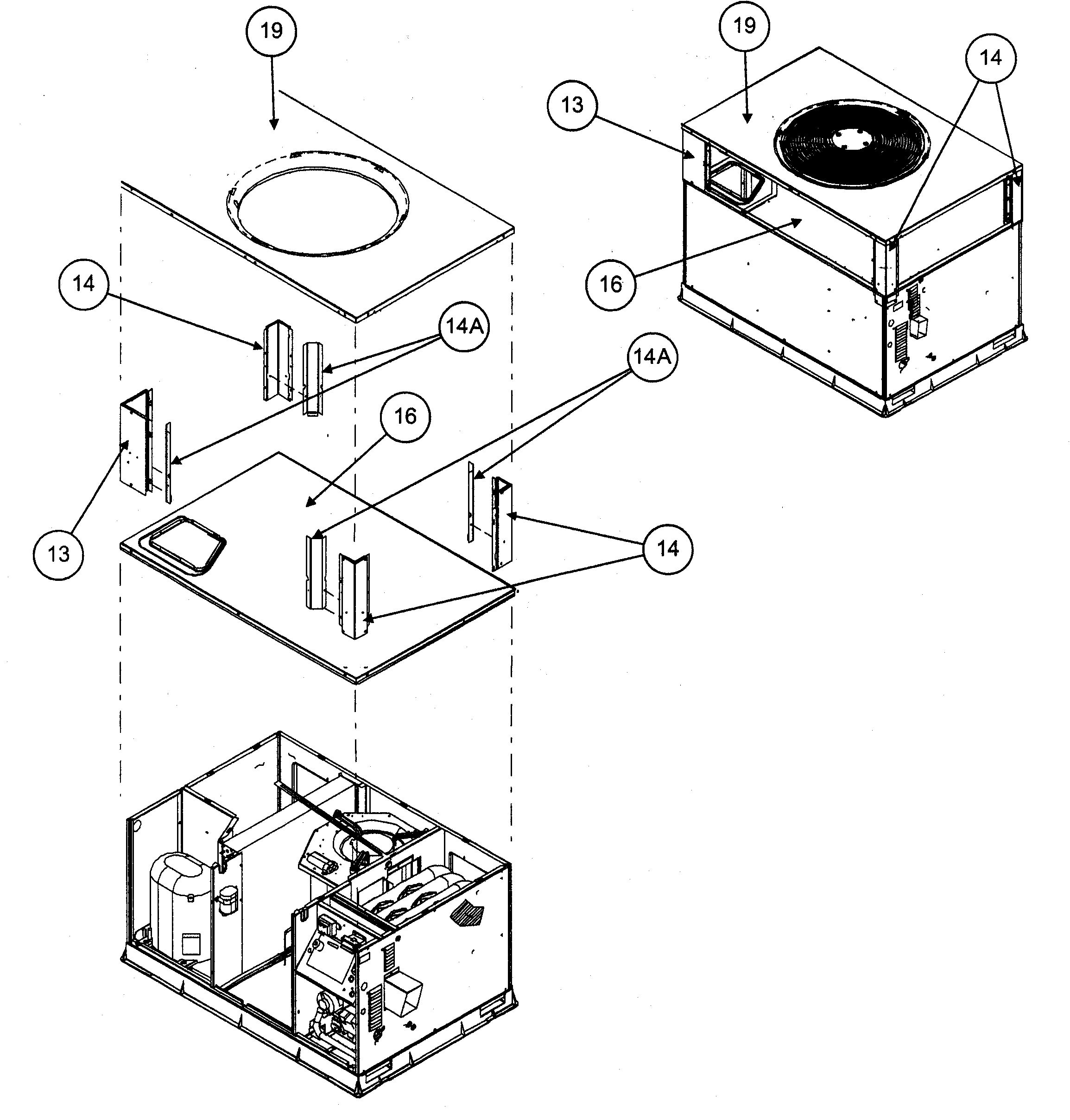

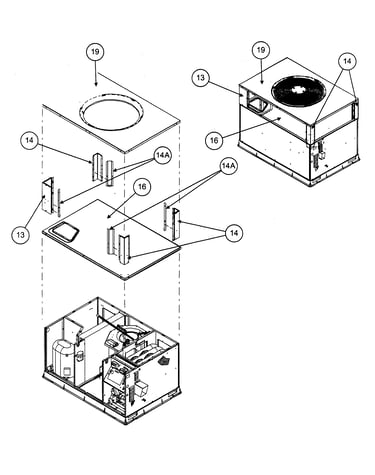

Outside view diagram

Bracket

Part #48GS500461

$22.69
In Stock
Central Air Conditioner Wire Harness 9962-0083
#110

Accessory economizer diagram

Central air conditioner wire harness

Part #9962-0083

$357.73
In Stock
Payne Grille Assembly 48GS400253
#2

Front view/rear view diagram

Payne grille assembly

Part #48GS400253

$1089.68
In Stock
Scroll 48GS500109
#58

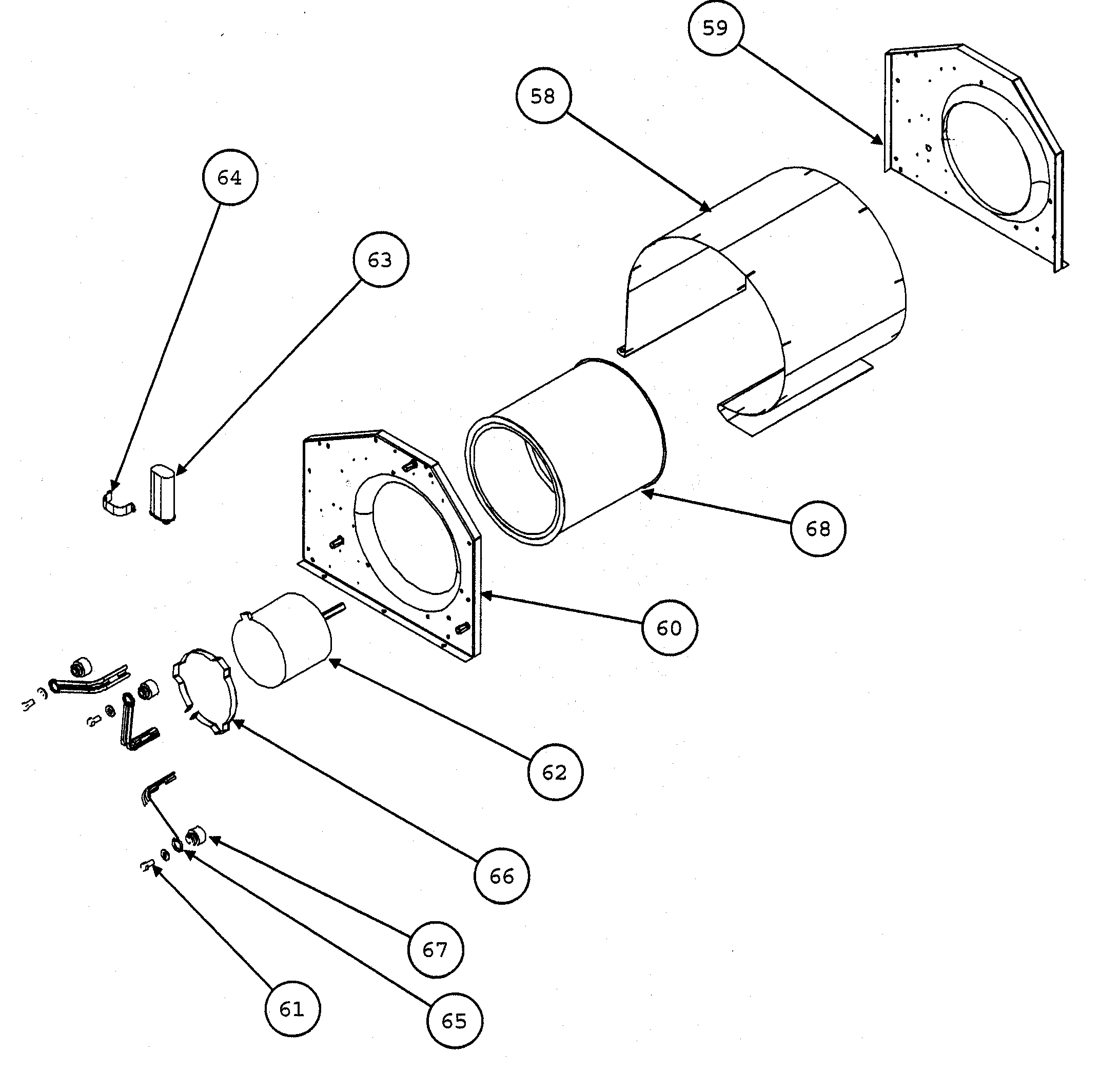

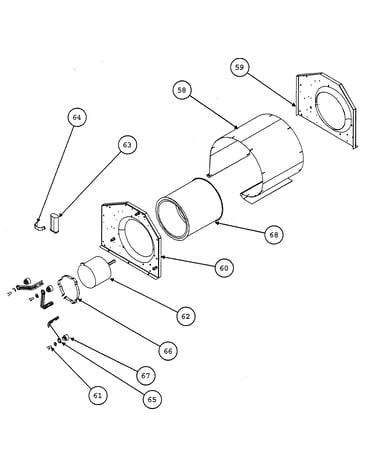

Blower assy diagram

Scroll

Part #48GS500109

$206.45
In Stock
Insulation 48GS500191
#36

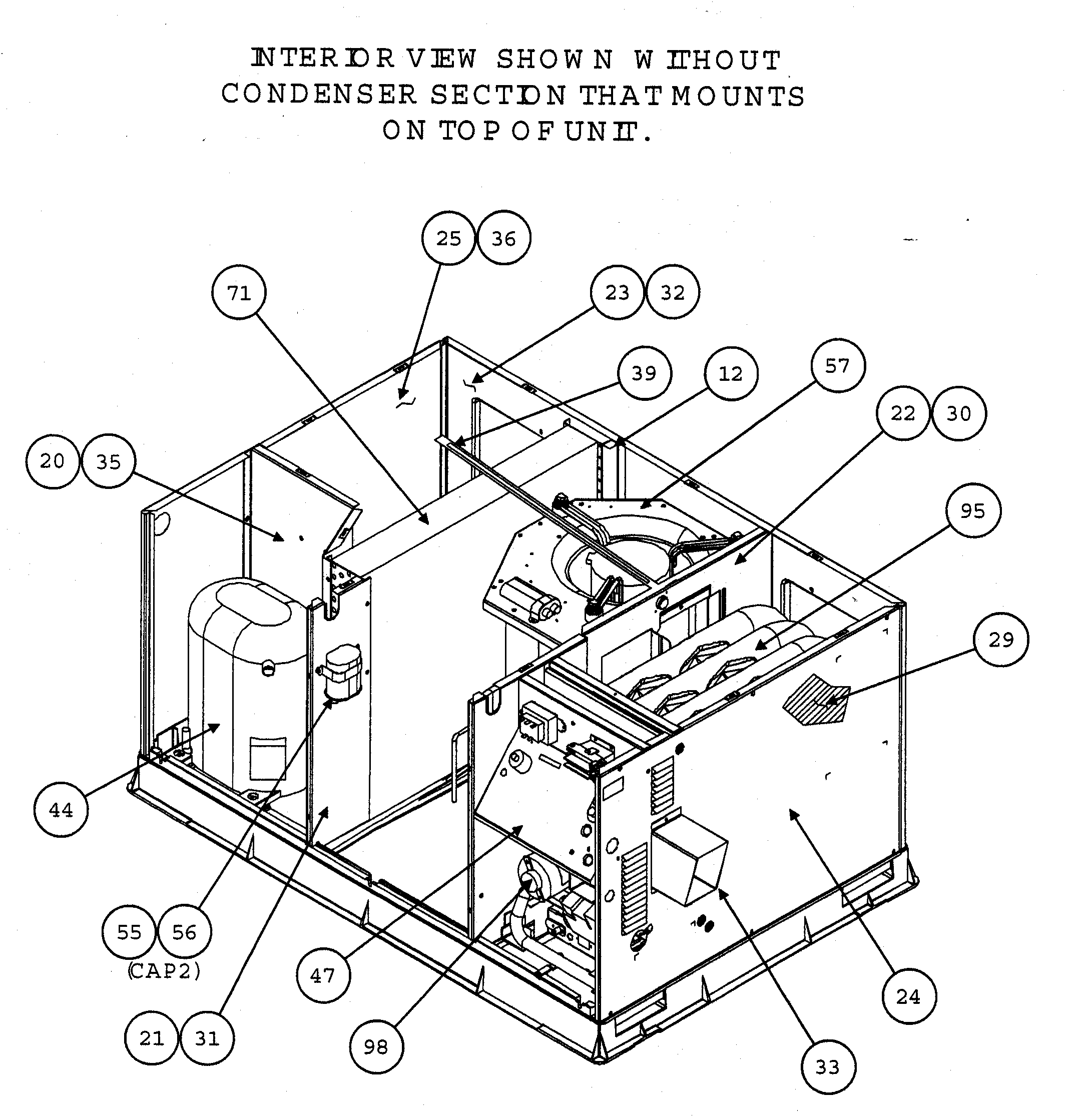

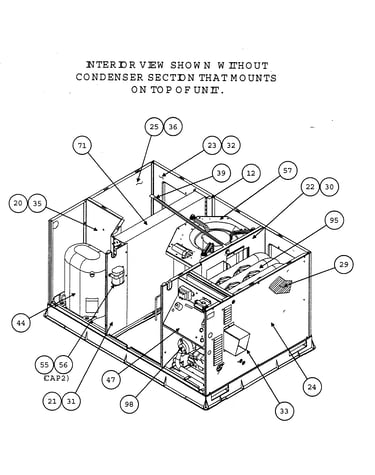

Inside view diagram

Insulation

Part #48GS500191

$76.73
In Stock
