Model # ZTD910BF1BB Official GE warming drawer

Here are the diagrams and repair parts for Official GE ZTD910BF1BB warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Bolt,hex Hea WB01X10288
#25

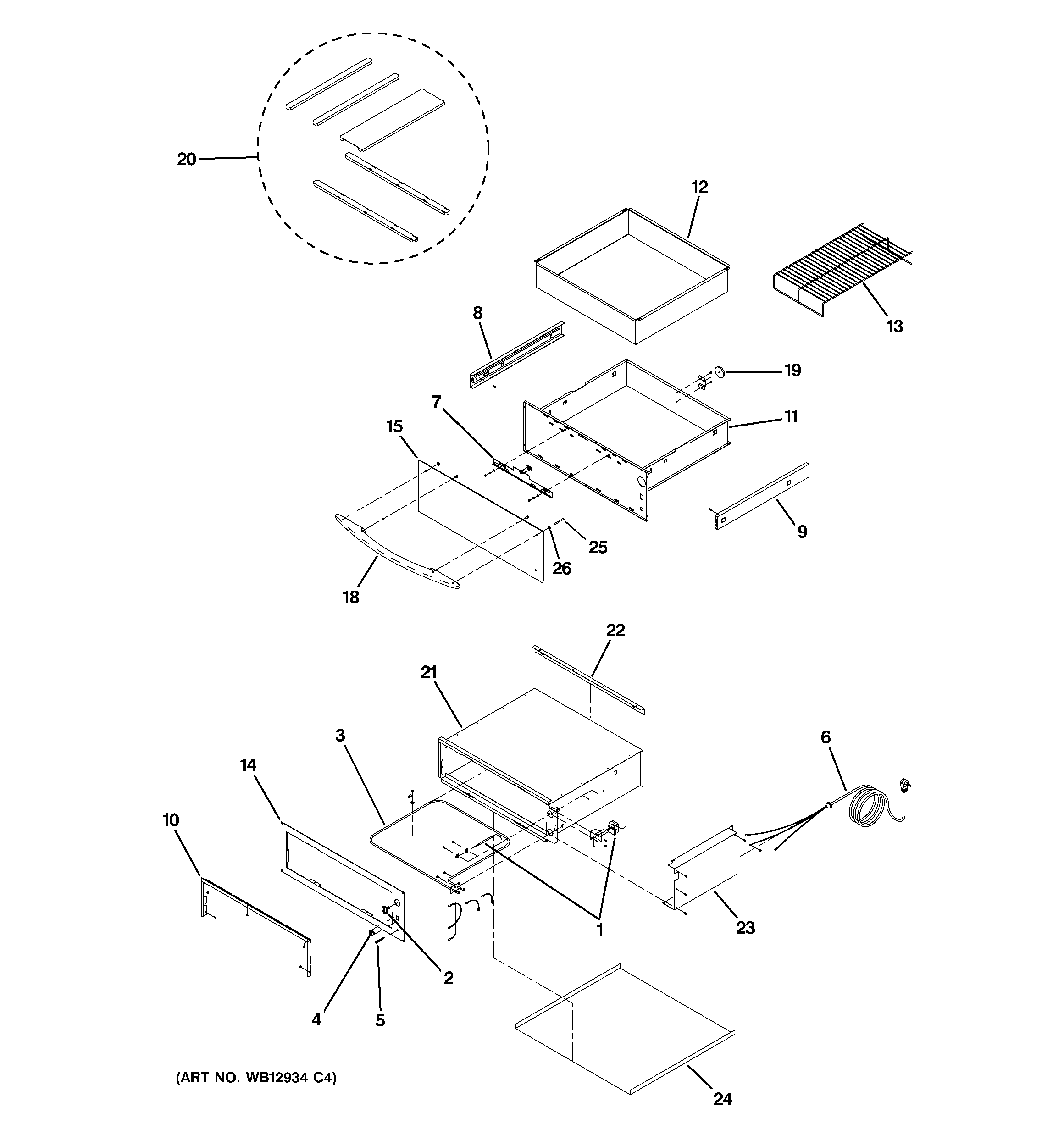

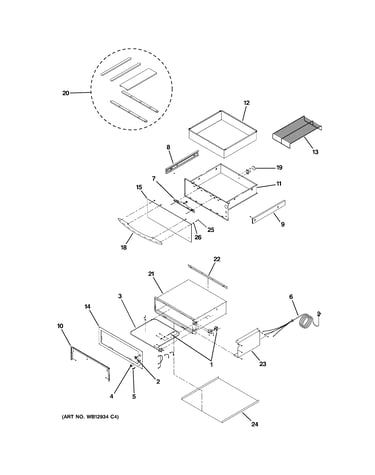

Warming drawer assembly diagram

Bolt,hex hea

Part #WB01X10288

This item is not returnable
$4.35
In Stock
Cavity 30" WB63X10045
#21

Warming drawer assembly diagram

Cavity 30"

Part #WB63X10045

$358.84
In Stock
Drawer Frame WB58X10016
#11

Warming drawer assembly diagram

Drawer frame

Part #WB58X10016

$348.96
In Stock
Cover WB02X11008
#24

Warming drawer assembly diagram

Cover

Part #WB02X11008

$188.70
In Stock
Magnet Closure WB02X10592
#19

Warming drawer assembly diagram

Magnet closure

Part #WB02X10592

$153.33
In Stock
Indicator Lamp WB02X10587
#5

Warming drawer assembly diagram

Indicator lamp

Part #WB02X10587

$74.69 |
7% OFF Phone Price : $80.69
In Stock
Heating Element WB44X10029
#3

Warming drawer assembly diagram

Heating element

Part #WB44X10029

$86.69 |
6% OFF Phone Price : $92.69
In Stock
Wire Rack WB48X10010
#13

Warming drawer assembly diagram

Wire rack

Part #WB48X10010

Replaced by #WB48X10045

?
Manufacturer substitution
This part replaces WB48X10010. Substitute parts can look different from the original.
$143.09 |
8% OFF Phone Price : $155.09
In Stock
Rail Kit, 30 WB64X10002
#20

Warming drawer assembly diagram

Rail kit, 30

Part #WB64X10002

Replaced by #WB64X10032

?
Manufacturer substitution
This part replaces WB64X10002. Substitute parts can look different from the original.
$248.70
In Stock
Power Cord WB02X10588
#6

Warming drawer assembly diagram

Power cord

Part #WB02X10588

The manufacturer no longer makes this part, and there's no substitute part
