Model # WFMC3301UC/12 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WFMC3301UC/12 washer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
WFMC3301UC/12 Washer
Washer Hot Water Inlet Hose (replaces 422245) 00422245
#407

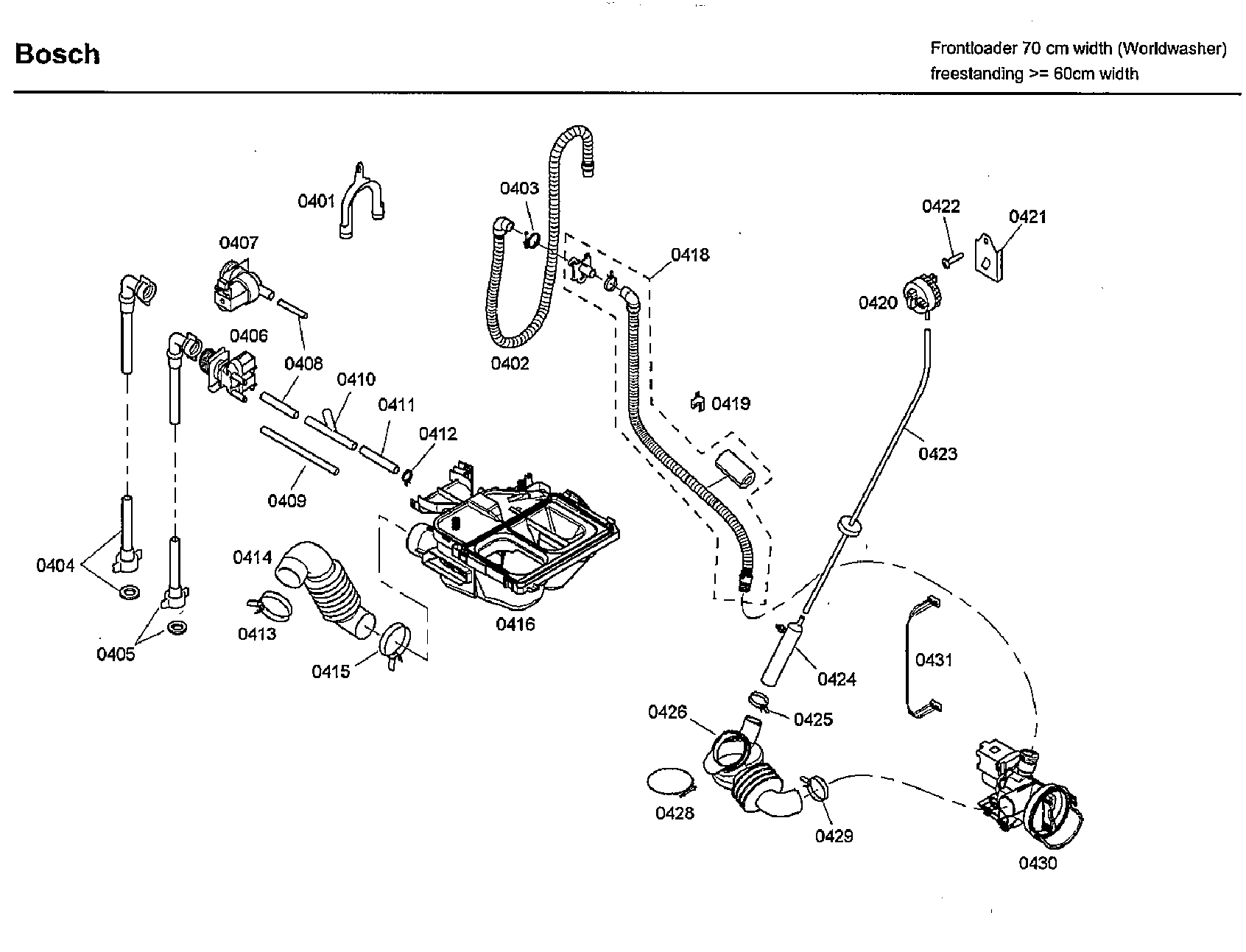

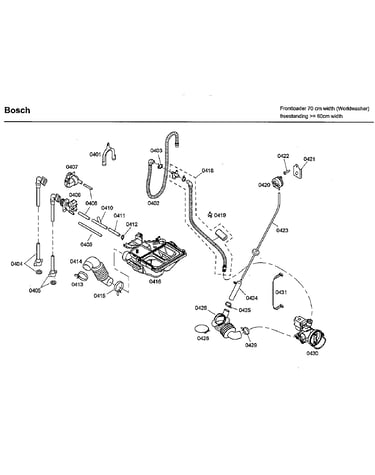

Pump diagram

Washer hot water inlet hose (replaces 422245)

Part #00422245

5 (1)
$38.99 |
13% OFF Phone Price : $44.99
In Stock
Bosch Washer Door Lock (replaces 497255) 00497255
#210

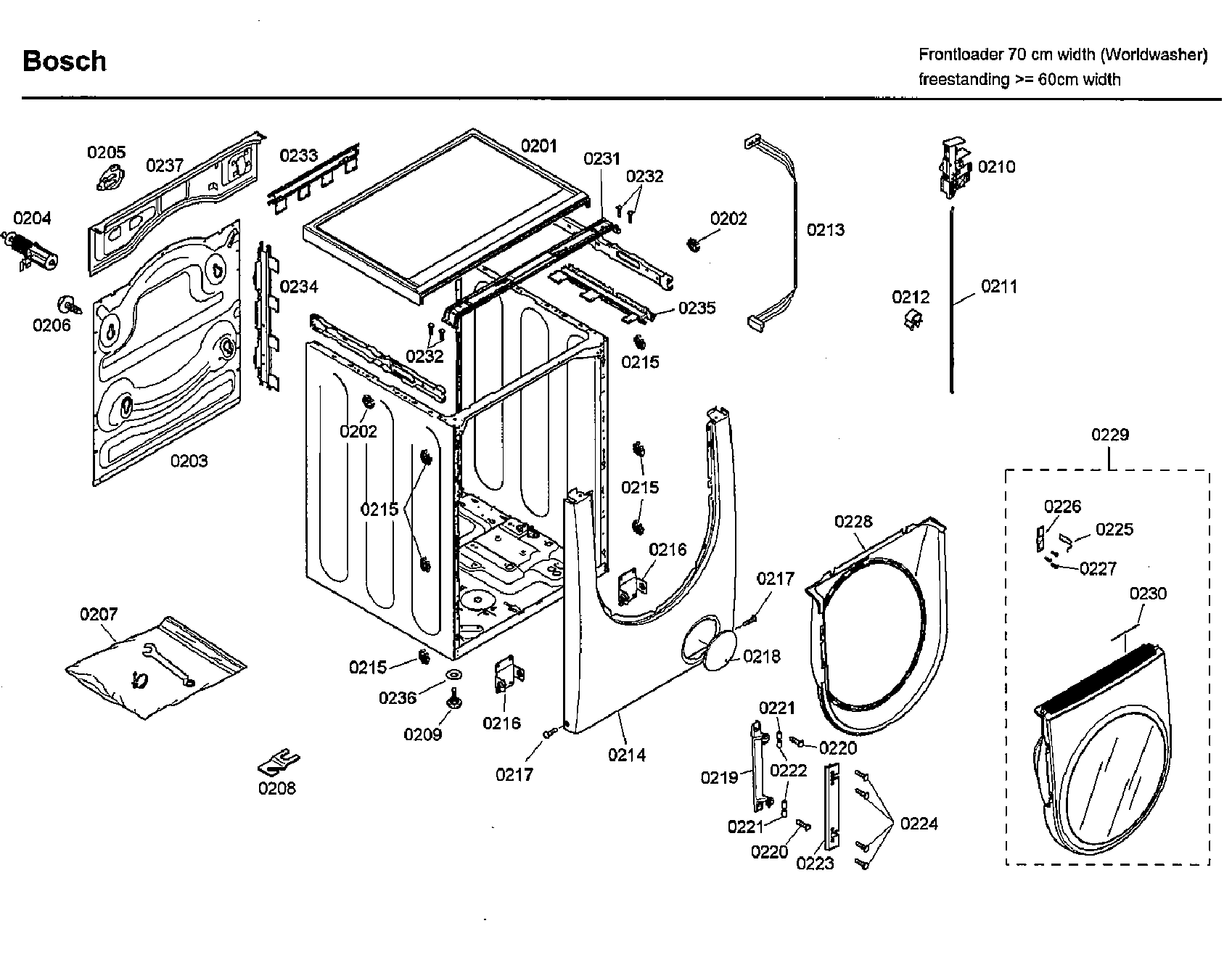

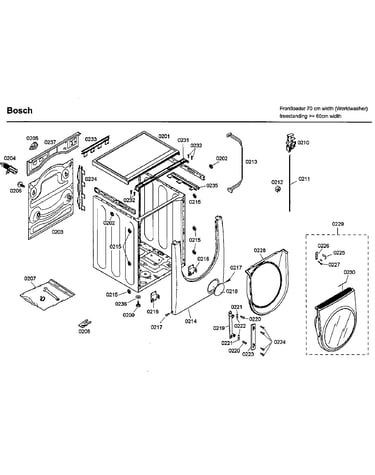

Cabinet/door diagram

Bosch washer door lock (replaces 497255)

Part #00497255

$119.00 |
9% OFF Phone Price : $131.00
Back Order
Washer Cold Water Inlet Valve (replaces 422244) 00422244
#406

Pump diagram

Washer cold water inlet valve (replaces 422244)

Part #00422244

4.86 (7)
$59.49 |
9% OFF Phone Price : $65.49
In Stock
Bosch Washer Drive Motor (replaces 660487) 00660487
#327

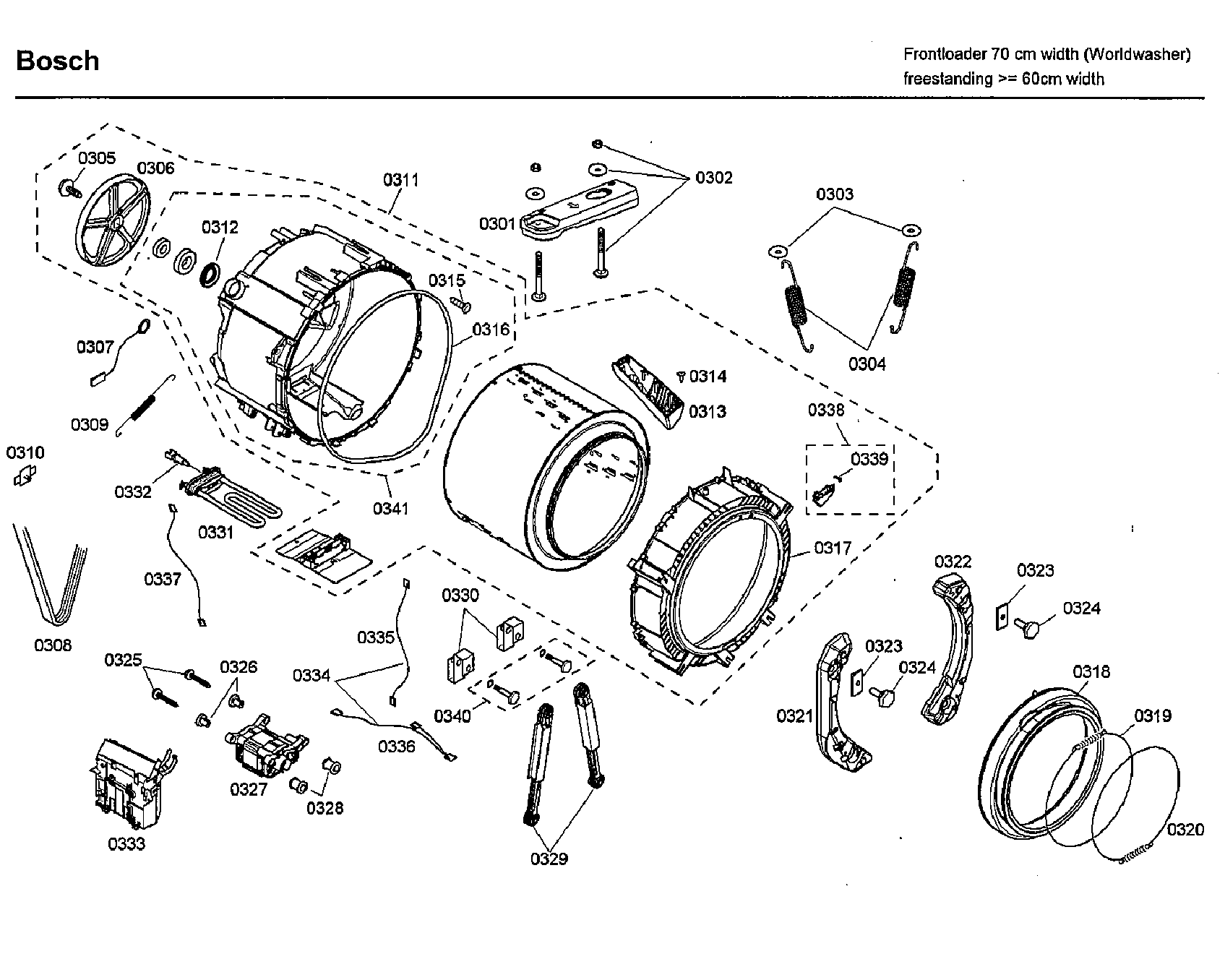

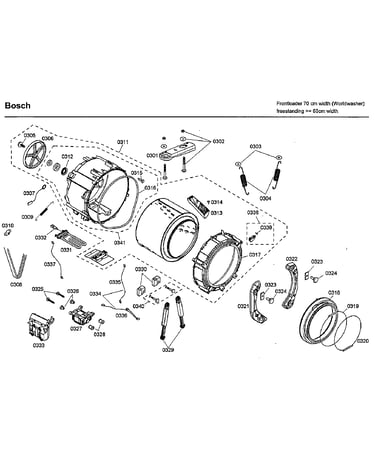

Tub diagram

Bosch washer drive motor (replaces 660487)

Part #00660487

$255.29 |
$12.00 OFF Phone Price : $267.29
In Stock
Washer Suspension Spring 00491683
#304

Tub diagram

Washer suspension spring

Part #00491683

5 (1)
$128.02
In Stock
Washer Door Boot Spring Clamp 00644646
#320

Tub diagram

Washer door boot spring clamp

Part #00644646

1 (1)
This item is not returnable
$16.09 |
11% OFF Phone Price : $18.09
In Stock
Clamp 00644645
#319

Tub diagram

Clamp

Part #00644645

Replaced by #00648264

?
Manufacturer substitution
This part replaces 00644645. Substitute parts can look different from the original.
1 (1)
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Washer Tub Pulley Screw 00422237
#305

Tub diagram

Washer tub pulley screw

Part #00422237

This item is not returnable
$4.97
In Stock
Washer Door Hinge Cover Plate 00491626
#223

Cabinet/door diagram

Washer door hinge cover plate

Part #00491626

This item is not returnable
$35.13
In Stock
Washer Screw 00422175
#109

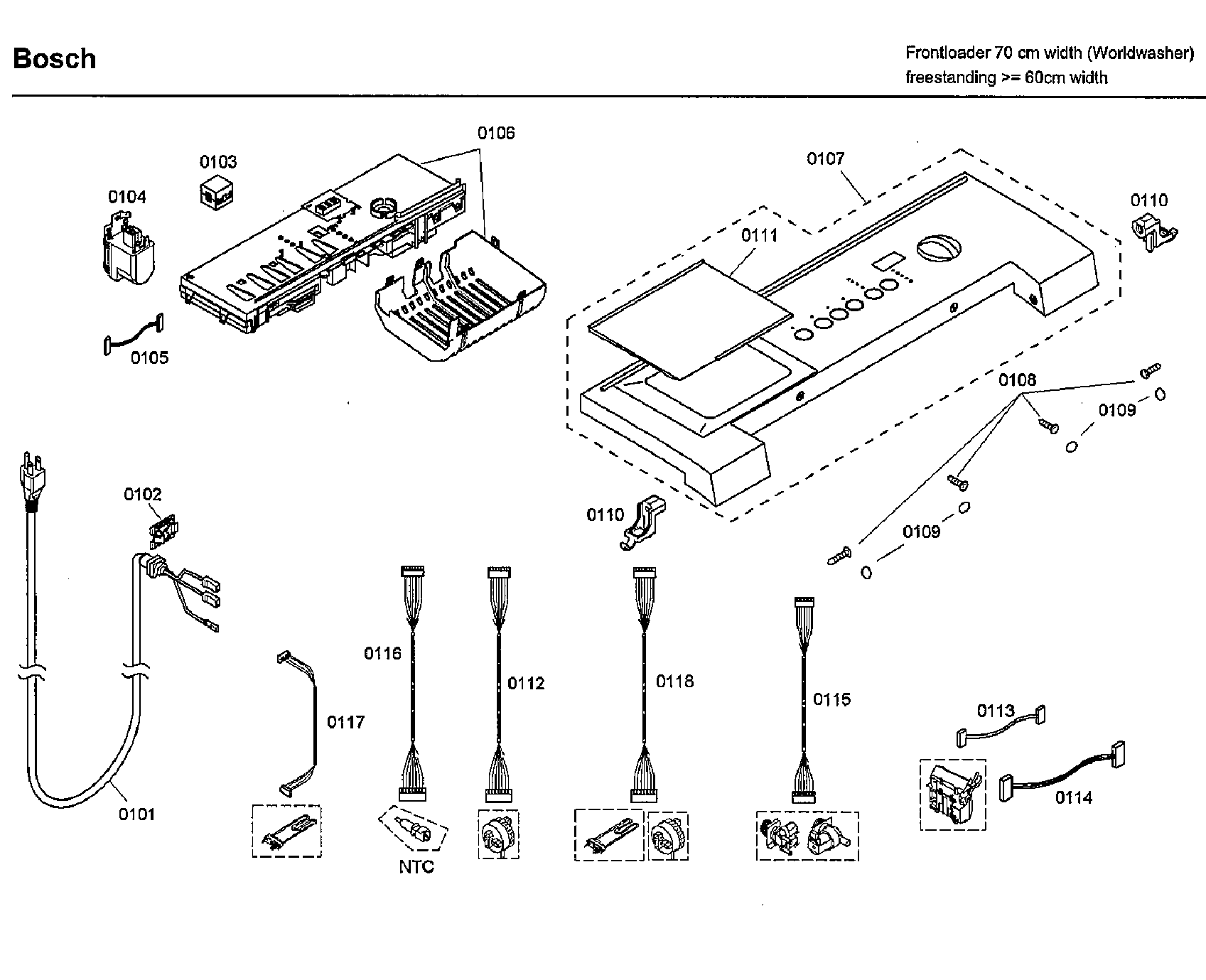

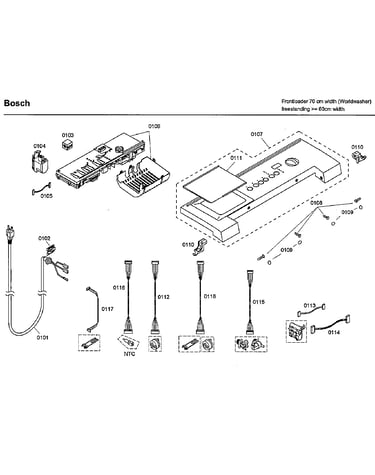

Control panel diagram

Washer screw

Part #00422175

$12.89 |
13% OFF Phone Price : $14.89
In Stock
