Room Air Conditioner

Model # AJCQ12DCDM1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJCQ12DCDM1 room air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
AJCQ12DCDM1 Room Air Conditioner
U&c/iis Air 49-7597-2
#9999

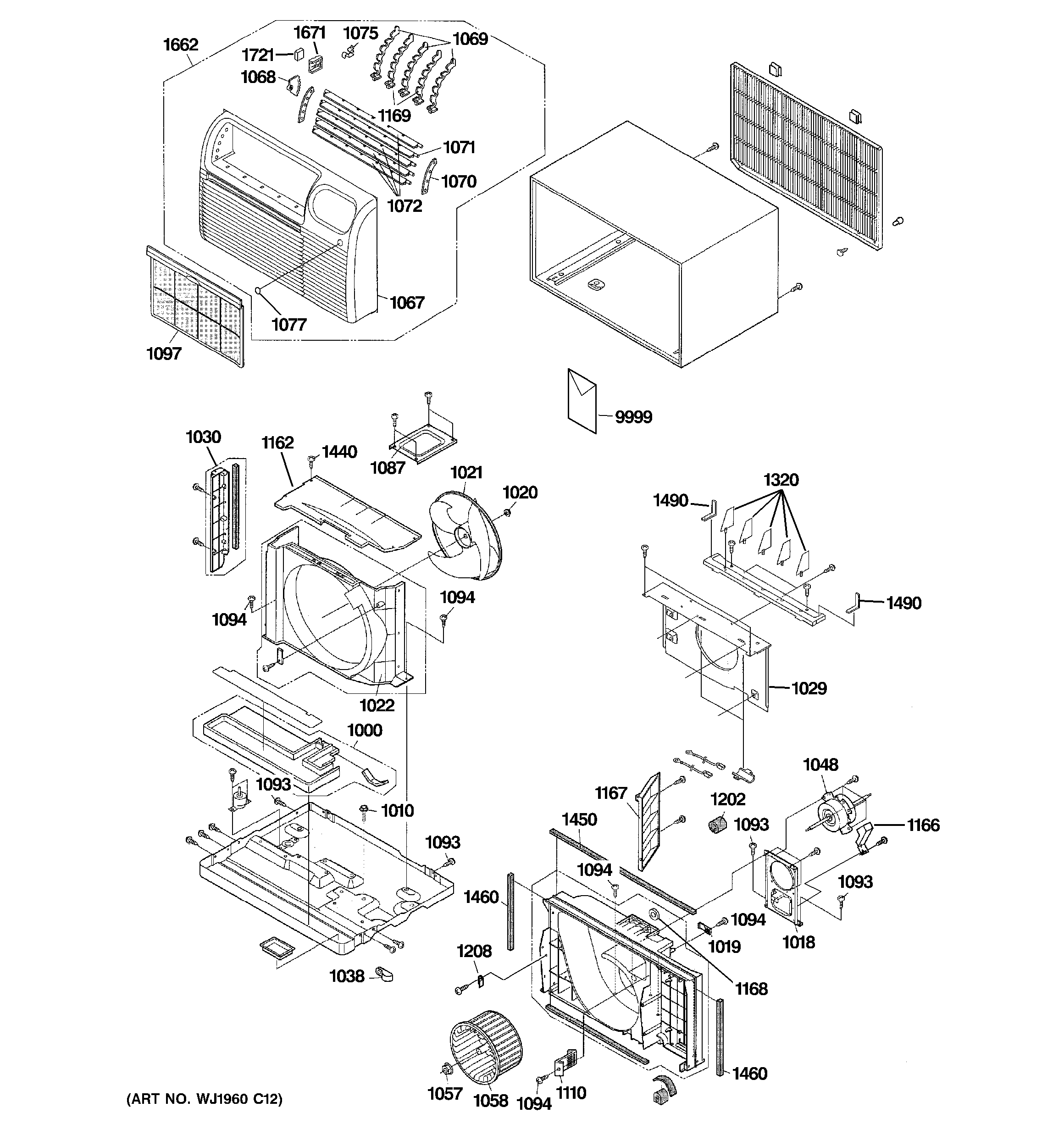

Cabinet & components diagram

U&c/iis air

Part #49-7597-2

$17.99
In Stock
Special Screw WJ01X10392
#1093

Cabinet & components diagram

Special screw

Part #WJ01X10392

$9.06
In Stock
Spring Protector WJ02X10001
#1080

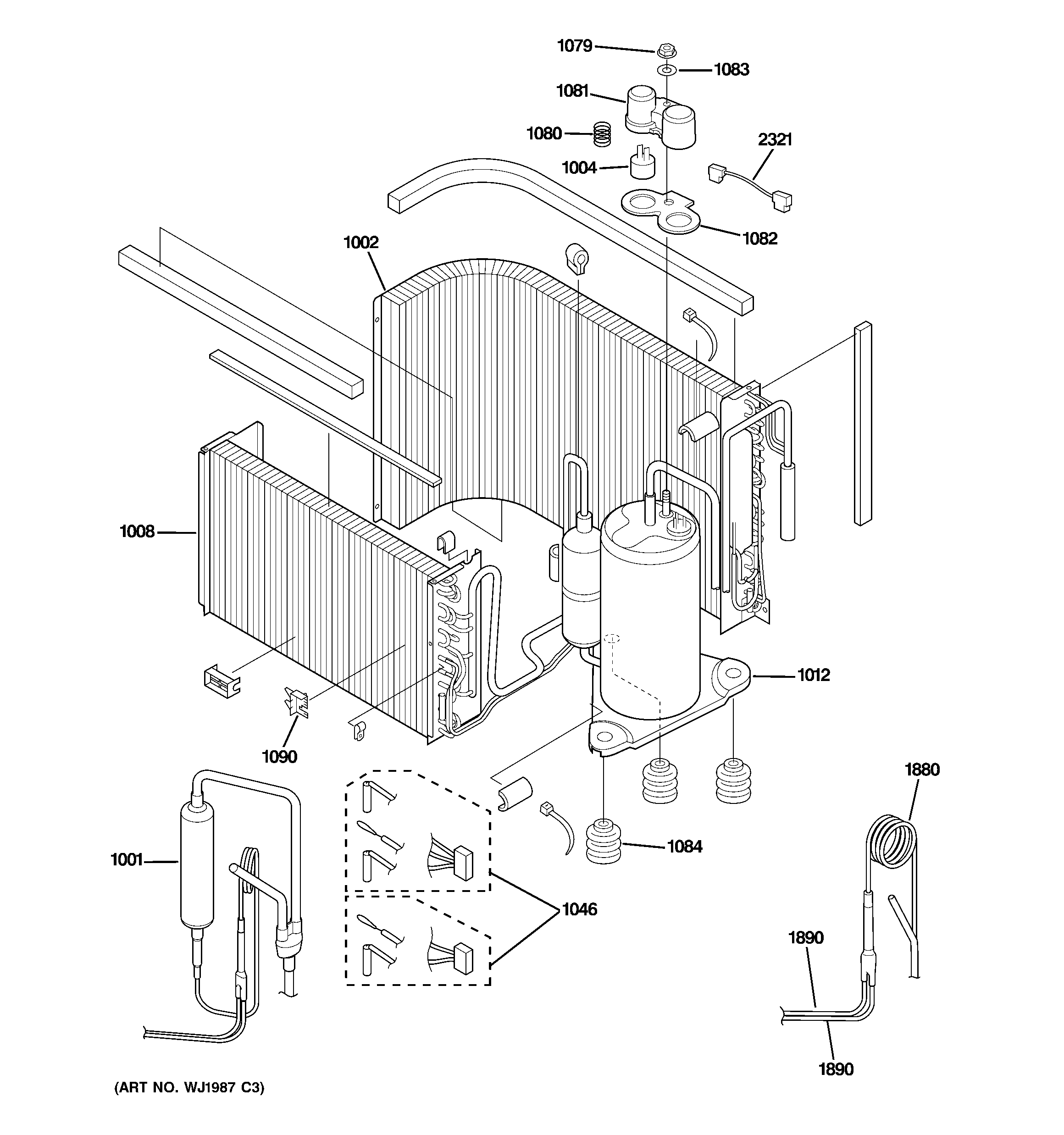

Sealed system & components diagram

Spring protector

Part #WJ02X10001

$16.57
In Stock
Central Air Conditioner Run Capacitor WJ20X10111
#1045

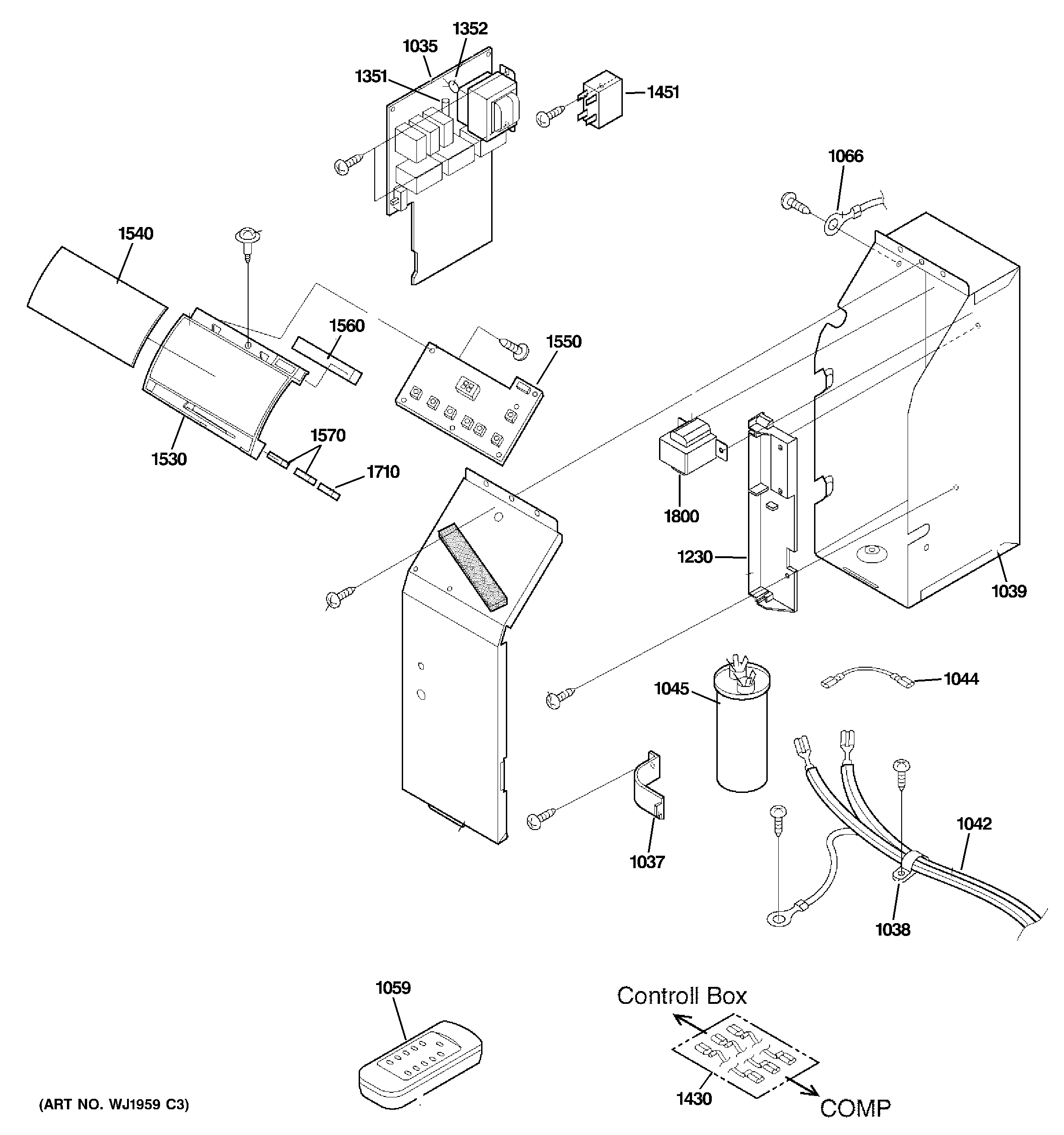

Control parts diagram

Central air conditioner run capacitor

Part #WJ20X10111

$43.99 |
12% OFF Phone Price : $49.99
In Stock
Stud Bolt WJ01X10045
#1010

Cabinet & components diagram

Stud bolt

Part #WJ01X10045

$26.60
In Stock
Stud Bolt WJ01X10031
#1010

Cabinet & components diagram

Stud bolt

Part #WJ01X10031

$29.47
In Stock
Special Nut WP01X10015
#1079

Sealed system & components diagram

Special nut

Part #WP01X10015

$9.71
In Stock
Room Air Conditioner Compressor Grommet WJ01X10046
#1084

Sealed system & components diagram

Room air conditioner compressor grommet

Part #WJ01X10046

$32.58 |
16% OFF Phone Price : $38.58
In Stock
Thermistor H WJ03X10011
#1090

Sealed system & components diagram

Thermistor h

Part #WJ03X10011

$25.02
In Stock
Clamp WJ03X10001
Clamp

Part #WJ03X10001

$11.74
In Stock
