GE
Gas Range

Model # JGBS04GPV2AD Official GE gas range

Here are the diagrams and repair parts for Official GE JGBS04GPV2AD gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

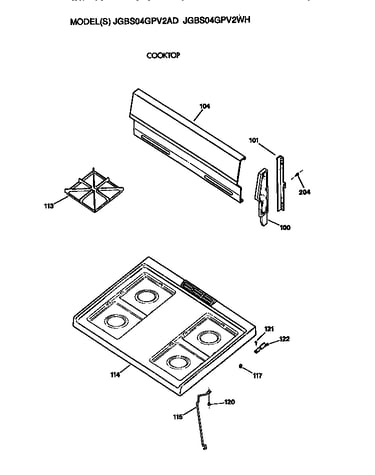

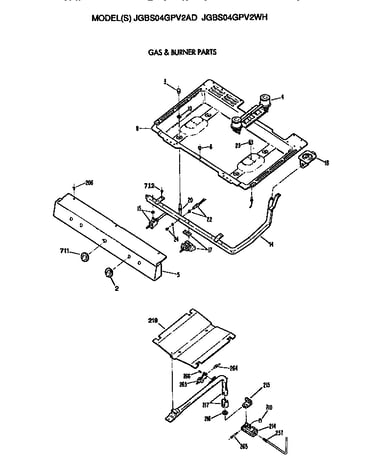

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Screw WB1K50

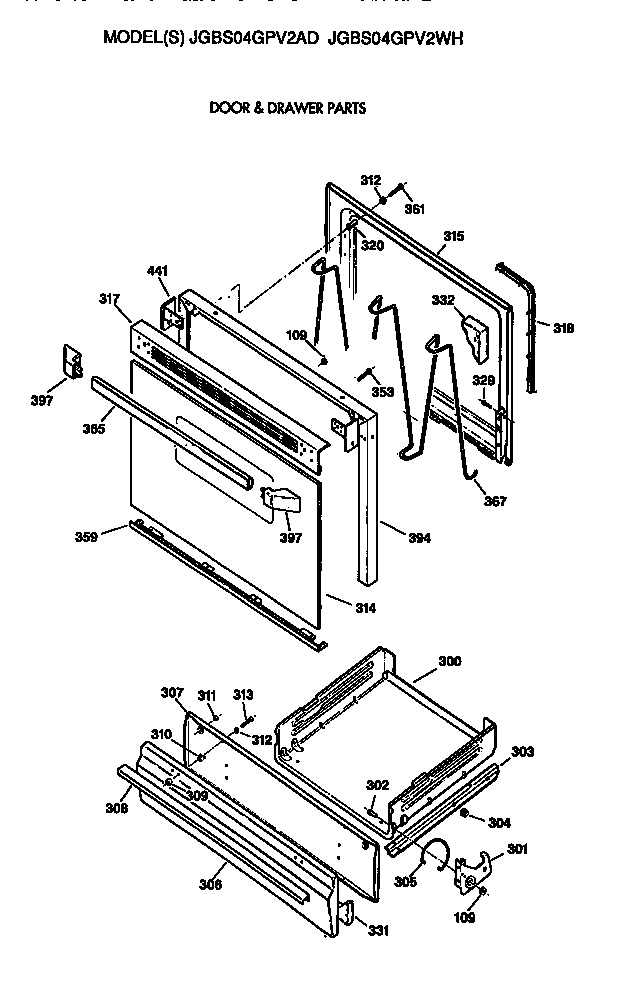

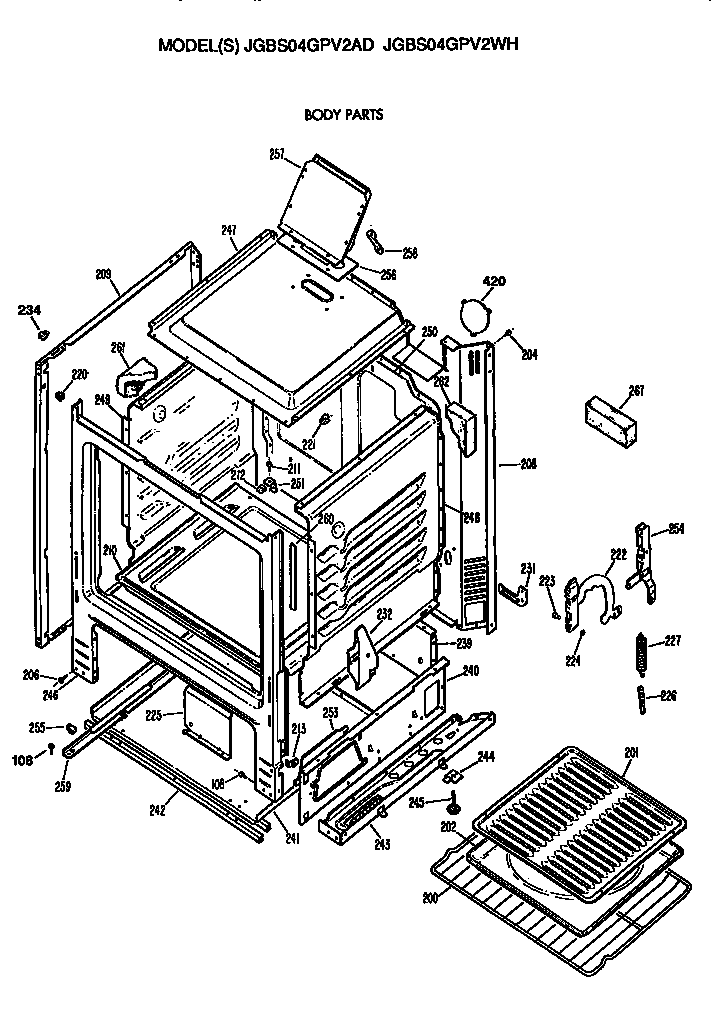

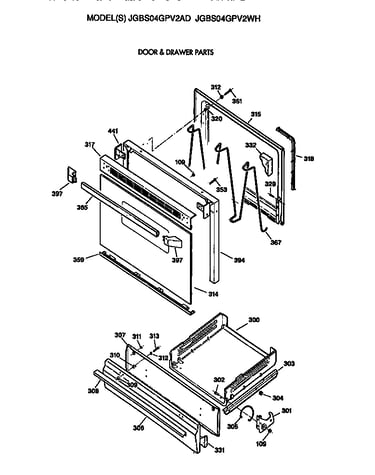

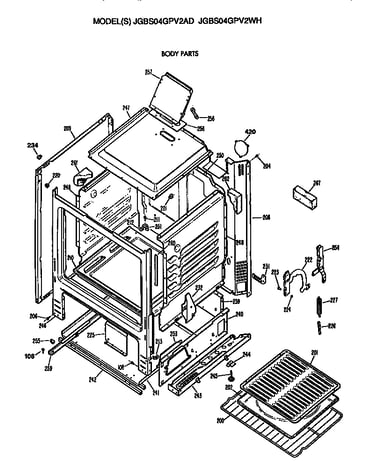

#28

All parts diagram

Screw

Part #WB1K50

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB1K50. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Handle End Cap, Right (replaces Wb07x7183, Wb15k5069, Wb7x7321) WB7X7183

#397

All parts diagram

Range oven door handle end cap, right (replaces wb07x7183, wb15k5069, wb7x7321)

Part #WB7X7183

$15.82 |
11% OFF Phone Price : $17.82
In Stock
Range Door Bumper (replaces Wb02k0015, Wb02x10905) WB2K15

#311

All parts diagram

Range door bumper (replaces wb02k0015, wb02x10905)

Part #WB2K15

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Trim WB7X7195

#359

All parts diagram

Trim

Part #WB7X7195

Replaced by #WB07K10232

?
Manufacturer substitution
This part replaces WB7X7195. Substitute parts can look different from the original.
This item is not returnable
$22.56 |
21% OFF Phone Price : $28.56
In Stock
Range Oven Door Hinge Roller WB10K12

#222

All parts diagram

Range oven door hinge roller

Part #WB10K12

$31.51 |
16% OFF Phone Price : $37.51
In Stock
Range Anti-tip Bracket WB2K20

#LITR

All parts diagram

Range anti-tip bracket

Part #WB2K20

$11.37 |
15% OFF Phone Price : $13.37
In Stock
Washer WB1X119

#312

All parts diagram

Washer

Part #WB1X119

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces WB1X119. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
Range Screw WB1K21

#206

All parts diagram

Range screw

Part #WB1K21

Replaced by #WR01X10065

?
Manufacturer substitution
This part replaces WB1K21. Substitute parts can look different from the original.
This item is not returnable
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Spacer WB2K14

#310

All parts diagram

Spacer

Part #WB2K14

This item is not returnable
$8.11
In Stock
Range Screw WB1K62

#397

All parts diagram

Range screw

Part #WB1K62

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
