Model # 502472410 Official Sears 26" lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502472410 26" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Axle Mx 303520
#11

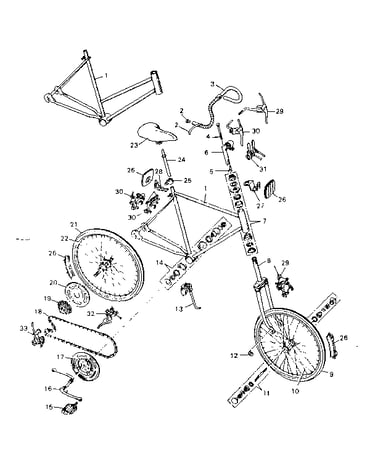

26" boy's model 502.472410 and 26" model 502.472420 diagram

Axle mx

Part #303520

The manufacturer no longer makes this part, and there's no substitute part

Brake Shoe 308697
Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

Tube 041001

#NI

All parts diagram

Tube

Part #041001

The manufacturer no longer makes this part, and there's no substitute part

Spk 11-9/32 303157
Spk 11-9/32

Part #303157

The manufacturer no longer makes this part, and there's no substitute part

Tire 040001

#NI

All parts diagram

Tire

Part #040001

The manufacturer no longer makes this part, and there's no substitute part

Screw 304238
Screw

Part #304238

The manufacturer no longer makes this part, and there's no substitute part

Rr Axle Cap 32909

#NI

All parts diagram

Rr axle cap

Part #32909

The manufacturer no longer makes this part, and there's no substitute part

Spring 304235
Spring

Part #304235

The manufacturer no longer makes this part, and there's no substitute part

Spacer 300670
#5

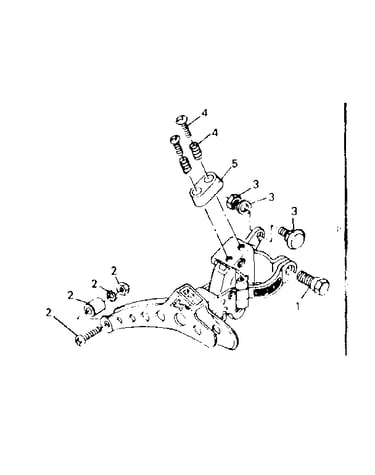

Shimano front derailleur diagram

Spacer

Part #300670

The manufacturer no longer makes this part, and there's no substitute part

Clamp 303404Z
#25

26" boy's model 502.472410 and 26" model 502.472420 diagram

Clamp

Part #303404Z

The manufacturer no longer makes this part, and there's no substitute part
