Side-By-Side Refrigerator

Model # 10659204992 Official Kenmore side-by-side refrigerator

Here are the diagrams and repair parts for Official Kenmore 10659204992 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

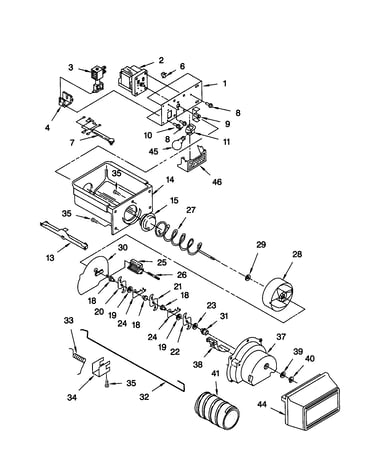

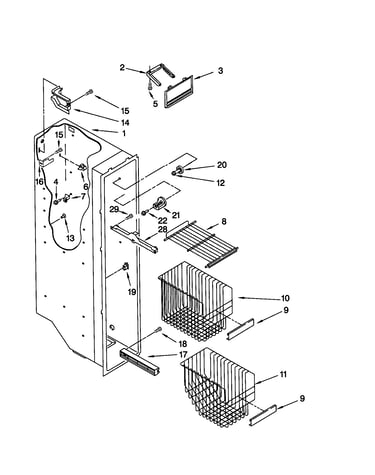

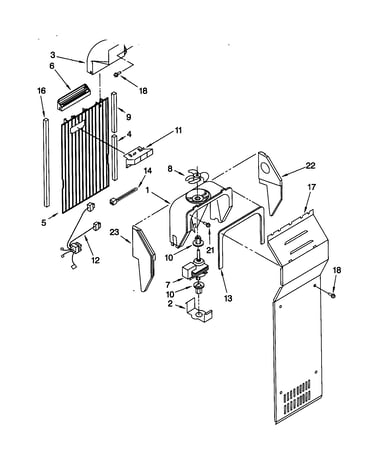

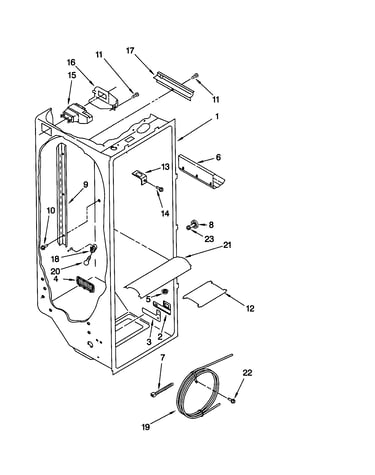

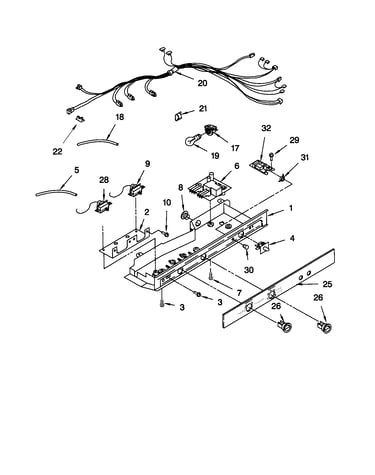

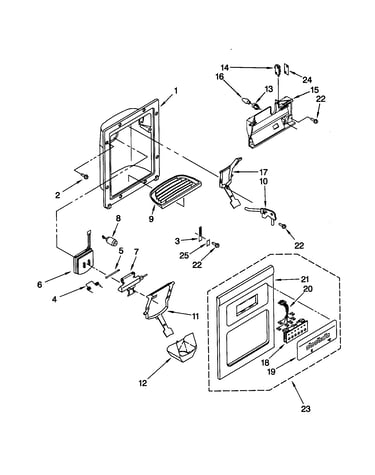

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
10659204992 Refrigerators
Refrigerator Water Filter 2203980
#29

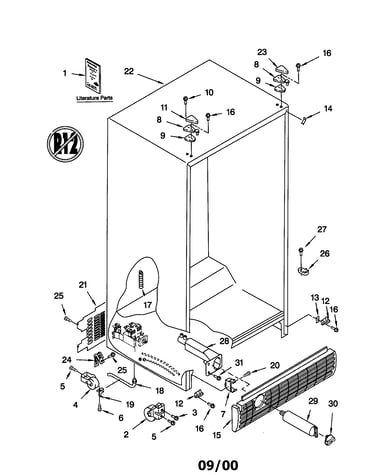

Cabinet diagram

Refrigerator water filter

Part #2203980

Replaced by #9085

?
Manufacturer substitution
This part replaces 2203980. Substitute parts can look different from the original.
4.31 (776)
BEST SELLER

Get free shipping with Automatic Reorder

$54.98
In Stock
Ice Maker Assembly - Refrigerator Ice Maker By Whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, M626687, W10122496, W10190952, W10281545, W10632400) 4317943

#NI

All parts diagram

Ice maker assembly - refrigerator ice maker by whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, m626687, w10122496, w10190952, w10281545, w10632400)

Part #4317943

4.29 (82)
BEST SELLER
$93.89 |
6% OFF Phone Price : $99.89
In Stock
Refrigerator Inlet Valve 2205762
#10

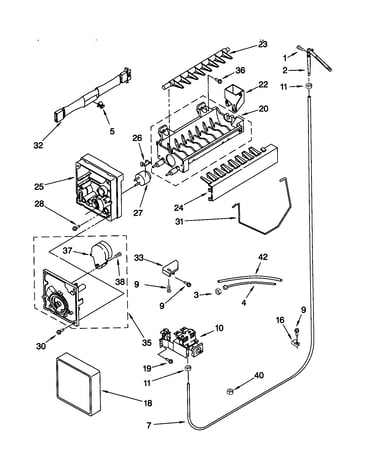

Icemaker diagram

Refrigerator inlet valve

Part #2205762

Replaced by #W10408179

?
Manufacturer substitution
This part replaces 2205762. Substitute parts can look different from the original.
4.08 (83)
BEST SELLER
$60.48 |
9% OFF Phone Price : $66.48
In Stock
Refrigerator Crisper Pan 2196230
#10

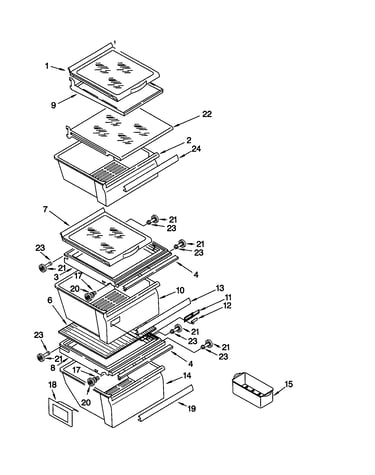

Refrigerator shelf diagram

Refrigerator crisper pan

Part #2196230

Replaced by #WP2188656

?
Manufacturer substitution
This part replaces 2196230. Substitute parts can look different from the original.
4.49 (270)
BEST SELLER
$60.00 |
9% OFF Phone Price : $66.00
In Stock
Refrigerator Defrost Bi-metal 2196155
#35

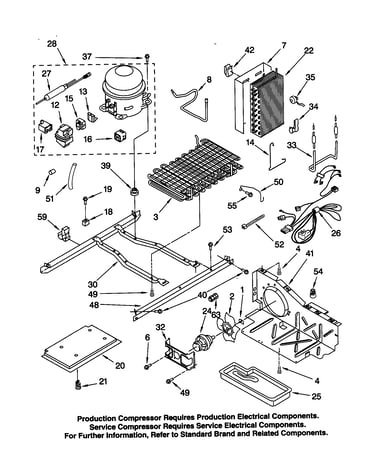

Unit diagram

Refrigerator defrost bi-metal

Part #2196155

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces 2196155. Substitute parts can look different from the original.
4.53 (17)
BEST SELLER
$28.87 |
17% OFF Phone Price : $34.87
In Stock
Refrigerator Door Cam (black) 2182178
#10

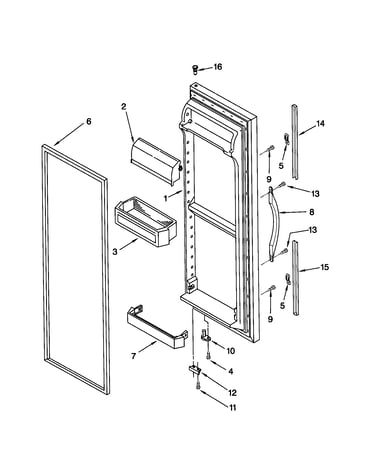

Refrigerator door diagram

Refrigerator door cam (black)

Part #2182178

Replaced by #WP2182179

?
Manufacturer substitution
This part replaces 2182178. Substitute parts can look different from the original.
3.98 (56)
BEST SELLER
$10.32 |
16% OFF Phone Price : $12.32
In Stock
Refrigerator Door Closer Cam 2182179
#12

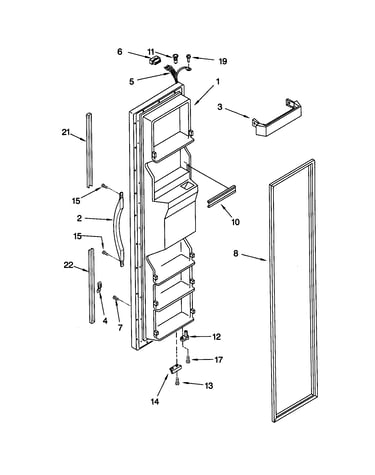

Freezer door diagram

Refrigerator door closer cam

Part #2182179

Replaced by #WP2182179

?
Manufacturer substitution
This part replaces 2182179. Substitute parts can look different from the original.
3.98 (56)
BEST SELLER
$10.32 |
16% OFF Phone Price : $12.32
In Stock
Refrigerator Meat Pan 2196228
#14

Refrigerator shelf diagram

Refrigerator meat pan

Part #2196228

Replaced by #WP2188664

?
Manufacturer substitution
This part replaces 2196228. Substitute parts can look different from the original.
4.39 (89)
BEST SELLER
$52.09 |
10% OFF Phone Price : $58.09
In Stock
Light Bulb 527949
Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
1.72 (18)
BEST SELLER
$17.23 |
10% OFF Phone Price : $19.23
In Stock
Refrigerator Door Closer Cam 2155311
#26

Cabinet diagram

Refrigerator door closer cam

Part #2155311

Replaced by #WPW10329686

?
Manufacturer substitution
This part replaces 2155311. Substitute parts can look different from the original.
4.21 (29)
BEST SELLER
$8.11 |
11% OFF Phone Price : $9.11
In Stock
