Kenmore
Washer

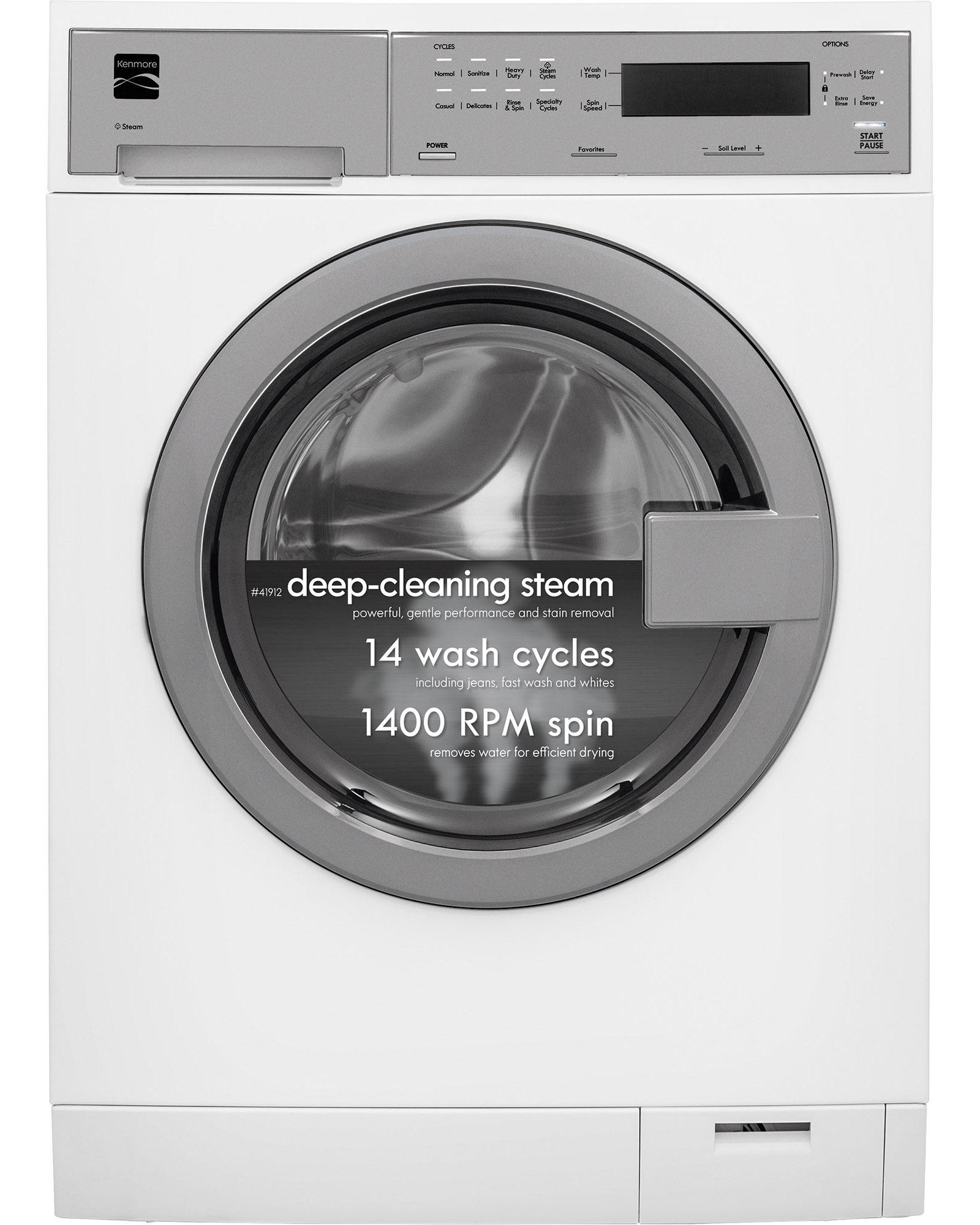

Model # 41741912510 Official Kenmore washer

Here are the diagrams and repair parts for Official Kenmore 41741912510 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

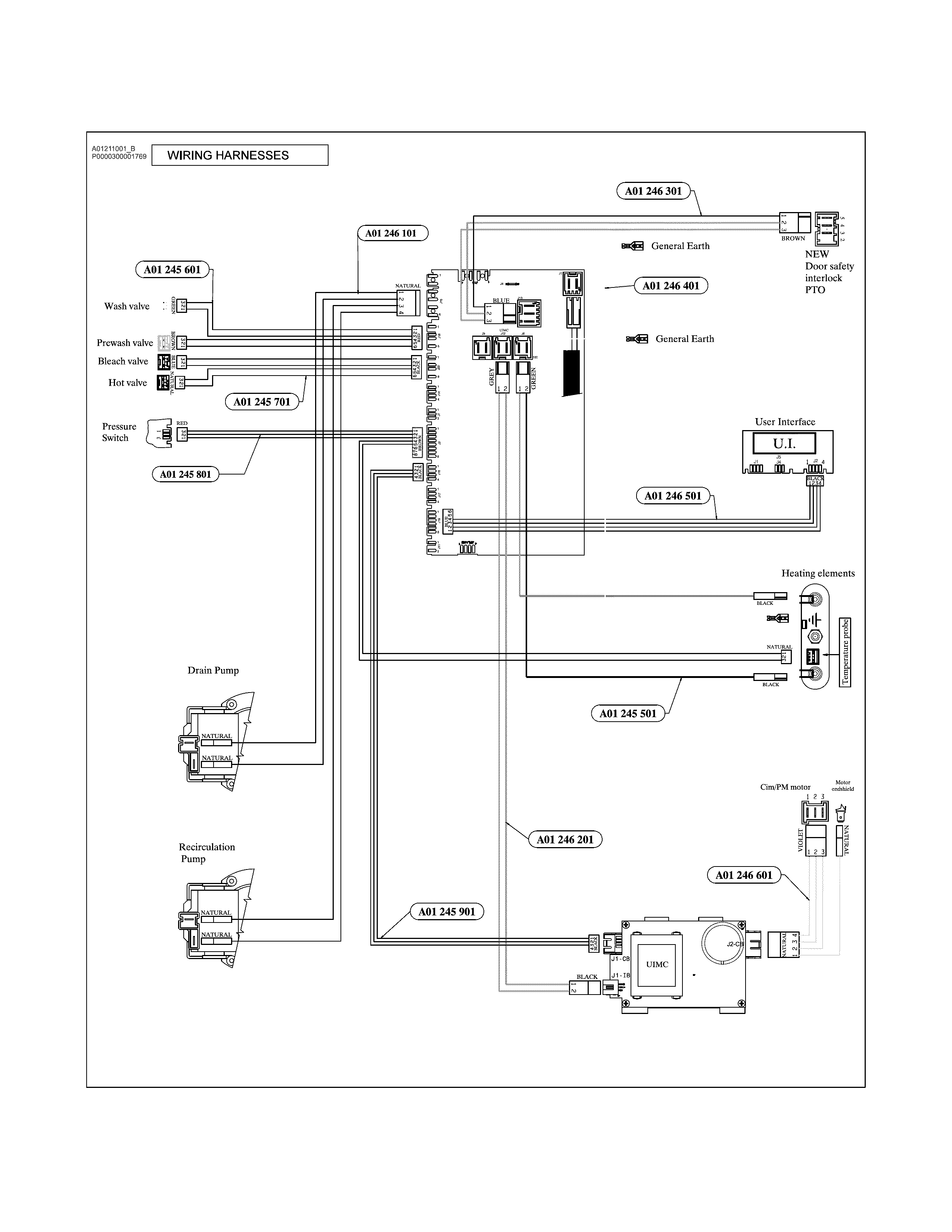

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Washer Door Boot 132724611
#608

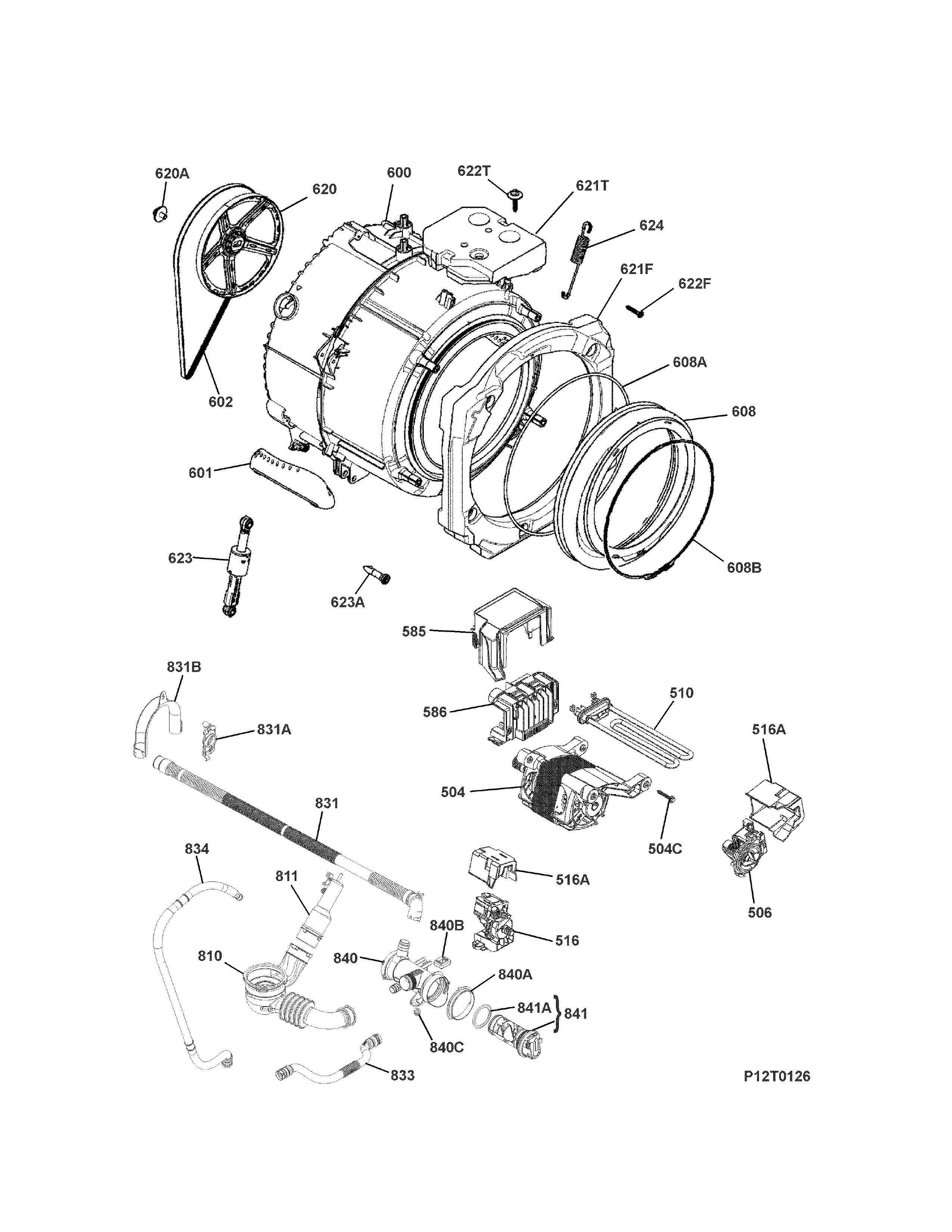

Motor/tub diagram

Washer door boot

Part #132724611

$165.58 |
7% OFF Phone Price : $177.58
In Stock
Washer Door Lock 808455304
#521

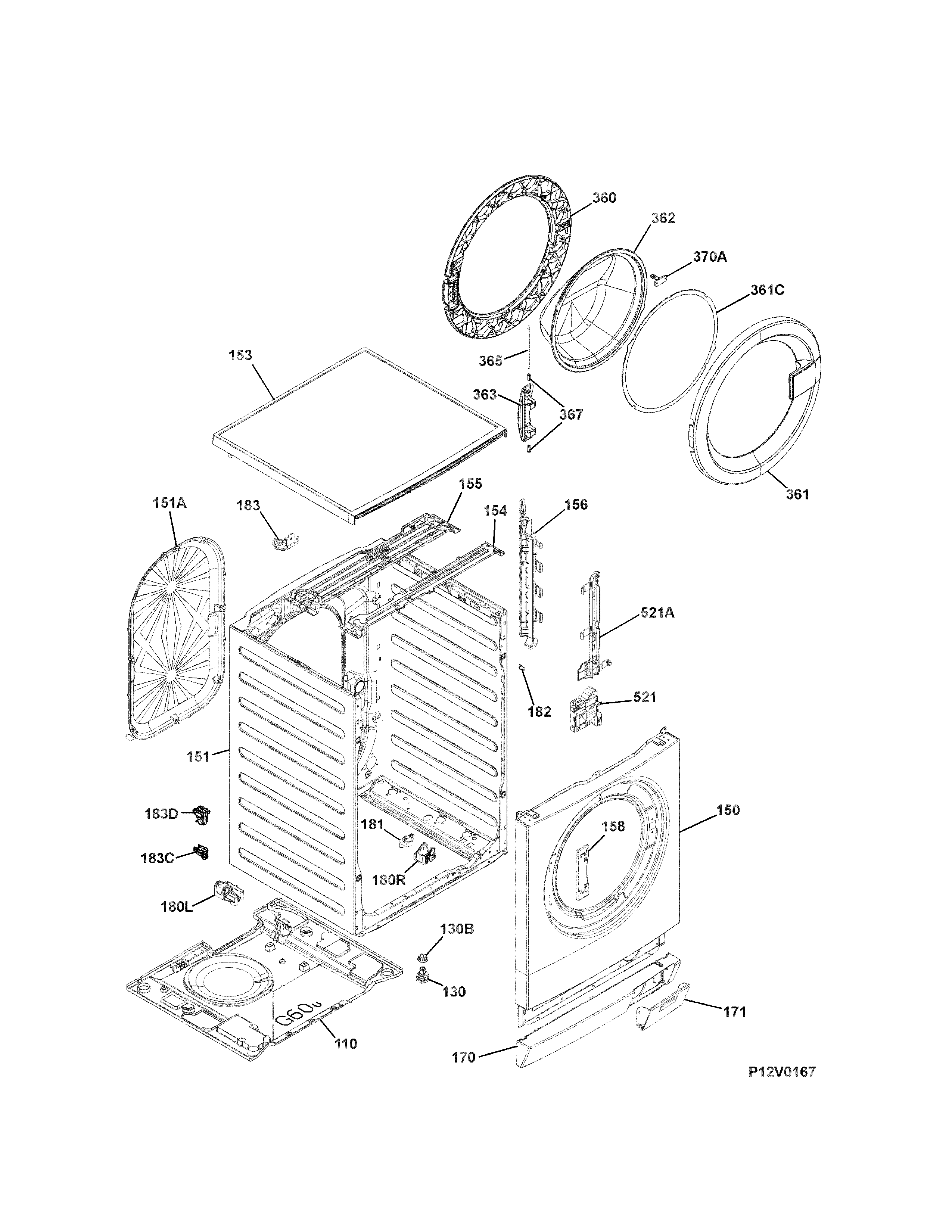

Cabinet/top diagram

Washer door lock

Part #808455304

$70.89 |
8% OFF Phone Price : $76.89
In Stock
Washer User Interface 136007544
#587A

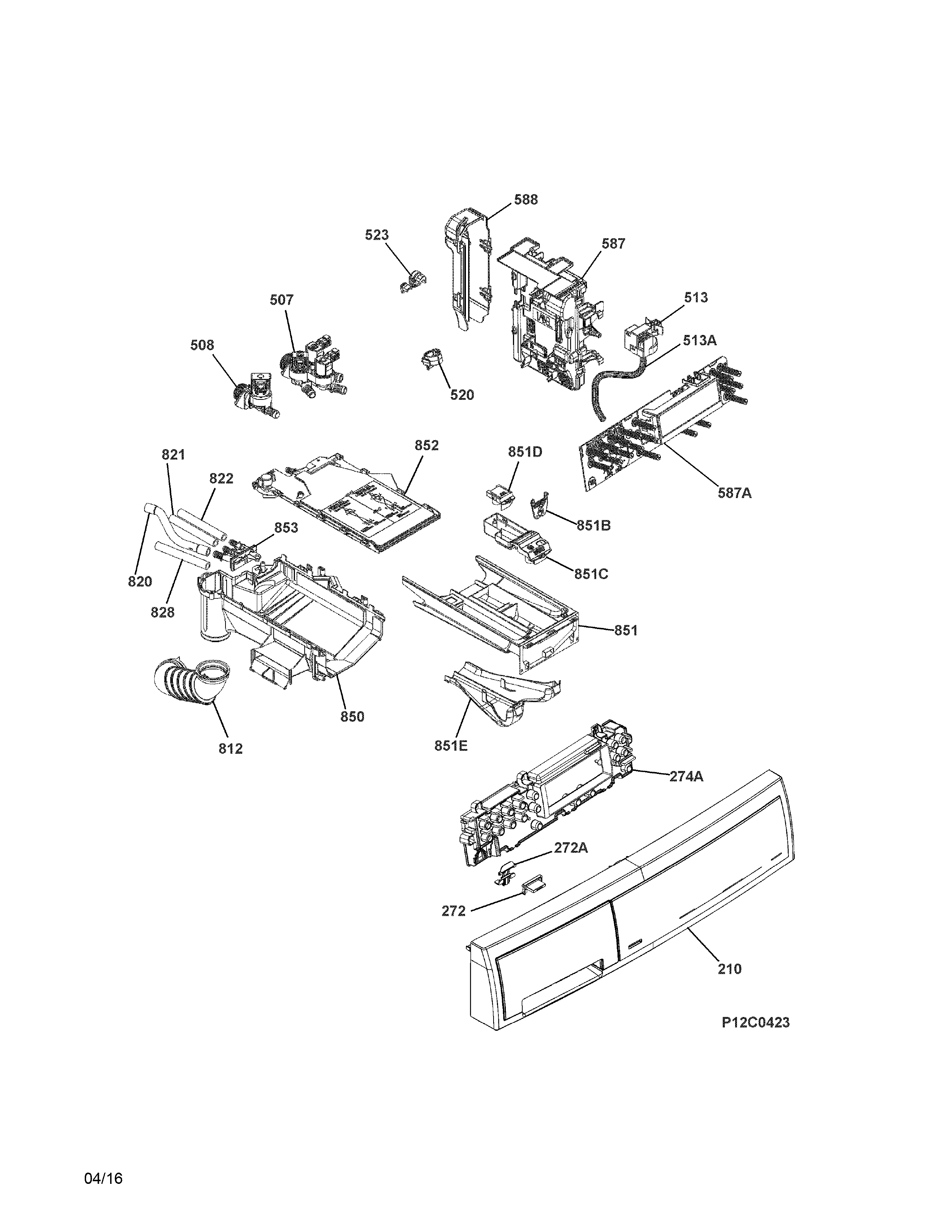

Control panel diagram

Washer user interface

Part #136007544

Replaced by #A10066602

?
Manufacturer substitution
This part replaces 136007544. Substitute parts can look different from the original.
This item is not returnable
$215.69 |
5% OFF Phone Price : $227.69
In Stock
Washer Drive Motor Inverter Board A01118401
#586

Motor/tub diagram

Washer drive motor inverter board

Part #A01118401

$203.89 |
6% OFF Phone Price : $215.89
In Stock
Kenmore Washer Electronic Control Board 97391453500100
#587

Control panel diagram

Kenmore washer electronic control board

Part #97391453500100

$237.14 |
5% OFF Phone Price : $249.14
In Stock
Washer User Interface Light Diffuser 136659600
#274

Control panel diagram

Washer user interface light diffuser

Part #136659600

$77.29
In Stock
Clip 539151026
#NI

Control panel diagram

Clip

Part #539151026

$33.02
In Stock
Washer Drive Belt 132353120
#602

Motor/tub diagram

Washer drive belt

Part #132353120

$107.78
In Stock
Funnel 809169801
#851

Control panel diagram

Funnel

Part #809169801

$53.09 |
10% OFF Phone Price : $59.09
In Stock
Hose 124291600
#831

Motor/tub diagram

Hose

Part #124291600

$38.64
In Stock
