Model # YAES6603SFW1 Official Amana electric range

Here are the diagrams and repair parts for Official Amana YAES6603SFW1 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

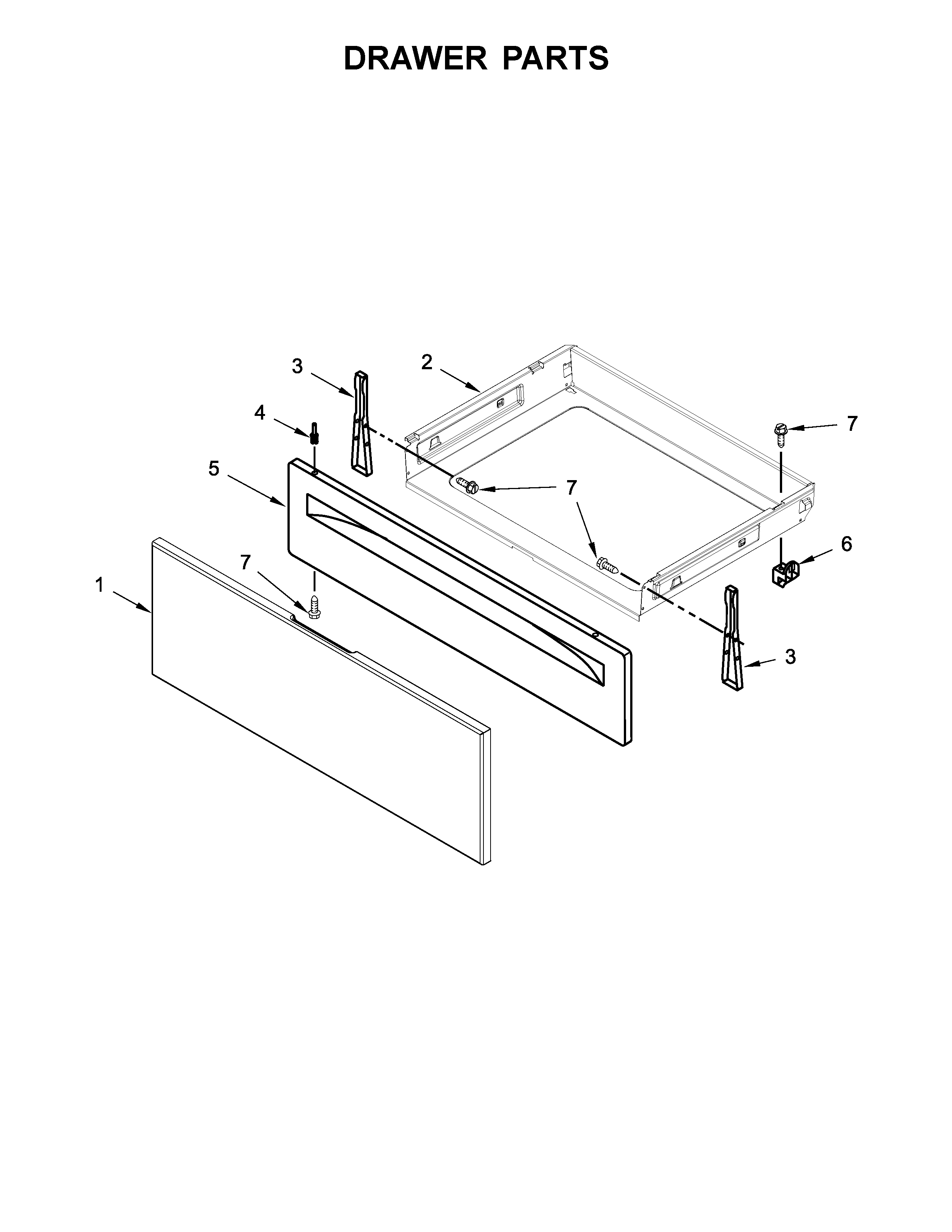

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Light Bulb 311255
#38

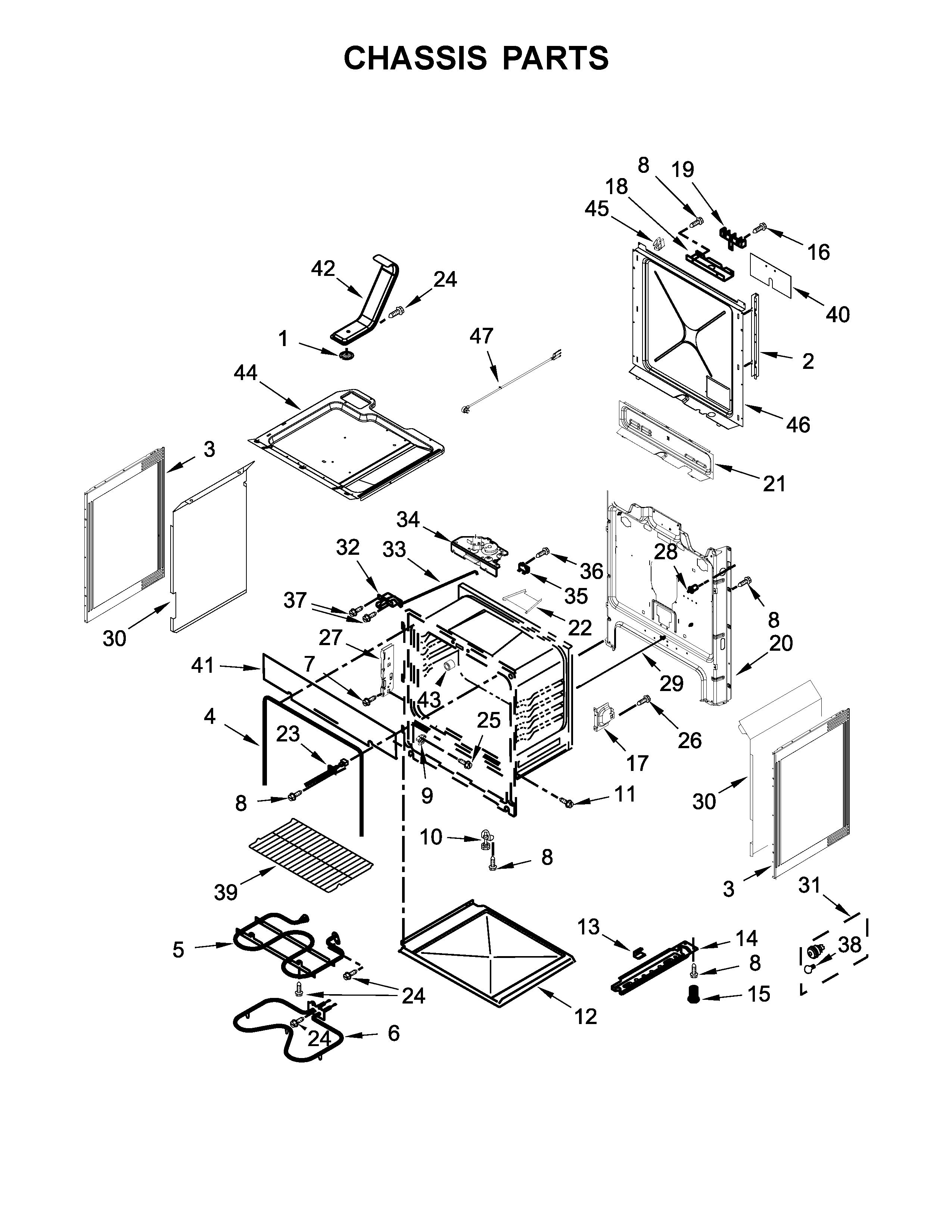

Chassis parts diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Radiant Surface Element 8273994
#6

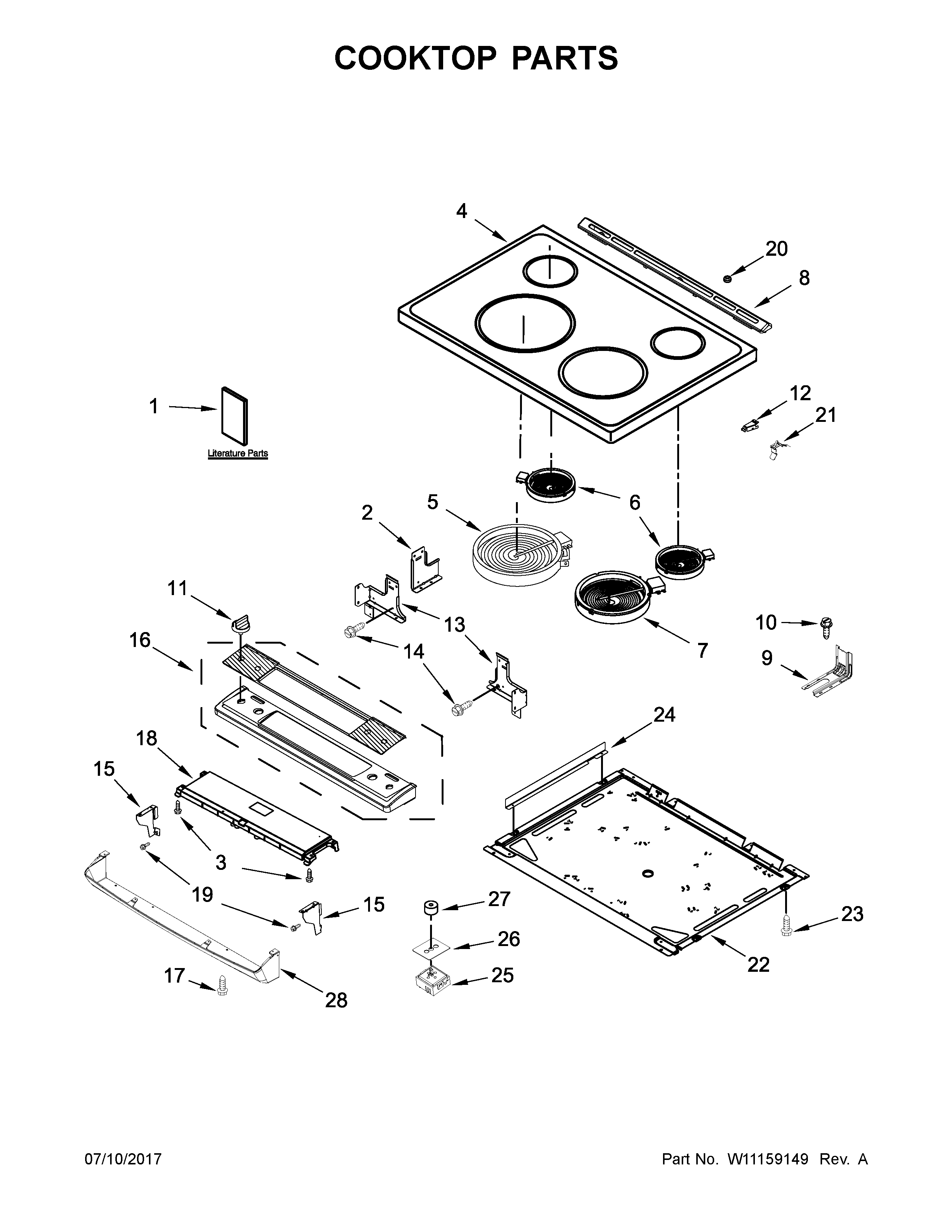

Cooktop parts diagram

Range radiant surface element

Part #8273994

Replaced by #W11171119

?
Manufacturer substitution
This part replaces 8273994. Substitute parts can look different from the original.
BEST SELLER
$102.34 |
10% OFF Phone Price : $114.34
In Stock
Range Dual Surface Element Control Switch W10437092
#25A

Cooktop parts diagram

Range dual surface element control switch

Part #W10437092

Replaced by #W10857622

?
Manufacturer substitution
This part replaces W10437092. Substitute parts can look different from the original.
BEST SELLER
$132.86 |
8% OFF Phone Price : $144.86
In Stock
Range Safety Thermostat 3196548
#35

Chassis parts diagram

Range safety thermostat

Part #3196548

Replaced by #WP3196548

?
Manufacturer substitution
This part replaces 3196548. Substitute parts can look different from the original.
BEST SELLER
$23.64 |
20% OFF Phone Price : $29.64
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Range Surface Element Control Switch W10578768
#25

Cooktop parts diagram

Range surface element control switch

Part #W10578768

Replaced by #W10911303

?
Manufacturer substitution
This part replaces W10578768. Substitute parts can look different from the original.
BEST SELLER
$66.34 |
8% OFF Phone Price : $72.34
In Stock
Door Trim W10746436
#15A

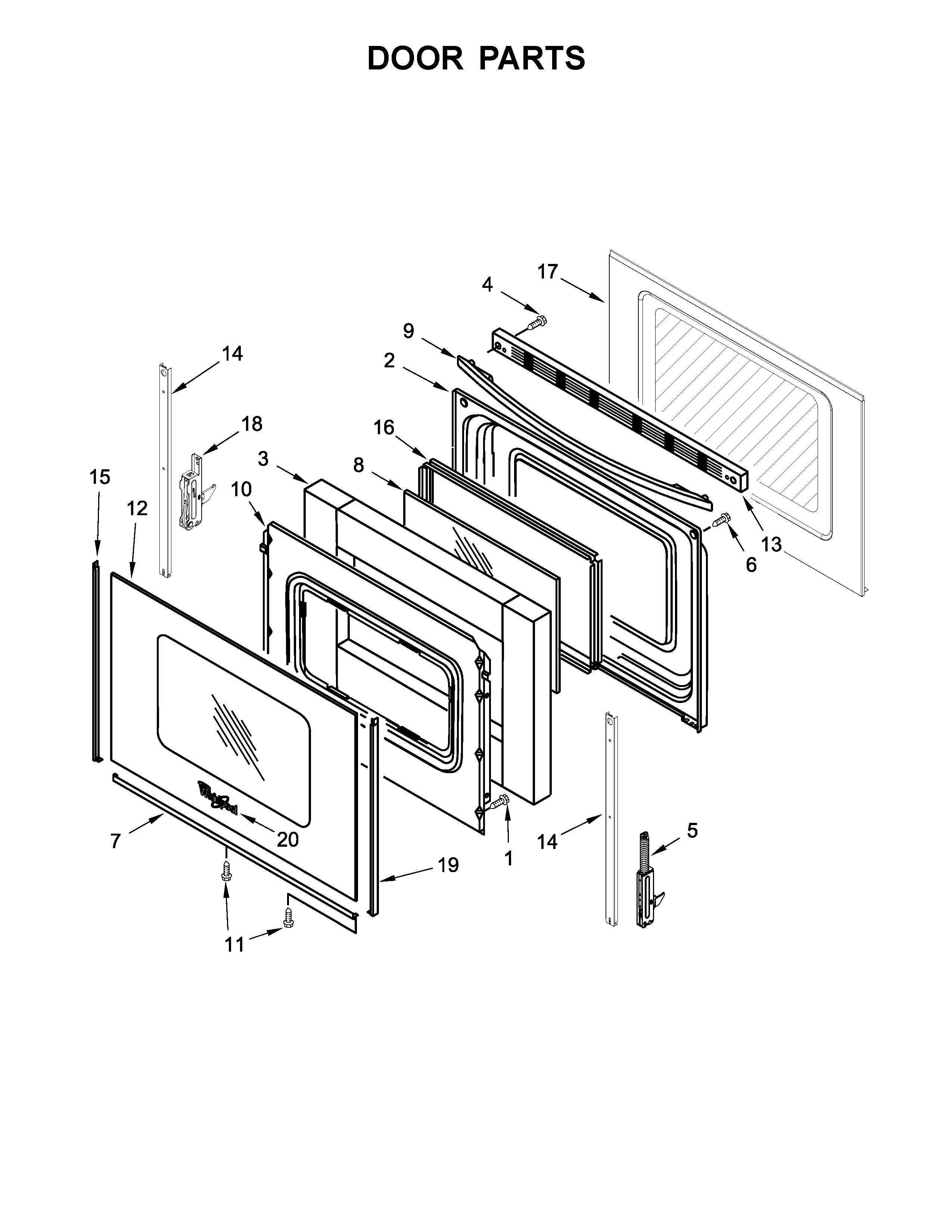

Door parts diagram
