Maytag
Bottom-Mount Refrigerator

Model # MFD2562KES10 Official Maytag bottom-mount refrigerator

Here are the diagrams and repair parts for Official Maytag MFD2562KES10 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

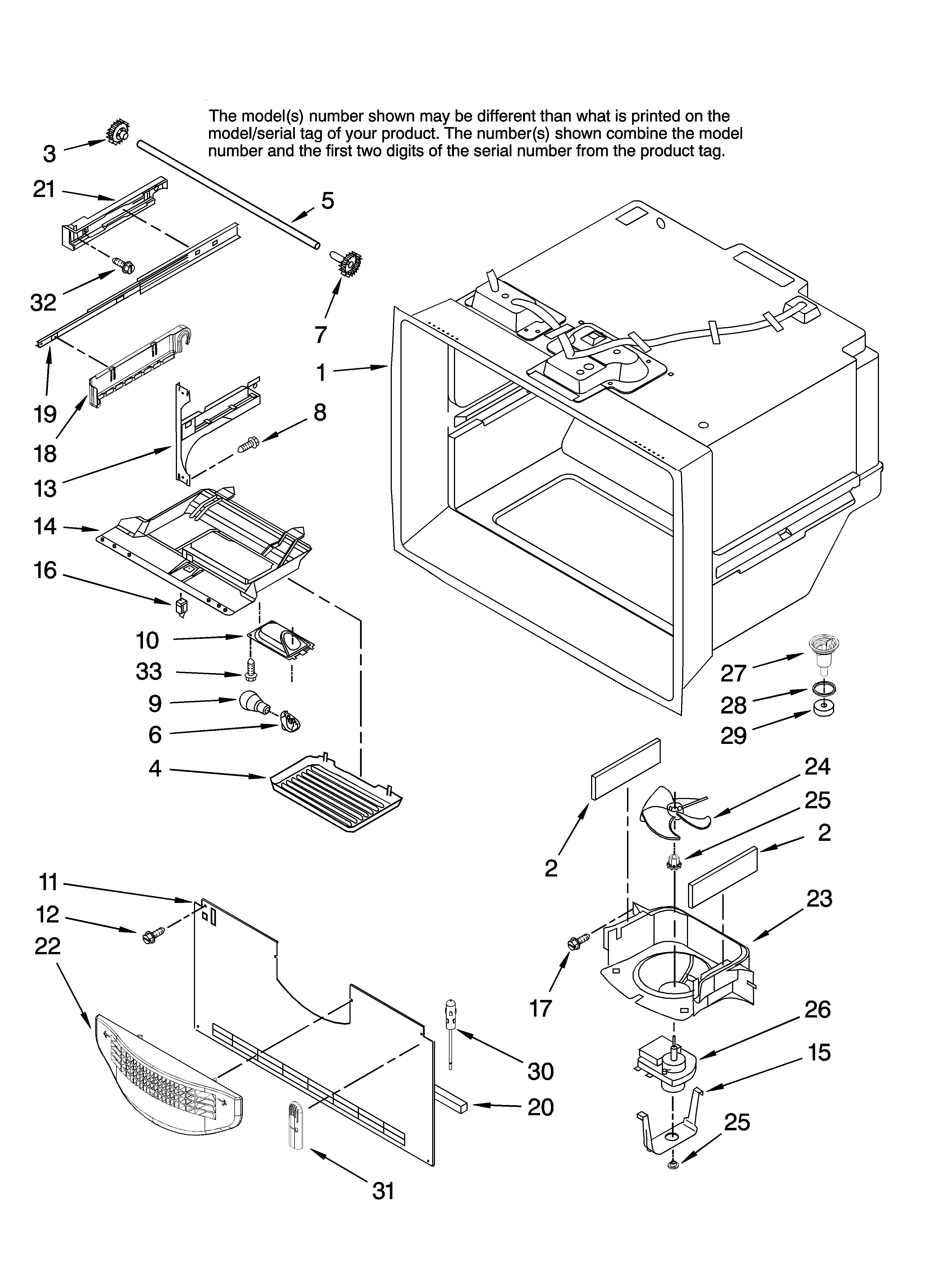

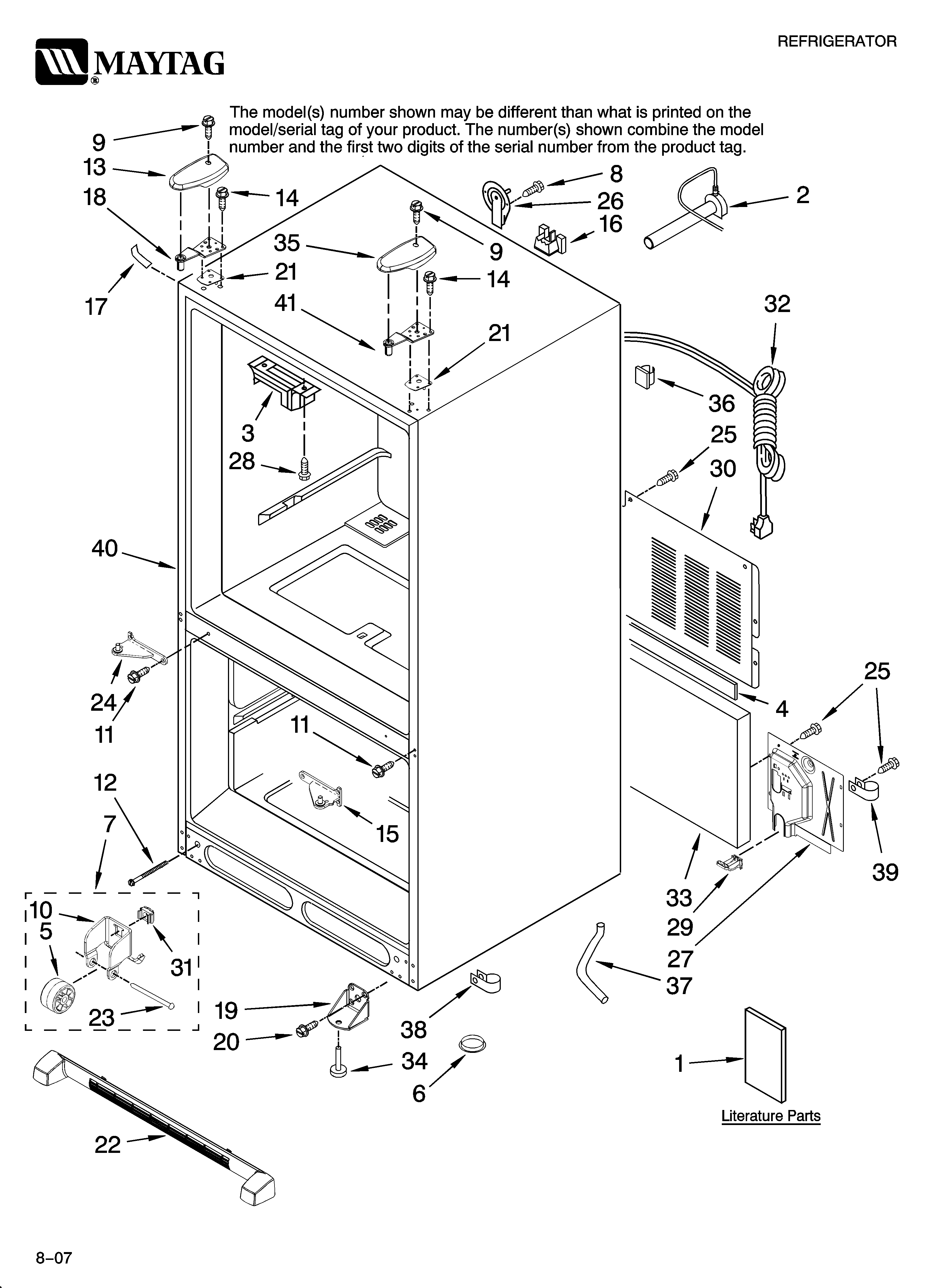

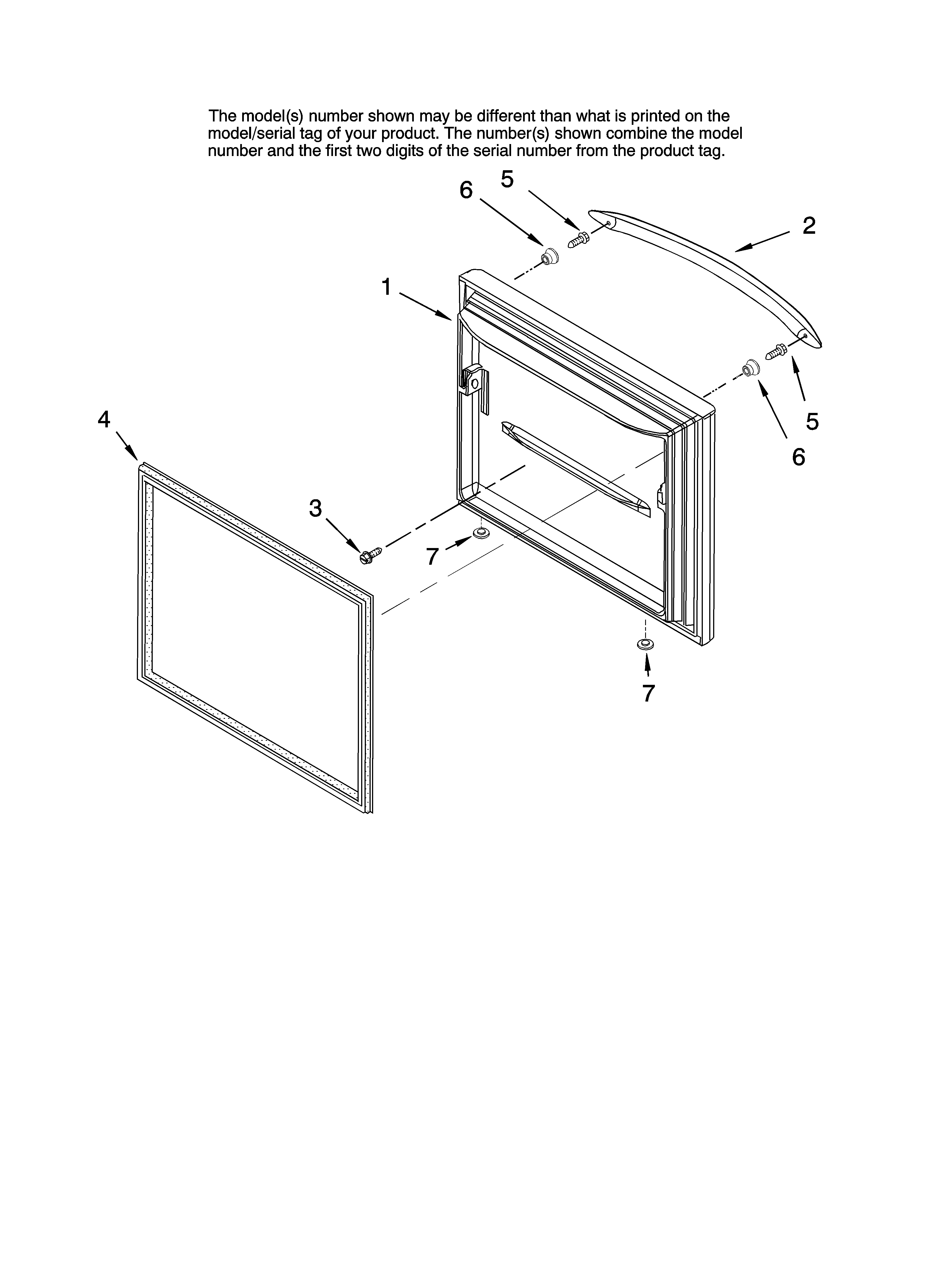

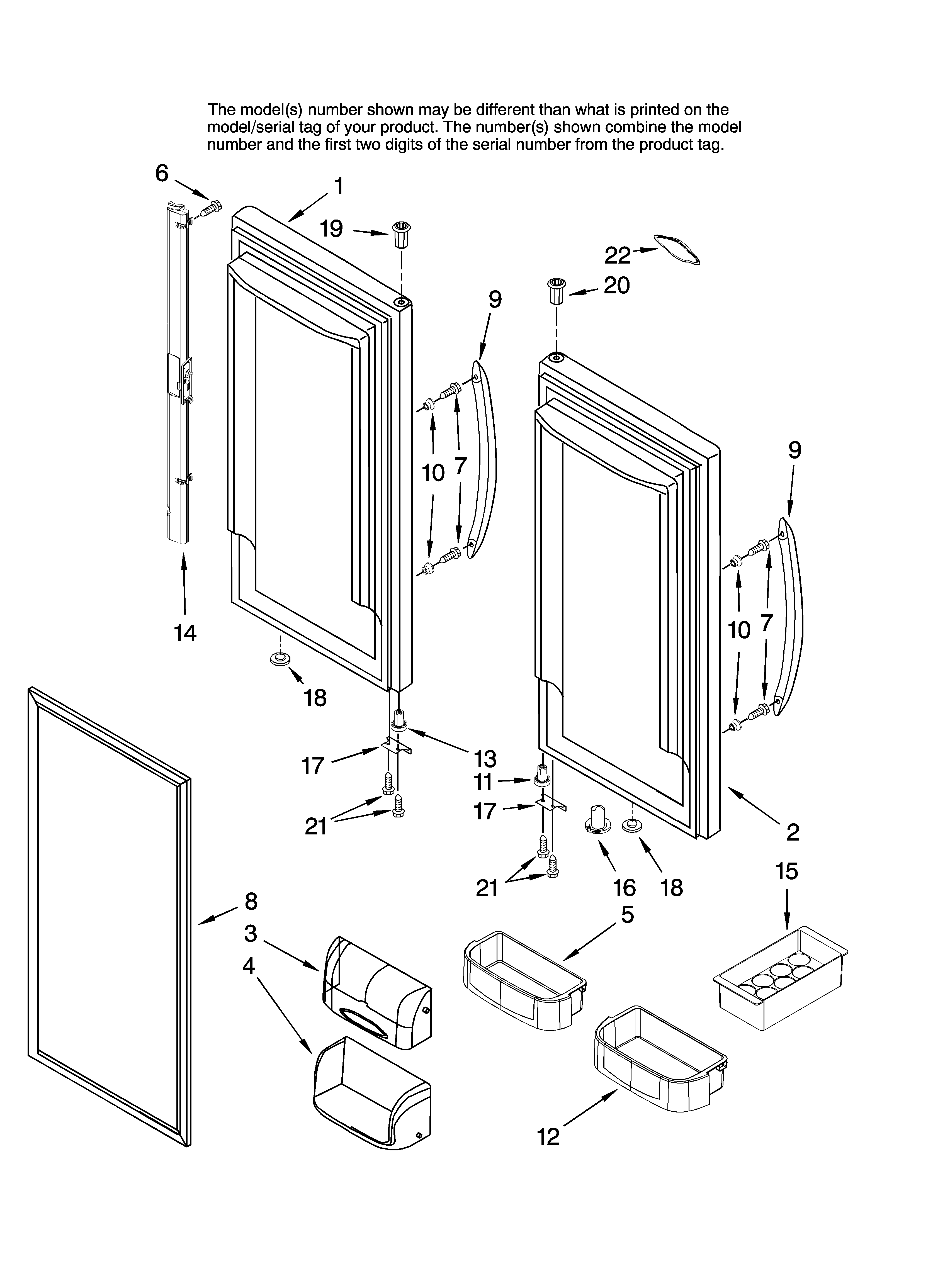

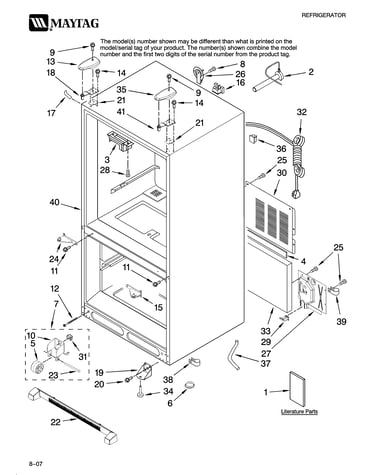

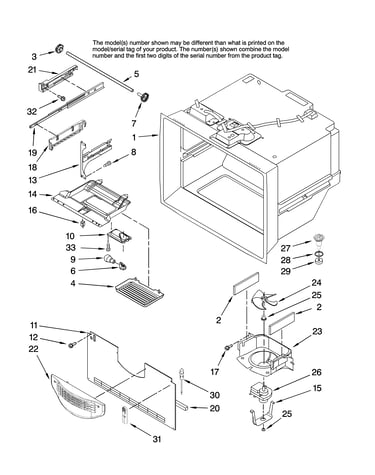

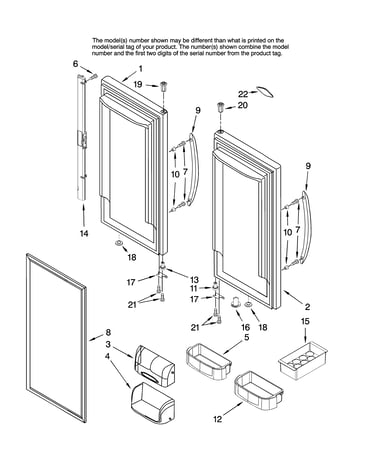

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 285 parts  |
Refrigerator Water Filter UKF8001AXX
#19

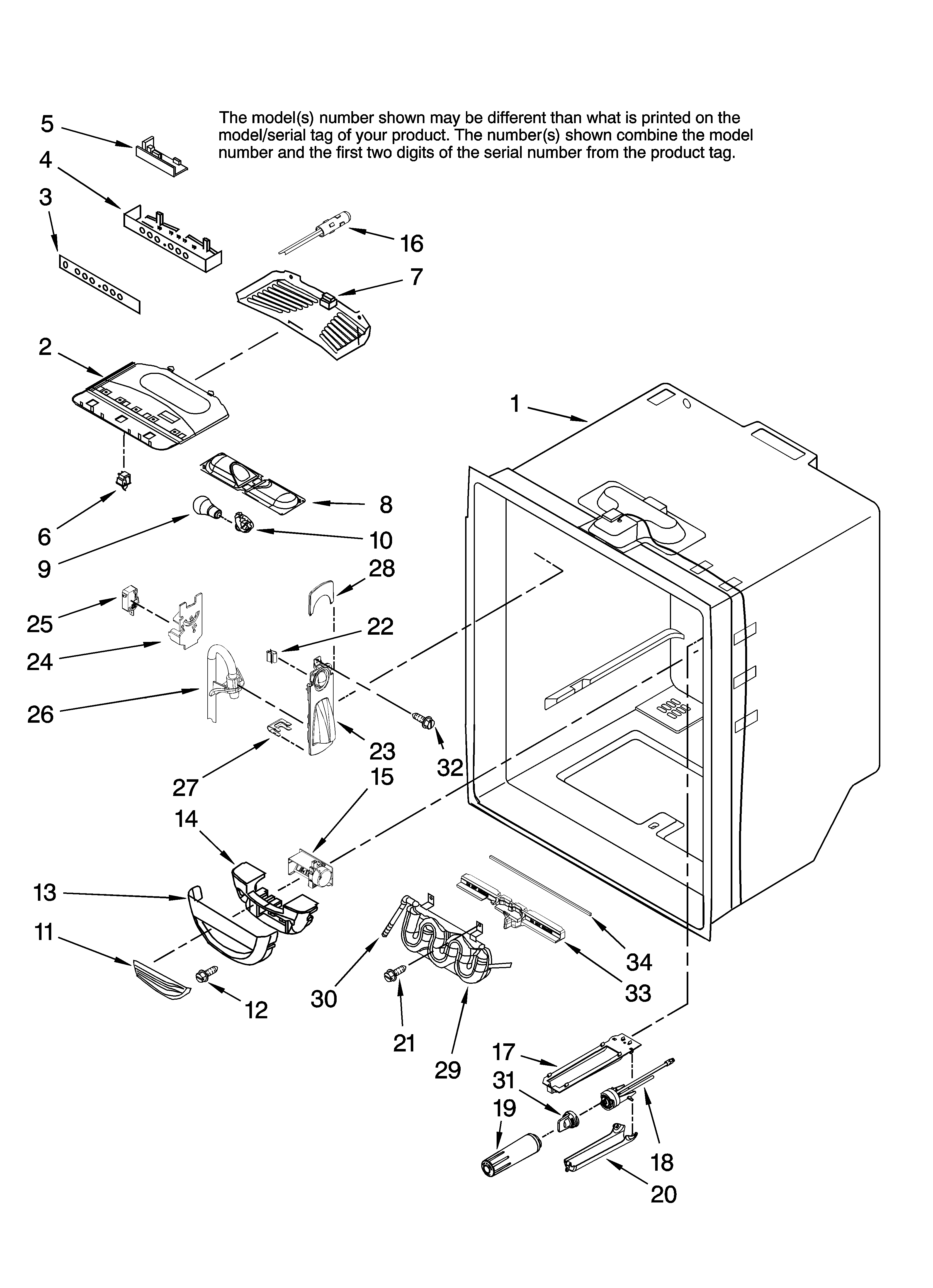

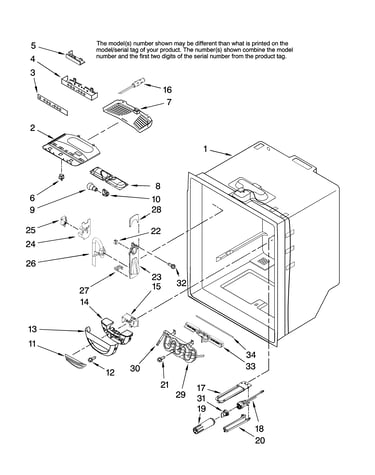

Refrigerator liner parts diagram

Refrigerator water filter

Part #UKF8001AXX

The manufacturer no longer makes this part, and there's no substitute part

Ice Maker Assembly (4317943) - Refrigerator Ice Machine Part By Whirlpool 4317943
#100

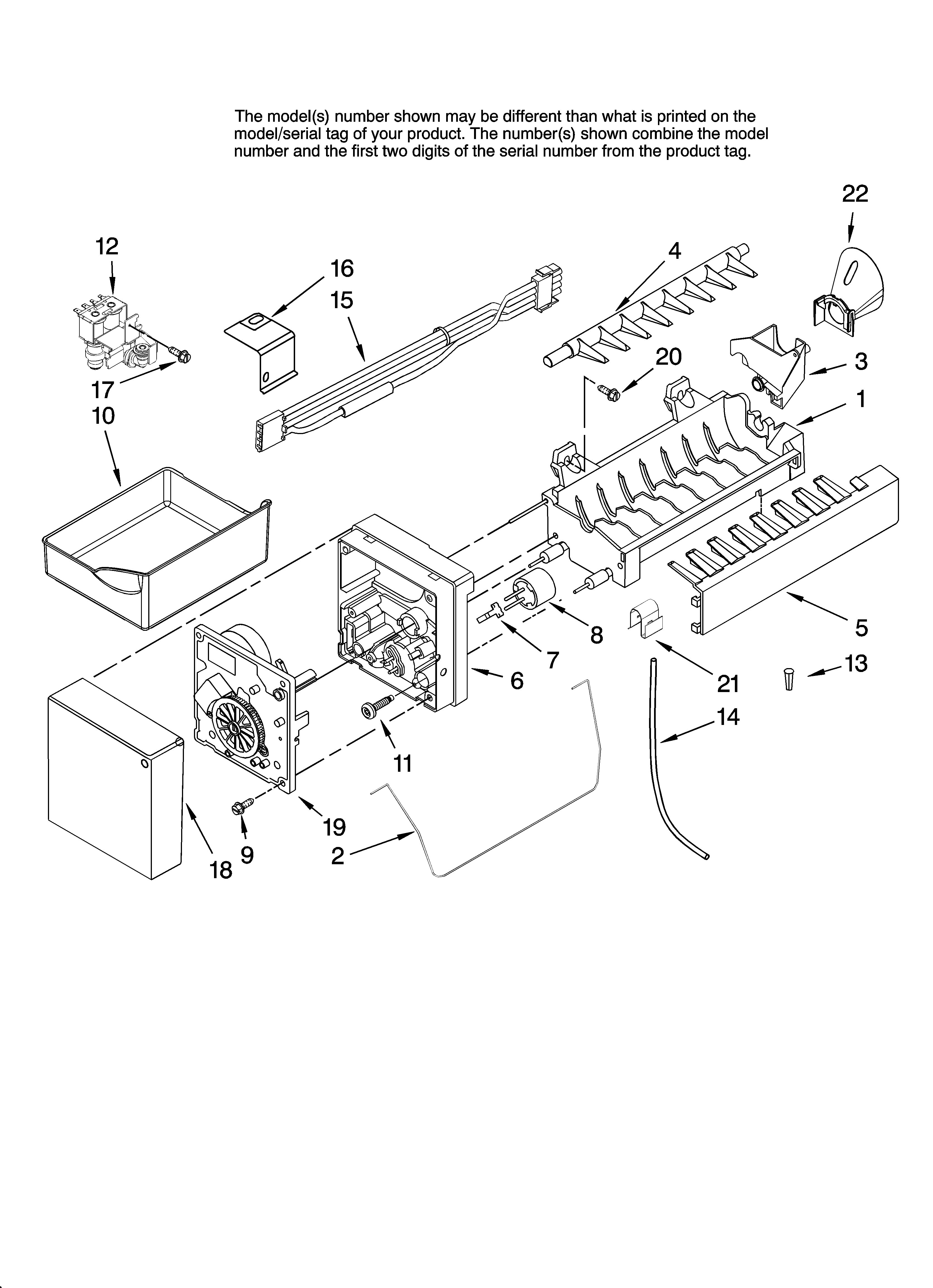

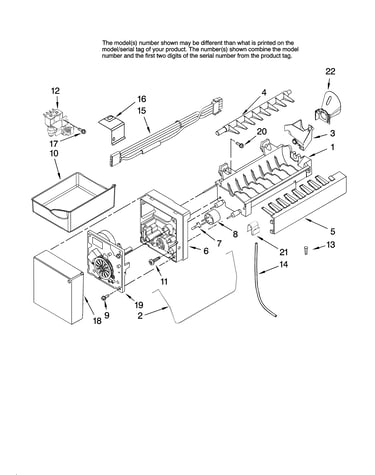

Icemaker parts, optional parts (not included) diagram

Ice maker assembly (4317943) - refrigerator ice machine part by whirlpool

Part #4317943

BEST SELLER
$93.89 |
6% OFF Phone Price : $99.89
In Stock
Refrigerator Pantry Drawer End Cap 67005858
#16A

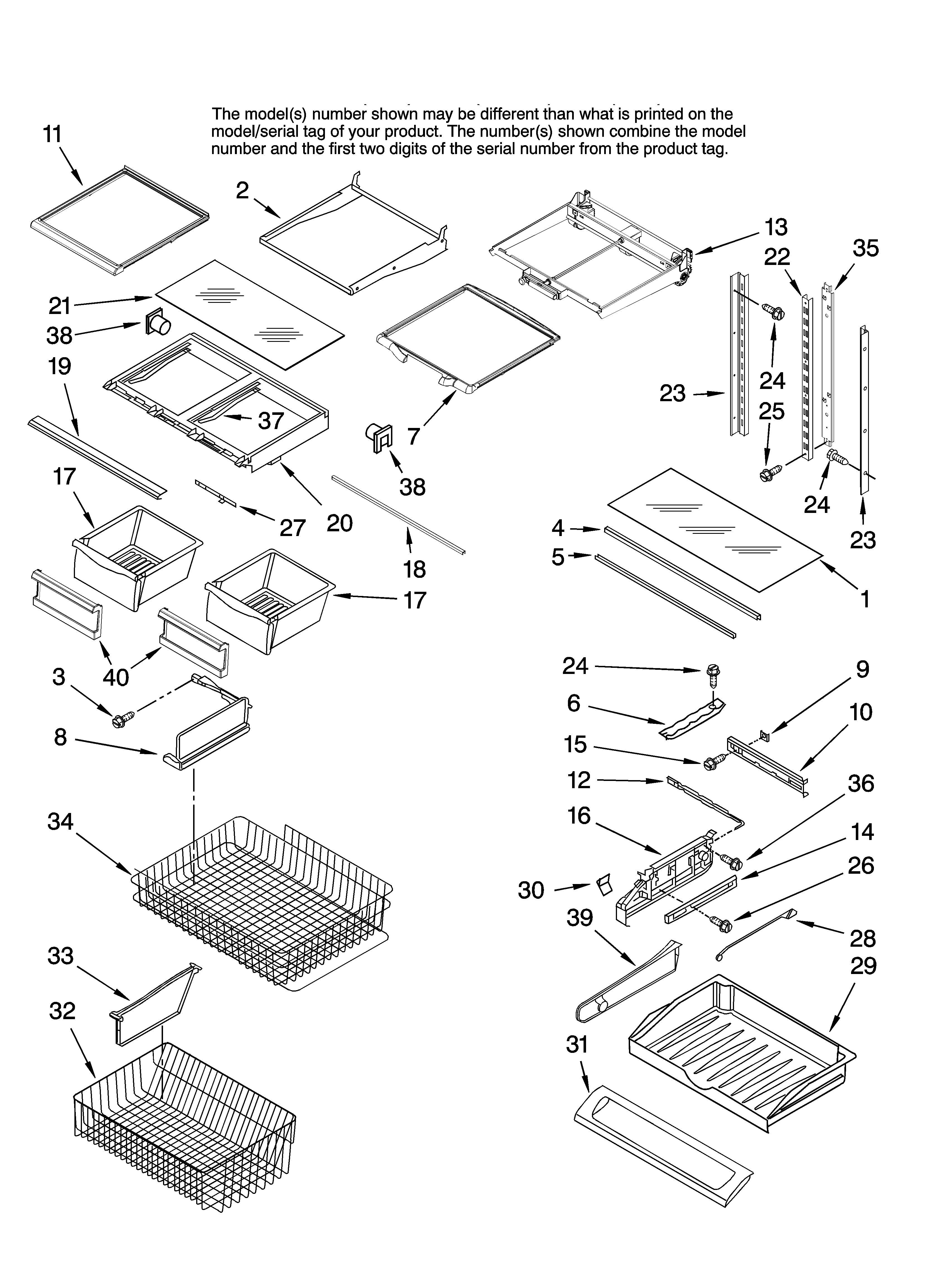

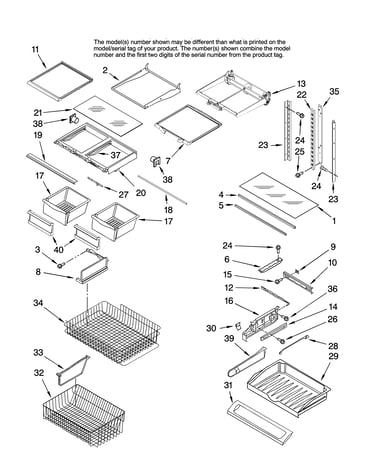

Shelf parts diagram

Refrigerator pantry drawer end cap

Part #67005858

Replaced by #W10874836

?
Manufacturer substitution
This part replaces 67005858. Substitute parts can look different from the original.
BEST SELLER
$42.87 |
12% OFF Phone Price : $48.87
In Stock
Refrigerator Pantry Drawer End Cap 67005863
#16

Shelf parts diagram

Refrigerator pantry drawer end cap

Part #67005863

Replaced by #W10874836

?
Manufacturer substitution
This part replaces 67005863. Substitute parts can look different from the original.
BEST SELLER
$42.87 |
12% OFF Phone Price : $48.87
In Stock
Refrigerator Compressor 12002634
#6

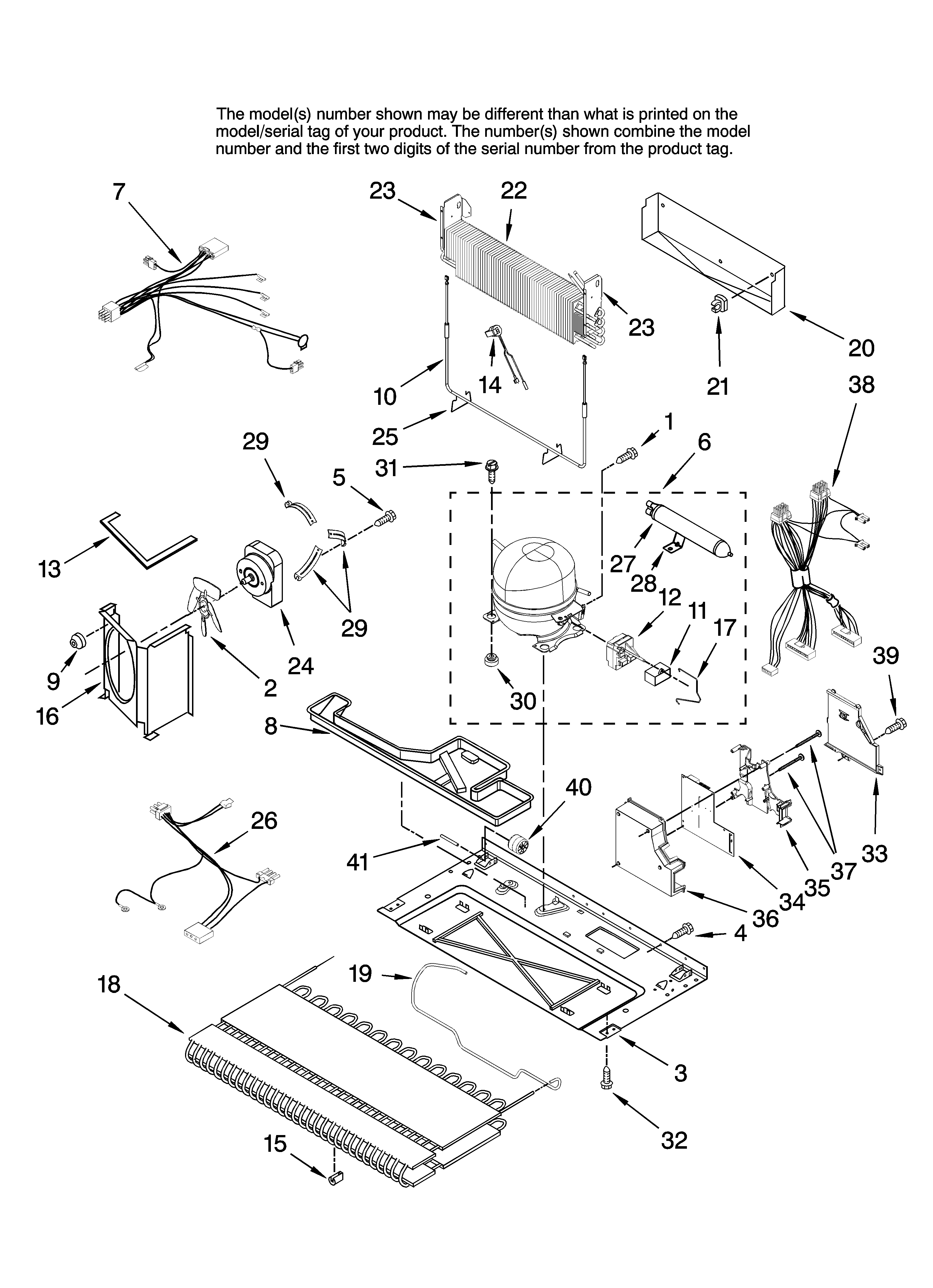

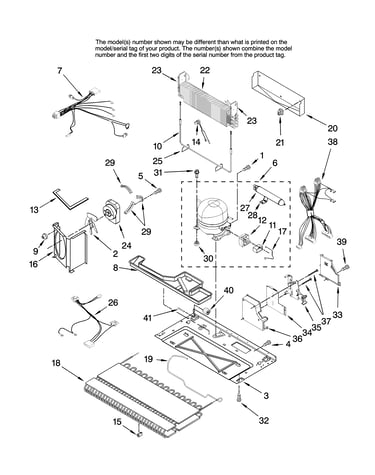

Unit parts diagram

Refrigerator compressor

Part #12002634

Replaced by #W10309989

?
Manufacturer substitution
This part replaces 12002634. Substitute parts can look different from the original.
BEST SELLER
$502.83 |
$12.00 OFF Phone Price : $514.83
In Stock
Capacitor W/ 67005562
#11

Unit parts diagram

Capacitor w/

Part #67005562

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 67005562. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock
Refrigerator Temperature Sensor (replaces 12002356, 12791403, 12791403sp, 12791404, 12791404sp, 12791405, 12791405sp, 12791406, 12791406sp, 12791407, 12791407sp, 67003871, 67004034, 8208196, 8208278, Y67003872) 12002355
Refrigerator temperature sensor (replaces 12002356, 12791403, 12791403sp, 12791404, 12791404sp, 12791405, 12791405sp, 12791406, 12791406sp, 12791407, 12791407sp, 67003871, 67004034, 8208196, 8208278, y67003872)

Part #12002355

BEST SELLER
$33.33 |
15% OFF Phone Price : $39.33
In Stock
Refrigerator Dispenser Electronic Control Board 67005397
#5

Refrigerator liner parts diagram

Refrigerator dispenser electronic control board

Part #67005397

Replaced by #WPW10207861

?
Manufacturer substitution
This part replaces 67005397. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$225.65 |
5% OFF Phone Price : $237.65
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Icemaker parts, optional parts (not included) diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Refrigerator Mounting Screw 67002935
Refrigerator mounting screw

Part #67002935

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 67002935. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
