Model # 11319352 Official Craftsman 1/2-hp split-phase electric motor

Here are the diagrams and repair parts for Official Craftsman 11319352 1/2-hp split-phase electric motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 29 parts |

#12

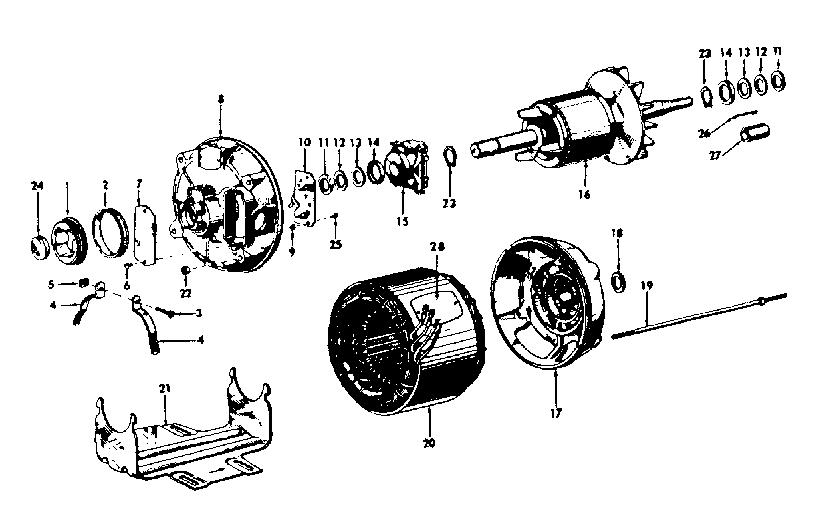

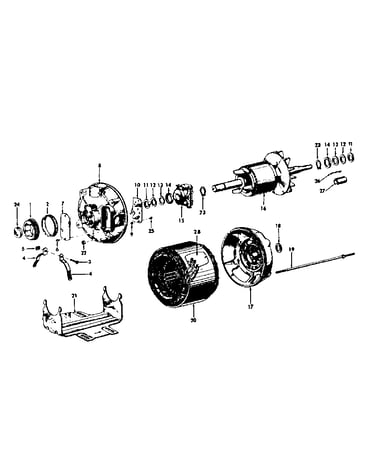

Unit diagram

Kenmore power tool washer

Part #30767

The manufacturer no longer makes this part, and there's no substitute part

#23

Unit diagram

Retaining ring

Part #30783

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Parts list

Part #37151

The manufacturer no longer makes this part, and there's no substitute part

#20

Unit diagram

Stator assembly

Part #37149

The manufacturer no longer makes this part, and there's no substitute part

#25

Unit diagram

Screw

Part #S-1330

The manufacturer no longer makes this part, and there's no substitute part

Unit diagram

Term cover

Part #37096

The manufacturer no longer makes this part, and there's no substitute part

Unit diagram

Nut

Part #S-1229

The manufacturer no longer makes this part, and there's no substitute part

#21

Unit diagram

Base brown

Part #37150

The manufacturer no longer makes this part, and there's no substitute part

#28

Unit diagram

Label

Part #37102

The manufacturer no longer makes this part, and there's no substitute part

#18

Unit diagram

Washer

Part #30779

The manufacturer no longer makes this part, and there's no substitute part
