Model # KX-F550 Official Panasonic fax machine

Here are the diagrams and repair parts for Official Panasonic KX-F550 fax machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

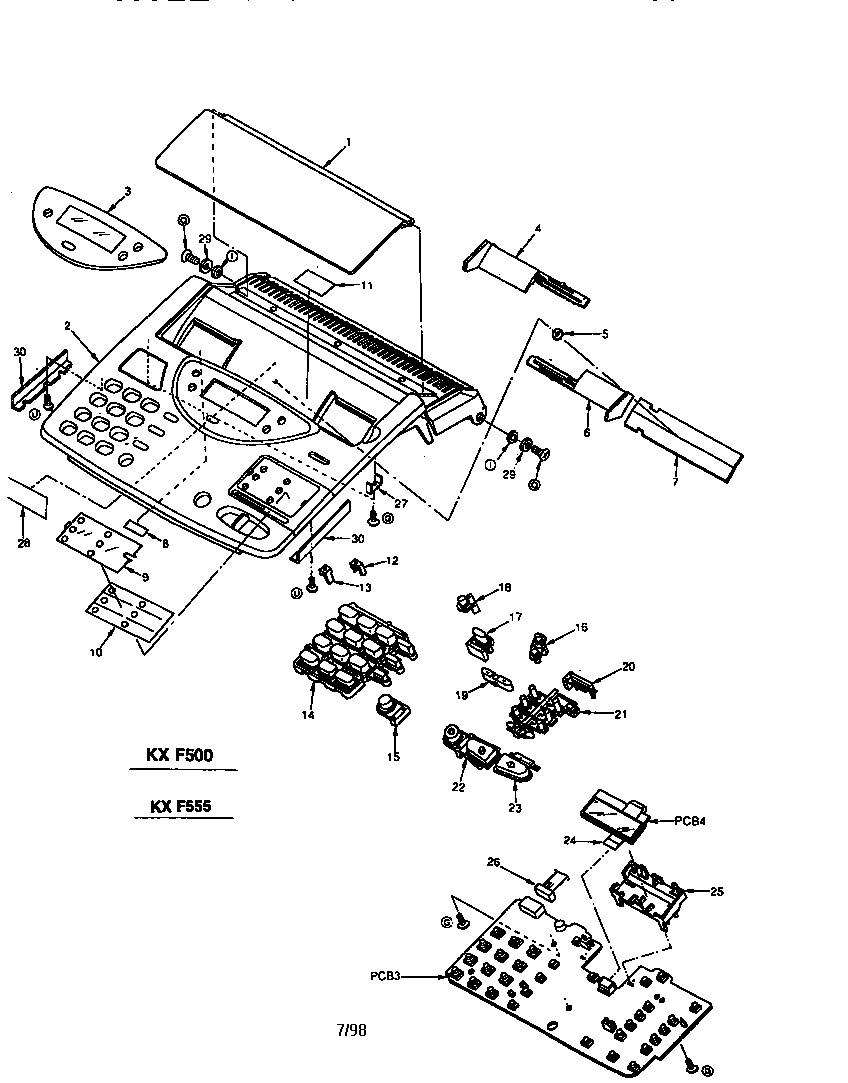

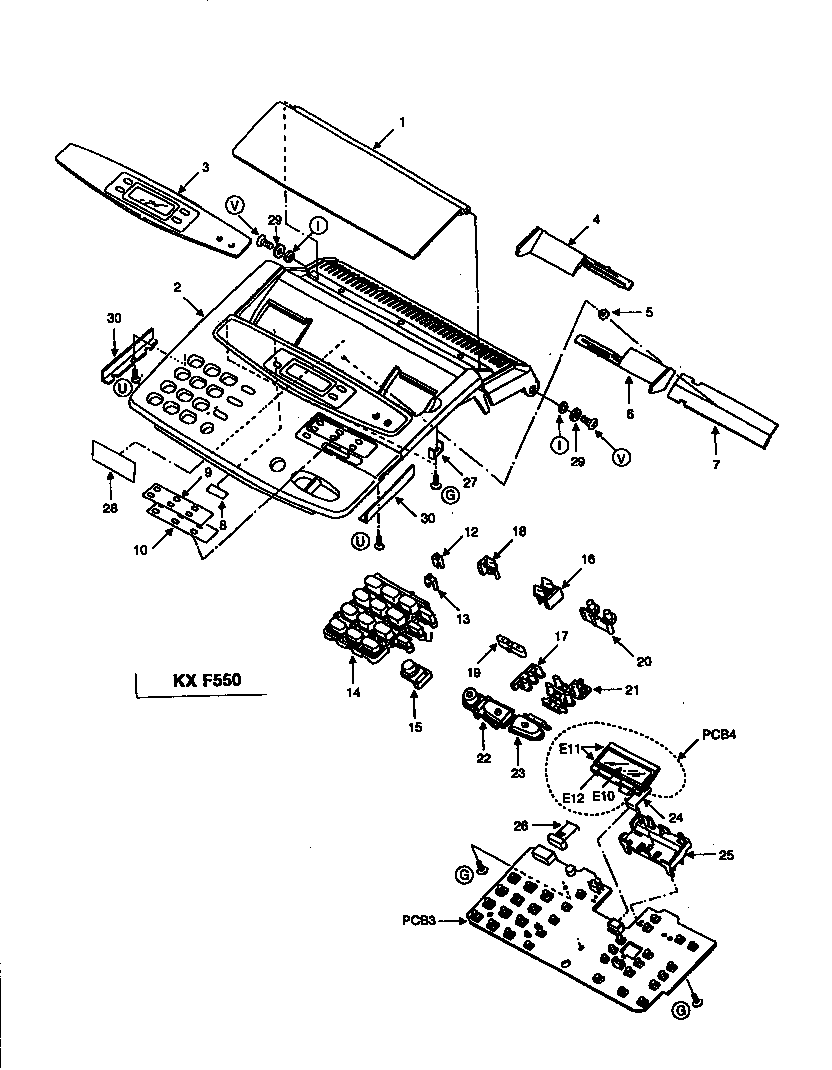

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 191 parts  |
Panasonic Gear PQDG10029Z
#141

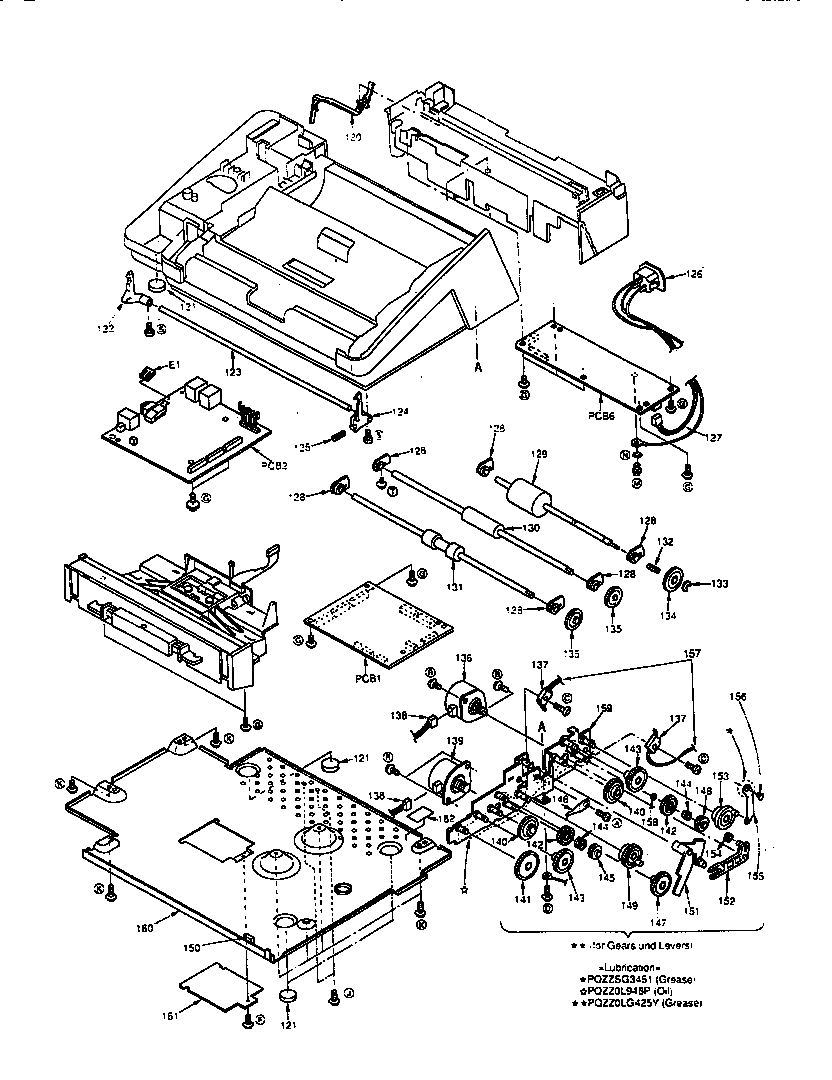

Lower body section (all models) diagram

Panasonic gear

Part #PQDG10029Z

This item is not returnable
$2.49
In Stock
Panasonic Mirror PQ0M10010Z
#189

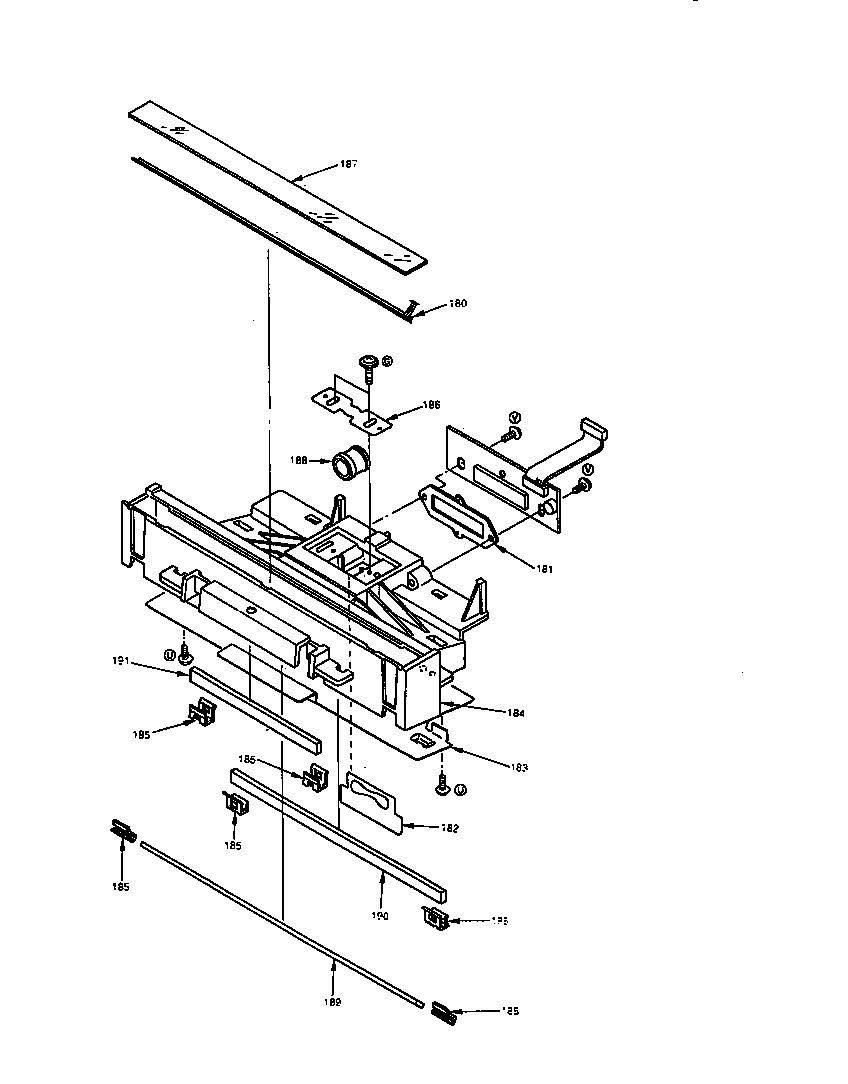

Ccd unit section (all models) diagram

Panasonic mirror

Part #PQ0M10010Z

$15.99
In Stock
Panasonic Lever PQDE10030Z
#120

Lower body section (all models) diagram

Panasonic lever

Part #PQDE10030Z

This item is not returnable
$3.99
In Stock
Panasonic Knob PQBD10033W2
#99B

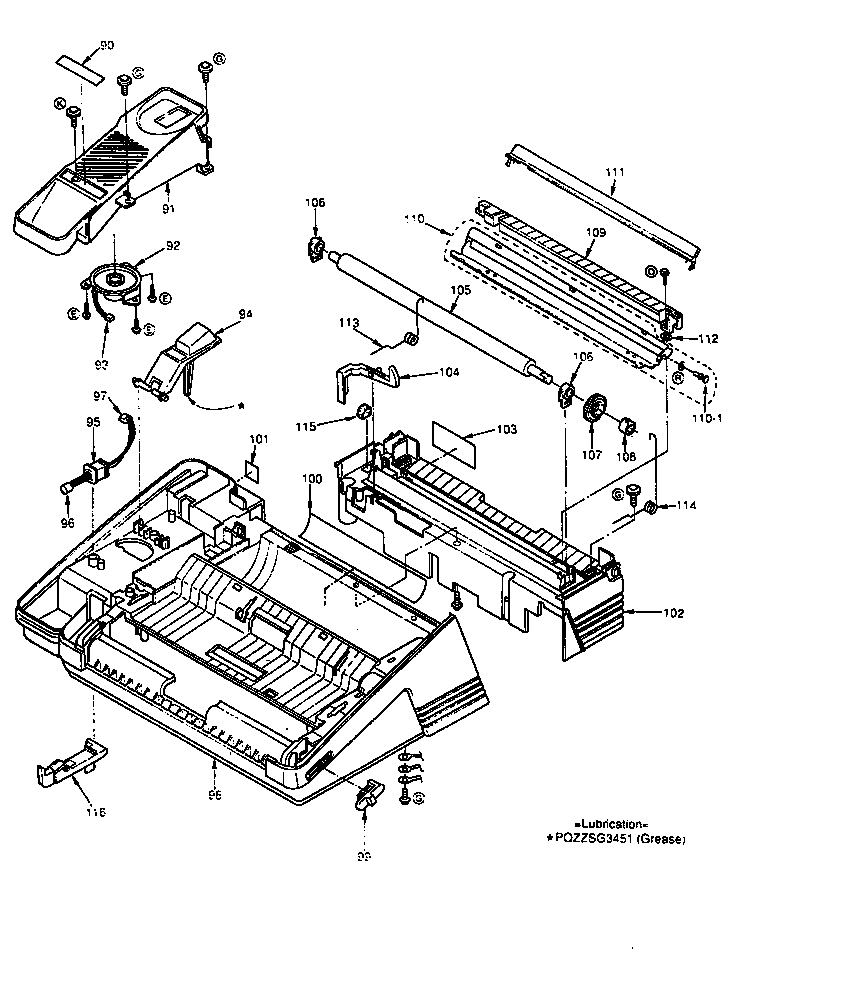

Upper body section (all models) diagram

Panasonic knob

Part #PQBD10033W2

This item is not returnable
$3.99
In Stock
Panasonic Knob PQBD10033Y2
#99

Upper body section (all models) diagram

Panasonic knob

Part #PQBD10033Y2

This item is not returnable
$2.49
In Stock
Panasonic Guide PQHR10311Z
#66

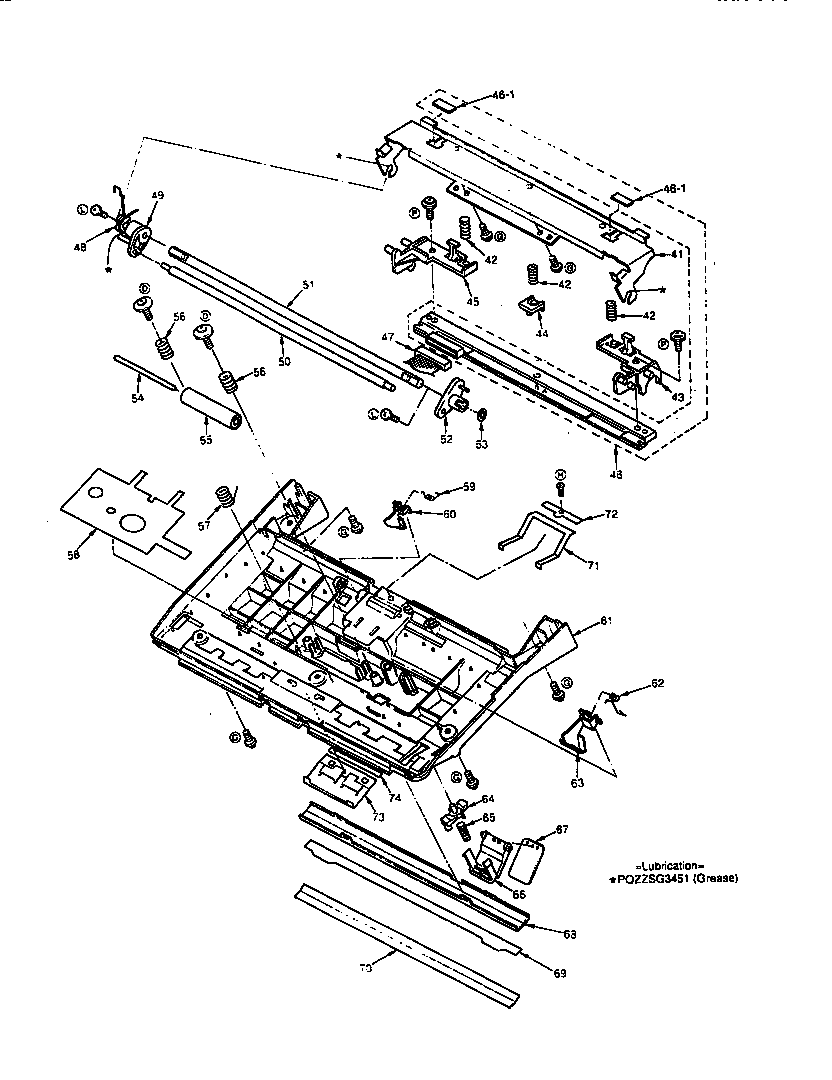

Thermal head section (all models) diagram

Panasonic guide

Part #PQHR10311Z

This item is not returnable
$2.49
In Stock
Panasonic Spring-a PQUS216Z
#185

Ccd unit section (all models) diagram

Panasonic spring-a

Part #PQUS216Z

This item is not returnable
$2.49
In Stock
Panasonic Spring-r PQUS10130Y
#114B

Upper body section (all models) diagram

Panasonic spring-r

Part #PQUS10130Y

This item is not returnable
$2.49
In Stock
Panasonic Spring PQUS10133Z
#144

Lower body section (all models) diagram

Panasonic spring

Part #PQUS10133Z

This item is not returnable
$5.99
In Stock
Panasonic Spring PQUS10123X
#71A

Thermal head section (all models) diagram

Panasonic spring

Part #PQUS10123X

This item is not returnable
$3.99
In Stock
