Gas Wall Oven

Model # RXS212 Official Caloric gas built-in oven

Here are the diagrams and repair parts for Official Caloric RXS212 gas built-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

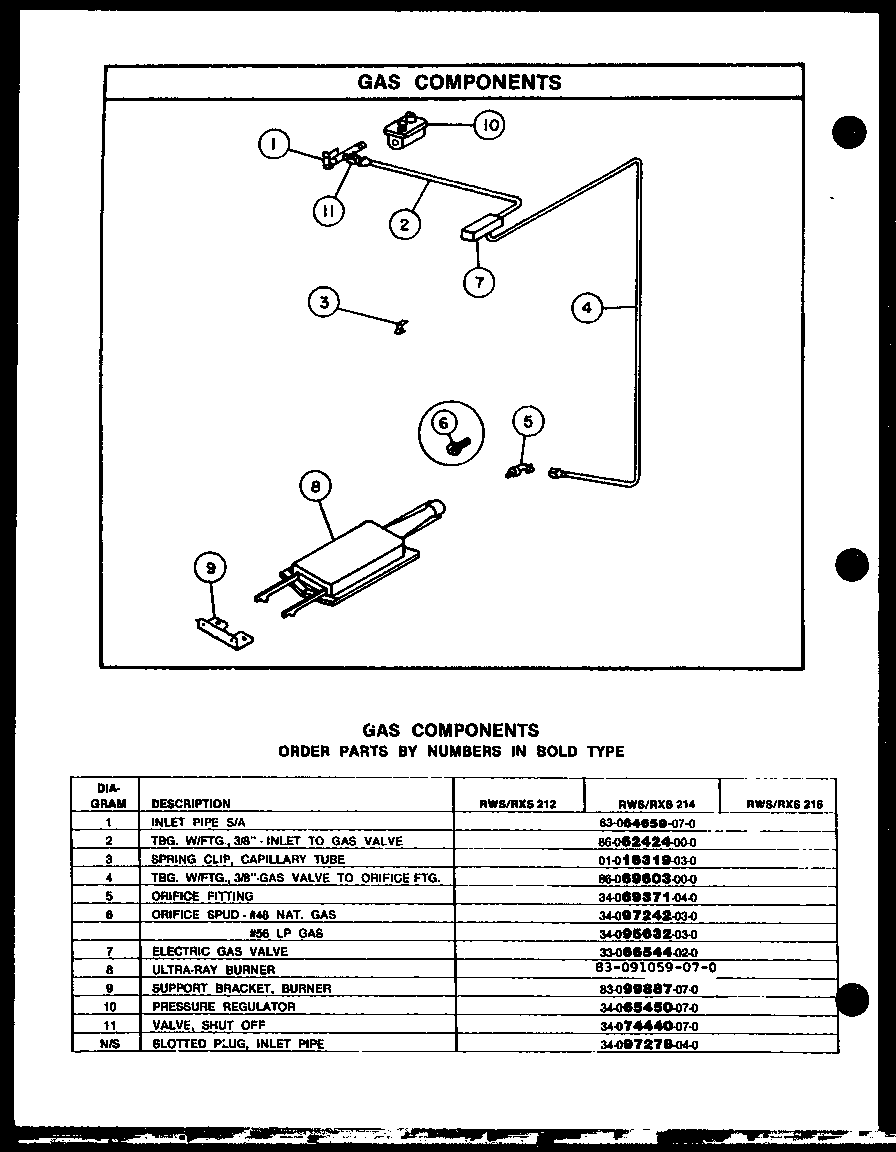

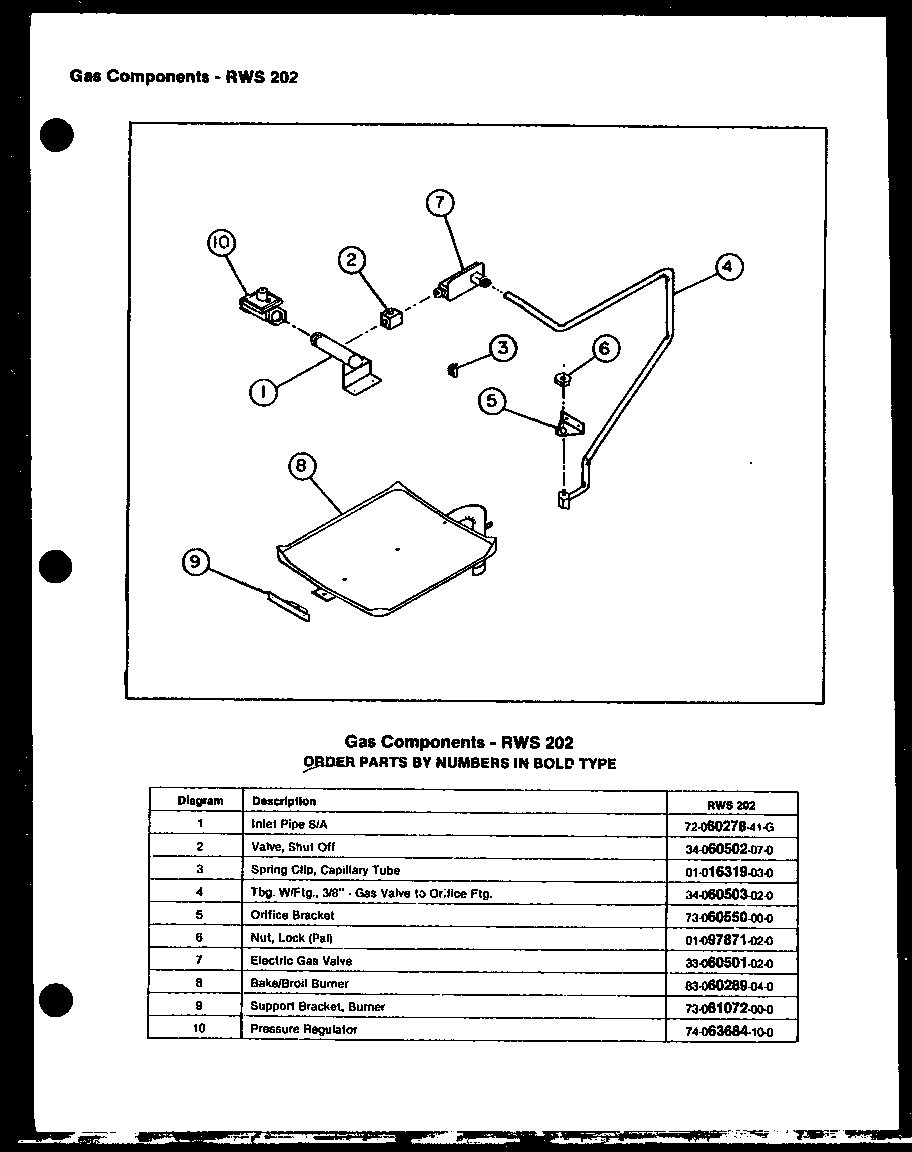

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |
Oven Door Panel, W/window, Harvest 58-077318-42-H
#15B

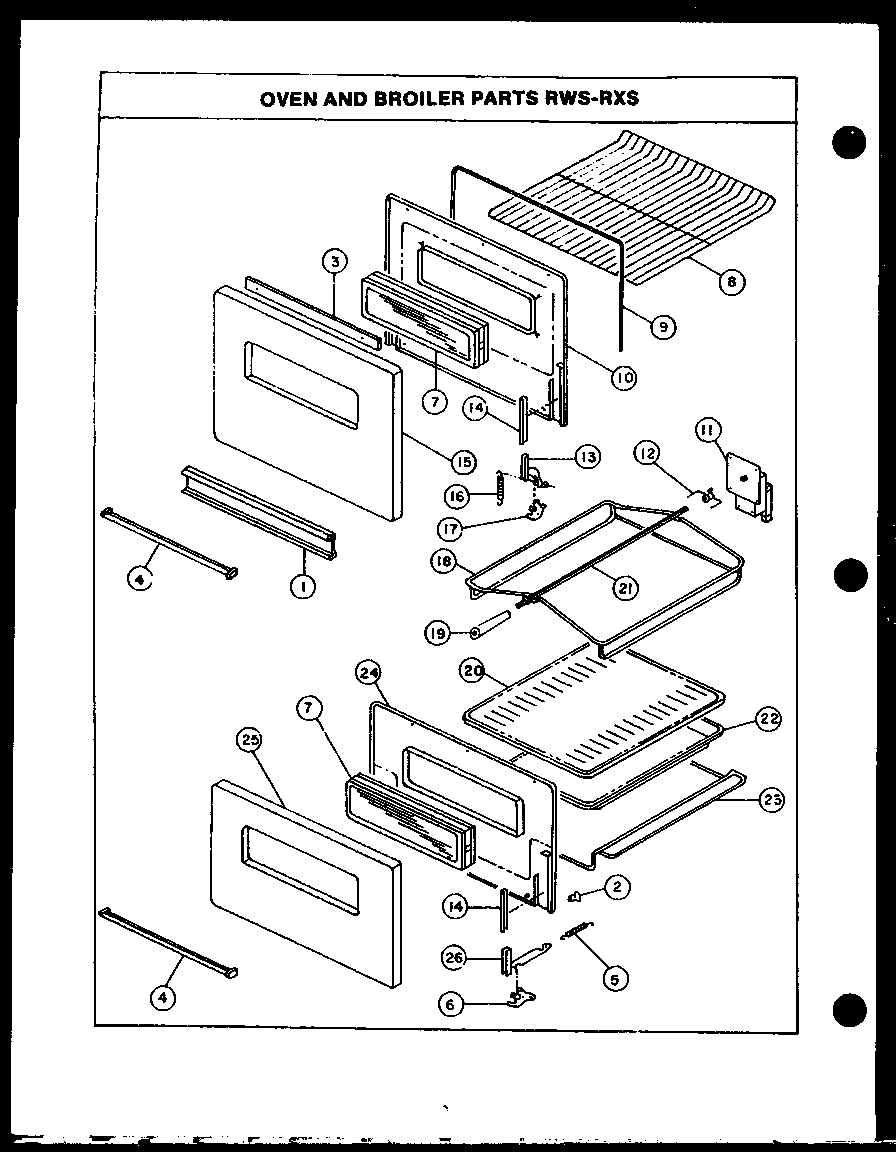

Oven and broiler parts rws-rxs diagram

Oven door panel, w/window, harvest

Part #58-077318-42-H

The manufacturer no longer makes this part, and there's no substitute part

Screw, Door Assembly 01-079358-01-0
#10

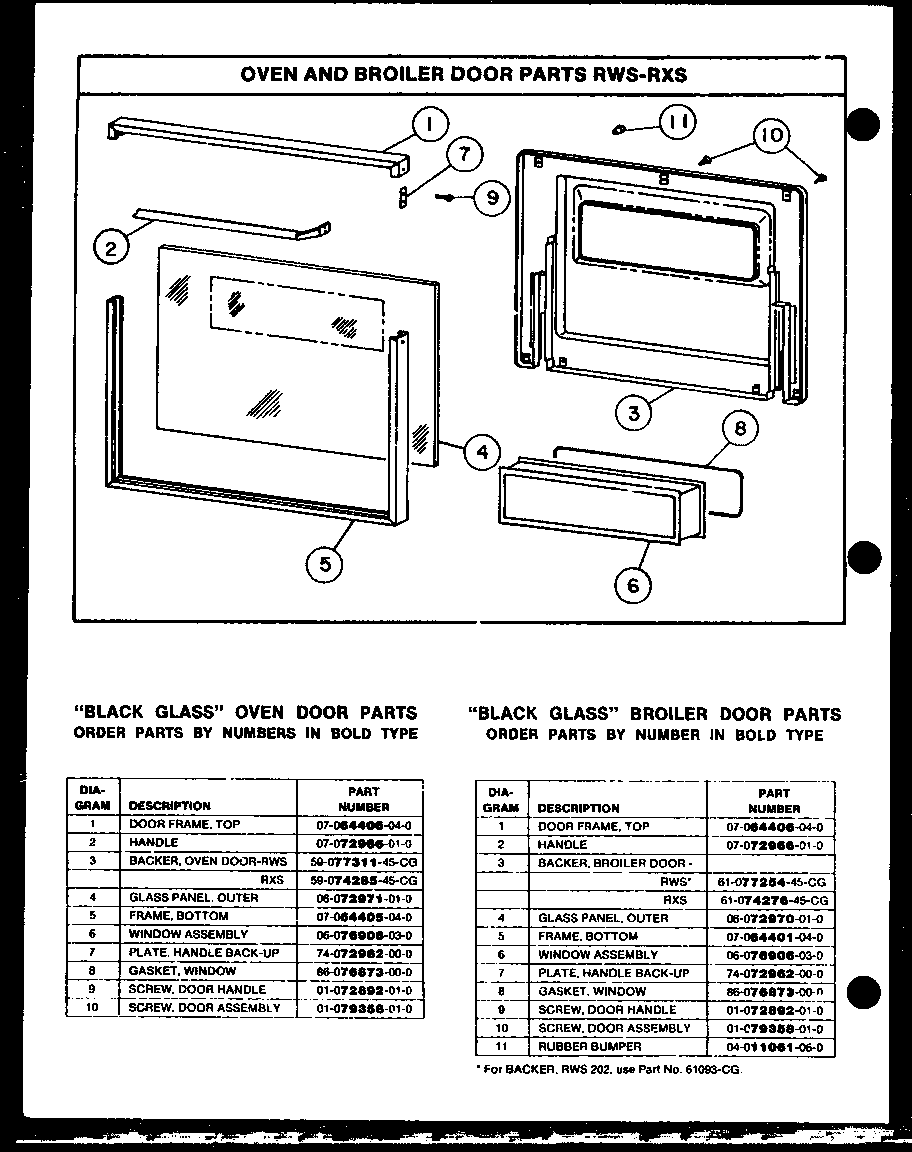

Oven and broiler door parts rws-rxs diagram

Screw, door assembly

Part #01-079358-01-0

The manufacturer no longer makes this part, and there's no substitute part

Brkt.-heat Control 73-057446-00-0

#NI

All parts diagram

Brkt.-heat control

Part #73-057446-00-0

The manufacturer no longer makes this part, and there's no substitute part

Panel, Control Mounting 73-069718-41-G
#11A

Control panel parts diagram

Panel, control mounting

Part #73-069718-41-G

The manufacturer no longer makes this part, and there's no substitute part

Front Cross Channel 75-095787-00-0
#10

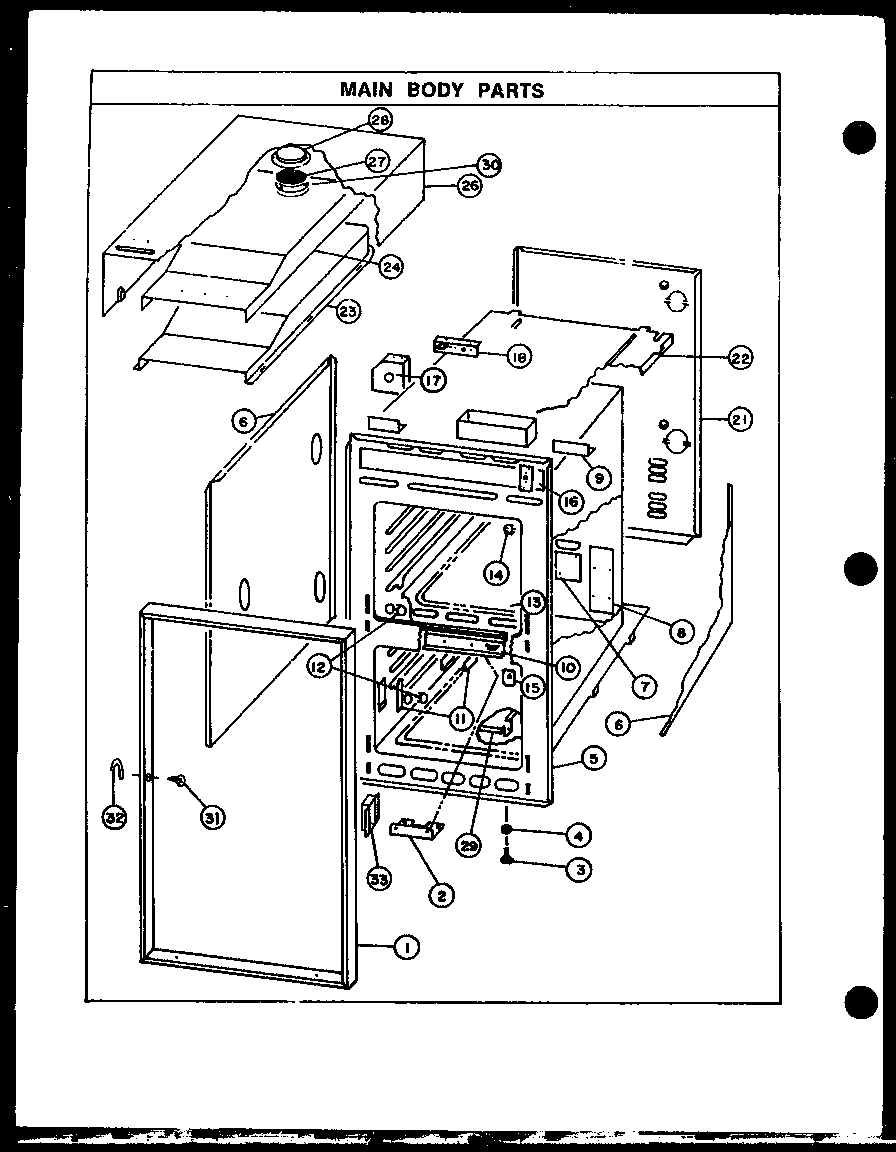

Cabinet parts diagram

Front cross channel

Part #75-095787-00-0

The manufacturer no longer makes this part, and there's no substitute part

Meat Probe Receptacle 83-079498-07-0
#10

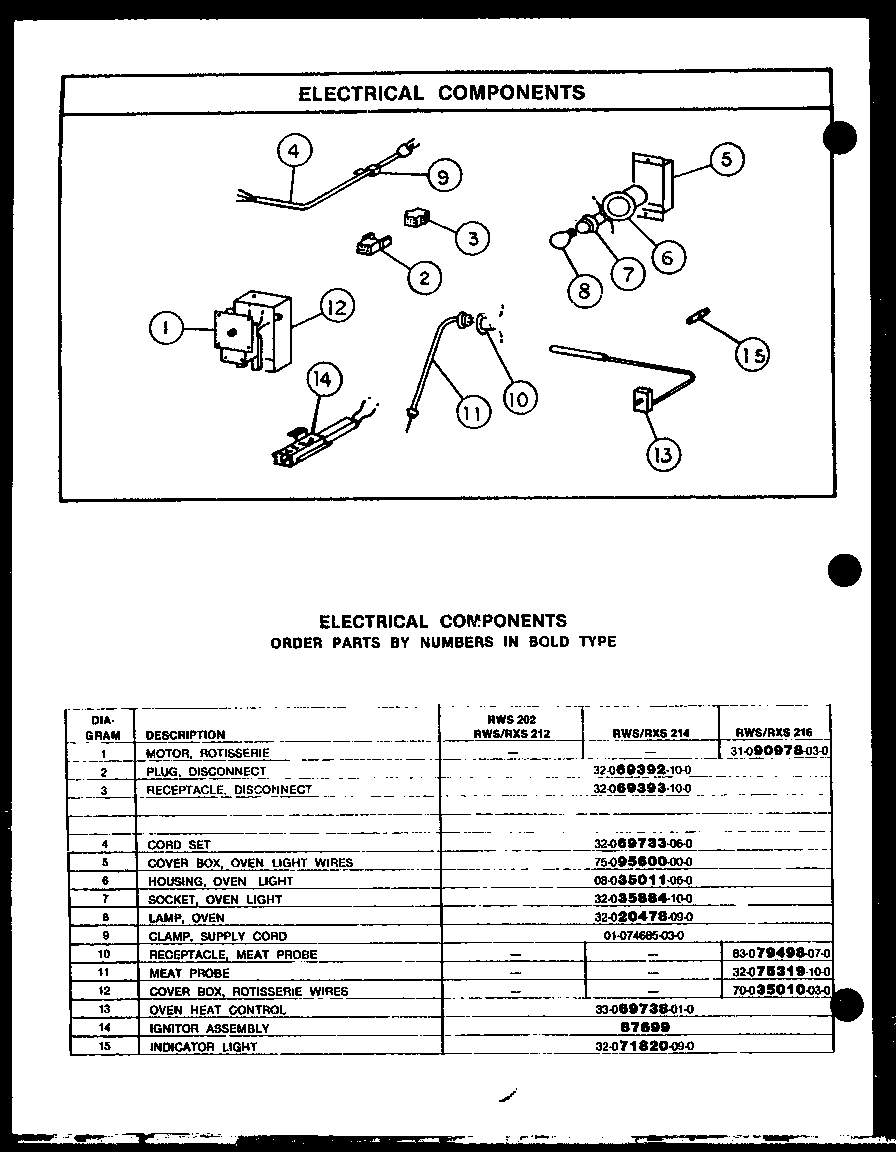

Electrical components diagram

Meat probe receptacle

Part #83-079498-07-0

The manufacturer no longer makes this part, and there's no substitute part

Side Panel 65-095916-00-0
#6

Cabinet parts diagram

Side panel

Part #65-095916-00-0

The manufacturer no longer makes this part, and there's no substitute part

Glass Panel, Outer 06-072971-01-0
#4

Oven and broiler door parts rws-rxs diagram

Glass panel, outer

Part #06-072971-01-0

The manufacturer no longer makes this part, and there's no substitute part

Backer, Oven Door, W/window 61-074285-45-CG
#10C

Oven and broiler parts rws-rxs diagram

Backer, oven door, w/window

Part #61-074285-45-CG

The manufacturer no longer makes this part, and there's no substitute part

Oven Broiler Rack 08-077260-01-0
#23

Oven and broiler parts rws-rxs diagram

Oven broiler rack

Part #08-077260-01-0

The manufacturer no longer makes this part, and there's no substitute part
