Jenn-Air
Dryer

Model # JDE1000W Official Jenn-Air laundry

Here are the diagrams and repair parts for Official Jenn-Air JDE1000W laundry, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

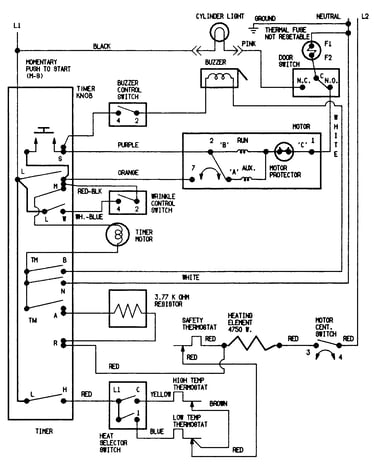

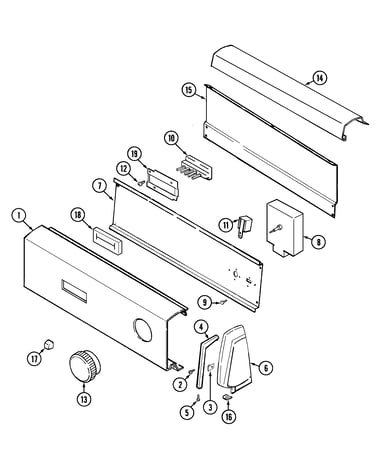

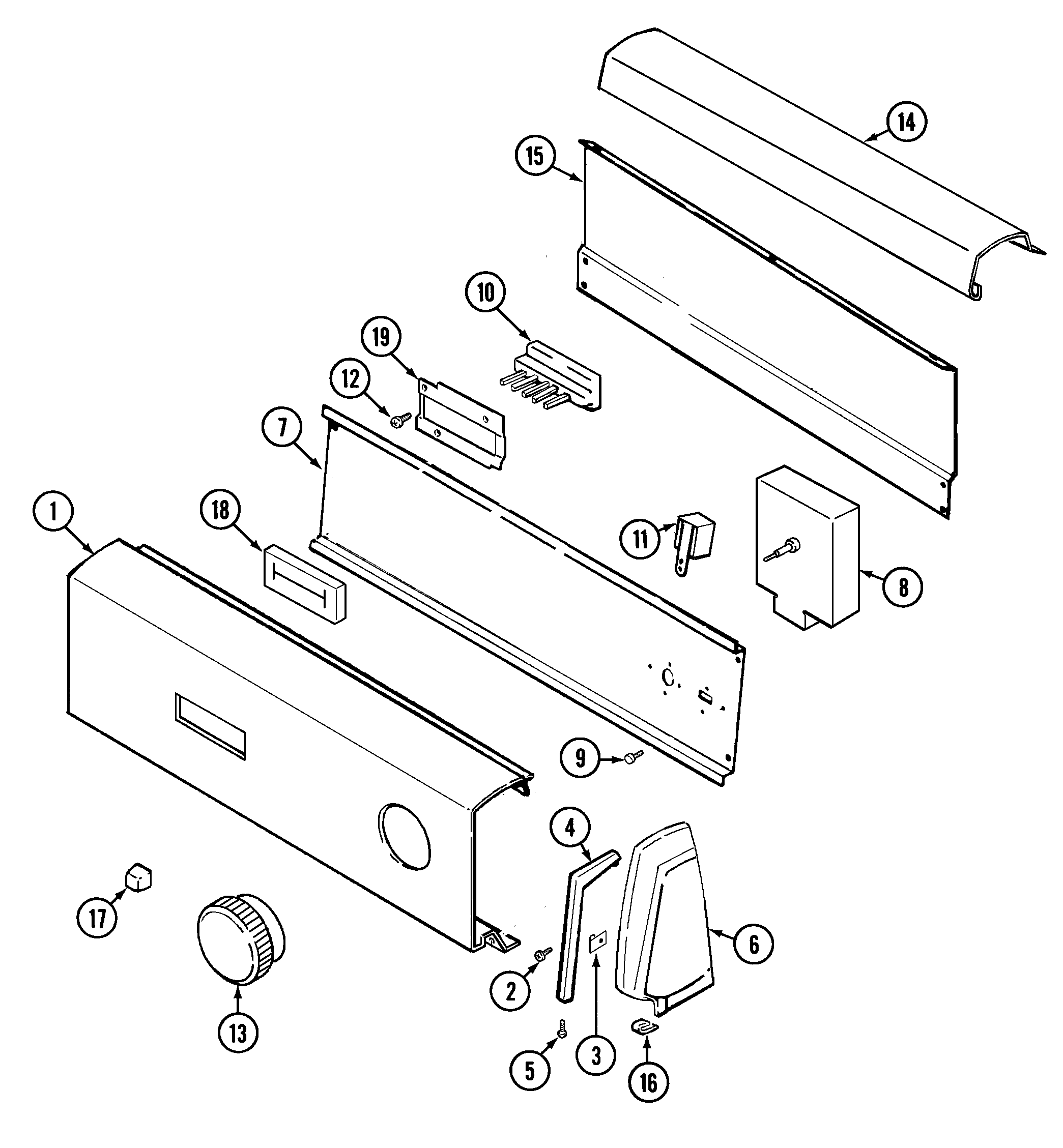

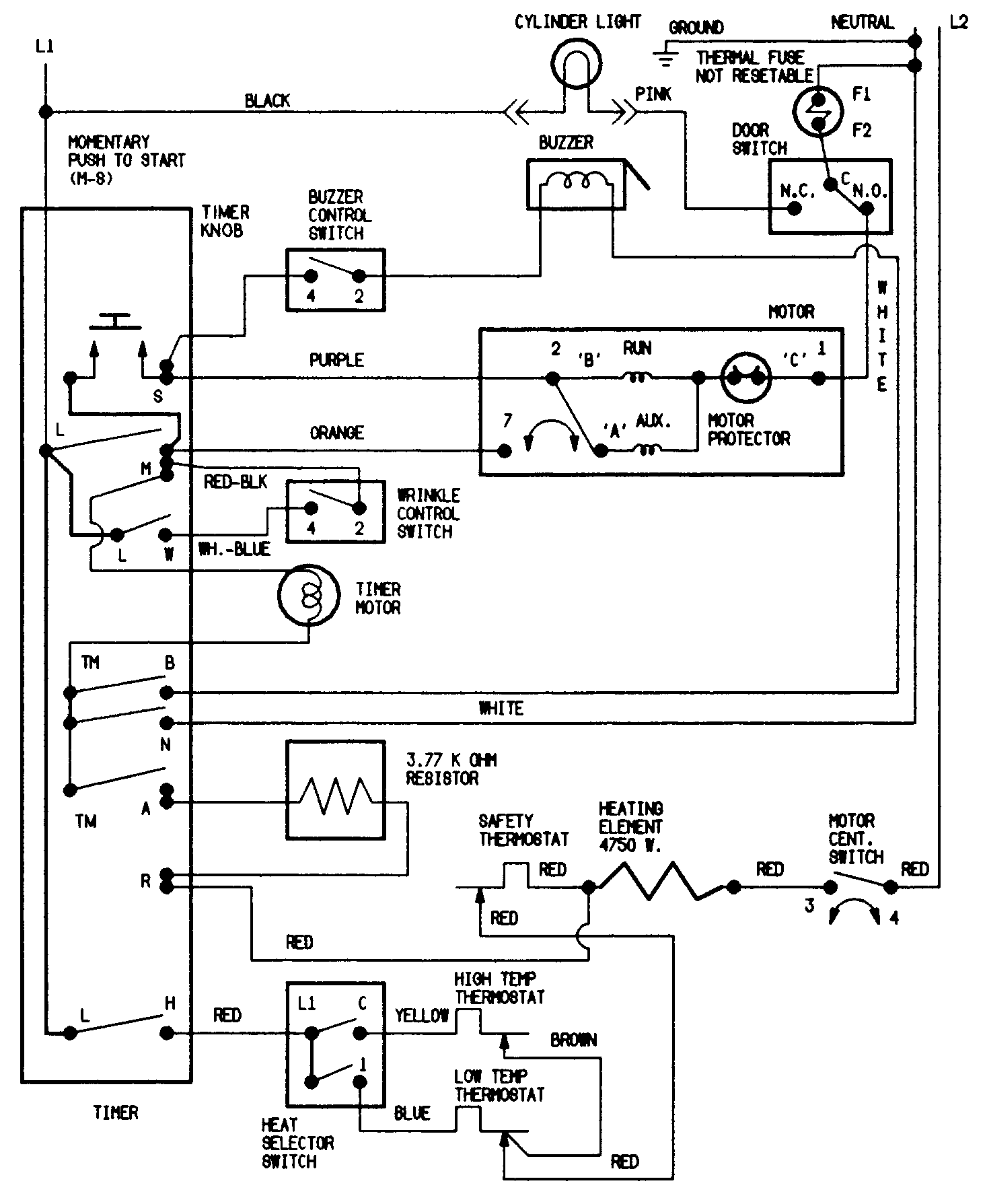

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
Dryer Drum Belt 31531589
#5

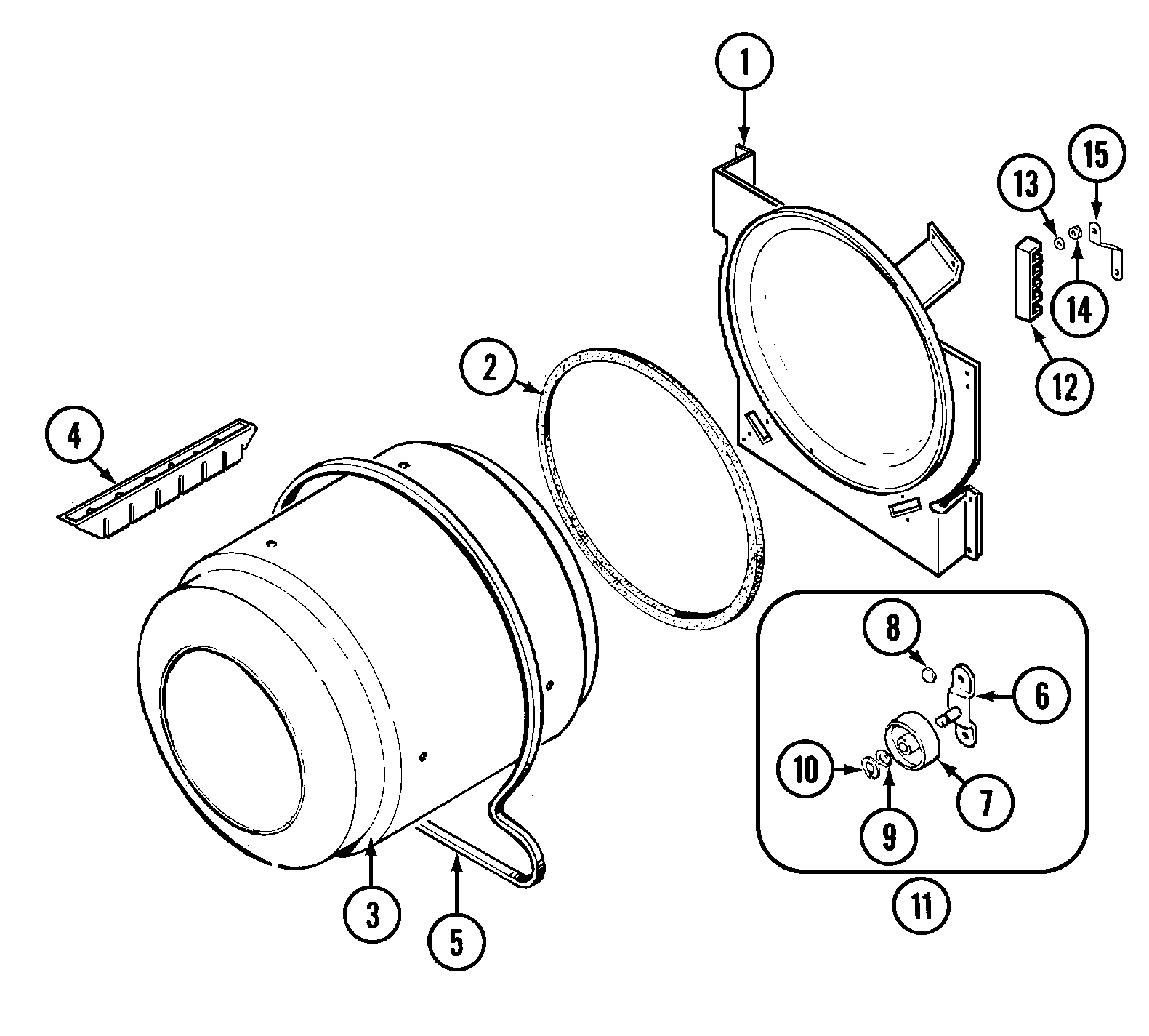

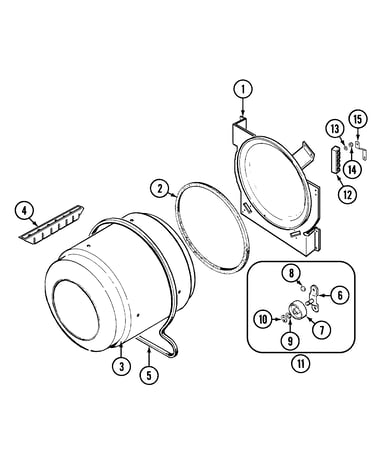

Tumbler diagram

Dryer drum belt

Part #31531589

Replaced by #341241

?
Manufacturer substitution
This part replaces 31531589. Substitute parts can look different from the original.
BEST SELLER
$12.18 |
14% OFF Phone Price : $14.18
In Stock
Clamp 25-7823
#11

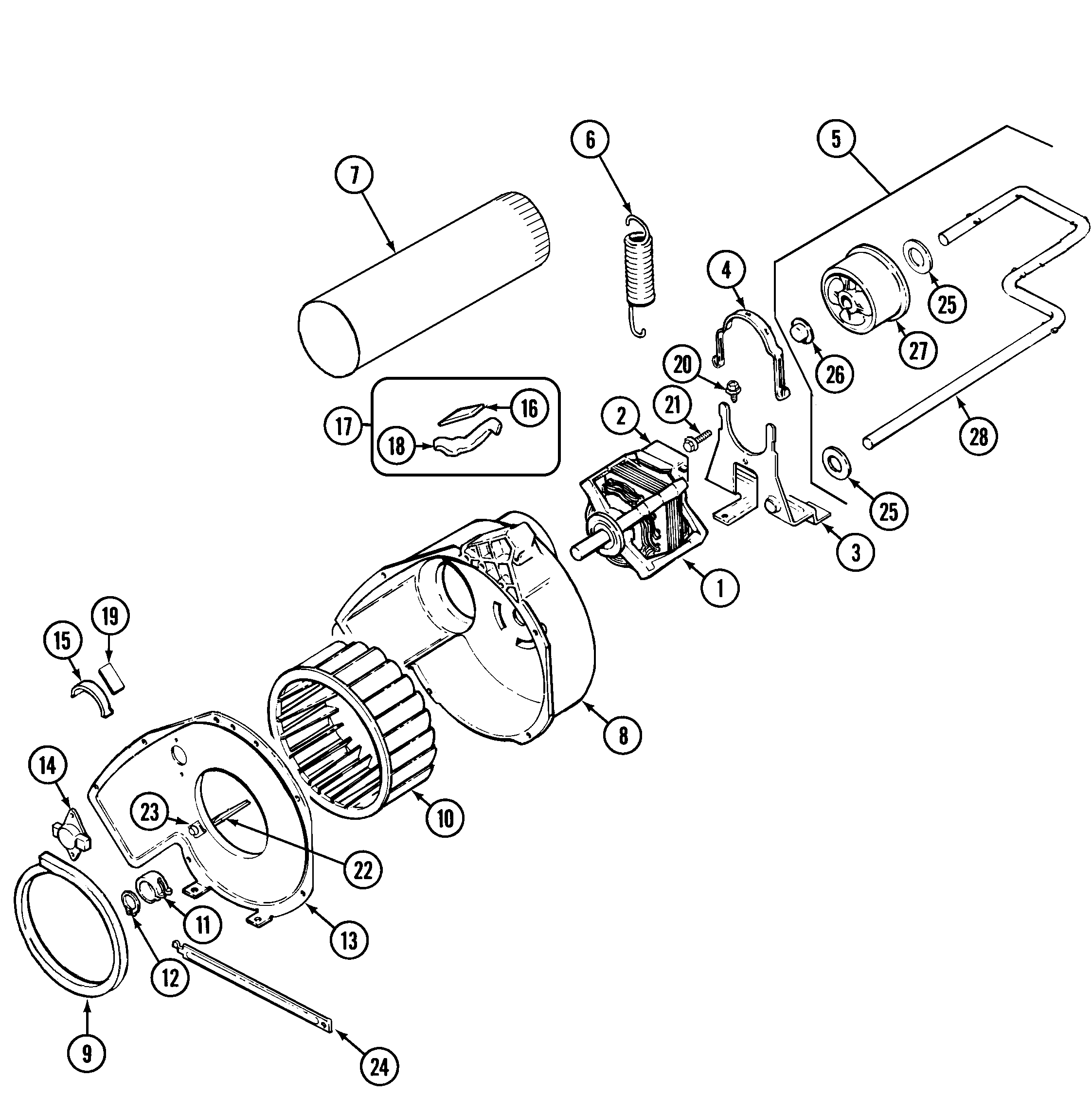

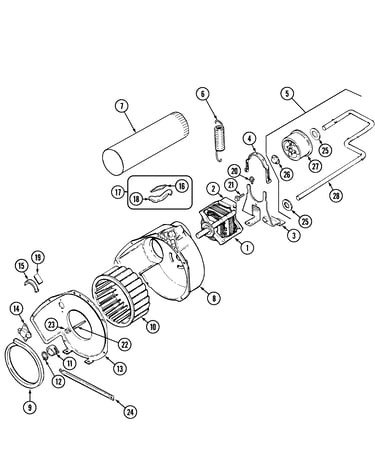

Motor & drive diagram

Clamp

Part #25-7823

Replaced by #WP312967

?
Manufacturer substitution
This part replaces 25-7823. Substitute parts can look different from the original.
BEST SELLER
$8.39 |
11% OFF Phone Price : $9.39
In Stock
Dryer Blower Wheel 31001317
#10A

Motor & drive diagram

Dryer blower wheel

Part #31001317

Replaced by #W11497304

?
Manufacturer substitution
This part replaces 31001317. Substitute parts can look different from the original.
BEST SELLER
$46.03 |
12% OFF Phone Price : $52.03
In Stock
Motor With Pulley 31001015
#1

Motor & drive diagram

Motor with pulley

Part #31001015

Replaced by #W10410996

?
Manufacturer substitution
This part replaces 31001015. Substitute parts can look different from the original.
BEST SELLER
$206.04 |
6% OFF Phone Price : $218.04
In Stock
Motor 31001316
#1A

Motor & drive diagram

Motor

Part #31001316

Replaced by #W10410996

?
Manufacturer substitution
This part replaces 31001316. Substitute parts can look different from the original.
BEST SELLER
$206.04 |
6% OFF Phone Price : $218.04
In Stock
Screw, Suppo 25-7828
#9A

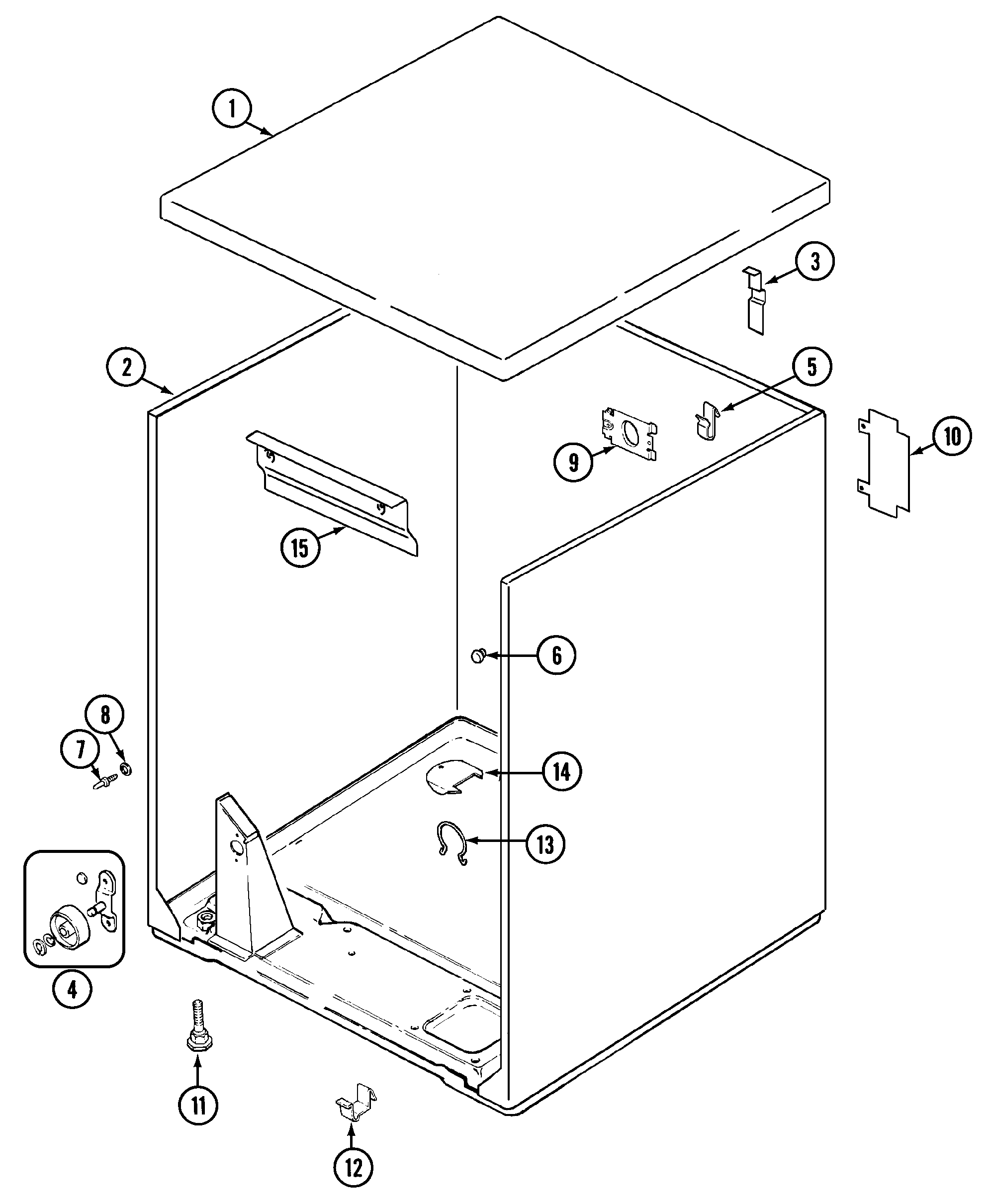

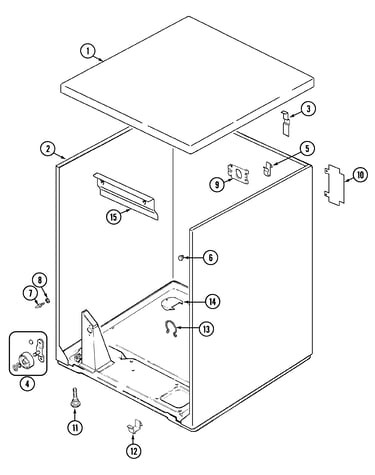

Cabinet diagram

Screw, suppo

Part #25-7828

Replaced by #WP489483

?
Manufacturer substitution
This part replaces 25-7828. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Motor Clamp 53-0214
#4

Motor & drive diagram

Motor clamp

Part #53-0214

Replaced by #WP660658

?
Manufacturer substitution
This part replaces 53-0214. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw 25-7820
#2A

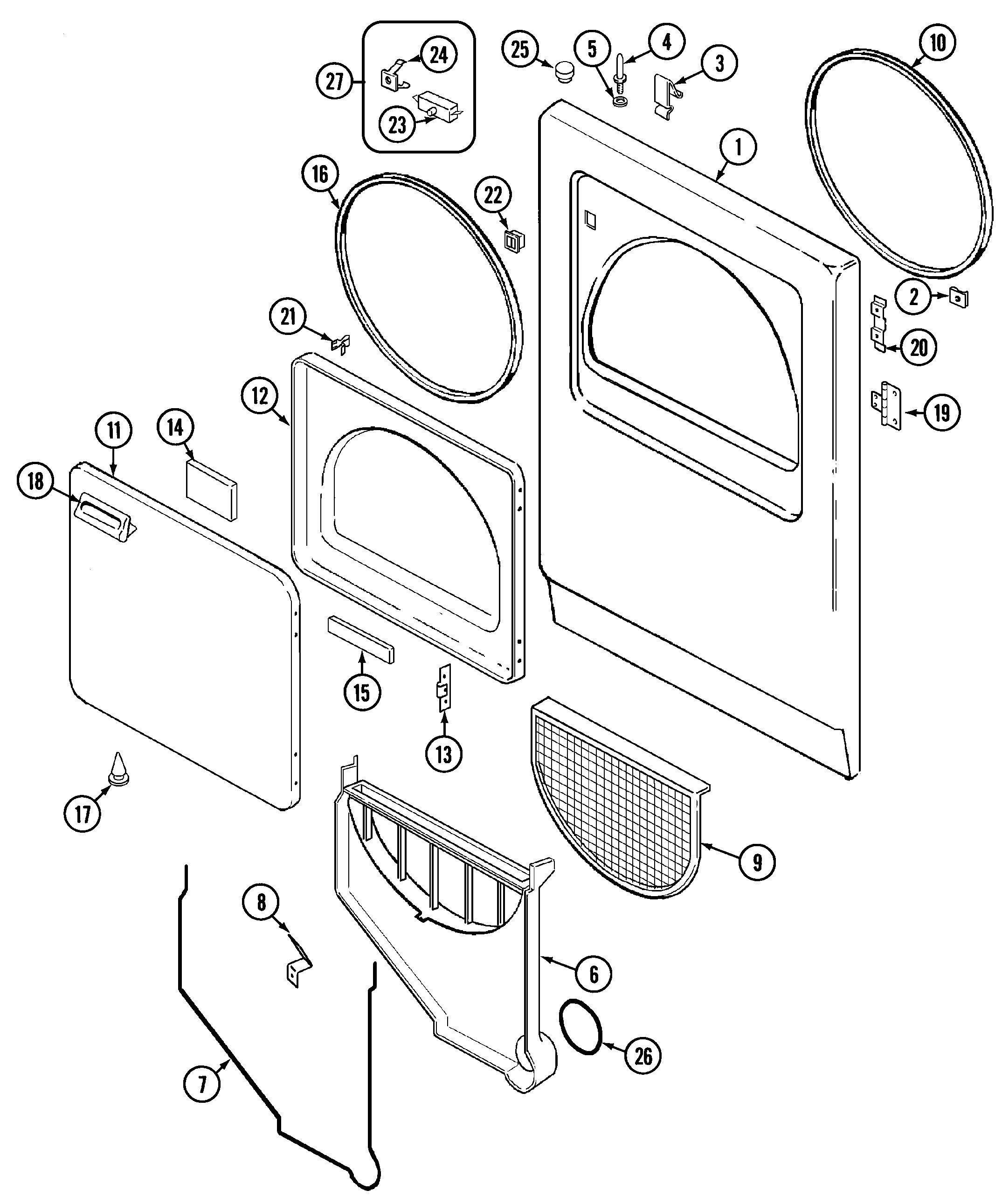

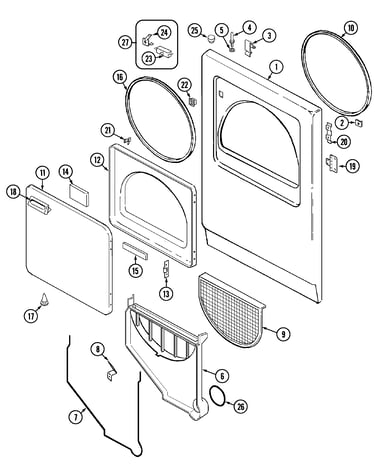

Door diagram

Screw

Part #25-7820

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 25-7820. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Locator Nut 25-0224
Locator nut

Part #25-0224

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 25-0224. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Dryer High-limit Thermostat 53-0771
#3

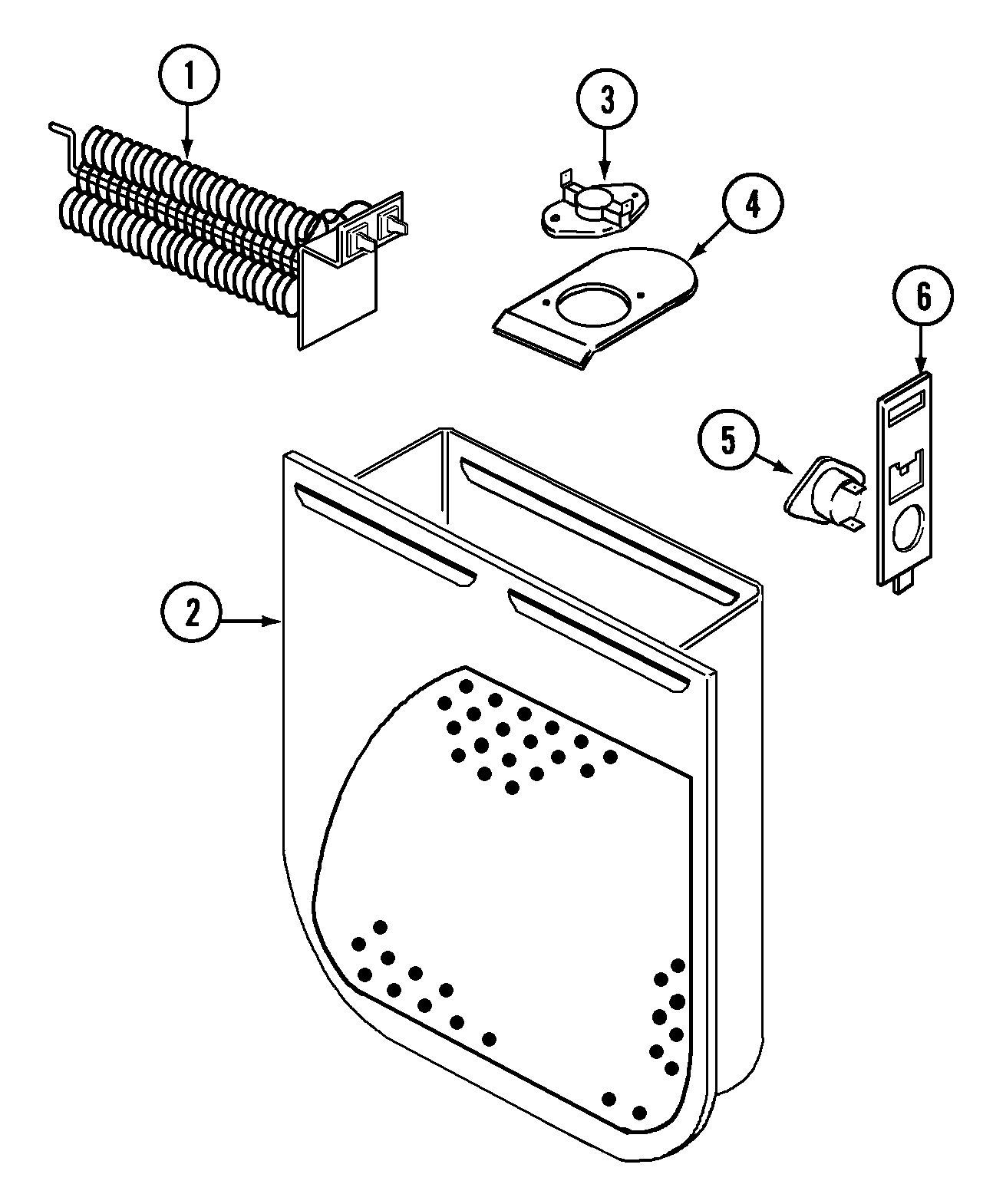

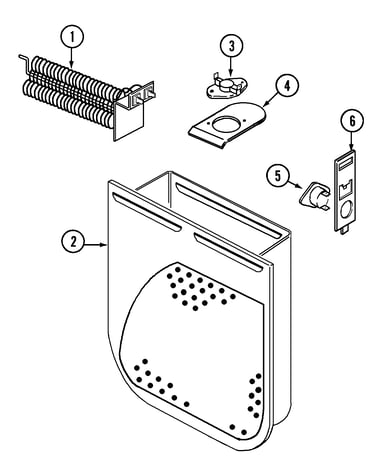

Heater diagram

Dryer high-limit thermostat

Part #53-0771

Replaced by #WP53-0771

?
Manufacturer substitution
This part replaces 53-0771. Substitute parts can look different from the original.
$56.89 |
10% OFF Phone Price : $62.89
In Stock
