Model # ZMC1095WB001 Official GE microwave
Here are the diagrams and repair parts for Official GE ZMC1095WB001 microwave, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
ZMC1095WB001 Microwaves
#21

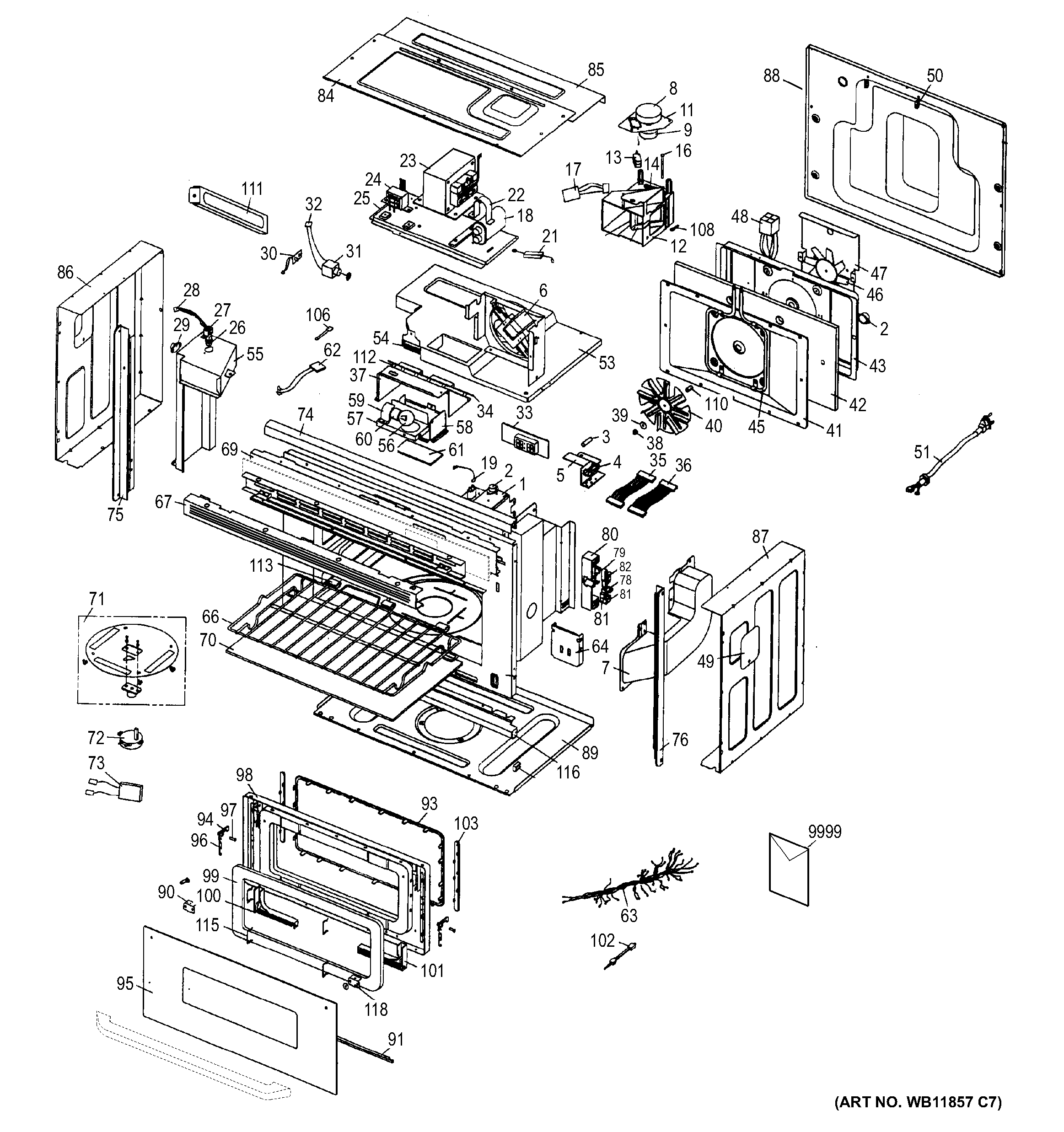

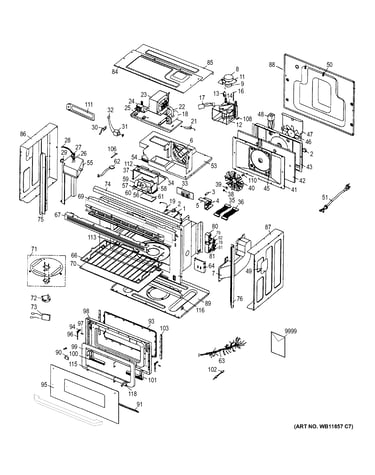

Microwave diagram
High-voltage diode
Part #WB27X10169
Replaced by #WB27X10597
?
Manufacturer substitution
This part replaces WB27X10169. Substitute parts can look different from the original.
$45.38 |
12% OFF Phone Price : $51.38
In Stock
#26
Microwave diagram
Gas sensor
Part #WB24X0799
Replaced by #WB24X799
?
Manufacturer substitution
This part replaces WB24X0799. Substitute parts can look different from the original.
$151.05 |
7% OFF Phone Price : $163.05
In Stock
#1
Microwave diagram
Microwave magnetron (replaces wb27x10492)
Part #WB27X10089
$204.17 |
6% OFF Phone Price : $216.17
In Stock
#3
Microwave diagram
Fuse mda250v
Part #WB02X8151
Replaced by #WB27X10454
?
Manufacturer substitution
This part replaces WB02X8151. Substitute parts can look different from the original.
This item is not returnable
$14.34 |
12% OFF Phone Price : $16.34
In Stock
#23
Microwave diagram
High-voltage transformer
Part #WB27X0600
Replaced by #WB27X600
?
Manufacturer substitution
This part replaces WB27X0600. Substitute parts can look different from the original.
$363.23 |
$12.00 OFF Phone Price : $375.23
In Stock
#18
Microwave diagram
Microwave high-voltage capacitor (replaces wb27x585)
Part #WB27X10011
$50.42 |
11% OFF Phone Price : $56.42
In Stock
#56
Microwave diagram
Microwave light bulb (replaces wb2x4235, wb36x0898, wb36x0936, wb36x10306, wb36x898, wb36x936, wb6x15)
Part #WB36X10003
This item is not returnable
$13.60 |
13% OFF Phone Price : $15.60
In Stock
#36
Microwave diagram
Wire harn f
Part #WB18X0542
Replaced by #WB18X542
?
Manufacturer substitution
This part replaces WB18X0542. Substitute parts can look different from the original.
$22.61
In Stock
#113
Microwave diagram
Spacer rack
Part #WB04X0174
Replaced by #WB4X174
?
Manufacturer substitution
This part replaces WB04X0174. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
#112
Microwave diagram
Pcb support
Part #WB04X0175
Replaced by #WB4X175
?
Manufacturer substitution
This part replaces WB04X0175. Substitute parts can look different from the original.
$8.11
In Stock
