Model # 12632565 Official Craftsman miter saw

Here are the diagrams and repair parts for Official Craftsman 12632565 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |

Craftsman Lock Knob 031-0104
#21

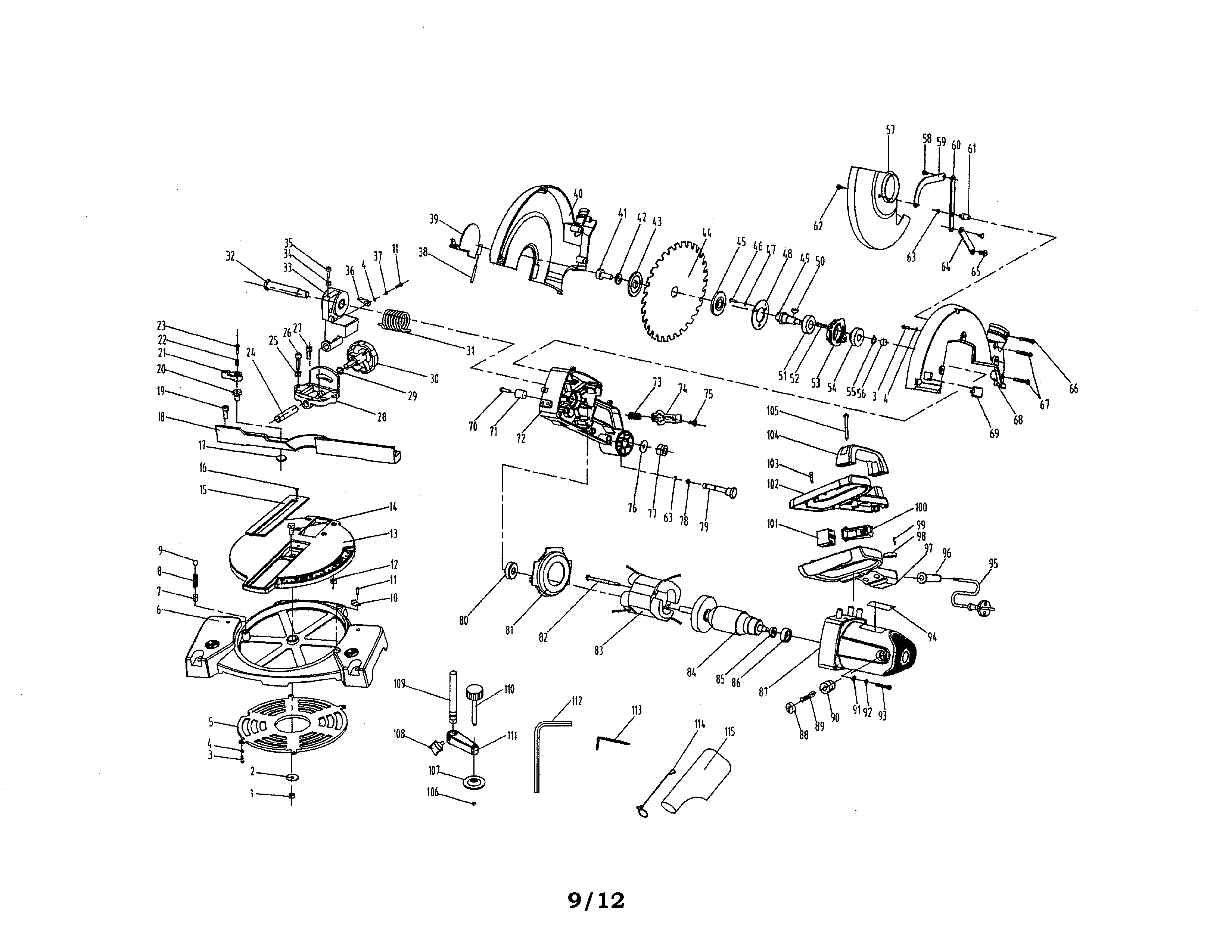

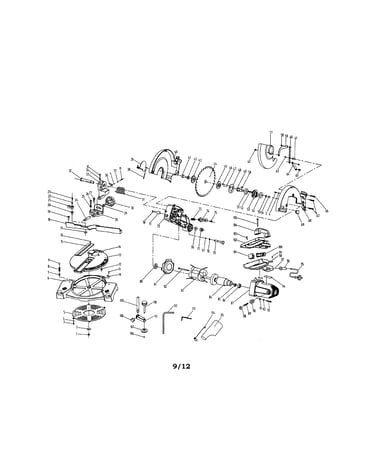

Miter saw diagram

Craftsman lock knob

Part #031-0104

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Lock Nut 031-1012
#77

Miter saw diagram

Craftsman lock nut

Part #031-1012

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Brush Hold 031-0505
#90

Miter saw diagram

Craftsman brush hold

Part #031-0505

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Spring Dowel 031-0309
#38

Miter saw diagram

Craftsman spring dowel

Part #031-0309

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Nut 031-1106
#12

Miter saw diagram

Craftsman nut

Part #031-1106

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Linkage B 031-0312
#60

Miter saw diagram

Craftsman linkage b

Part #031-0312

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Scrw St42 031-4270
#82

Miter saw diagram

Craftsman scrw st42

Part #031-4270

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Washer 031-2004
#4

Miter saw diagram

Craftsman washer

Part #031-2004

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Scrw M6x16 031-0704
#108

Miter saw diagram

Craftsman scrw m6x16

Part #031-0704

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Rotor 031-0503
#84

Miter saw diagram

Craftsman rotor

Part #031-0503

The manufacturer no longer makes this part, and there's no substitute part
