Craftsman
Front-Engine Lawn Tractor

Model # 502256160 Official Craftsman 30" 8-hp riding lawn mower with recoil start

Here are the diagrams and repair parts for Official Craftsman 502256160 30" 8-hp riding lawn mower with recoil start, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

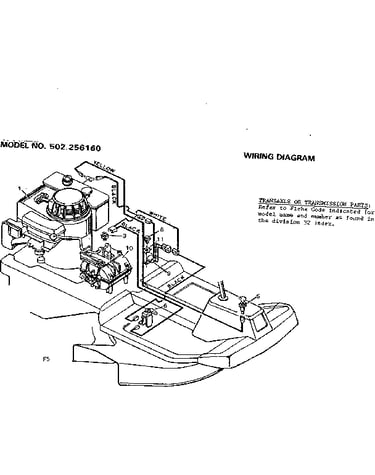

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 242 parts  |
Housing 24384
#69

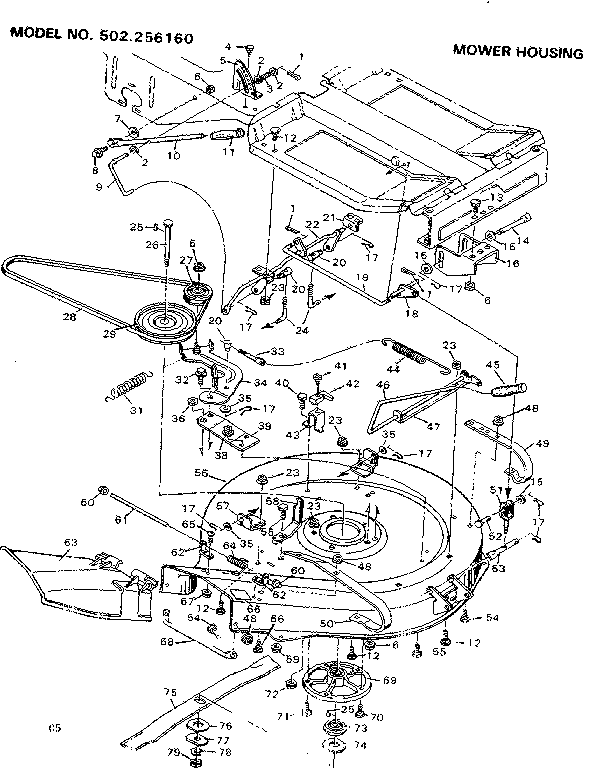

Mower housing diagram

Housing

Part #24384

Replaced by #492574MA

?
Manufacturer substitution
This part replaces 24384. Substitute parts can look different from the original.
$68.99 |
8% OFF Phone Price : $74.99
In Stock
Spacer 24533Z
#82

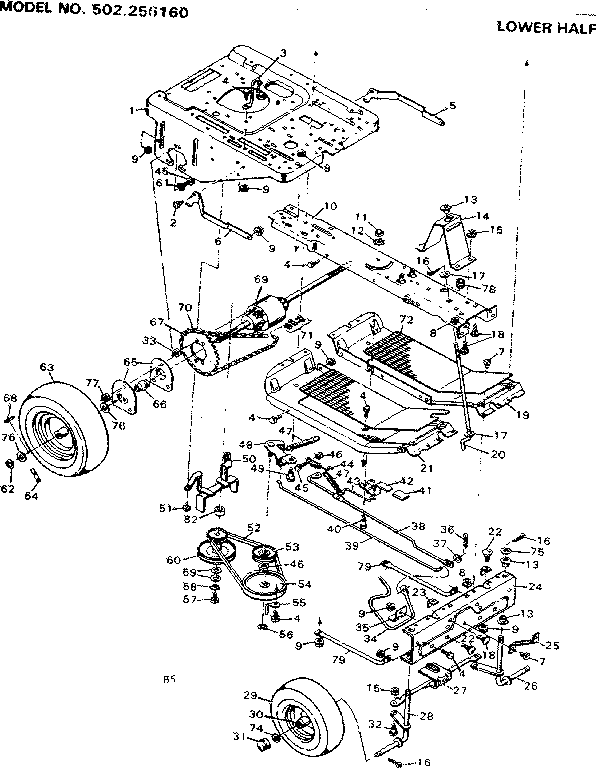

Lower half diagram

Spacer

Part #24533Z

Replaced by #91925MA

?
Manufacturer substitution
This part replaces 24533Z. Substitute parts can look different from the original.
$22.54
In Stock
Lock Nut 15X88
#4

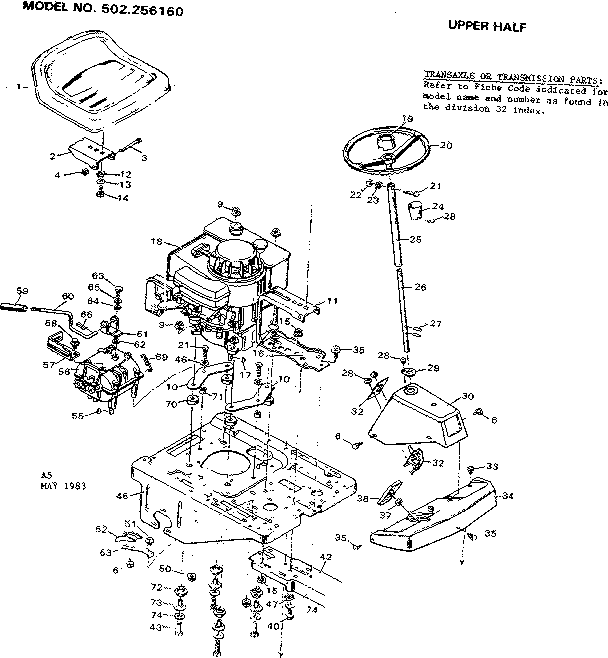

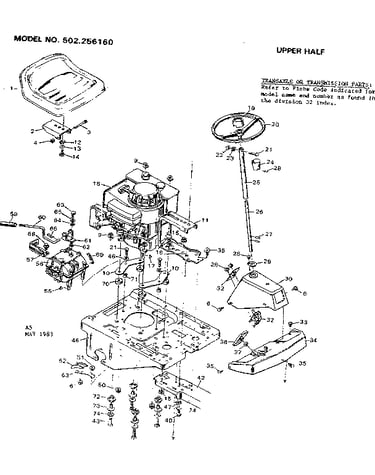

Upper half diagram

Lock nut

Part #15X88

Replaced by #704067

?
Manufacturer substitution
This part replaces 15X88. Substitute parts can look different from the original.
This item is not returnable
$6.46
In Stock
Differential Axle 55000
#69

Lower half diagram

Differential axle

Part #55000

Replaced by #794299

?
Manufacturer substitution
This part replaces 55000. Substitute parts can look different from the original.
$154.92
In Stock
Cotter Pin 30X20
#66

Upper half diagram

Cotter pin

Part #30X20

Replaced by #703312

?
Manufacturer substitution
This part replaces 30X20. Substitute parts can look different from the original.
This item is not returnable
$7.14
In Stock
Belt 37X12
#28

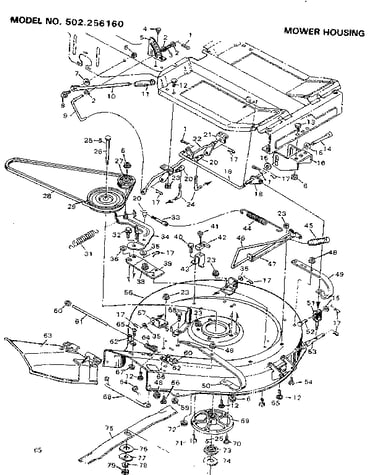

Mower housing diagram

Belt

Part #37X12

Replaced by #37X12MA

?
Manufacturer substitution
This part replaces 37X12. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$44.11
In Stock
Idler Pulley 20613
Idler pulley

Part #20613

Replaced by #420613MA

?
Manufacturer substitution
This part replaces 20613. Substitute parts can look different from the original.
This item is not returnable
$25.18 |
19% OFF Phone Price : $31.18
In Stock
Bolt 20129Z
#11

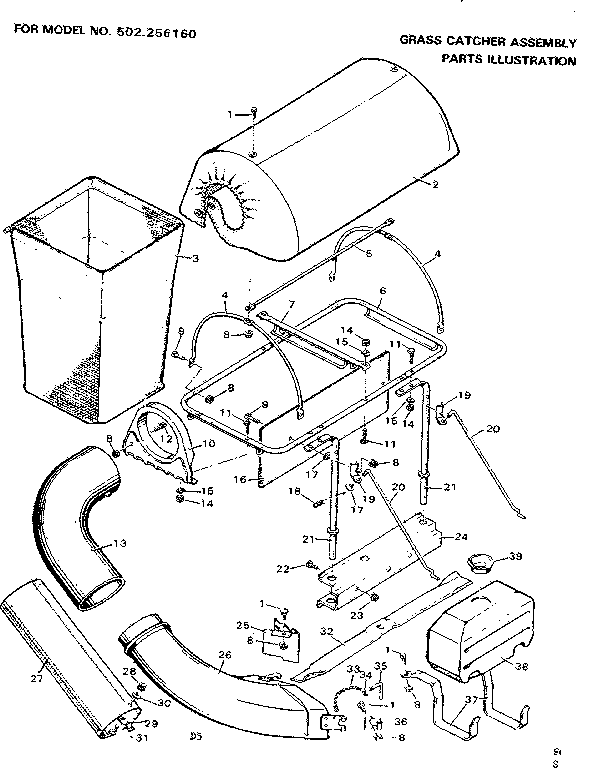

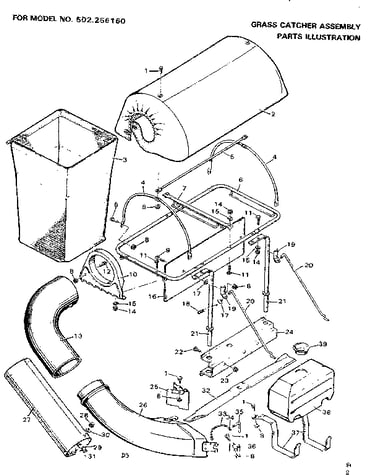

Grass catcher assembly diagram

Bolt

Part #20129Z

Replaced by #6X93MA

?
Manufacturer substitution
This part replaces 20129Z. Substitute parts can look different from the original.
This item is not returnable
$7.49
In Stock
Washer 10851Z
Washer

Part #10851Z

Replaced by #10851ZMA

?
Manufacturer substitution
This part replaces 10851Z. Substitute parts can look different from the original.
$9.97
In Stock
Tie Strap 32618

#NI

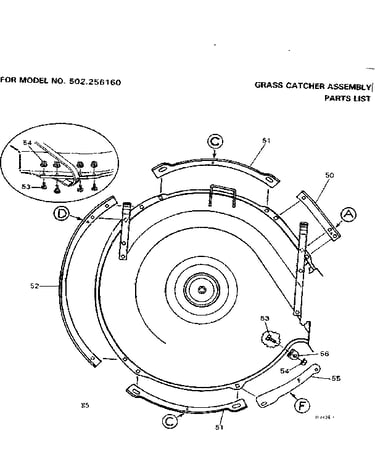

All parts diagram

Tie strap

Part #32618

Replaced by #32618MA

?
Manufacturer substitution
This part replaces 32618. Substitute parts can look different from the original.
This item is not returnable
$6.86
In Stock
