Model # 8457384 Official Kenmore compact refrigerator

Here are the diagrams and repair parts for Official Kenmore 8457384 compact refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
8457384 Refrigerators
Refrigerator Closure 981926
#25

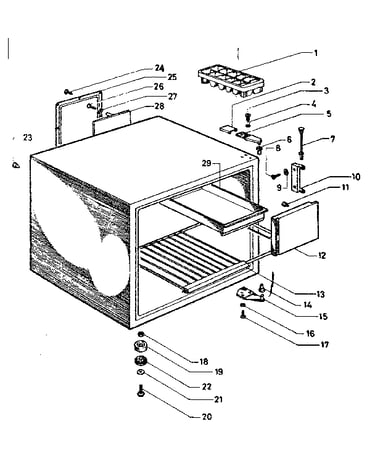

Cabinet parts diagram

Refrigerator closure

Part #981926

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Pin 981078
#7

Cabinet parts diagram

Refrigerator pin

Part #981078

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Evaporator 981102
#13

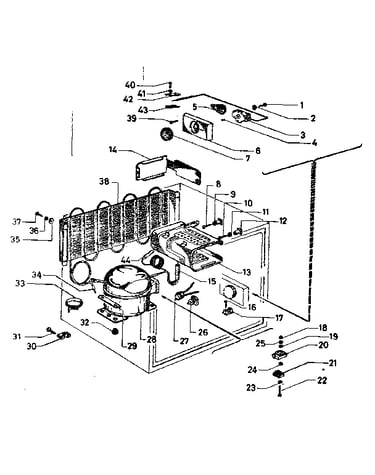

Unit parts diagram

Refrigerator evaporator

Part #981102

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Foot 981073
#19

Cabinet parts diagram

Refrigerator foot

Part #981073

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 911016
#22

Unit parts diagram

Refrigerator screw

Part #911016

The manufacturer no longer makes this part, and there's no substitute part

Washer 911164
#21

Cabinet parts diagram

Washer

Part #911164

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Spring 982792
#4

Unit parts diagram

Refrigerator spring

Part #982792

The manufacturer no longer makes this part, and there's no substitute part

Name Band 982282
#1

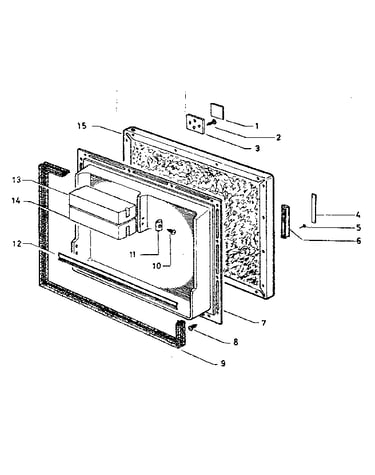

Door parts diagram

Name band

Part #982282

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 911059
#3

Cabinet parts diagram

Refrigerator screw

Part #911059

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Knob 981779
#7

Unit parts diagram

Refrigerator knob

Part #981779

The manufacturer no longer makes this part, and there's no substitute part
