Model # 90027910 Official Craftsman 3/8" cordless industrial reversible drill

Here are the diagrams and repair parts for Official Craftsman 90027910 3/8" cordless industrial reversible drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Black & Decker Screw 80489-00
#18

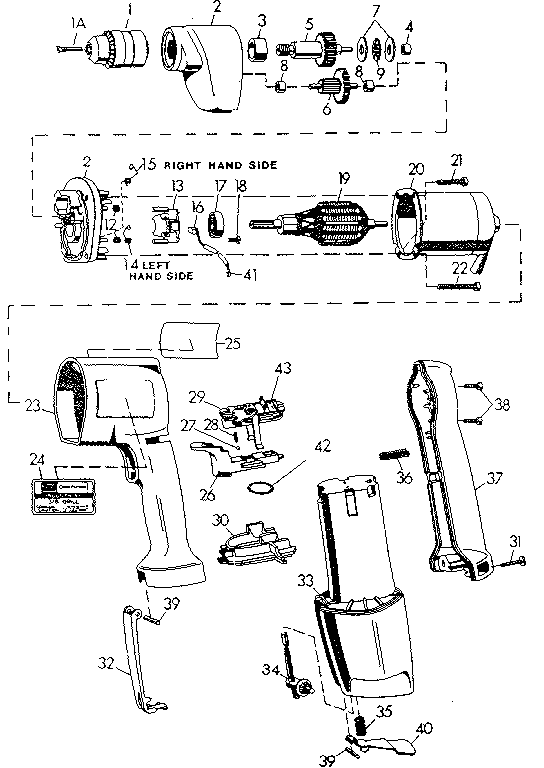

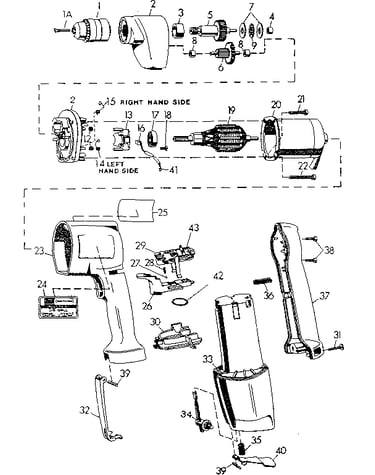

Unit parts diagram

Black & decker screw

Part #80489-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 91817-00
#7

Unit parts diagram

Washer

Part #91817-00

The manufacturer no longer makes this part, and there's no substitute part

Latch Pin 99229-05
#39

Unit parts diagram

Latch pin

Part #99229-05

The manufacturer no longer makes this part, and there's no substitute part

Bearing 91644-00
#9

Unit parts diagram

Bearing

Part #91644-00

The manufacturer no longer makes this part, and there's no substitute part

Spring 91874-00
#35

Unit parts diagram

Spring

Part #91874-00

The manufacturer no longer makes this part, and there's no substitute part

Chuck Key 92555-00
#1

Unit parts diagram

Chuck key

Part #92555-00

The manufacturer no longer makes this part, and there's no substitute part

Motor Housing 91824-02
#23

Unit parts diagram

Motor housing

Part #91824-02

The manufacturer no longer makes this part, and there's no substitute part

Conn Diagram 136254

#NI

All parts diagram

Conn diagram

Part #136254

The manufacturer no longer makes this part, and there's no substitute part

Latch 91876-00
#32

Unit parts diagram

Latch

Part #91876-00

The manufacturer no longer makes this part, and there's no substitute part

Spring 91822-00
#14

Unit parts diagram

Spring

Part #91822-00

The manufacturer no longer makes this part, and there's no substitute part
