Kenmore
Electric Range

Model # 79093003312 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 79093003312 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Universal/multiflex (frigidaire) Range Surface Element Control Switch (replaces 316021501, 5304506425) 316436001
#54A

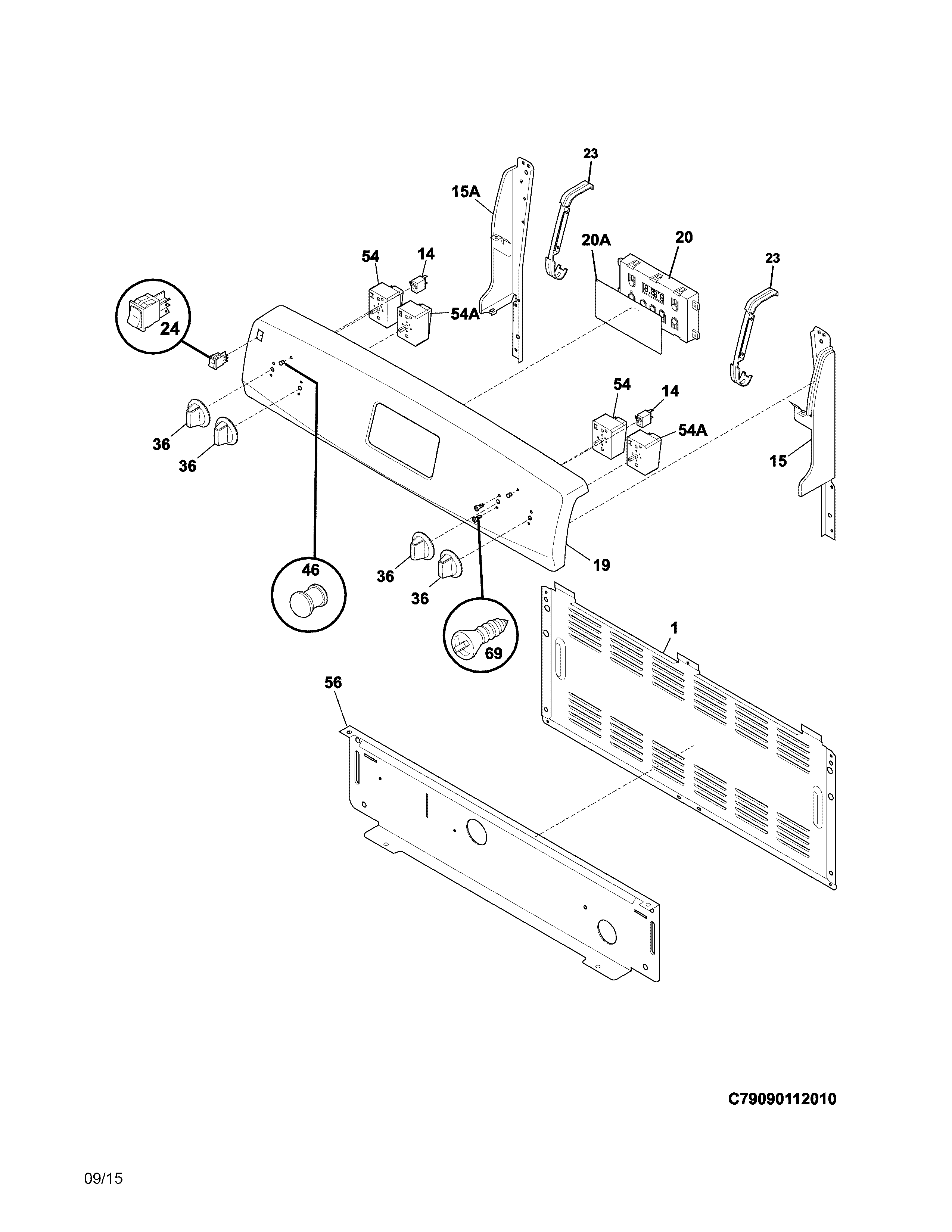

Backguard diagram

Universal/multiflex (frigidaire) range surface element control switch (replaces 316021501, 5304506425)

Part #316436001

BEST SELLER
$36.15 |
14% OFF Phone Price : $42.15
In Stock
Universal/multiflex (frigidaire) Range Small Surface Element Control Switch (replaces 316021500, 5304506424) 316436000
#54

Backguard diagram

Universal/multiflex (frigidaire) range small surface element control switch (replaces 316021500, 5304506424)

Part #316436000

BEST SELLER
$55.76 |
10% OFF Phone Price : $61.76
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

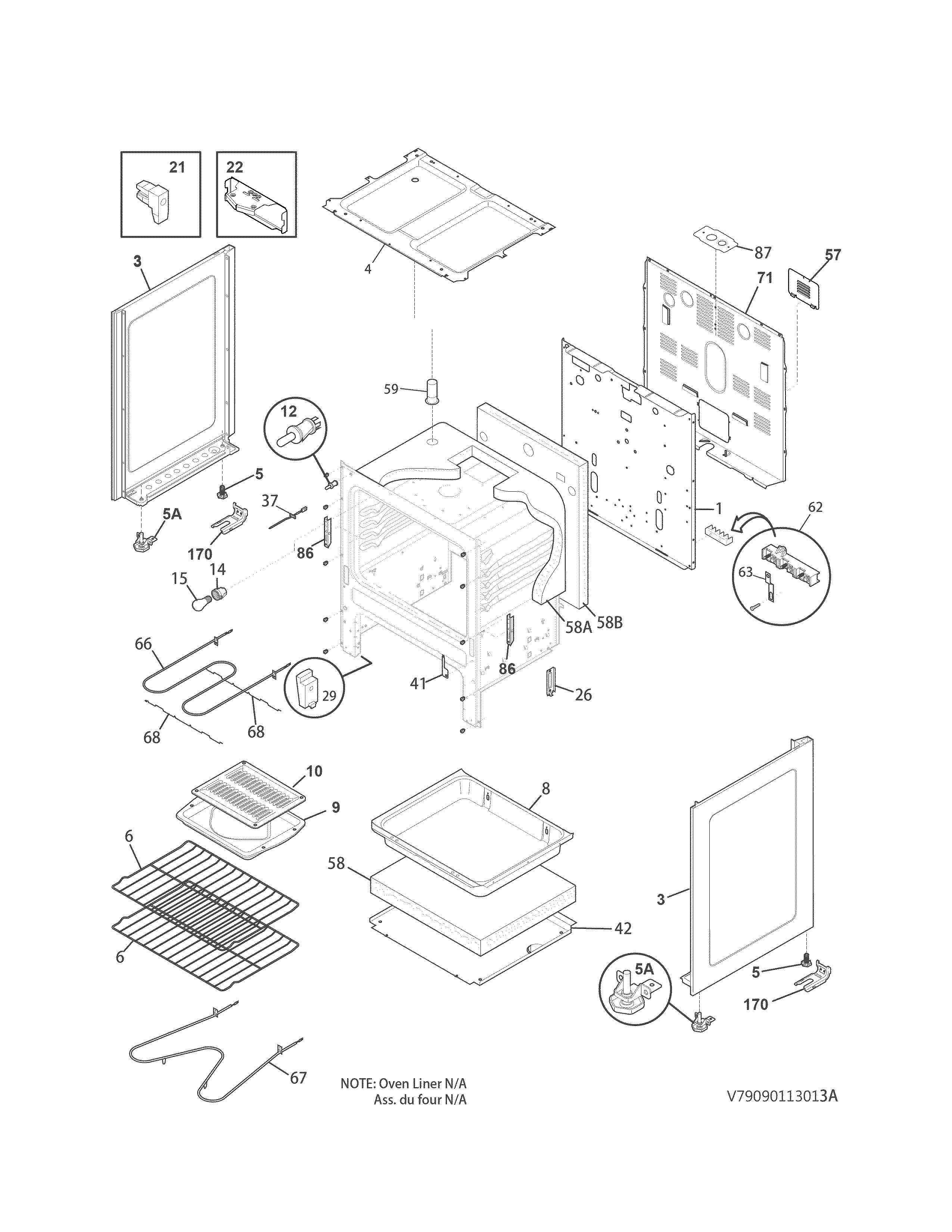

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Block 5303912666
#27

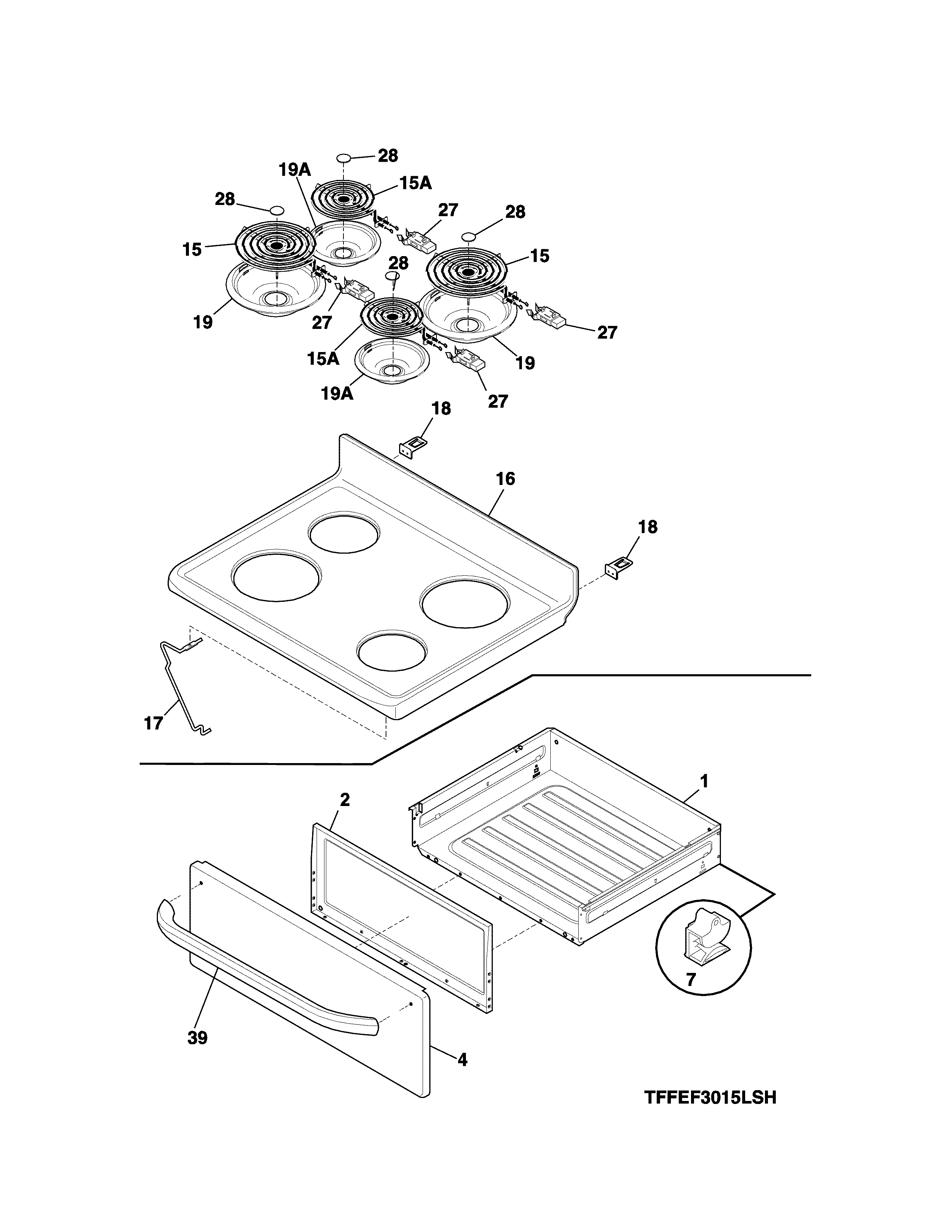

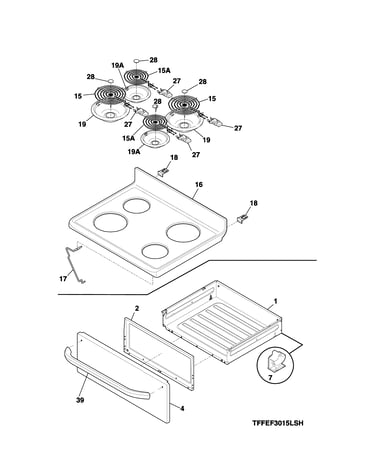

Top/drawer diagram

Block

Part #5303912666

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 5303912666. Substitute parts can look different from the original.
BEST SELLER
$8.60 |
10% OFF Phone Price : $9.60
In Stock
Range Drip Pan, 8-in (chrome) (replaces 318067010, 5303013588, 5303935054, 5304432495) 316048413
#19

Top/drawer diagram

Range drip pan, 8-in (chrome) (replaces 318067010, 5303013588, 5303935054, 5304432495)

Part #316048413

BEST SELLER
$7.30 |
12% OFF Phone Price : $8.30
In Stock
Range Oven Temperature Sensor 316233902
#37

Body diagram

Range oven temperature sensor

Part #316233902

Replaced by #316217008

?
Manufacturer substitution
This part replaces 316233902. Substitute parts can look different from the original.
BEST SELLER
$25.89 |
19% OFF Phone Price : $31.89
In Stock
Range Oven Door Inner Glass (replaces 316117502, 316117503) 5304503232
#8

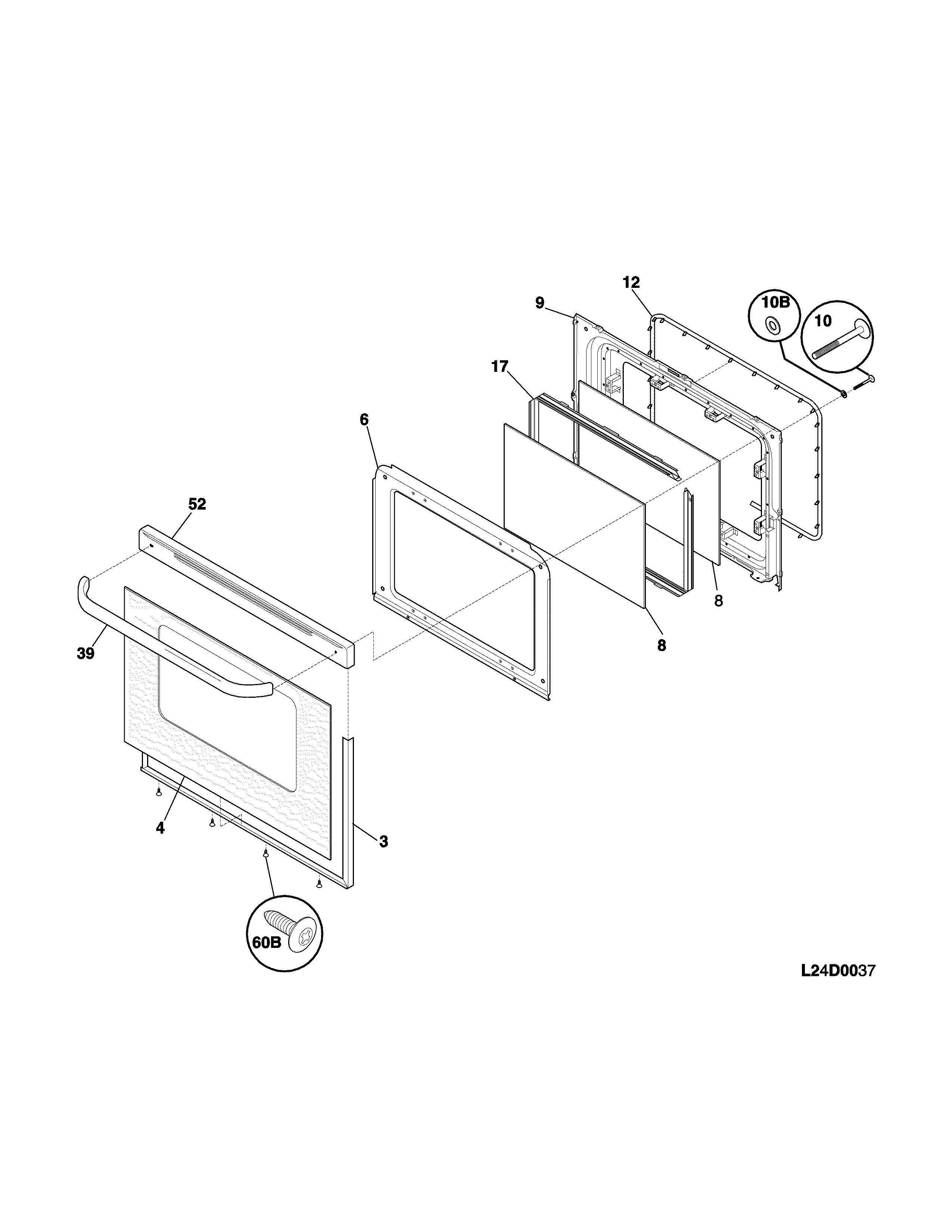

Door diagram

Range oven door inner glass (replaces 316117502, 316117503)

Part #5304503232

BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Range Indicator Light 316022500
#14

Backguard diagram

Range indicator light

Part #316022500

BEST SELLER
$40.21 |
13% OFF Phone Price : $46.21
In Stock
Range Oven Control Overlay 316354402
#20A

Backguard diagram

Range oven control overlay

Part #316354402

BEST SELLER
$32.40 |
16% OFF Phone Price : $38.40
In Stock
Element 318372213
#15

Top/drawer diagram

Element

Part #318372213

Replaced by #316442300

?
Manufacturer substitution
This part replaces 318372213. Substitute parts can look different from the original.
BEST SELLER
$27.33 |
18% OFF Phone Price : $33.33
In Stock
