Model # 167452011 Official Sears swimming pool water filter
Here are the diagrams and repair parts for Official Sears 167452011 swimming pool water filter, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
167452011 Swimming Pool Water Filter
#17

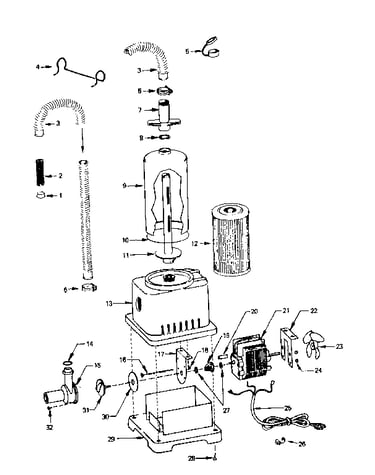

Filter replacement parts diagram
Bracket
Part #205-9361
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Owner's manual
Part #7999442
The manufacturer no longer makes this part, and there's no substitute part
#26
Filter replacement parts diagram
Grommet
Part #099-6945
The manufacturer no longer makes this part, and there's no substitute part
#20
Filter replacement parts diagram
Spacer
Part #205-9181
The manufacturer no longer makes this part, and there's no substitute part
#4

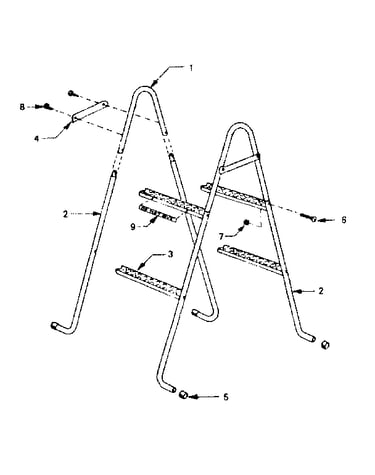

Ladder replacement parts diagram
Leg brace
Part #7511619H
The manufacturer no longer makes this part, and there's no substitute part
#9
Filter replacement parts diagram
Filter case
Part #098-7201
The manufacturer no longer makes this part, and there's no substitute part
#29
Filter replacement parts diagram
Motor base
Part #098-7391
The manufacturer no longer makes this part, and there's no substitute part
#22
Filter replacement parts diagram
Mounting bracket
Part #205-9402
The manufacturer no longer makes this part, and there's no substitute part
#31
Filter replacement parts diagram
Impeller
Part #016-3116
The manufacturer no longer makes this part, and there's no substitute part
#7
Filter replacement parts diagram
Closure nut
Part #098-7204
The manufacturer no longer makes this part, and there's no substitute part
