Model # 5724 Official Porter Cable porta band vise

Here are the diagrams and repair parts for Official Porter Cable 5724 porta band vise, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |
Adjusting Screw, 5/16-18 X .875 823193
#11

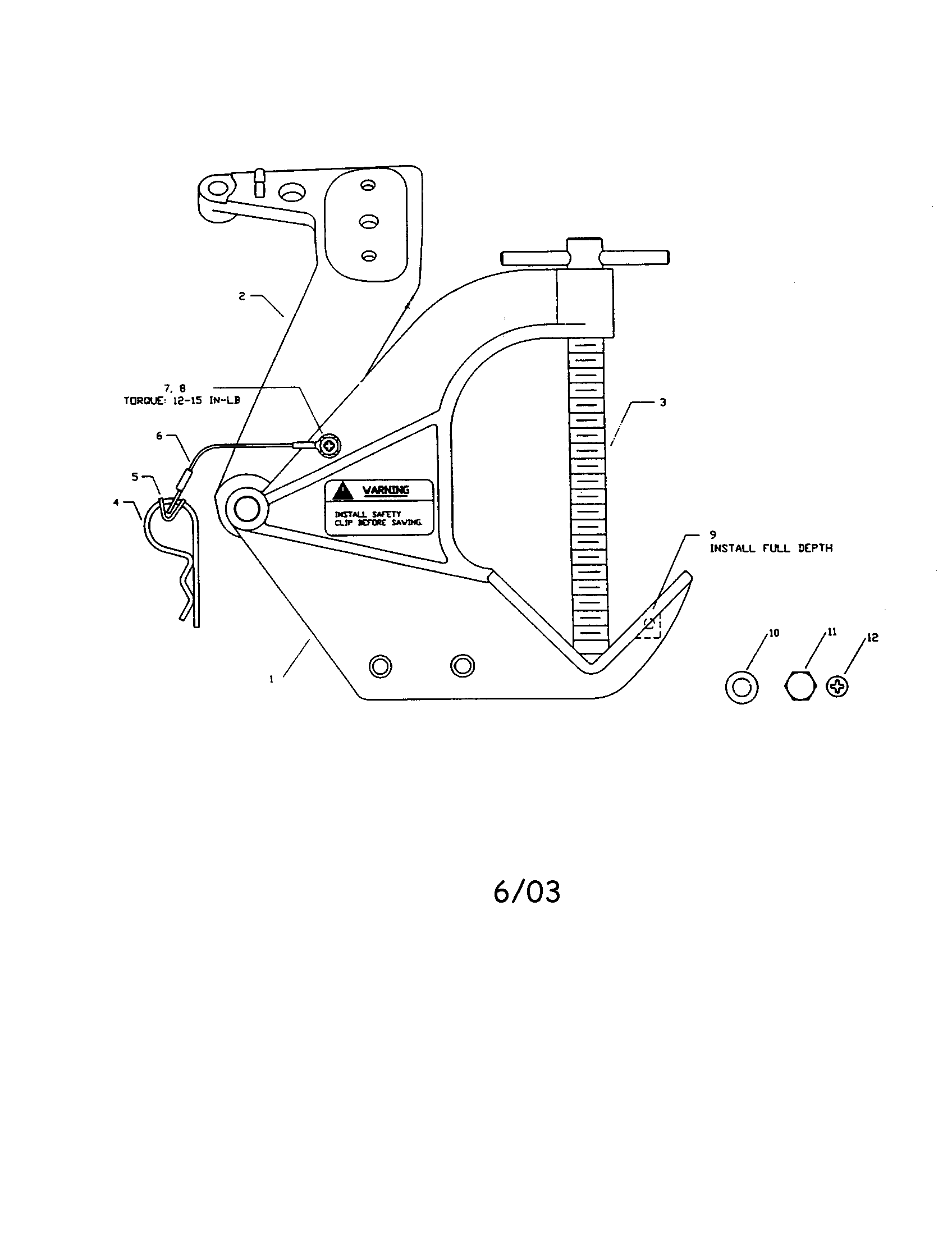

Porta band vise diagram

Adjusting screw, 5/16-18 x .875

Part #823193

The manufacturer no longer makes this part, and there's no substitute part

Sears Lever Screw, T1 802589
#12

Porta band vise diagram

Sears lever screw, t1

Part #802589

The manufacturer no longer makes this part, and there's no substitute part

Safety Clip 873352
#4

Porta band vise diagram

Safety clip

Part #873352

The manufacturer no longer makes this part, and there's no substitute part

Bracket And Pivot Pin 874297
#2

Porta band vise diagram

Bracket and pivot pin

Part #874297

The manufacturer no longer makes this part, and there's no substitute part

Frame 874905
#1

Porta band vise diagram

Frame

Part #874905

The manufacturer no longer makes this part, and there's no substitute part

Housing Clamp Nut 848925
#8

Porta band vise diagram

Housing clamp nut

Part #848925

The manufacturer no longer makes this part, and there's no substitute part

Cable Assembly 873475
#6

Porta band vise diagram

Cable assembly

Part #873475

The manufacturer no longer makes this part, and there's no substitute part

Clamp Screw Assembly 873350
#3

Porta band vise diagram

Clamp screw assembly

Part #873350

The manufacturer no longer makes this part, and there's no substitute part

Index Pin 874288
#9

Porta band vise diagram

Index pin

Part #874288

The manufacturer no longer makes this part, and there's no substitute part

Screw (with Lockwasher) 874179
#7

Porta band vise diagram

Screw (with lockwasher)

Part #874179

The manufacturer no longer makes this part, and there's no substitute part
