Model # 48GX030040300 Official Carrier central package

Here are the diagrams and repair parts for Official Carrier 48GX030040300 central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

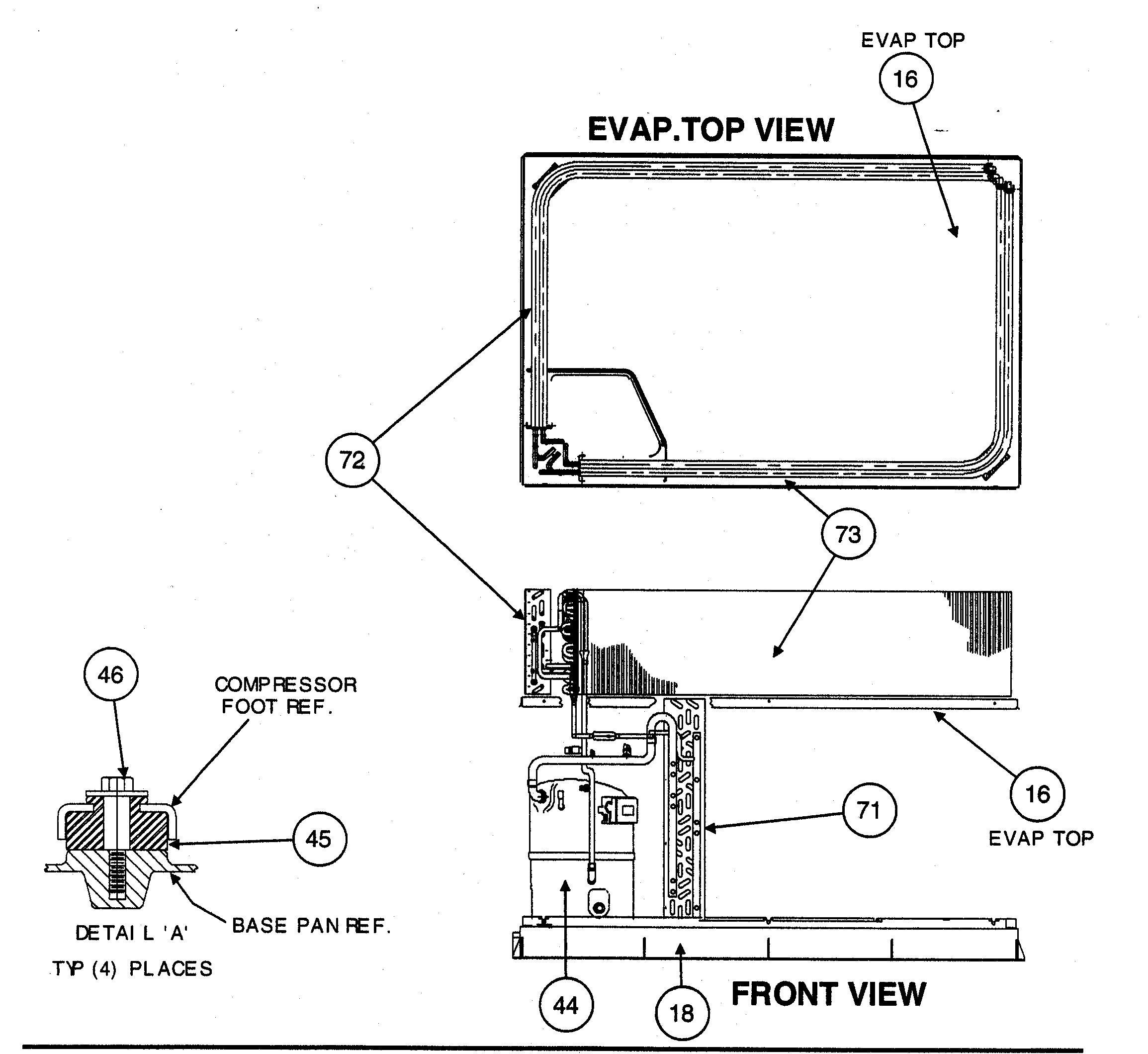

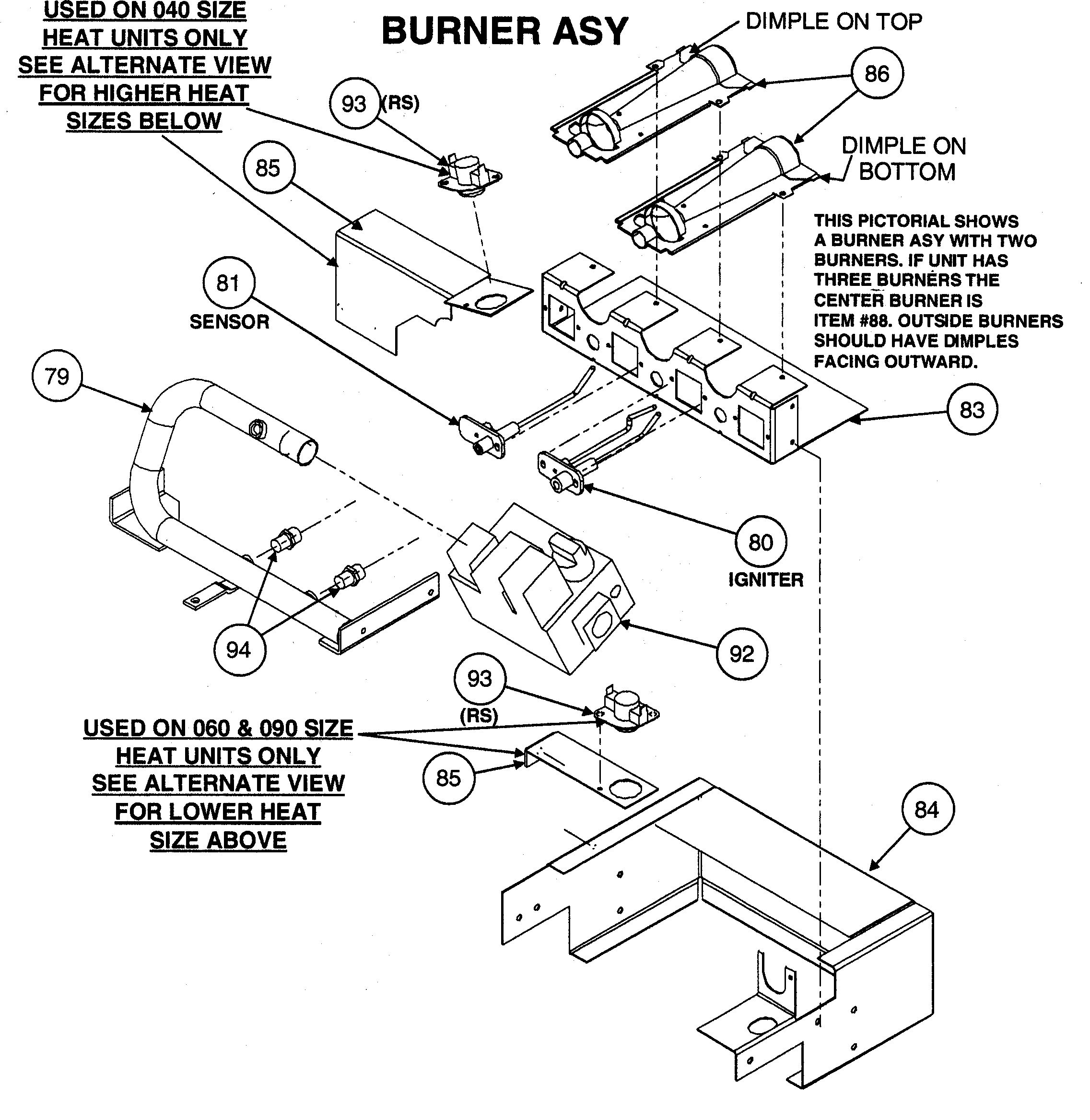

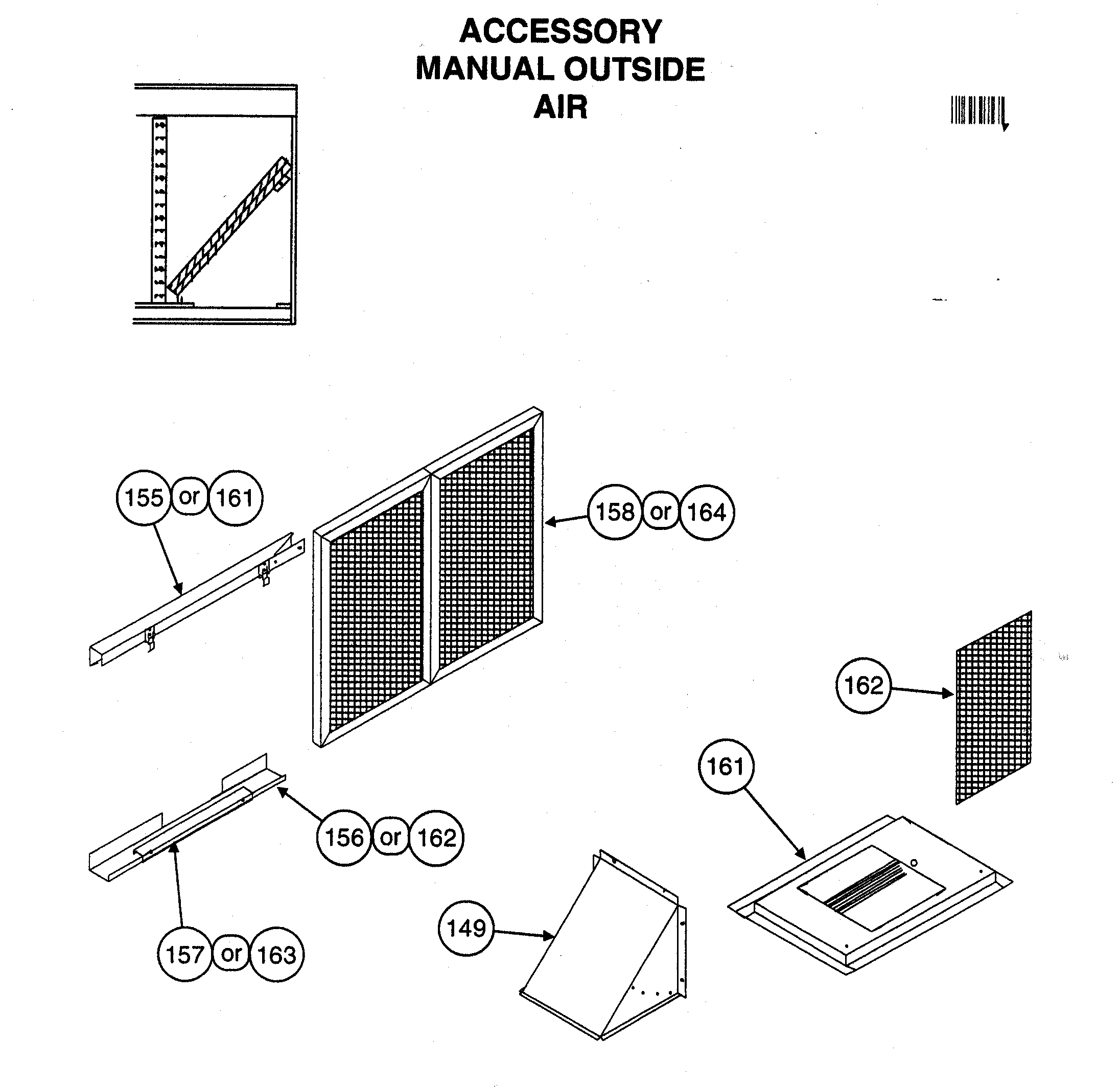

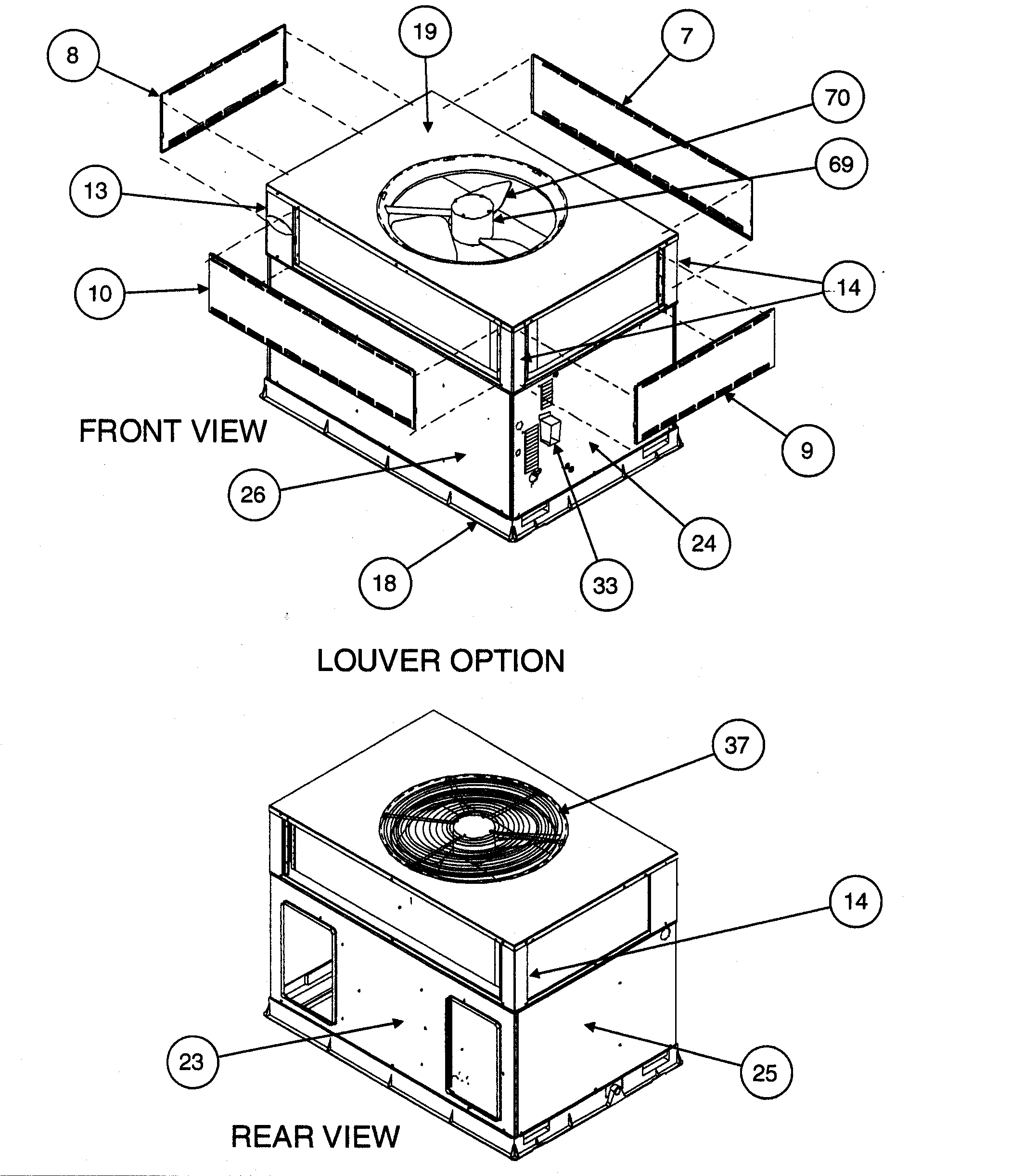

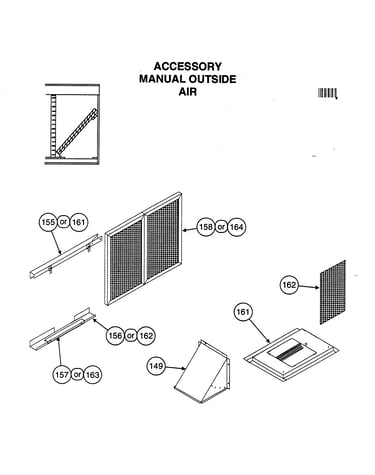

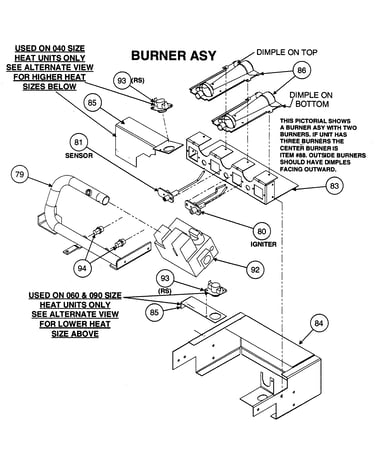

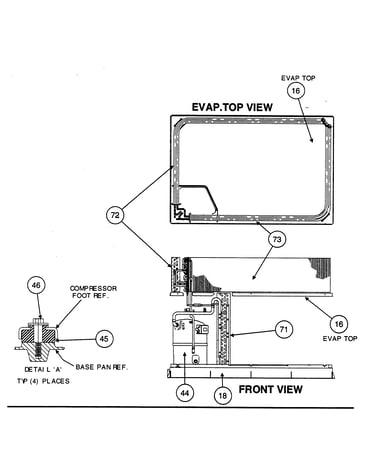

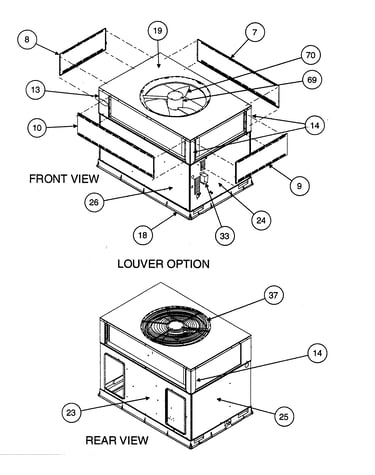

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |
Contactor HN51JD024
#52

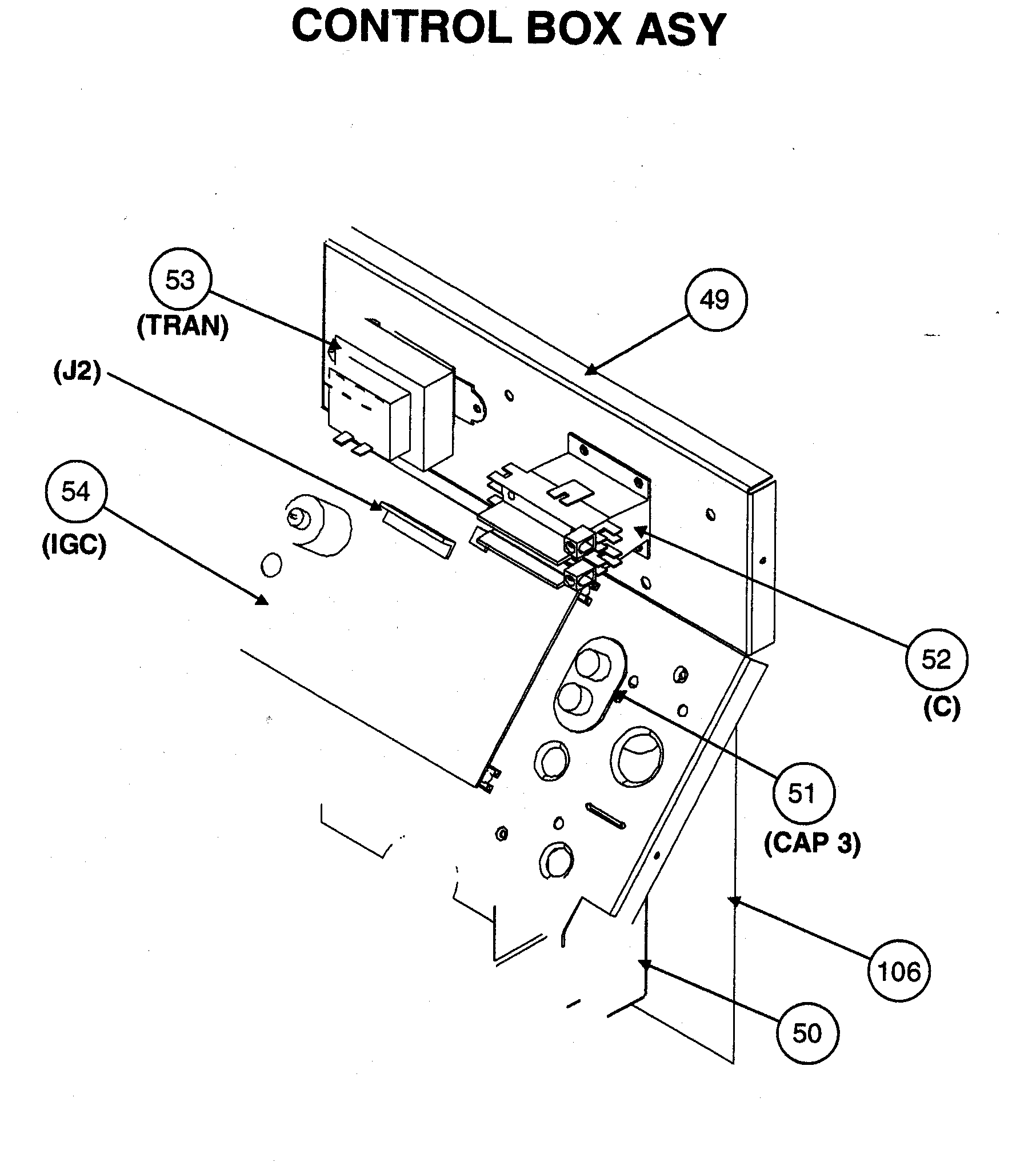

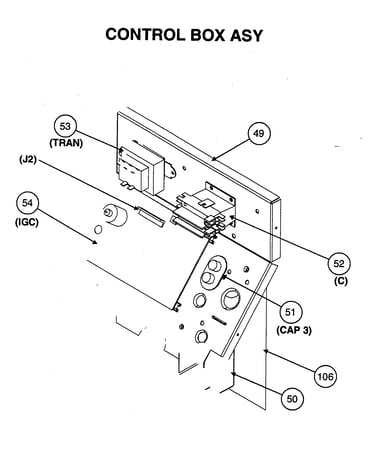

Control box diagram

Contactor

Part #HN51JD024

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Condenser Fan Motor HC35GE235
#69

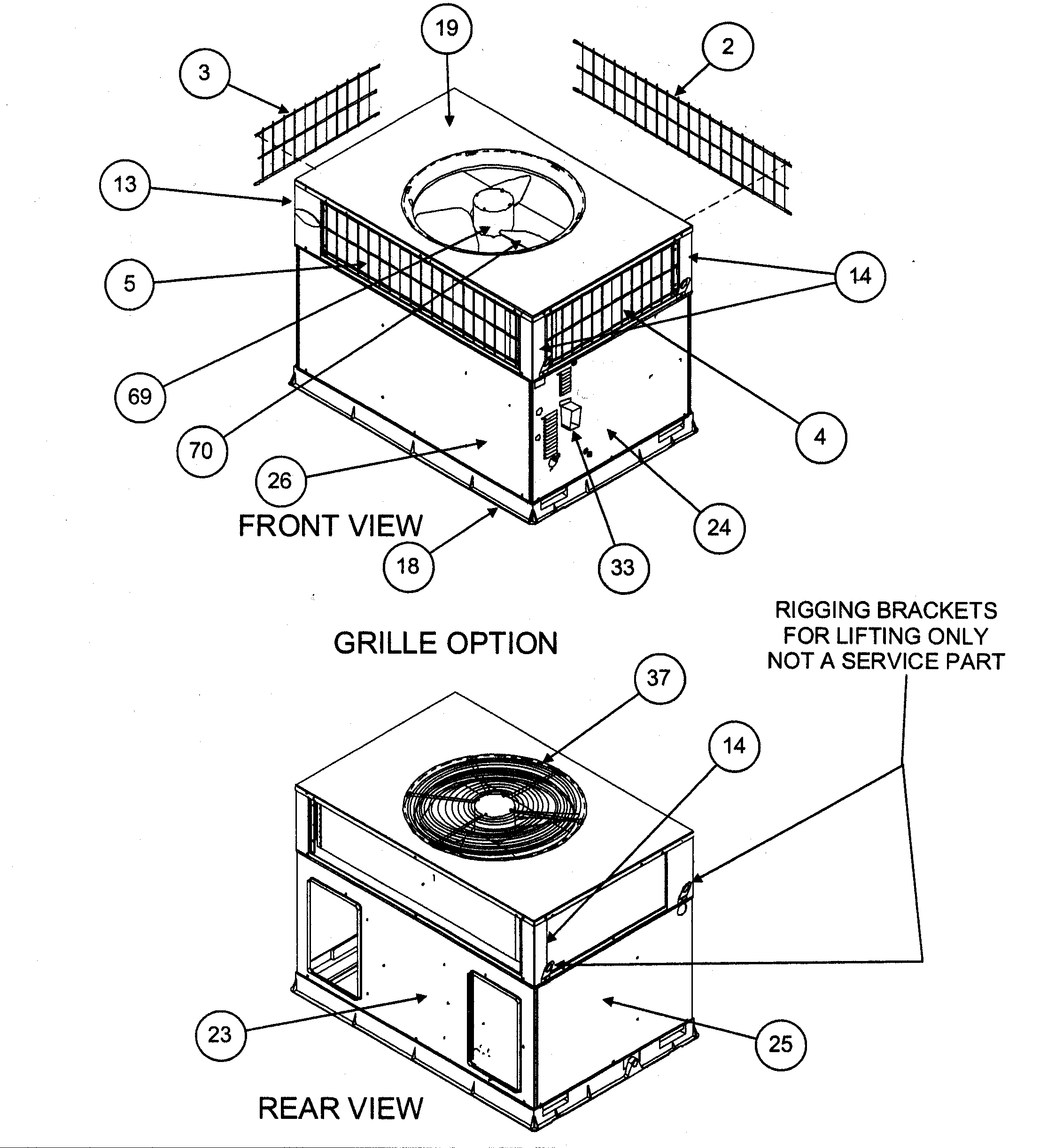

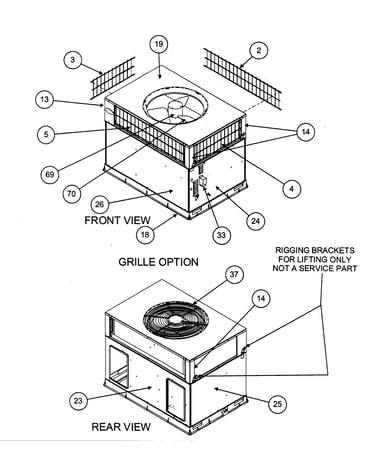

Grille option diagram

Central air conditioner condenser fan motor

Part #HC35GE235

$509.50
In Stock
Central Air Conditioner Wire Harness 9962-0083
#110

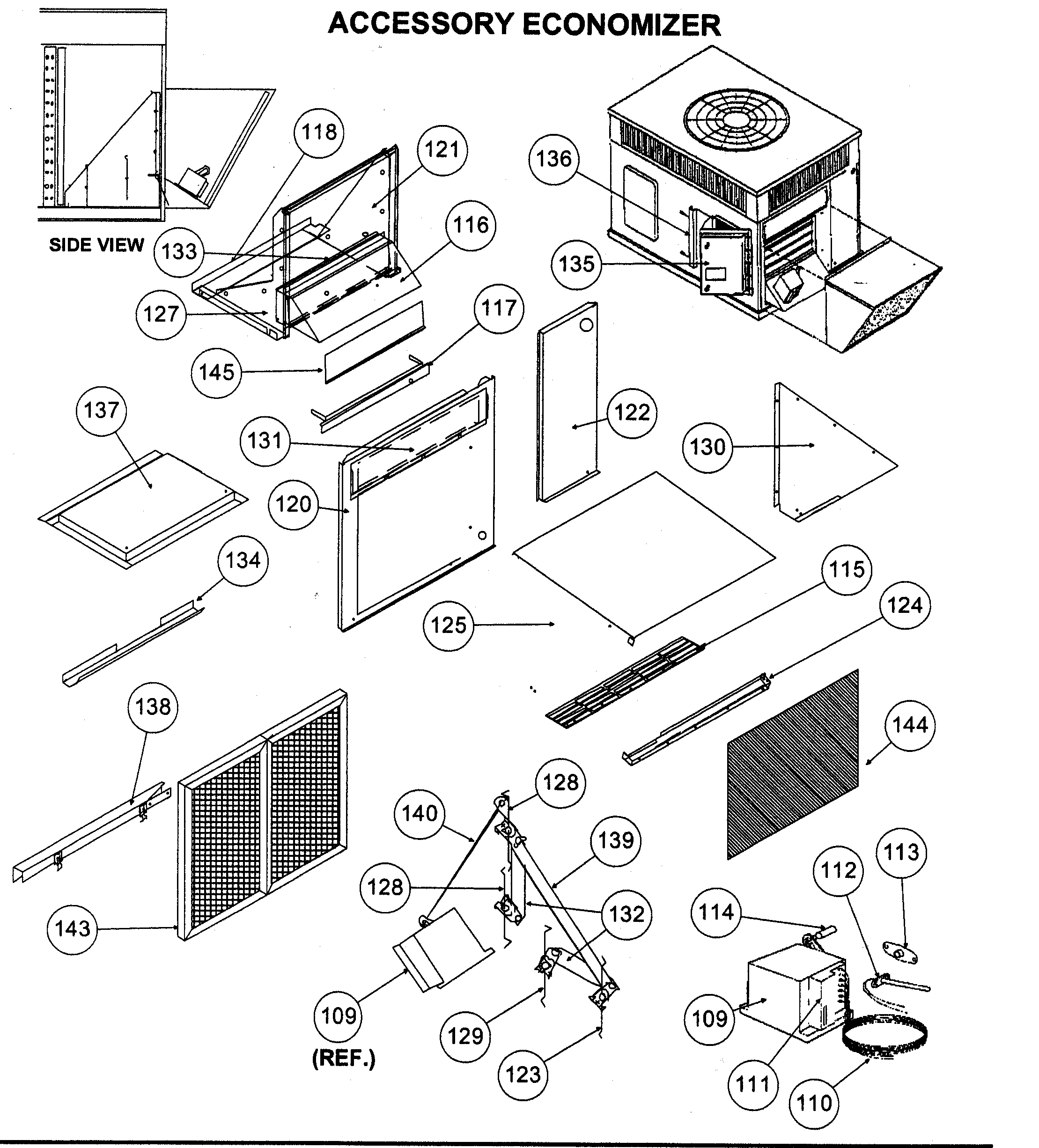

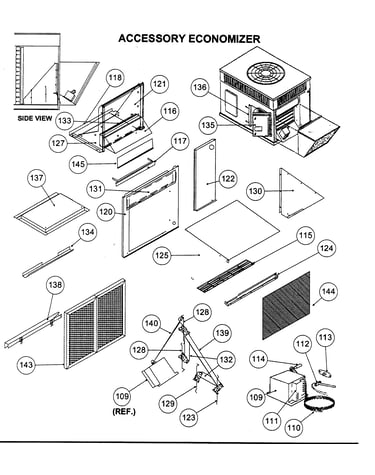

Accessory 1 diagram

Central air conditioner wire harness

Part #9962-0083

$357.73
In Stock
Grille 50HJ501200
#37

Grille option diagram

Grille

Part #50HJ501200

$163.72
In Stock
Mtr Mnt Band P251-0078
#66

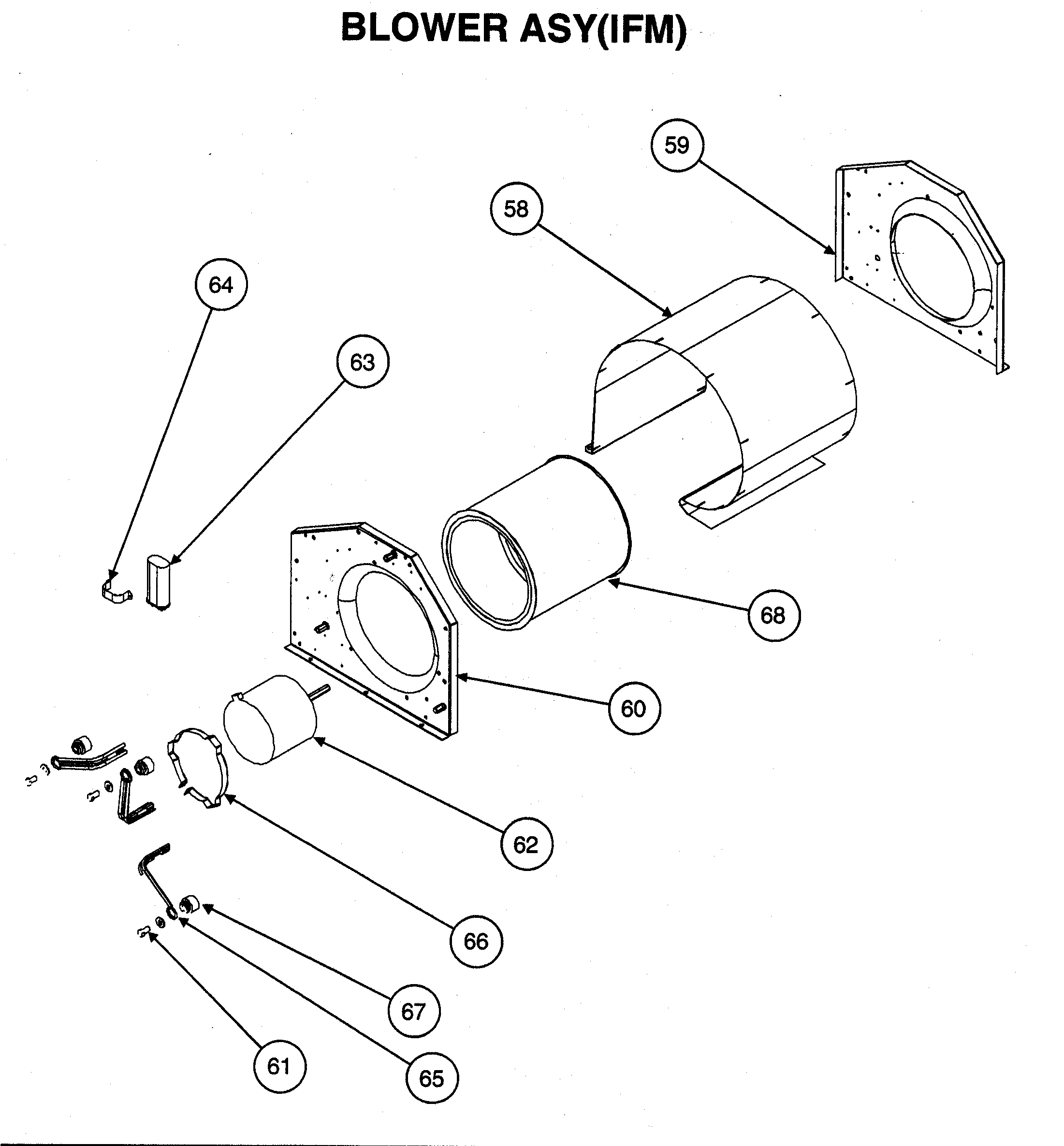

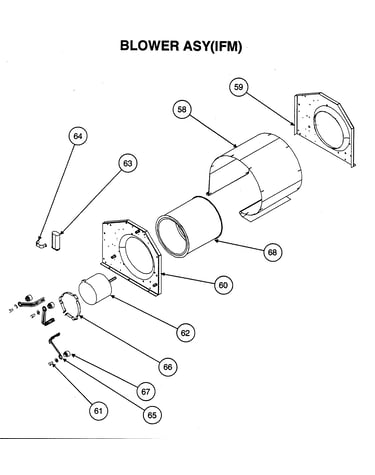

Blower asy diagram

Mtr mnt band

Part #P251-0078

$24.58
In Stock
Rack 0900001A
Rack

Part #0900001A

$197.64
In Stock
Grille Assembly 48GS400382
#2

Grille option diagram

Grille assembly

Part #48GS400382

$159.16
In Stock
Plate 50SS500879
#38

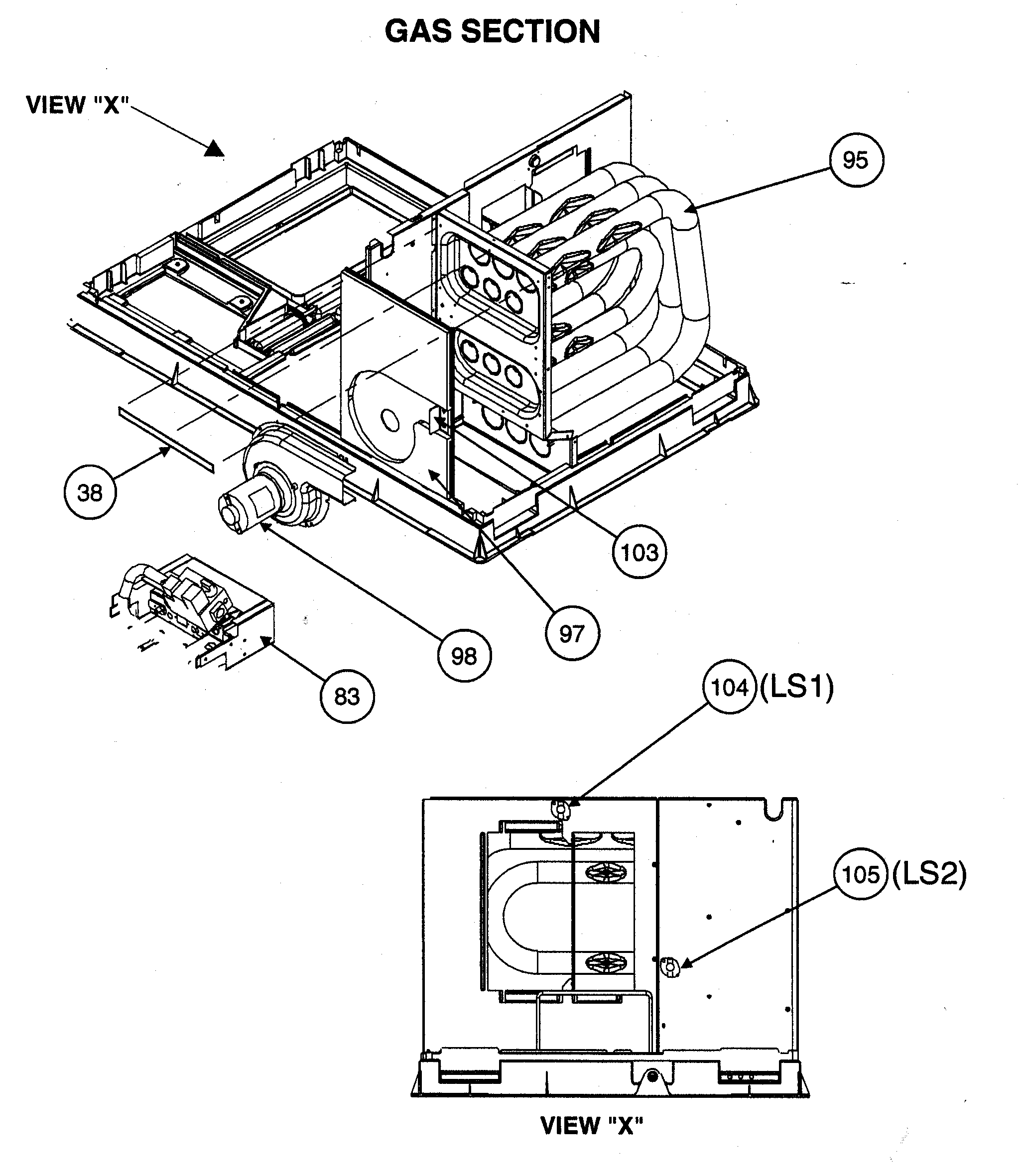

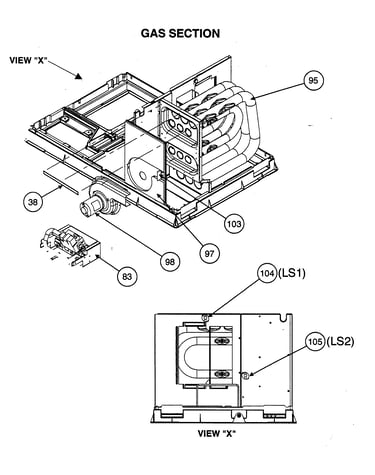

Gas section diagram

Plate

Part #50SS500879

$558.65
In Stock
Furnace Blower Fan Motor Mounting Bracket P251-0077
#65

Blower asy diagram

Furnace blower fan motor mounting bracket

Part #P251-0077

This item is not returnable
$5.34
In Stock
Strap Cap P281-0028
#56

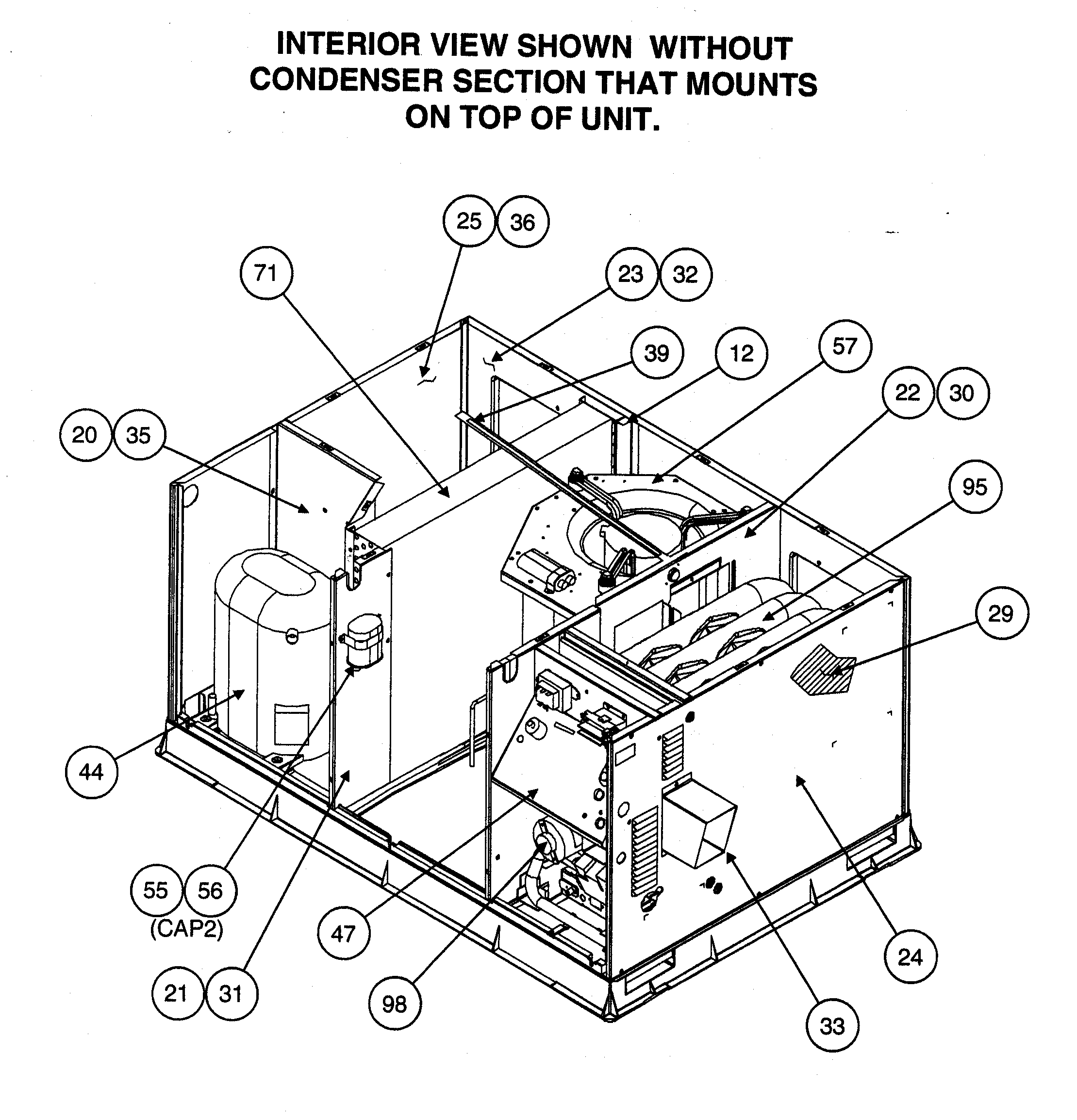

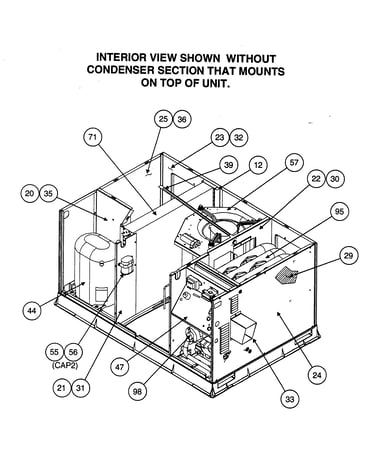

Interior view diagram

Strap cap

Part #P281-0028

$18.83
In Stock
