Model # DVM7195DF1WW Official GE microwave/hood combo

Here are the diagrams and repair parts for Official GE DVM7195DF1WW microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

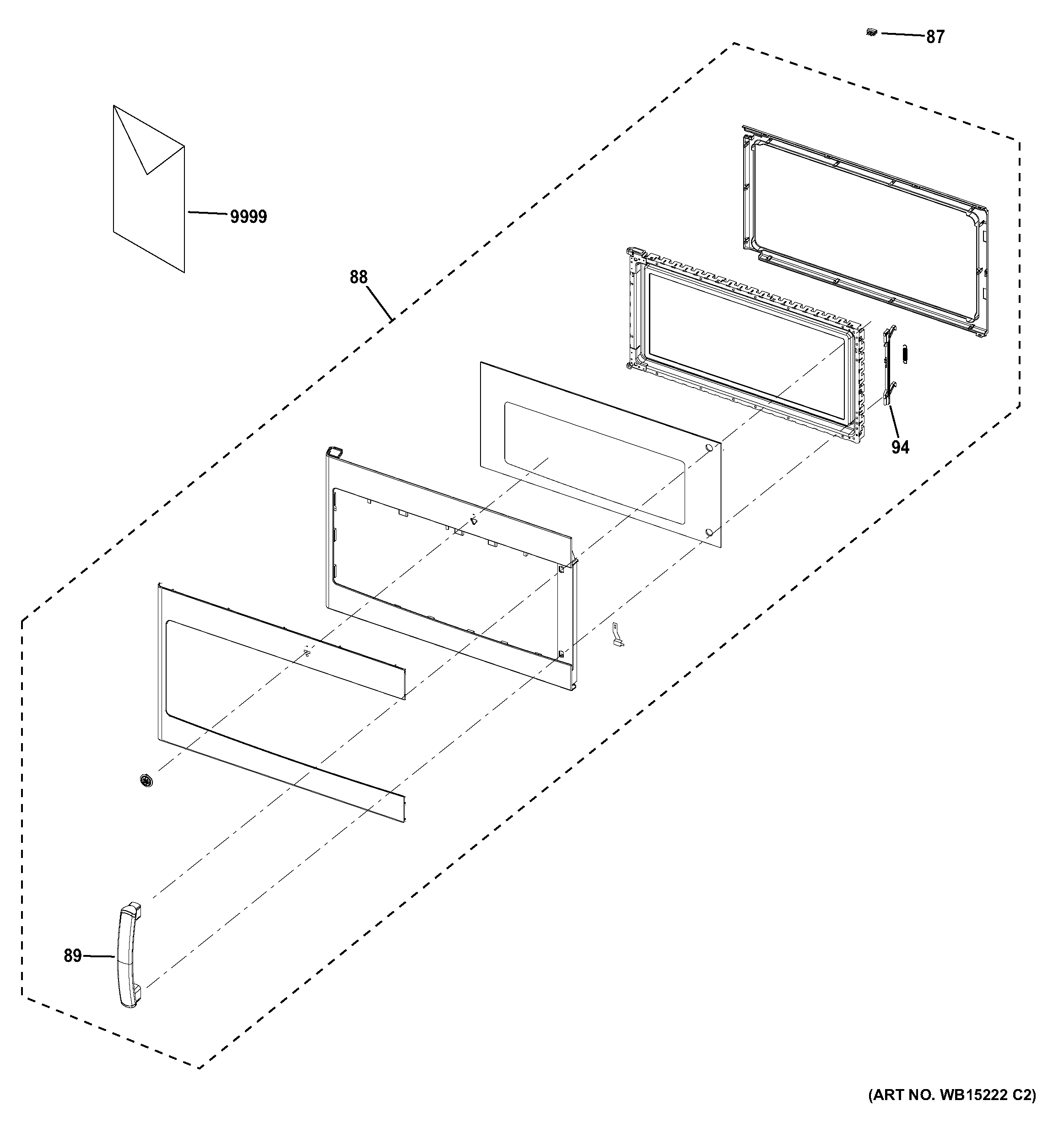

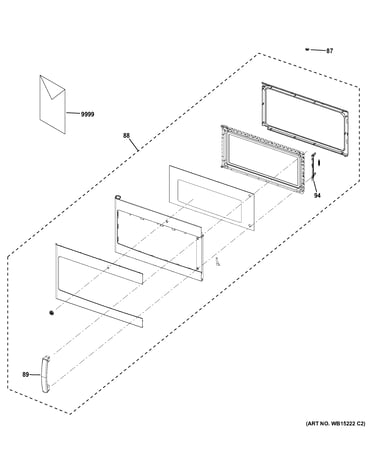

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Switch-micro WB24X10038
#39

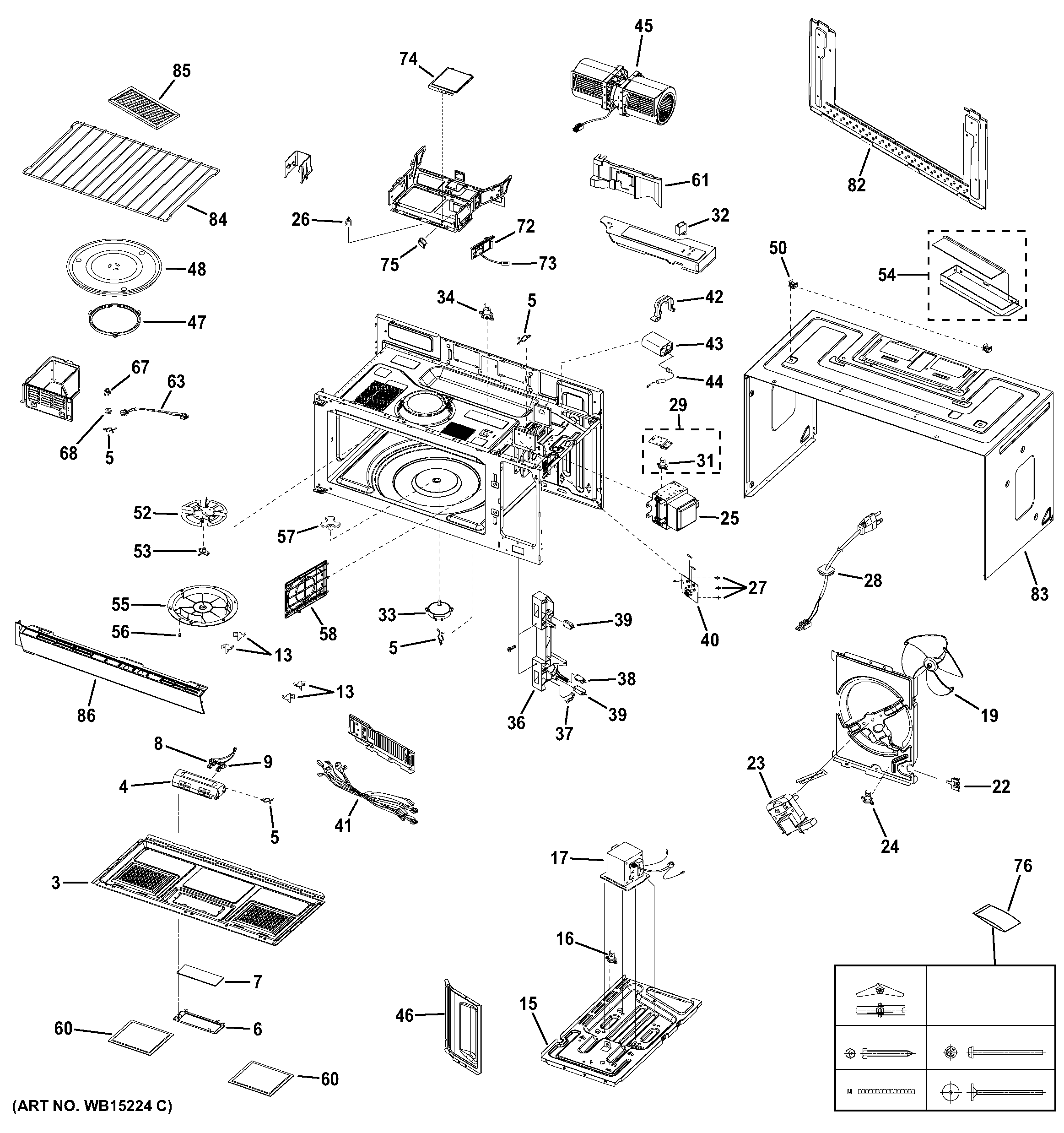

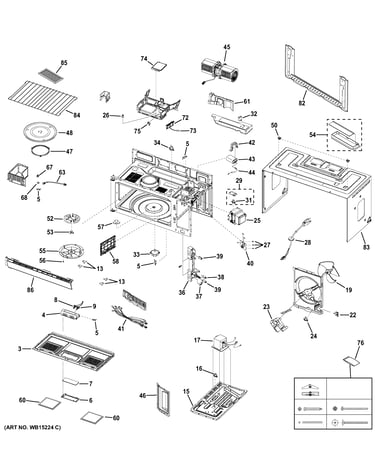

Oven cavity parts diagram

Switch-micro

Part #WB24X10038

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X10038. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Micro-switch WB24X10075
#38

Oven cavity parts diagram

Micro-switch

Part #WB24X10075

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X10075. Substitute parts can look different from the original.
BEST SELLER
$26.26 |
19% OFF Phone Price : $32.26
In Stock
Microwave Magnetron (replaces Wb27t10545) WB27X11079
#25

Oven cavity parts diagram

Microwave magnetron (replaces wb27t10545)

Part #WB27X11079

BEST SELLER
$125.59 |
9% OFF Phone Price : $137.59
In Stock
Microwave High-voltage Diode (replaces Wb27x608) WB27X1160
#44

Oven cavity parts diagram

Microwave high-voltage diode (replaces wb27x608)

Part #WB27X1160

BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Microwave Latch Body WB06X10676
#36

Oven cavity parts diagram

Microwave latch body

Part #WB06X10676

BEST SELLER
$58.66 |
9% OFF Phone Price : $64.66
In Stock
Microwave Door Interlock Switch Lever (replaces Wb6x10128) WB06X10128
#37

Oven cavity parts diagram

Microwave door interlock switch lever (replaces wb6x10128)

Part #WB06X10128

BEST SELLER
$9.13 |
10% OFF Phone Price : $10.13
In Stock
Microwave Power Control Board WB56X20629
#106

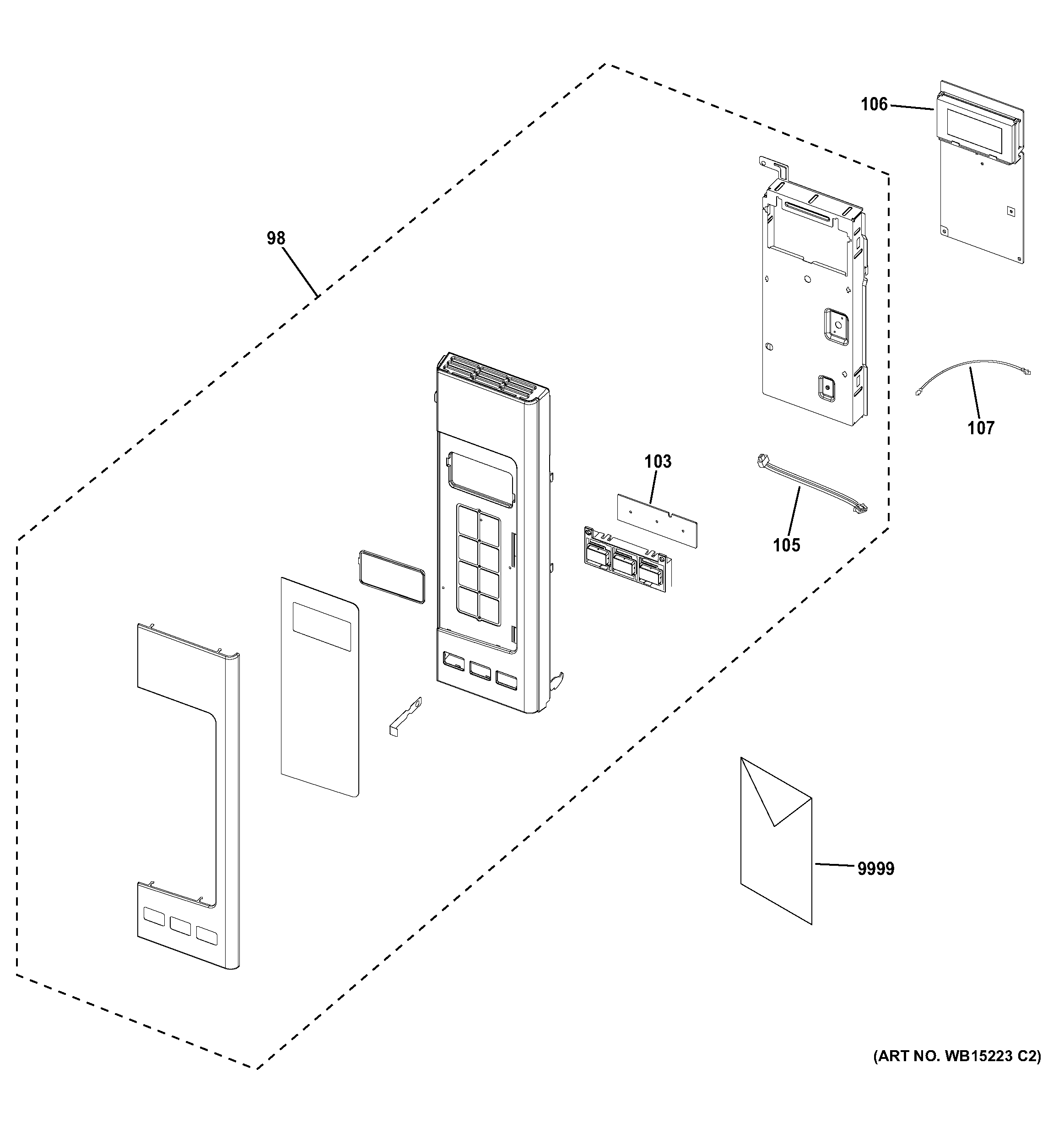

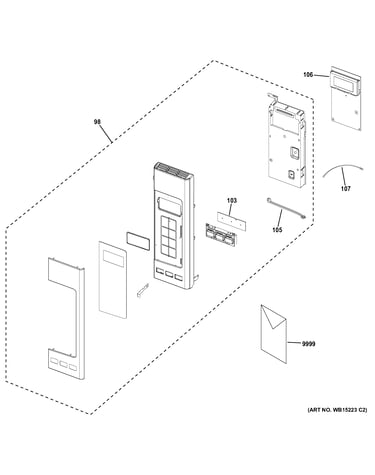

Control parts diagram

Microwave power control board

Part #WB56X20629

BEST SELLER
This item is not returnable
$261.44 |
$12.00 OFF Phone Price : $273.44
In Stock
Microwave Thermostat WB20X10060
#34

Oven cavity parts diagram

Microwave thermostat

Part #WB20X10060

This item is not returnable
$11.67 |
15% OFF Phone Price : $13.67
In Stock
Microwave Magnetron Thermostat WB27X11095
#31

Oven cavity parts diagram

Microwave magnetron thermostat

Part #WB27X11095

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Microwave Grease Filter WB02X11534
#60

Oven cavity parts diagram

Microwave grease filter

Part #WB02X11534

$20.47 |
23% OFF Phone Price : $26.47
In Stock
