Model # DWSR483GG3CC Official GE gas dryer

Here are the diagrams and repair parts for Official GE DWSR483GG3CC gas dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

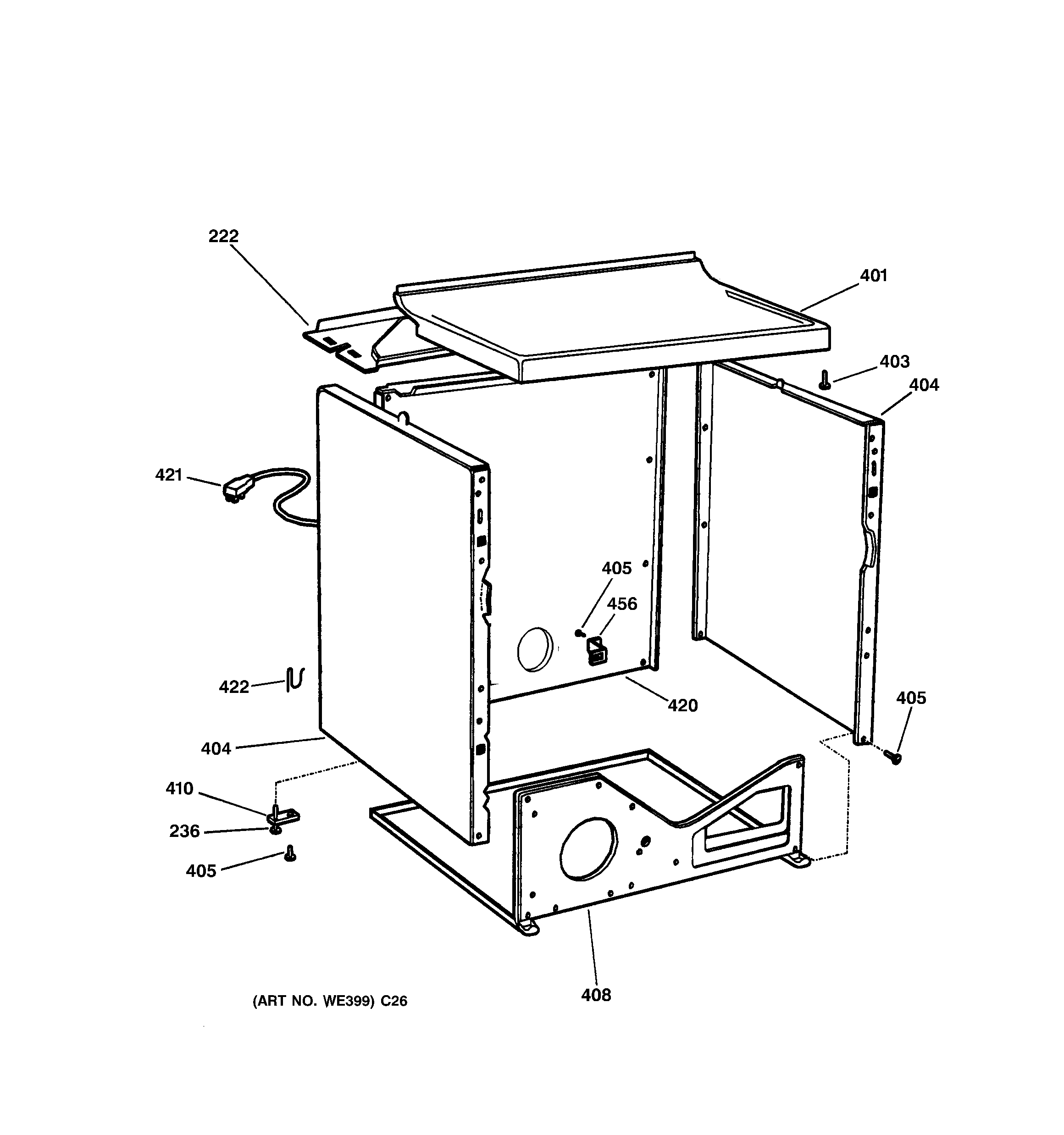

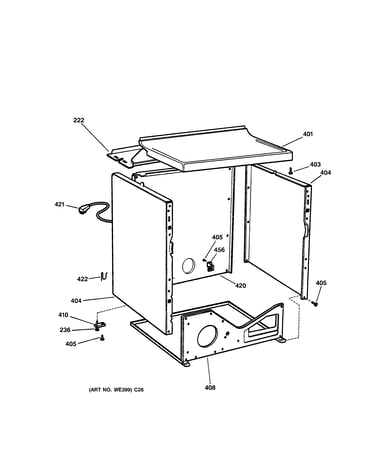

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
DWSR483GG3CC Gas Dryer
Dryer Drum Belt WE12M29
#213

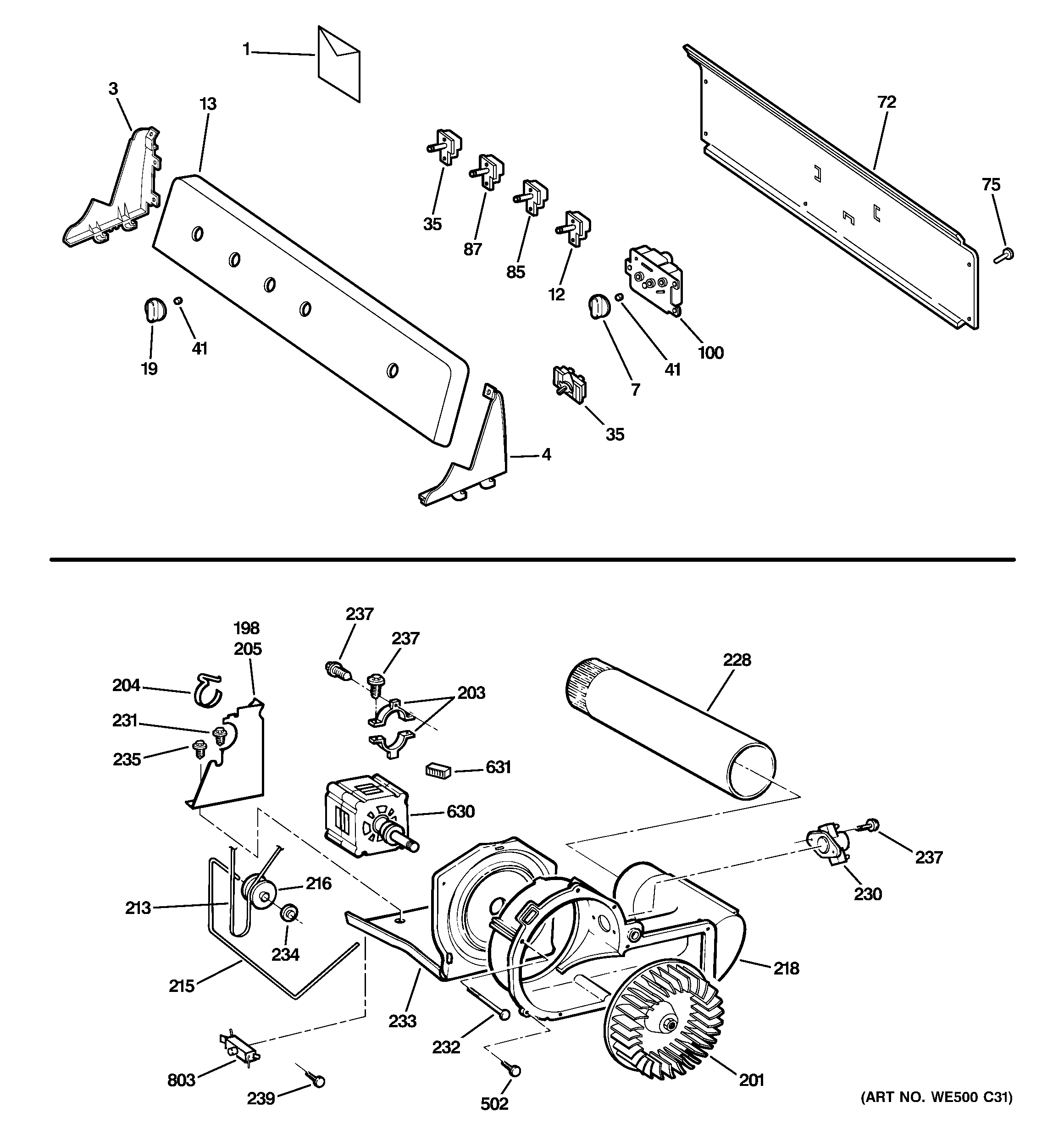

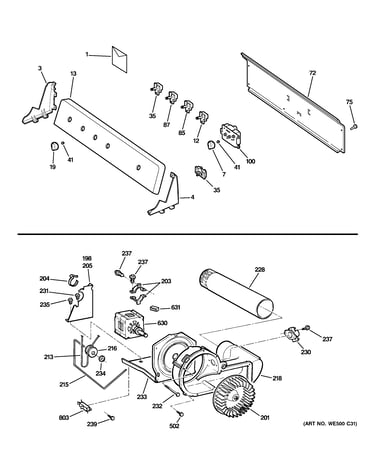

Backsplash, blower & motor diagram

Dryer drum belt

Part #WE12M29

Replaced by #WE03X29897

?
Manufacturer substitution
This part replaces WE12M29. Substitute parts can look different from the original.
BEST SELLER
$34.28
15% OFF Phone Price : $40.28
In Stock
G.e. Dryer Drum Bearing, Front (replaces We03m0026, We3m20) WE3M26
#313

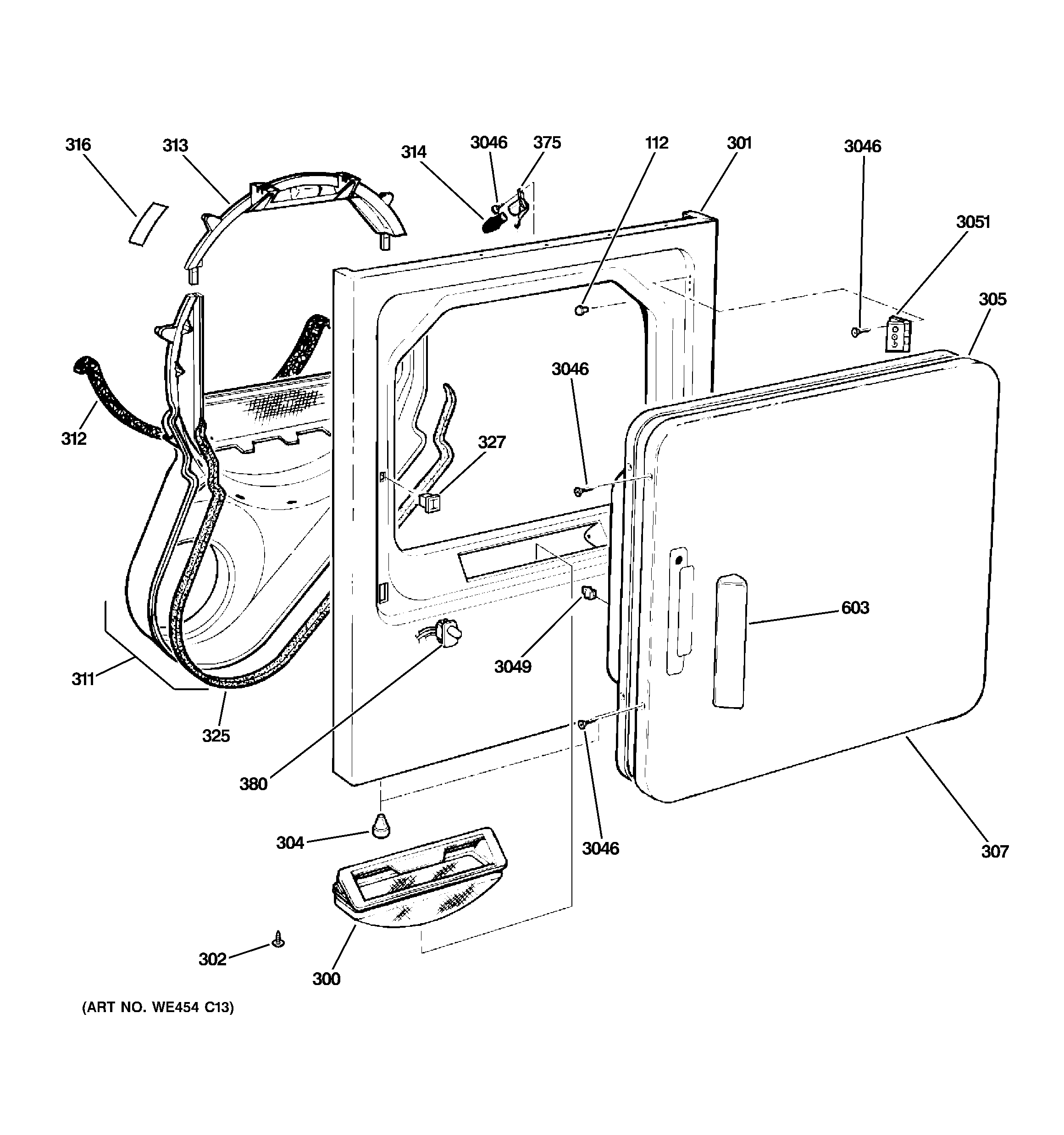

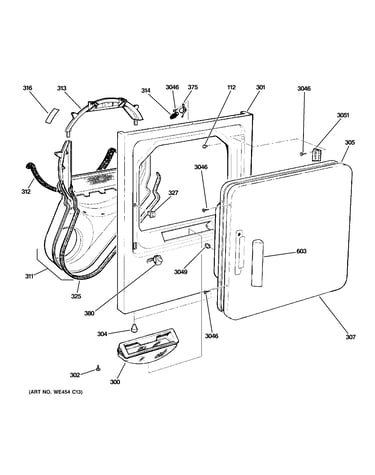

Front panel & door diagram

G.e. dryer drum bearing, front (replaces we03m0026, we3m20)

Part #WE3M26

BEST SELLER
$29.91
17% OFF Phone Price : $35.91
In Stock
Felt WE9M30
#312

Front panel & door diagram

Felt

Part #WE9M30

Replaced by #WE09X27634

?
Manufacturer substitution
This part replaces WE9M30. Substitute parts can look different from the original.
BEST SELLER
$22.51
21% OFF Phone Price : $28.51
In Stock
Idler Pulley WE12M8
#216

Backsplash, blower & motor diagram

Idler pulley

Part #WE12M8

Replaced by #WE12X83

?
Manufacturer substitution
This part replaces WE12M8. Substitute parts can look different from the original.
BEST SELLER
$24.78
19% OFF Phone Price : $30.78
In Stock
Igniter WE04X0739
#717

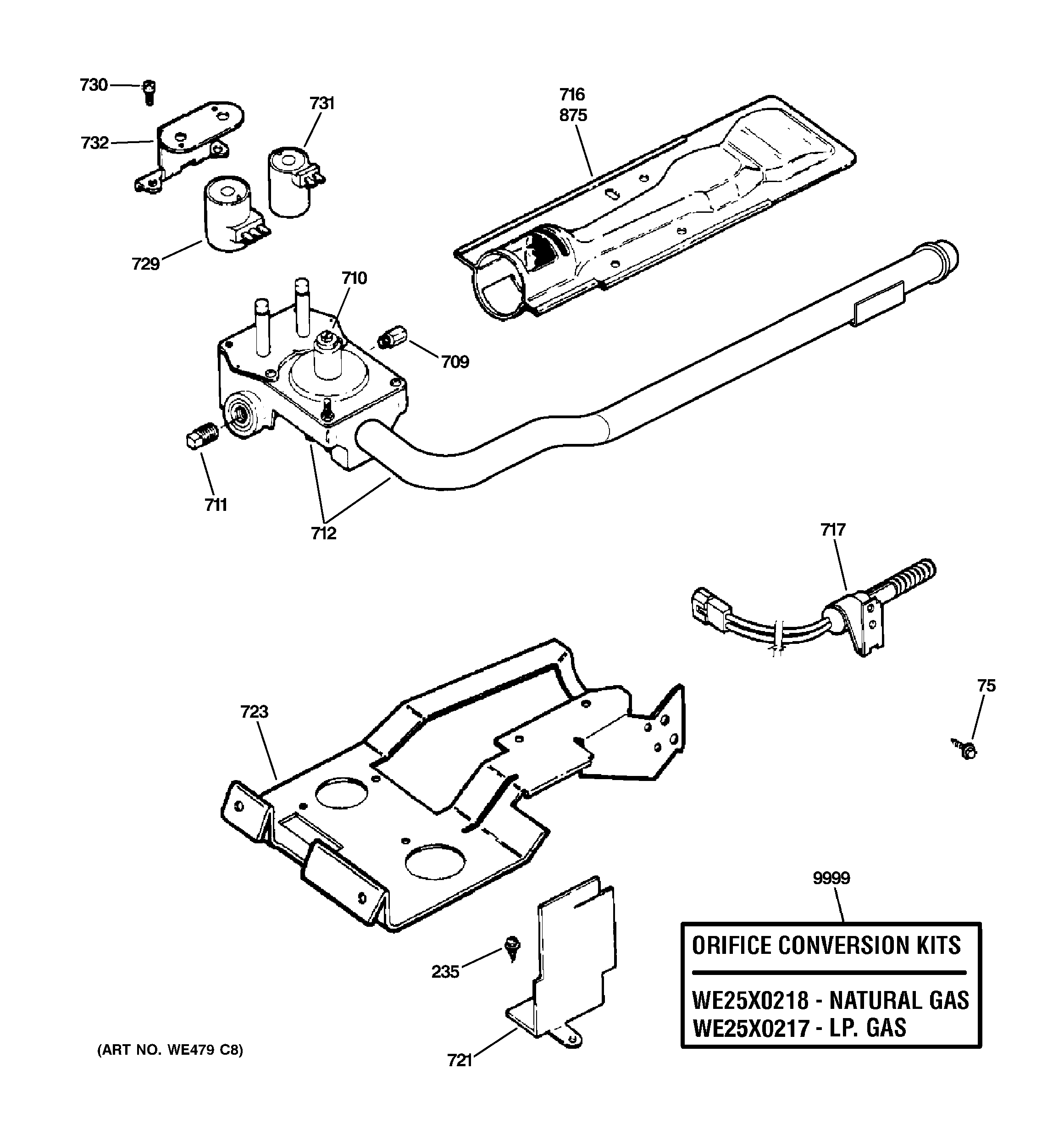

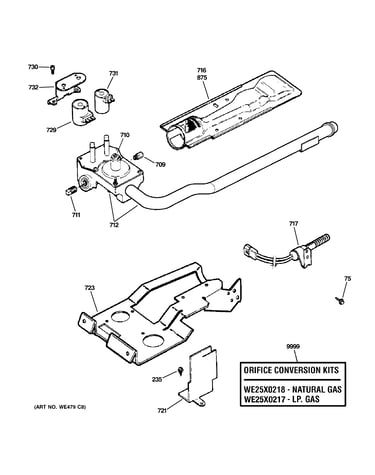

Gas valve & burner assembly diagram

Igniter

Part #WE04X0739

Replaced by #WE04X25996

?
Manufacturer substitution
This part replaces WE04X0739. Substitute parts can look different from the original.
BEST SELLER
$50.70
11% OFF Phone Price : $56.70
In Stock
Dryer Drum Bearing Bracket (replaces We01m0300) WE1M300
#3102

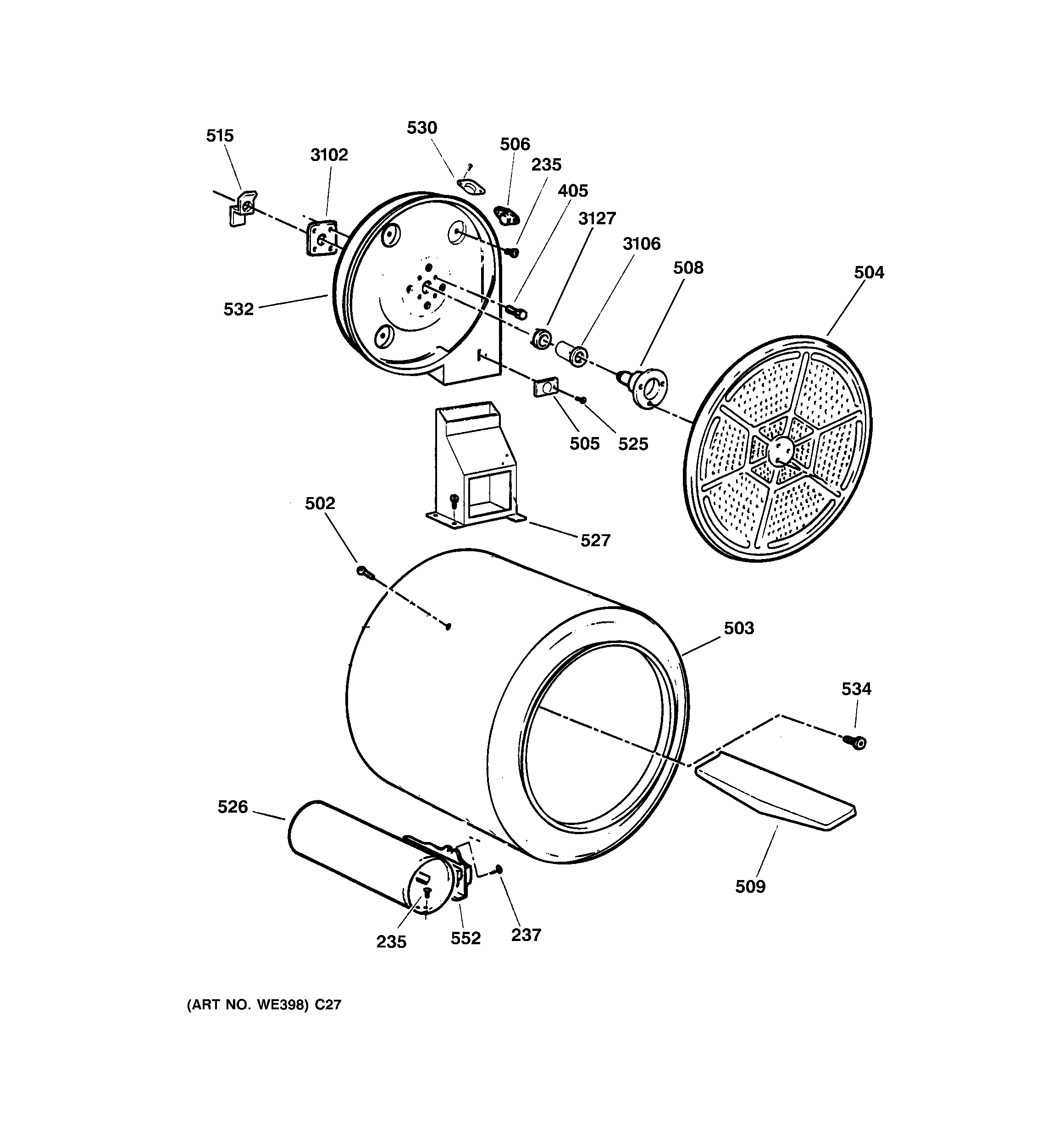

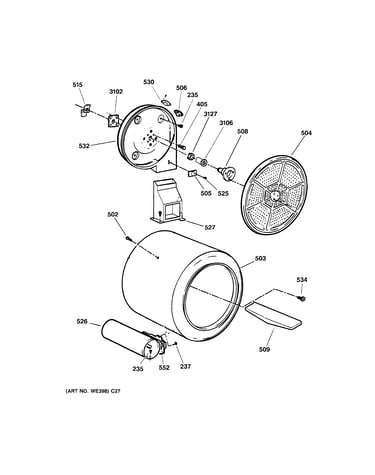

Drum diagram

Dryer drum bearing bracket (replaces we01m0300)

Part #WE1M300

BEST SELLER
$15.97
11% OFF Phone Price : $17.97
In Stock
Dryer Blower Wheel WE16M17
#201

Backsplash, blower & motor diagram

Dryer blower wheel

Part #WE16M17

Replaced by #WE16X20393

?
Manufacturer substitution
This part replaces WE16M17. Substitute parts can look different from the original.
BEST SELLER
$42.32
12% OFF Phone Price : $48.32
In Stock
Knob And Cli WH01X10307
#19

Backsplash, blower & motor diagram

Knob and cli

Part #WH01X10307

Replaced by #WE01X20378

?
Manufacturer substitution
This part replaces WH01X10307. Substitute parts can look different from the original.
BEST SELLER
$30.33
17% OFF Phone Price : $36.33
In Stock
Door Switch WE4M335
#380

Front panel & door diagram

Door switch

Part #WE4M335

Replaced by #WE4M415

?
Manufacturer substitution
This part replaces WE4M335. Substitute parts can look different from the original.
BEST SELLER
$30.40
16% OFF Phone Price : $36.40
In Stock
Interlock Switch WD21X0557
#803

Backsplash, blower & motor diagram

Interlock switch

Part #WD21X0557

Replaced by #WD21X10261

?
Manufacturer substitution
This part replaces WD21X0557. Substitute parts can look different from the original.
BEST SELLER
$21.69
22% OFF Phone Price : $27.69
In Stock
