Craftsman
Jointer/Planer

Model # 149236280 Official Craftsman 6-1/8" jointer/planer

Here are the diagrams and repair parts for Official Craftsman 149236280 6-1/8" jointer/planer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Set Screw STD502505
#48

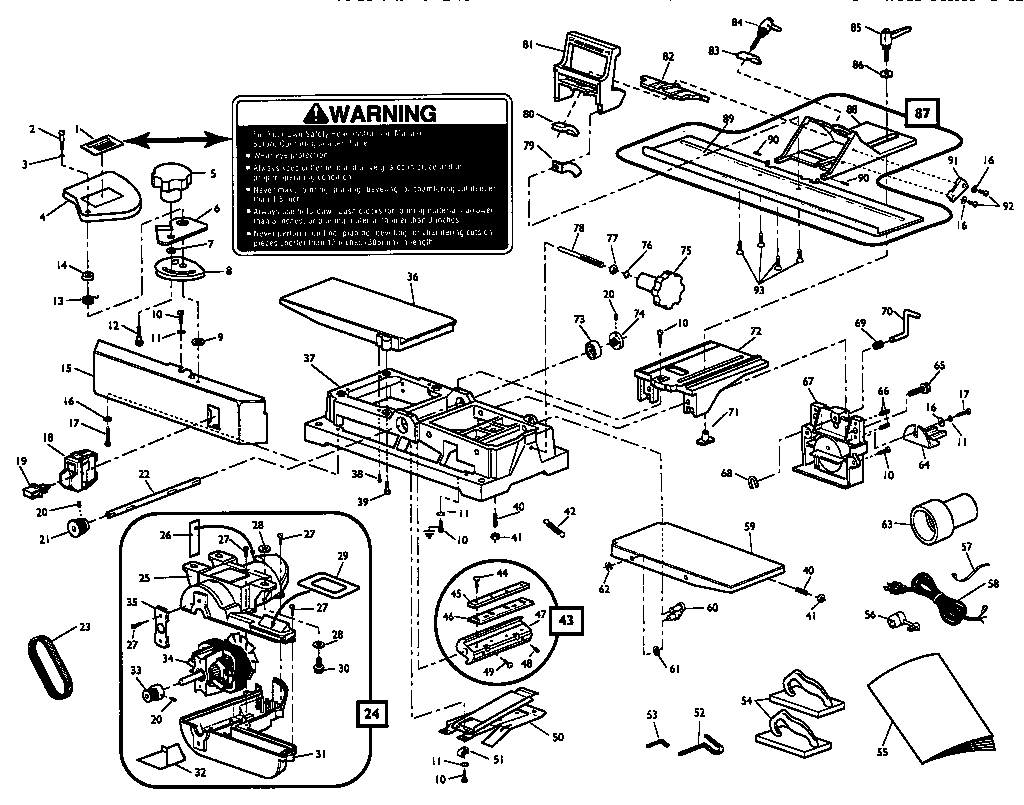

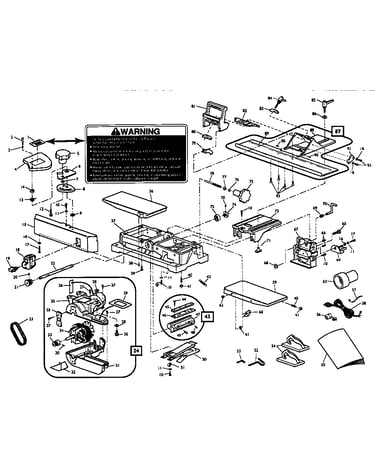

Unit parts diagram

Set screw

Part #STD502505

The manufacturer no longer makes this part, and there's no substitute part

Switch 2292-067-00
#18

Unit parts diagram

Switch

Part #2292-067-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 1705-015-00
#93

Unit parts diagram

Screw

Part #1705-015-00

The manufacturer no longer makes this part, and there's no substitute part

Handle 4540-162-70
#81

Unit parts diagram

Handle

Part #4540-162-70

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut, 3/8-16, 8-pack STD541237
#77

Unit parts diagram

Hex nut, 3/8-16, 8-pack

Part #STD541237

The manufacturer no longer makes this part, and there's no substitute part

Washer STD551010
#16

Unit parts diagram

Washer

Part #STD551010

The manufacturer no longer makes this part, and there's no substitute part

Housing 4540-222-70
#31

Unit parts diagram

Housing

Part #4540-222-70

The manufacturer no longer makes this part, and there's no substitute part

Cutter Head 4540-091-70
#47

Unit parts diagram

Cutter head

Part #4540-091-70

The manufacturer no longer makes this part, and there's no substitute part

Chute 4540-042-70
#50

Unit parts diagram

Chute

Part #4540-042-70

The manufacturer no longer makes this part, and there's no substitute part

No. 10-24 X 3/8" Nylock Set Screw STD501003
#66

Unit parts diagram

No. 10-24 x 3/8" nylock set screw

Part #STD501003

The manufacturer no longer makes this part, and there's no substitute part
