Model # 875199530 Official Craftsman rotary tool

Here are the diagrams and repair parts for Official Craftsman 875199530 rotary tool, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Pneumatic Tool Valve 120480
#4

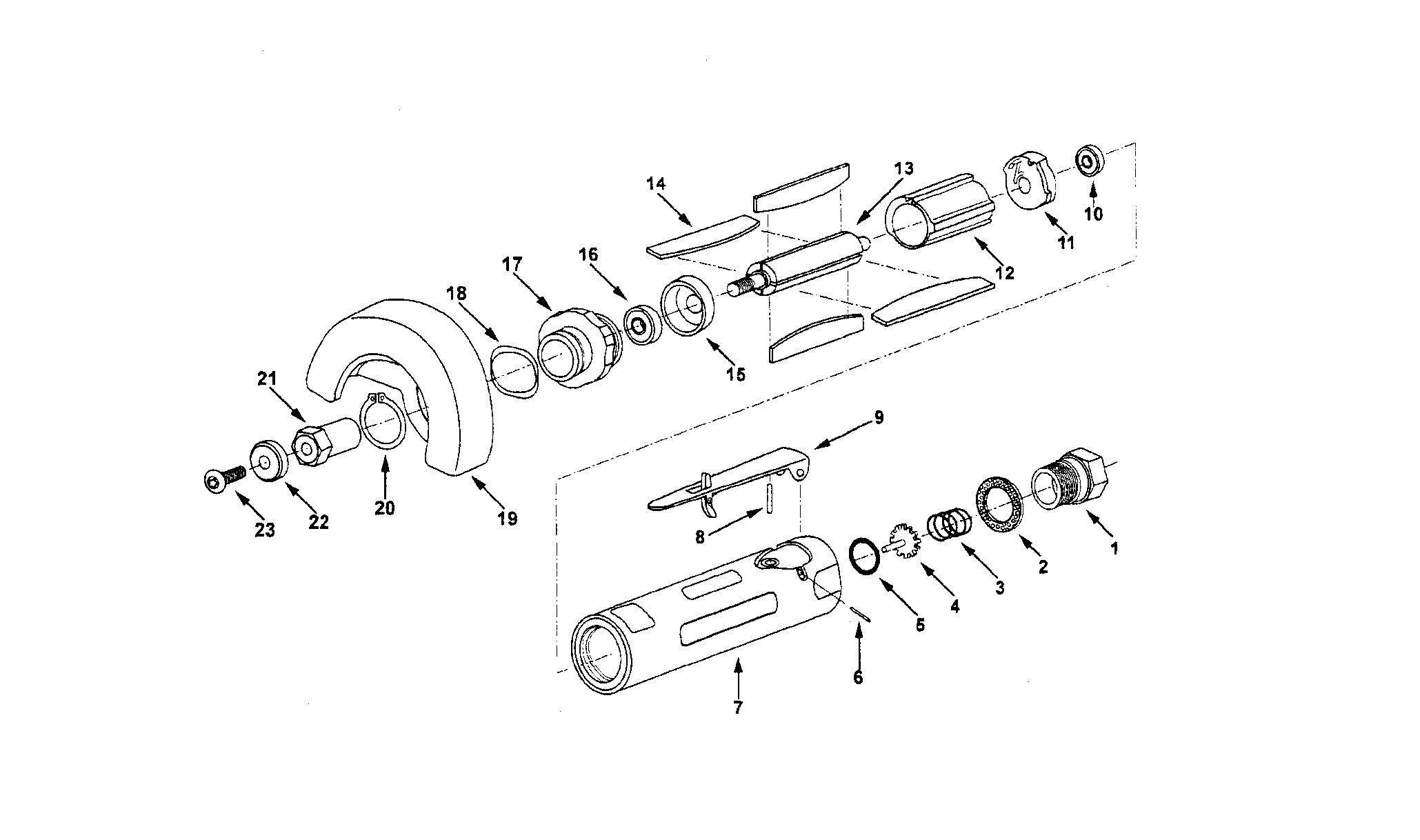

Rotar tool diagram

Pneumatic tool valve

Part #120480

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Rotary Tool Arbor Screw 117065
#23

Rotar tool diagram

Craftsman rotary tool arbor screw

Part #117065

The manufacturer no longer makes this part, and there's no substitute part

Valve Pin 120490
#8

Rotar tool diagram

Valve pin

Part #120490

The manufacturer no longer makes this part, and there's no substitute part

Grinder Washer 115170
#5

Rotar tool diagram

Grinder washer

Part #115170

The manufacturer no longer makes this part, and there's no substitute part

Rotor Vane 116260
#14

Rotar tool diagram

Rotor vane

Part #116260

The manufacturer no longer makes this part, and there's no substitute part

Handle Assembly 260348
#7

Rotar tool diagram

Handle assembly

Part #260348

The manufacturer no longer makes this part, and there's no substitute part

Front Plate 113200
#15

Rotar tool diagram

Front plate

Part #113200

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Lock Nut 108110
#17

Rotar tool diagram

Craftsman lock nut

Part #108110

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Rotary Tool Arbor Flange 117040
#22

Rotar tool diagram

Craftsman rotary tool arbor flange

Part #117040

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Arbor 107250
#21

Rotar tool diagram

Craftsman arbor

Part #107250

The manufacturer no longer makes this part, and there's no substitute part
