Model # 143751042 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143751042 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |

Spark Plug 33636
#37

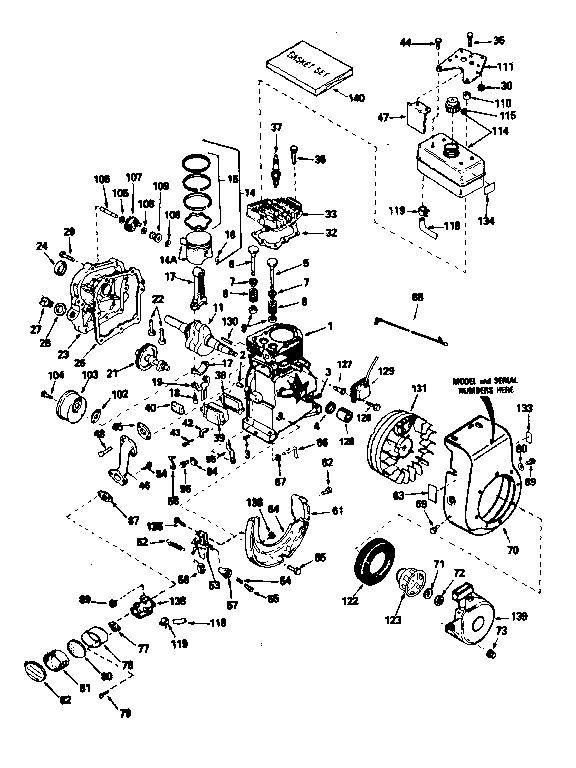

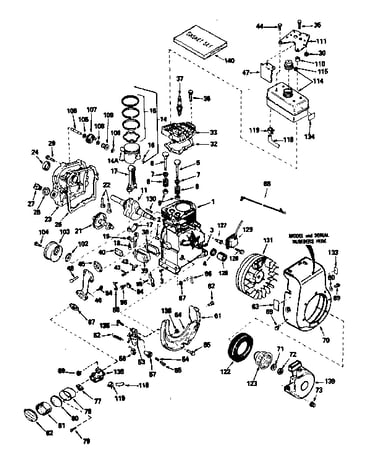

Engine diagram

Spark plug

Part #33636

Replaced by #J19LM

?
Manufacturer substitution
This part replaces 33636. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.80
17% OFF Phone Price : $5.80
In Stock
Spark Plug 34251
#37A

Engine diagram

Spark plug

Part #34251

Replaced by #J19LM

?
Manufacturer substitution
This part replaces 34251. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.80
17% OFF Phone Price : $5.80
In Stock
Lawn & Garden Equipment Engine Recoil Starter Rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032) 590535
#9

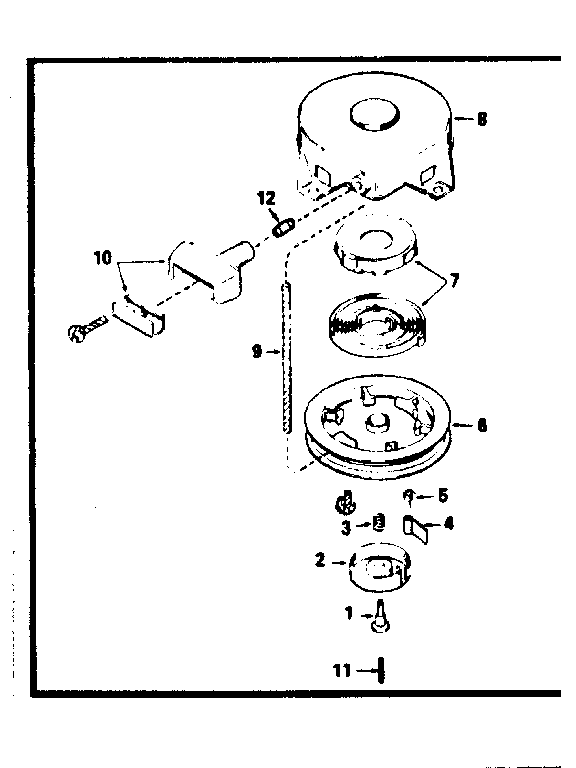

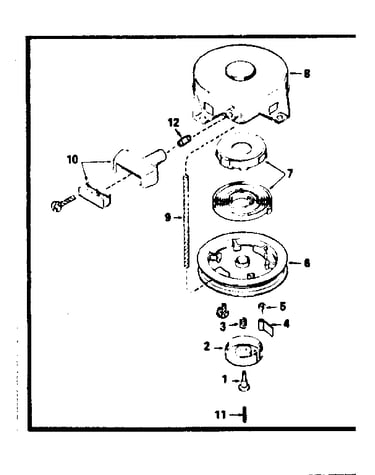

590420a starter, rewind diagram

Lawn & garden equipment engine recoil starter rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032)

Part #590535

BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lamination 34443A
#129

Engine diagram

Lamination

Part #34443A

Replaced by #34443D

?
Manufacturer substitution
This part replaces 34443A. Substitute parts can look different from the original.
BEST SELLER
$45.43
12% OFF Phone Price : $51.43
In Stock
Generac Lawn & Garden Equipment Engine Fuel Line (replaces 14306, 34357) 29774
#118

Engine diagram

Generac lawn & garden equipment engine fuel line (replaces 14306, 34357)

Part #29774

BEST SELLER
This item is not returnable
$5.99
14% OFF Phone Price : $6.99
In Stock
Generac Lawn & Garden Equipment Engine Service Manual (replaces 692509, 730546, 740048) 740049

#NI

All parts diagram

Generac lawn & garden equipment engine service manual (replaces 692509, 730546, 740048)

Part #740049

This item is not returnable
$12.19
14% OFF Phone Price : $14.19
In Stock
Carburetor 632208
Carburetor

Part #632208

Replaced by #632615

?
Manufacturer substitution
This part replaces 632208. Substitute parts can look different from the original.
$96.19
11% OFF Phone Price : $108.19
In Stock
Lawn & Garden Equipment Throttle Shaft Return Spring (replaces 630731, 631279, 631279a, 631279l, 632016) 631767
#2

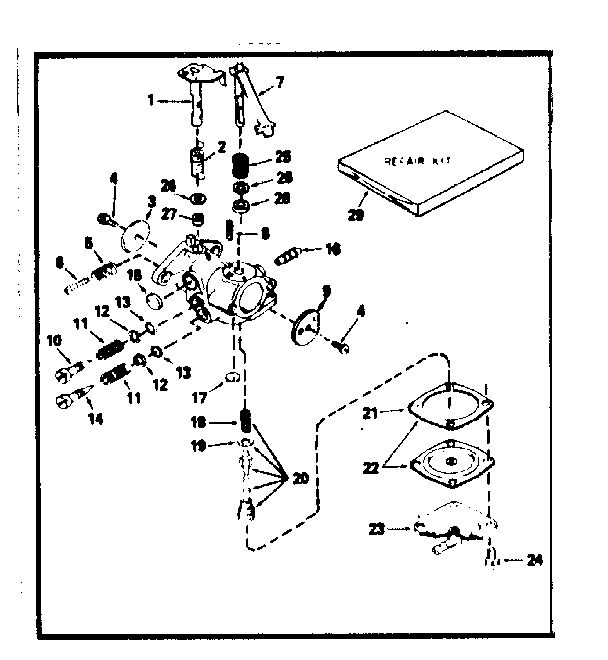

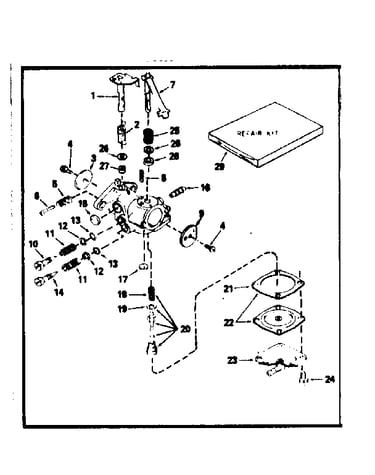

Carburetor no. 632208 diagram

Lawn & garden equipment throttle shaft return spring (replaces 630731, 631279, 631279a, 631279l, 632016)

Part #631767

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Control Assembly 33858A
#53

Engine diagram

Control assembly

Part #33858A

Replaced by #36677

?
Manufacturer substitution
This part replaces 33858A. Substitute parts can look different from the original.
$39.34
13% OFF Phone Price : $45.34
In Stock
Lauson Lawn & Garden Equipment Engine Carburetor Diaphragm 630978
#22

Carburetor no. 632208 diagram

Lauson lawn & garden equipment engine carburetor diaphragm

Part #630978

This item is not returnable
$6.79
13% OFF Phone Price : $7.79
In Stock
