Model # 989795040 Official Craftsman trimmer & brushcutter

Here are the diagrams and repair parts for Official Craftsman 989795040 trimmer & brushcutter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |

Screw 223357
#30

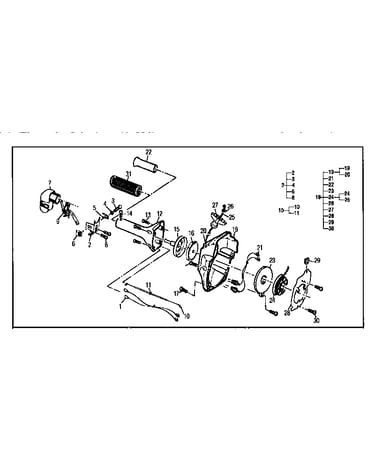

Starter assembly diagram

Screw

Part #223357

The manufacturer no longer makes this part, and there's no substitute part

Screen 322032
#8

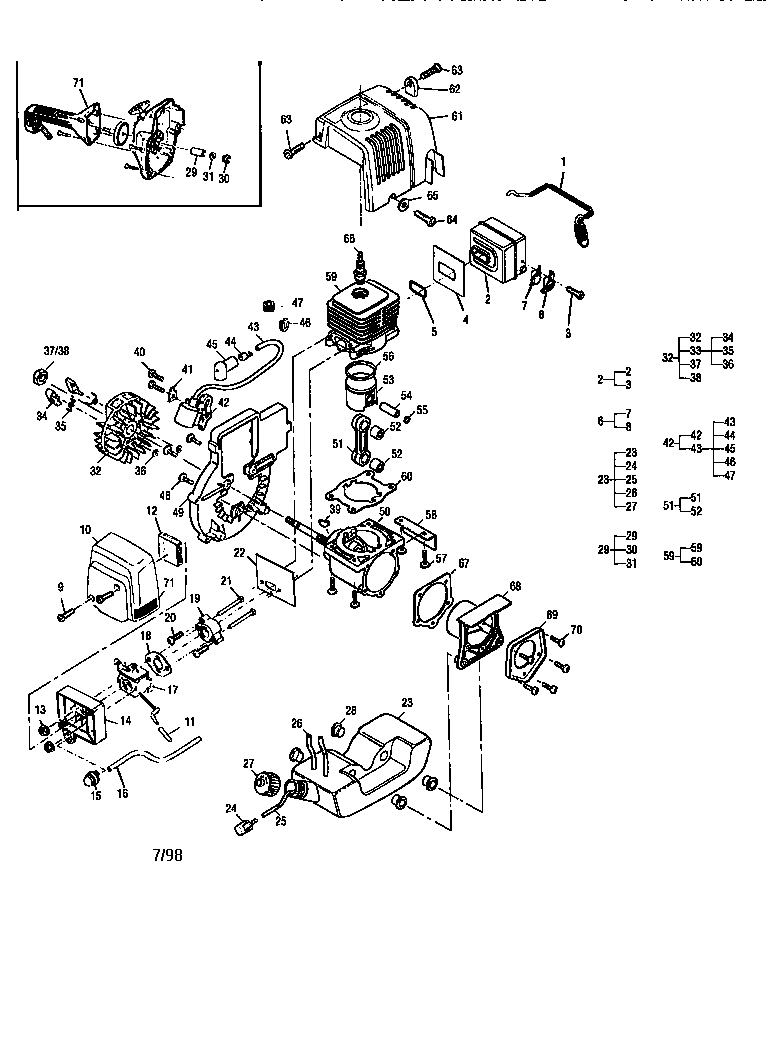

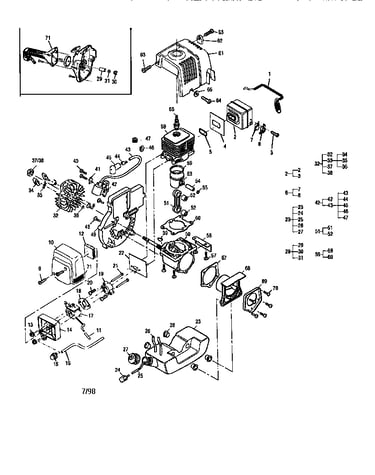

Powerhead diagram

Screen

Part #322032

The manufacturer no longer makes this part, and there's no substitute part

Kit 300318
#24

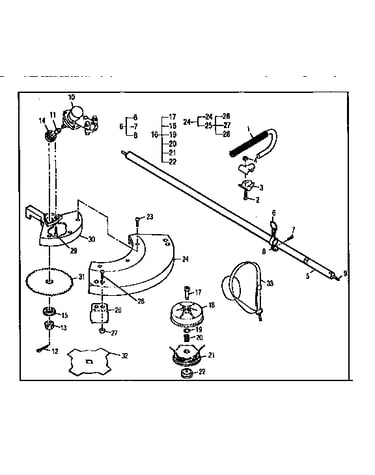

Shaft/handle/stringhead diagram

Kit

Part #300318

The manufacturer no longer makes this part, and there's no substitute part

Terminal 300321
#41

Powerhead diagram

Terminal

Part #300321

The manufacturer no longer makes this part, and there's no substitute part

Cap, Adj, Low, 2 Stg., Nat 111217
#36

Carburetor diagram

Cap, adj, low, 2 stg., nat

Part #111217

The manufacturer no longer makes this part, and there's no substitute part

Starter Assembly 224916-61
#18

Starter assembly diagram

Starter assembly

Part #224916-61

The manufacturer no longer makes this part, and there's no substitute part

Knife 300626
#25

Shaft/handle/stringhead diagram

Knife

Part #300626

The manufacturer no longer makes this part, and there's no substitute part

Drum Rope Assembly 300872
#24

Starter assembly diagram

Drum rope assembly

Part #300872

The manufacturer no longer makes this part, and there's no substitute part

Shroud 302786
#49

Powerhead diagram

Shroud

Part #302786

The manufacturer no longer makes this part, and there's no substitute part

Piston Pin 300482
#54

Powerhead diagram

Piston pin

Part #300482

The manufacturer no longer makes this part, and there's no substitute part
