Model # FUM17DRARWH Official GE freezer - r series

Here are the diagrams and repair parts for Official GE FUM17DRARWH freezer - r series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

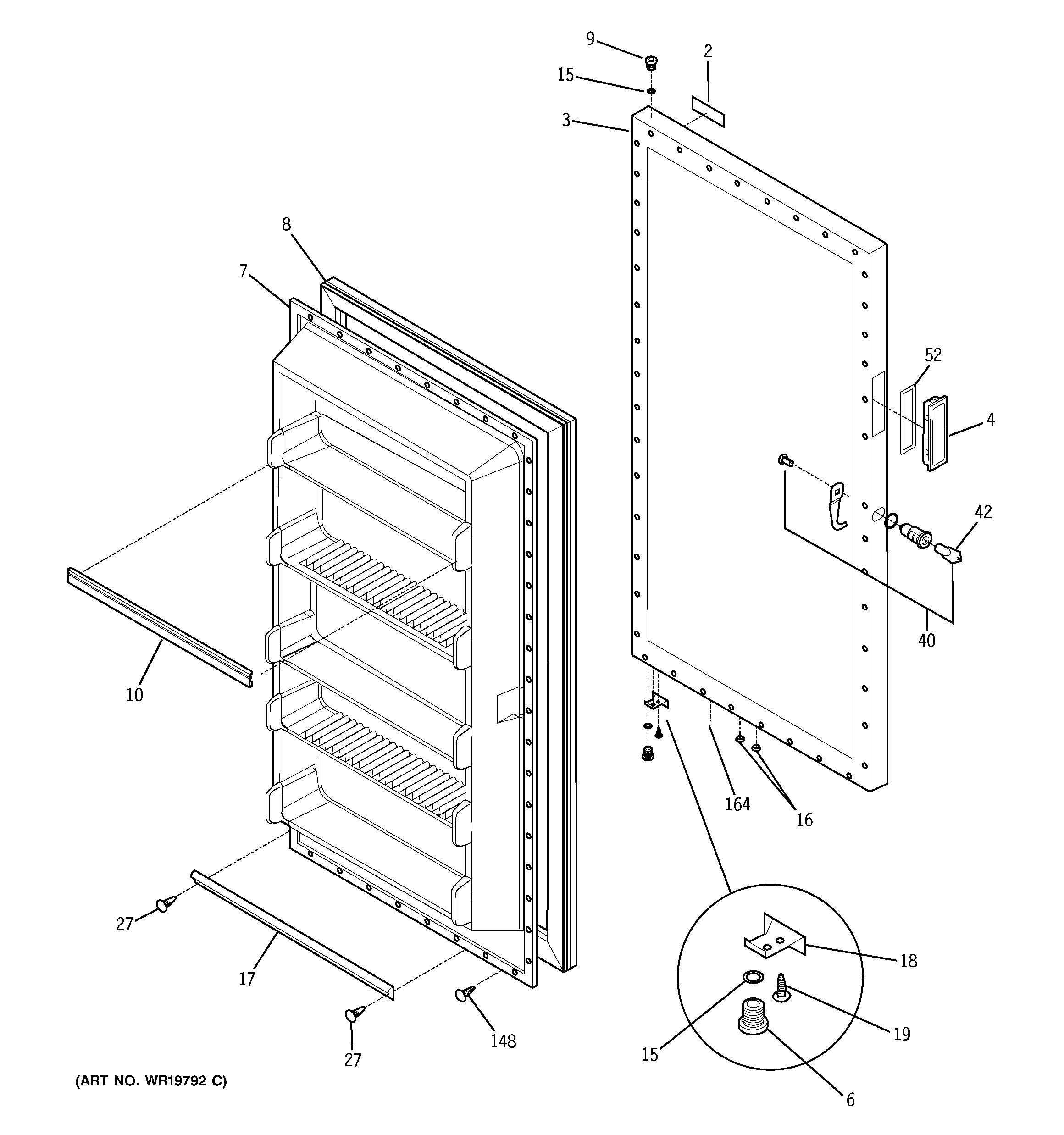

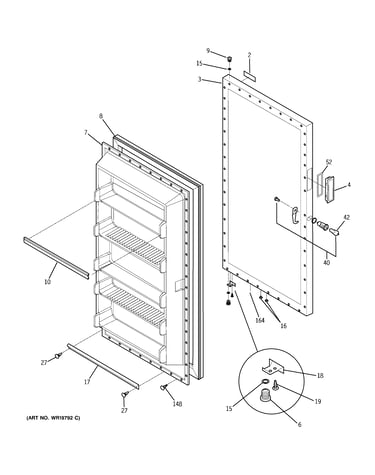

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 69 parts |

#22

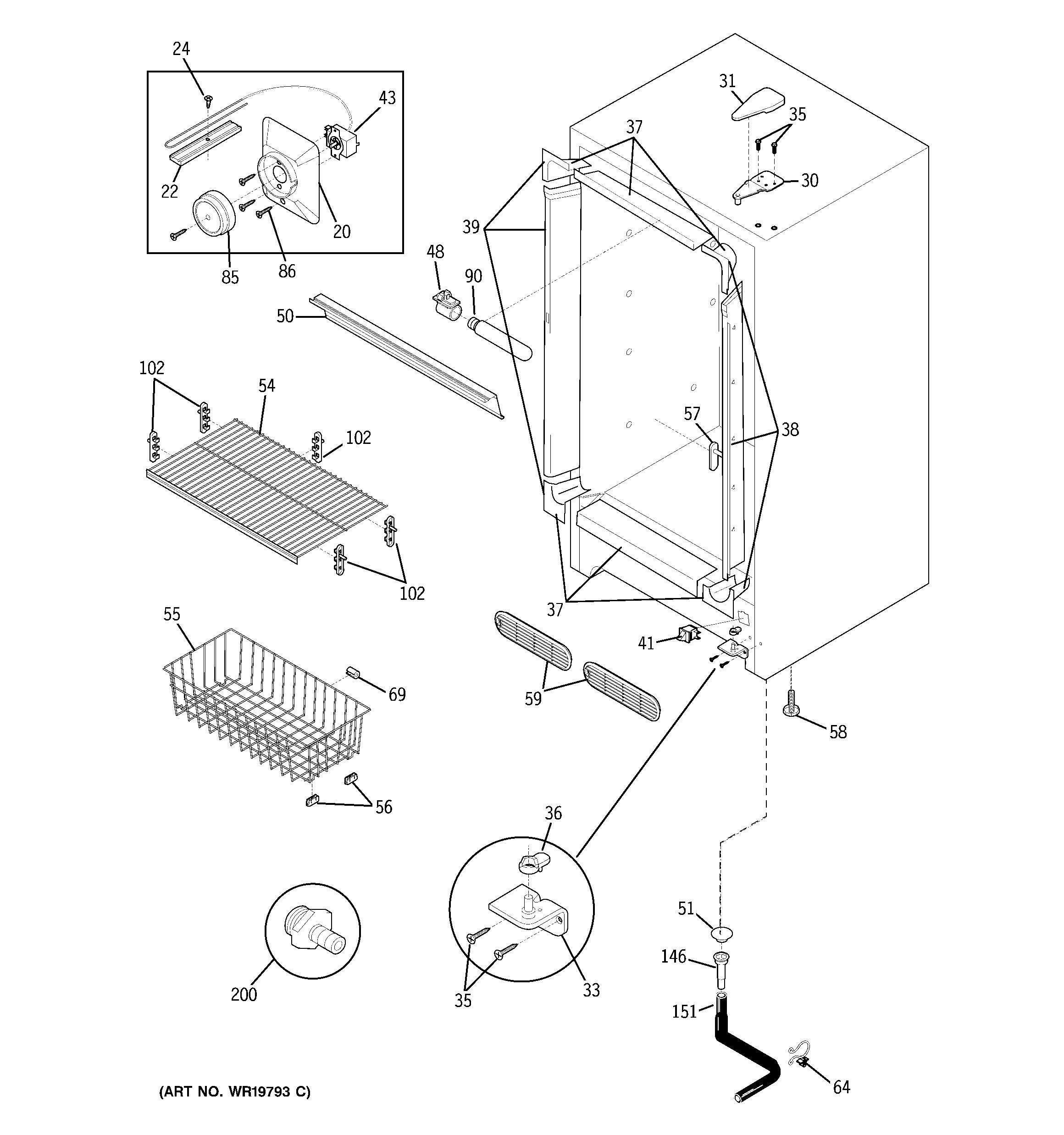

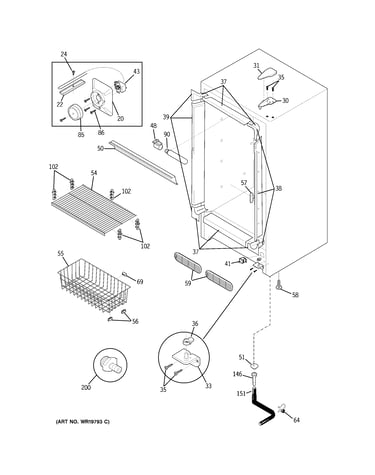

Cabinet diagram

Clamp capillary tube

Part #WR02X11441

$8.11

In Stock

Qty

#41

Cabinet diagram

Freezer door switch

Part #WR23X10303

$64.46 |

9% OFF Phone Price : $70.46

In Stock

Qty

#100

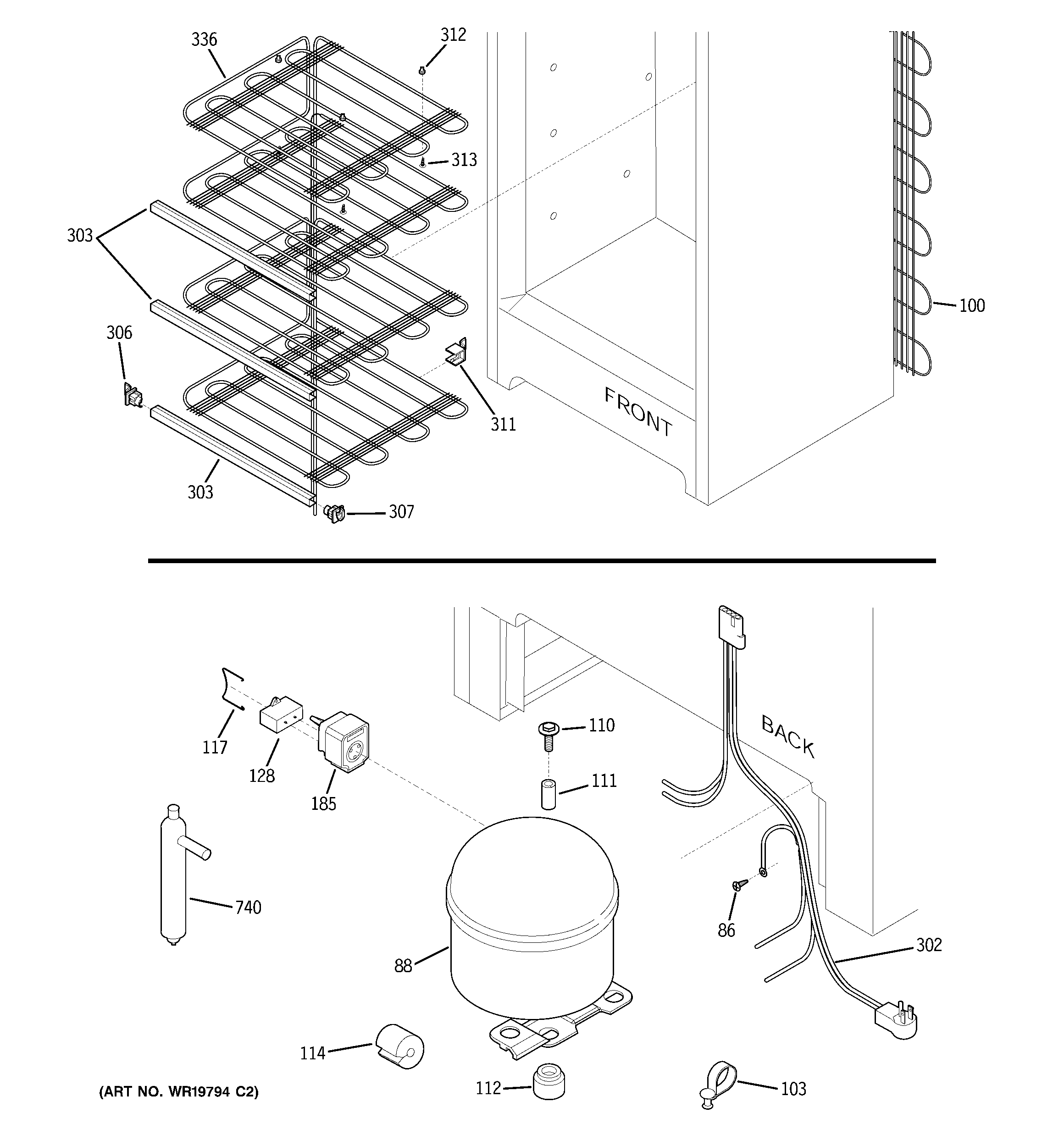

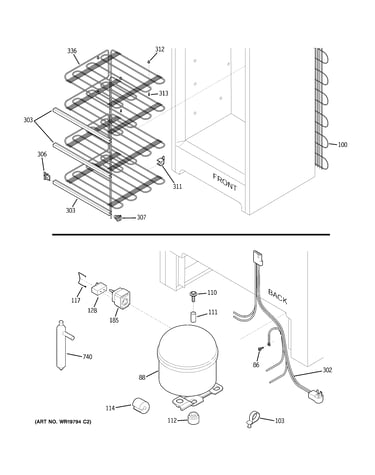

Unit parts diagram

Condenser

Part #WR84X5007

$279.53

In Stock

Qty

#56

Cabinet diagram

Glide basket

Part #WR02X11444

$81.57 |

7% OFF Phone Price : $87.57

In Stock

Qty

#85

Cabinet diagram

Temperature complete knob

Part #WR02X10860

$38.89 |

13% OFF Phone Price : $44.89

In Stock

Qty

#69

Cabinet diagram

Bumper

Part #WR02X6361

Replaced by #WR2X6361

$17.11

In Stock

Qty

#303

Unit parts diagram

Freezer shelf trim

Part #WR38X10299

Replaced by #WR38X32250

$111.07

In Stock

Qty

#312

Unit parts diagram

Grommet spacer

Part #WR01X2182

Replaced by #WR1X2182

This item is not returnable

$4.35

In Stock

Qty

#111

Unit parts diagram

Mounting sleeve

Part #WR02X9497

Replaced by #WR2X9497

$45.51

In Stock

Qty

#740

Unit parts diagram

Filter drier

Part #WR86X10032

Replaced by #WR86X10005

$58.31 |

9% OFF Phone Price : $64.31

In Stock

Qty
